User Manual for SJCAM SJ6 Legend 4K Action Camera Click to enlarge the picture
Contents of the user manual for the SJCAM SJ6 Legend 4K Action Camera
- Product category: Sports & Action Cameras SJCAM
- Brand: SJCAM
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SJCAM Sports & Action Cameras
 |
User manual for the SJCAM SJ6 Legend 4K Action Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SJCAM product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SJCAM user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SJCAM product will considerably shorten its lifespan!
|

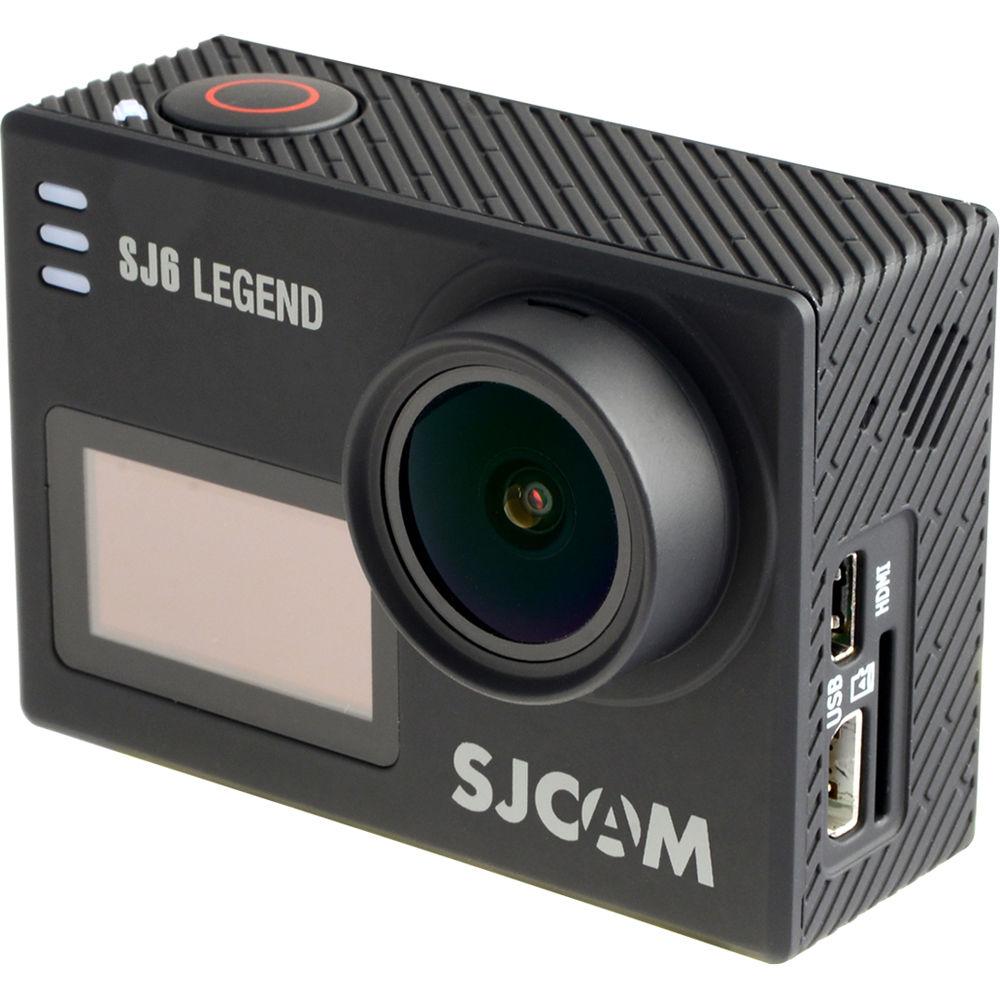

Product description Whether you're recording running, biking, flying, driving, or boating videos, the black SJ6 Legend 4K Action Camera from SJCAM features a waterproof case, gyro stabilization, and 4K resolution to capture sharp, high-quality footage no matter what the scene. The lightweight plastic body weighs only a few ounces and features a Panasonic MN34120PA CMOS sensor with a Novatek 96660 chipset.
The SJ6 Legend records MOV/MP4 H.264 video at a maximum resolution of 2880 x 2160p at 24 fps, and takes 16MP JPEG photos at a maximum resolution of 4608 x 3456. It has a 166° wide angle lens that facilitates quick focus and captures a large field of view. Numerous modes add to the functionality of the camera such as low light, time-lapse, photo burst, slow motion, video+photo, and TV mode, and it even has settings for underwater (tinting), car (syncs to engine with optional cable), and FPV (first person view) modes.

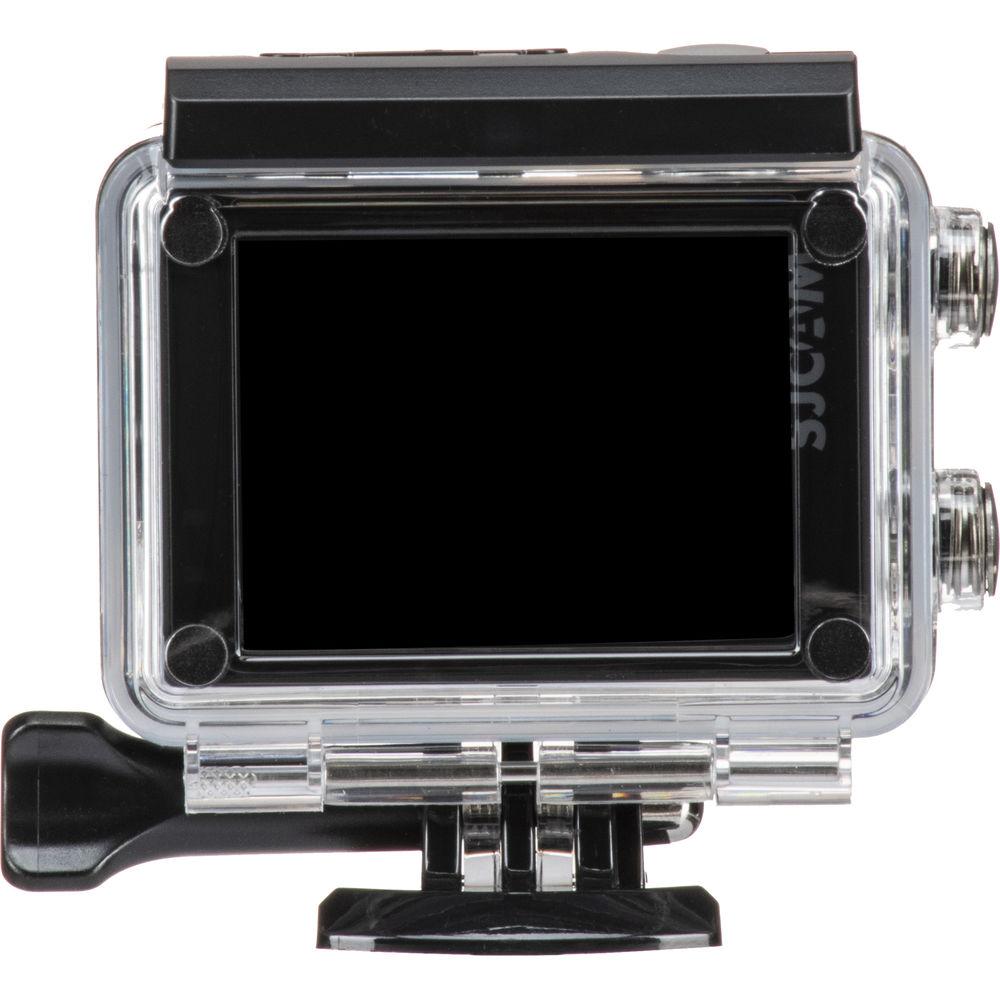

Its 2" LCD rear touchscreen provides access to settings such as distortion correction, metering, 180° rotation, exposure time, adjustable FOV, loop recording, double file, raw photos, GYRO, EV, color, and white balance, each allowing you to fine-tune your shots. It also has a front LCD with basic information like timecode, resolution, battery level, and record mode.

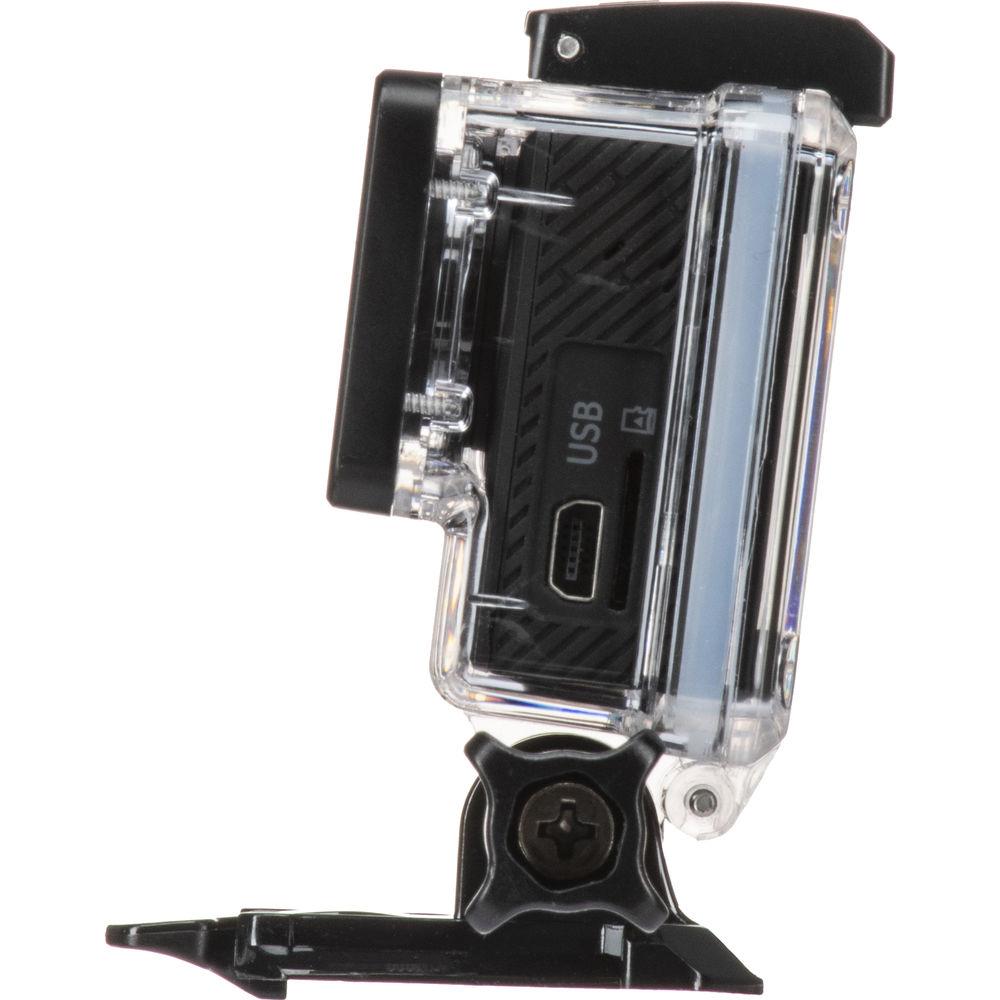

The SJ6's 1000mAh battery lasts approximately two hours on a full charge and can be charged via mini-USB. Since it's removable, you can purchase a spare to swap in for longer shoots and charge with a separately available battery charger. The unit records to a microSD card with a maximum size of 128GB, and you can also output your video and photos via a micro-HDMI port. The USB port also allows you to plug in a separately available external microphone, and a small speaker and mic are integrated on the side of the camera.
The unit is equipped with Wi-Fi, and an optional wireless remote can be purchased separately to control video start/stop, photo burst, Wi-Fi on/off, photo shutter, and camera on/off. You can also use your iOS or Android smartphone to control the camera's operations or edit and share your photos and videos with the free SJCAM Zone app.

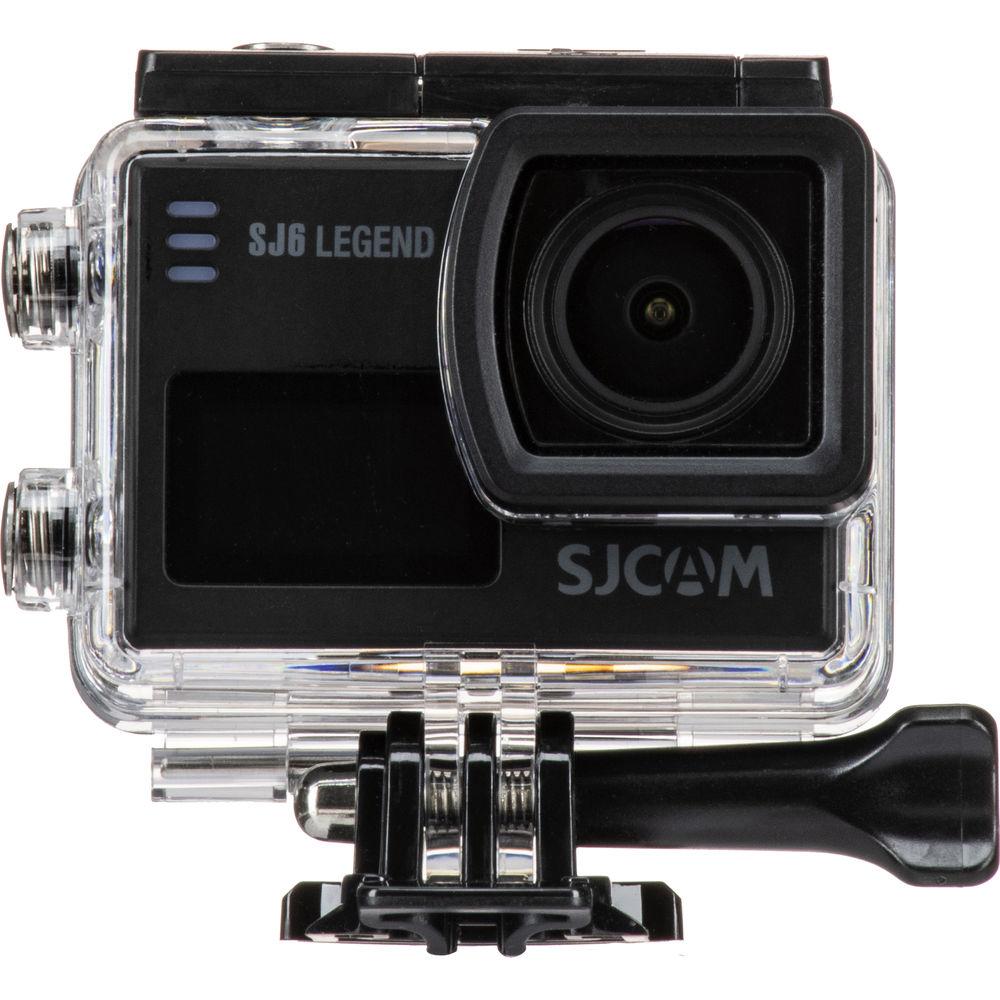

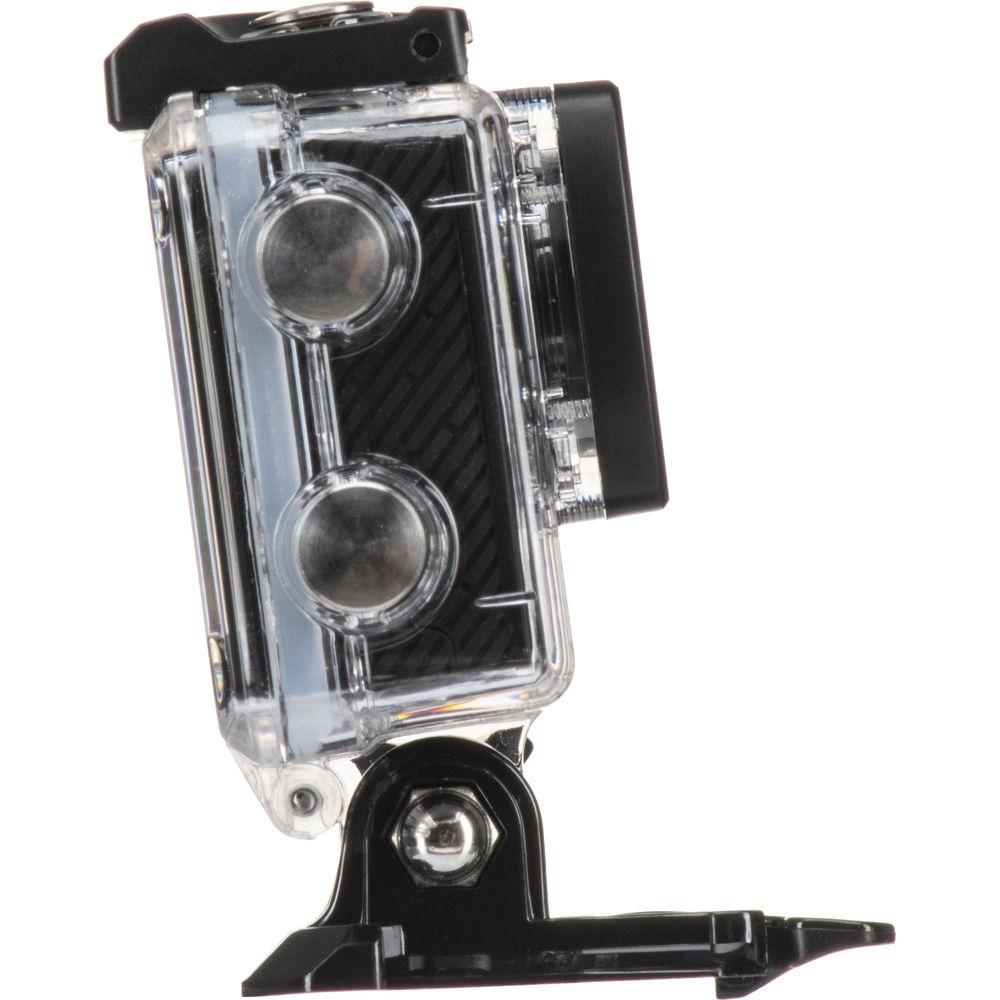

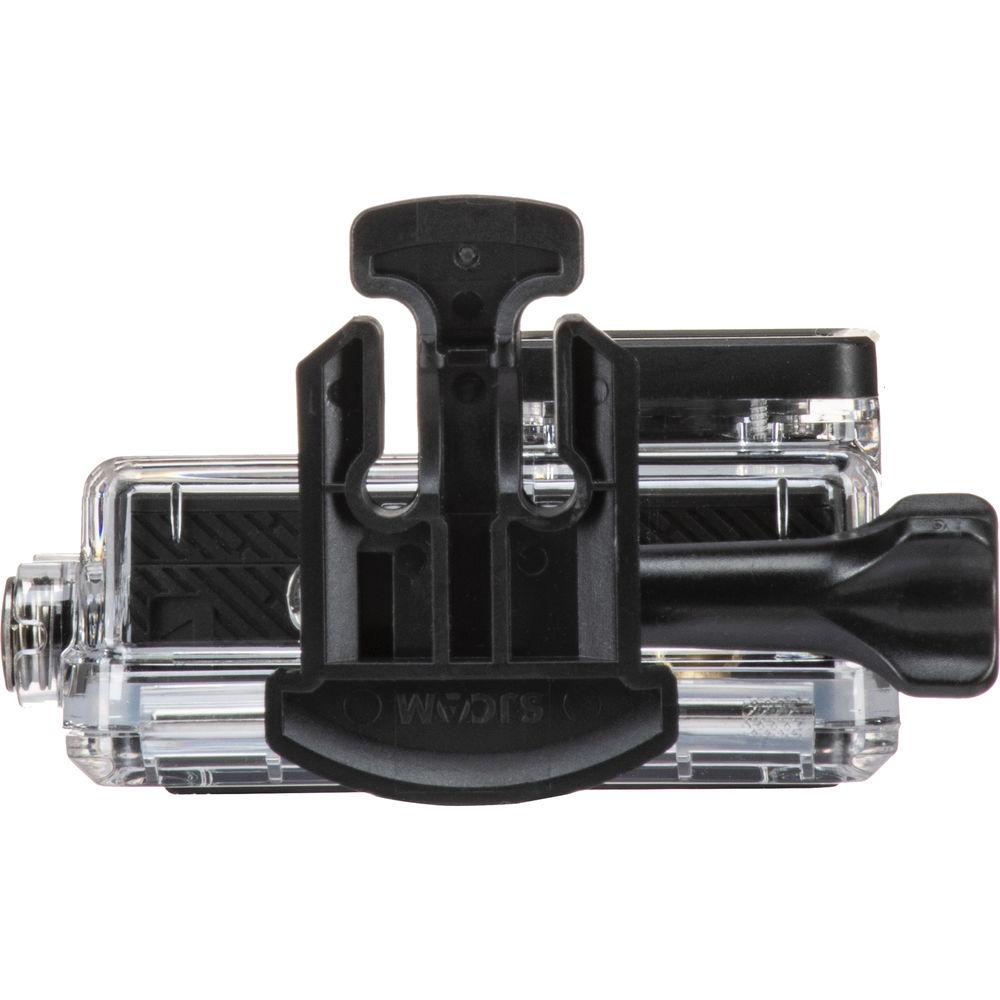

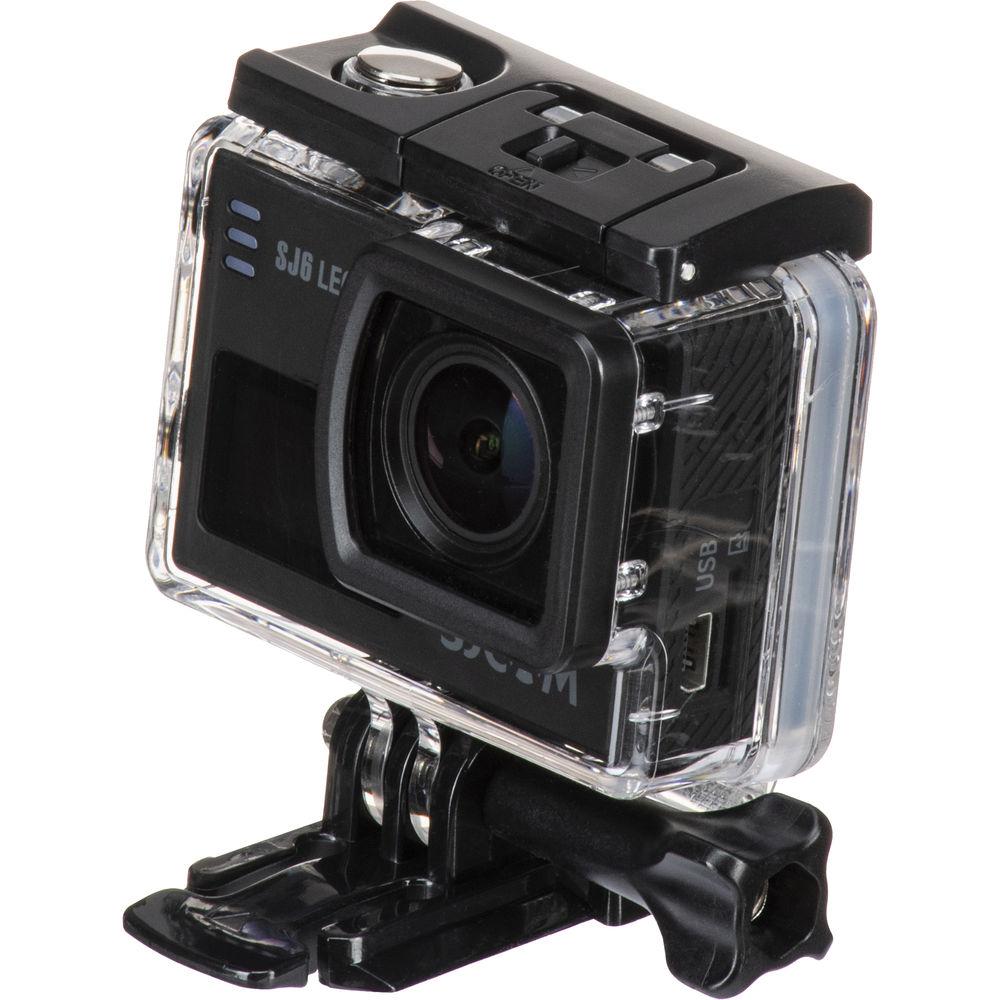

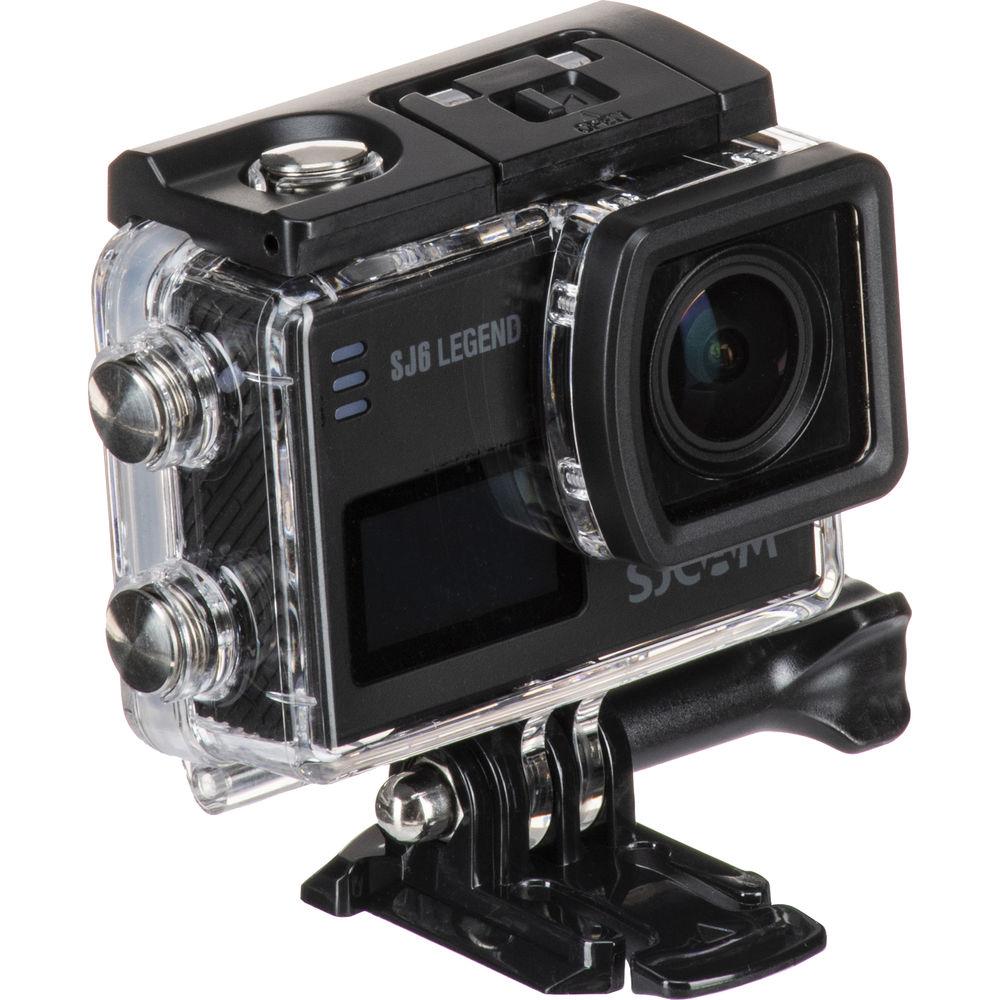

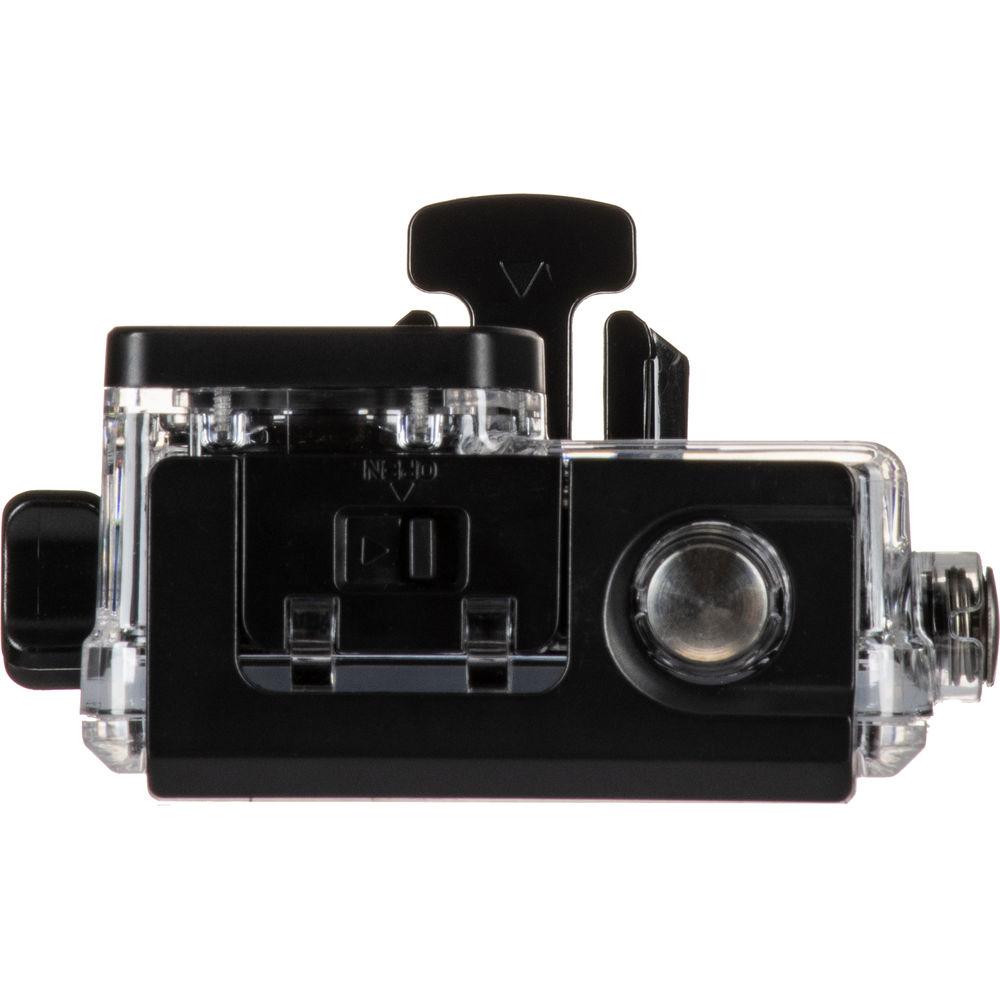

The SJ6 comes with multiple mounting options, bases, and plates for optimal placement flexibility, as well as a waterproof back housing door and a touchscreen door for non-waterproof access during your shoot. The camera package also includes a mini-USB cable, lens cap, and cleaning cloth. - Panasonic MN34120PA CMOS sensor; Novatek 96660 chipset
- MOV/MP4 H.264 video at a maximum resolution of 2880 x 2160p at 24 fps; slow-motion recording at 1280 x 720p at 120 fps
- 16MP JPEG photos at a maximum resolution of 4608 x 3456
- 2" LCD touchscreen provides access to settings and modes; front LCD for basic info such as battery level, timecode, current mode, and resolution
- Numerous camera modes including low light, time-lapse, photo burst, slow motion, video+photo, TV, underwater (auto-tinting adjustments), car (syncs to engine with optional cable), and FPV (first person view)
- Configurable settings such as distortion correction, metering, 180° rotation, exposure time, adjustable FOV, loop recording, double file, raw photos, GYRO, EV, color, and white balance
- Wi-Fi connectivity, optional remote control to control on/off, shutter, burst, and start/stop functions
- SJCAM Zone smartphone app for camera control and photo/video editing available for iOS and Android
- Multiple mounts, bases, plates, waterproof and back touchscreen-access housing doors included, as well as a mini-USB cable, lens cap, and cleaning cloth
In the Box SJCAM SJ6 Legend 4K Action Camera (Black) Waterproof Case 1000mAh Li-Ion Battery Frame Mount Waterproof Case Touch Door Bicycle Stand 3 x Switch Support (A, B, and C) Fixed Base Base Adapter 360° Arc Bracket 360° Parallel Bracket 2 x Curved Flat Mount Bracket Tape Mini-USB Cable Lens Cover Cleaning Cloth Limited 1-Year Warranty User Manual PDF 5.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the SJCAM SJ6 Legend 4K Action Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSJCAM SJ6 Legend Specs | | | Sensor | 1-Chip CMOS | | Color Filter | None | | Sensor Resolution | 16 MP | | | | Recording Media | 1 x microSD (128 GB Maximum) Class 10 or higher required | | Video Format | 2880 x 2160 at 24 fps
2560 x 1440p at 30 fps
1920 x 1080p at 30/60 fps
1280 x 720p at 30/60/120 fps
848 x 480i
640 x 480i | | Aspect Ratio | 16:9 | | Slow Motion Mode | 120 fps Recorded at 1280 x 720p | | Still Image Resolution | JPEG: 16 Megapixel, 4608 x 3456 Maximum resolution | | | | Display Type | LCD | | Touchscreen | Yes Touchscreen on back, non-touchscreen LCD on front | | Screen Size | 2" | | | | Exposure Modes | Modes: Low Light | | Shooting Modes | Burst Shooting
Low Light
Time-Lapse Movie
Underwater | | Remote Control | SJ Smart Remote (Optional) | | | | Image Stabilization | Optical | | Waterproof Depth Rating | 33.0' / 10.0 m (Waterproof Housing) Maximum depth with the hard back door | | White Balance Modes | Auto | | Built-In Mic | Yes | | Built-In Speaker | Yes | | Built-In Light/Flash | Light - No
Flash - No | | Wi-Fi | Yes | | Accessory Shoe | None | | Tripod Mount | 1/4" - 20 | | | | Inputs | 1 x USB Mini-B 5 VAC, 1 A power | | Outputs | 1 x Micro-HDMI (Type D) | | Microphone Input | Yes | | Headphone Jack | No | | | | Supported Languages | Czech
Danish
Dutch
English
French
German
Hungarian
Italian
Japanese
Korean
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Thai
Turkish | | Battery | Rechargeable Lithium-Ion Battery Pack, 1000 mAh
Max Runtime: 2 Hours per Charge | | Charging Method | USB | | Power Adapter | None | | Dimensions (W x H x D) | 2.3 x 1.6 x 0.8" / 5.9 x 4.1 x 2.1 cm | | Weight | 2.89 oz / 82 g | | | | Package Weight | 1.425 lb | | Box Dimensions (LxWxH) | 9.7 x 5.1 x 2.7" |
