User Manual for SJCAM SJ8 Air HD Action Camera Click to enlarge the picture
Contents of the user manual for the SJCAM SJ8 Air HD Action Camera
- Product category: Sports & Action Cameras SJCAM
- Brand: SJCAM
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SJCAM Sports & Action Cameras
 |
User manual for the SJCAM SJ8 Air HD Action Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SJCAM product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SJCAM user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SJCAM product will considerably shorten its lifespan!
|

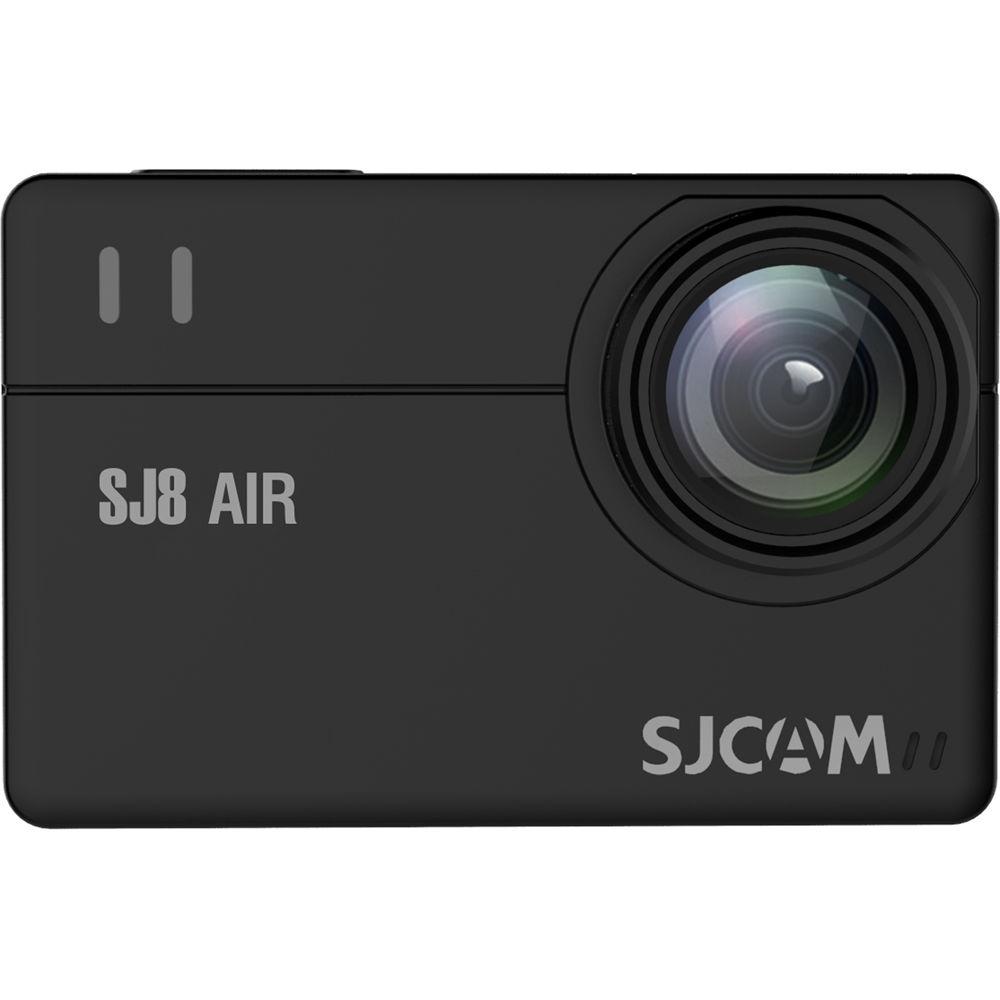

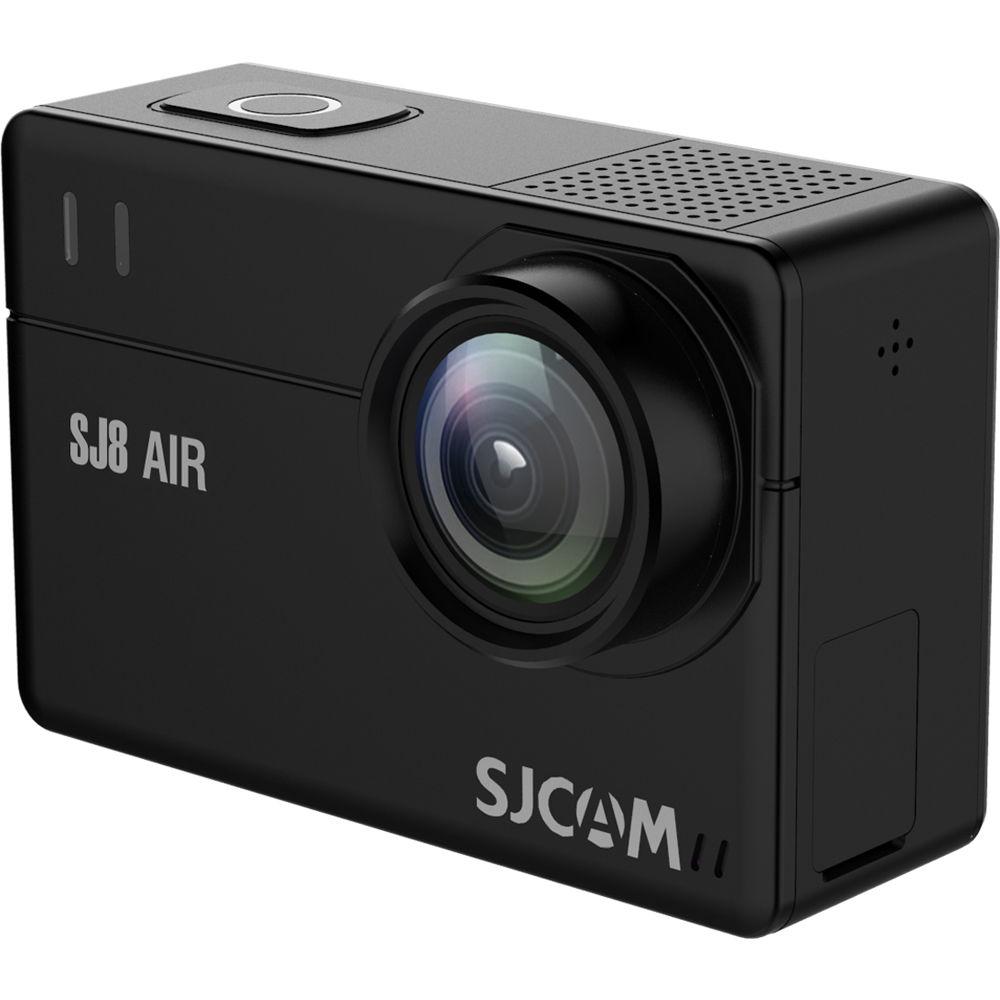

Product description Whether you're recording running, biking, flying, driving, or boating videos, the black SJ8 Air HD Action Camera from SJCAM features a waterproof case, a touchscreen, and HD resolution to capture sharp, high-quality footage no matter what the scene. The lightweight plastic body weighs only a few ounces and is designed with a Panasonic MN34112PA CMOS sensor and a Novatek 96658 chipset.
The SJ8 Air records MP4 H.264 video at a maximum resolution of 1728 x 1296p at 30 fps, and takes 14.24MP JPEG photos at a maximum resolution of 4320 x 3240. It has a 160° wide angle lens that facilitates quick focus and captures a large field of view. Numerous modes add to the functionality of the camera such as time-lapse, photo burst, slow motion, video+photo, and TV mode, and it even has choices for car (syncs to engine with optional cable) and FPV (first-person view) modes.
Its 2.33" retina LCD rear touchscreen provides access to settings such as brightness, color temperature, external mic, frequency, and Wi-Fi, each allowing you to fine-tune your setup.
The SJ8's 1200mAh battery lasts approximately two hours on a full charge and can be charged via a USB Type-C cable. Since it's removable, you can purchase a spare to swap in for longer shoots and charge with a separately available battery charger. The unit records to a microSD card with a maximum size of 128GB, and you can also output your video and photos to a computer via the USB-C port. There is a speaker on top and two noise-cancelling mics integrated into the front and side of the housing, and you can also purchase a separately available external mic that plugs into the USB-C port.
The unit is equipped with 2.4 GHz Wi-Fi, and an optional wireless remote can be purchased separately to control video start/stop, photo burst, Wi-Fi on/off, photo shutter, and camera on/off. You can also use your iOS or Android smartphone to control the camera's operations or edit and share your photos and videos with the free SJCAM Zone app.

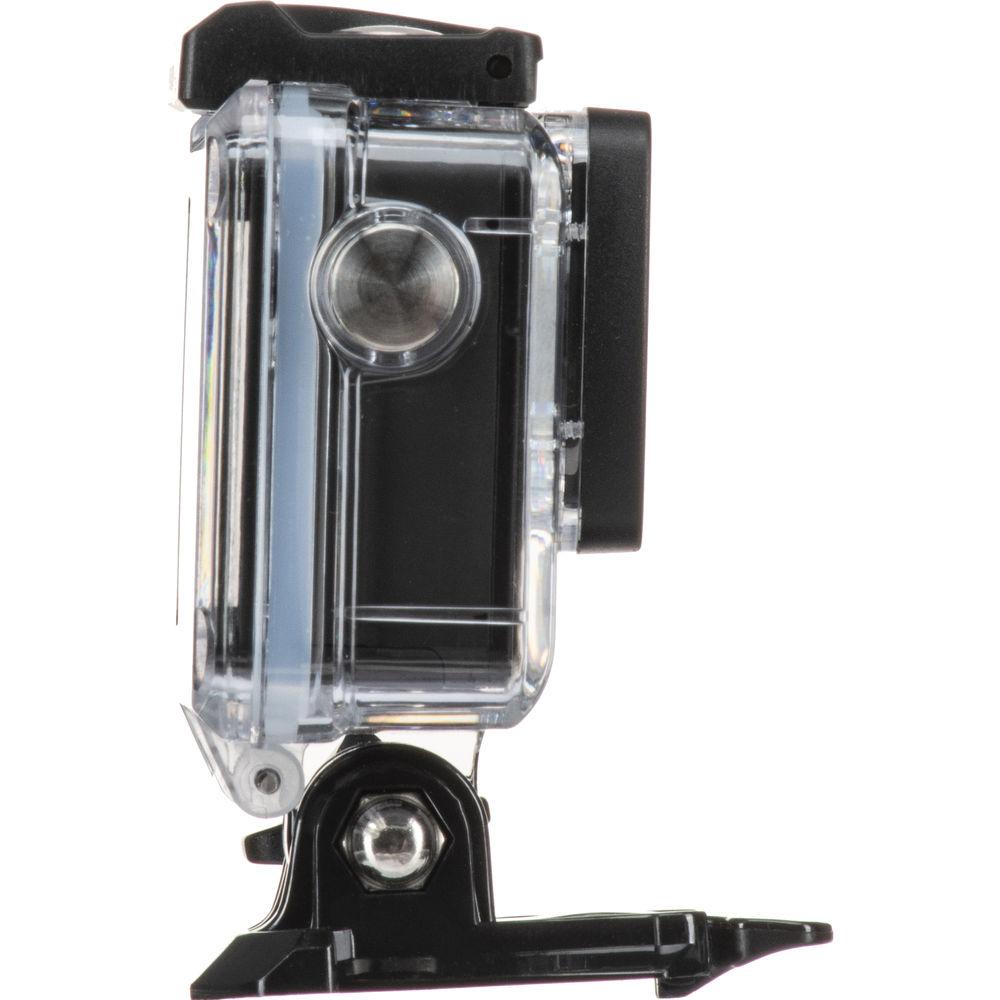

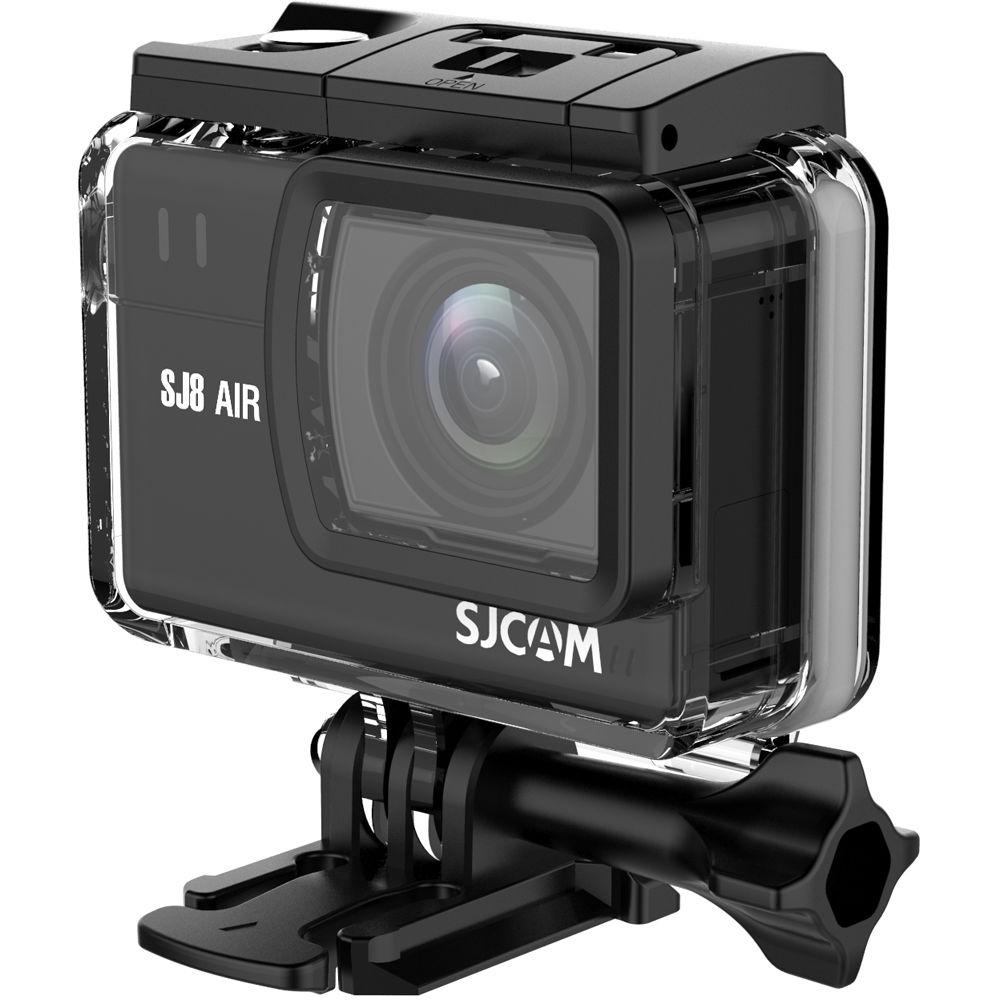

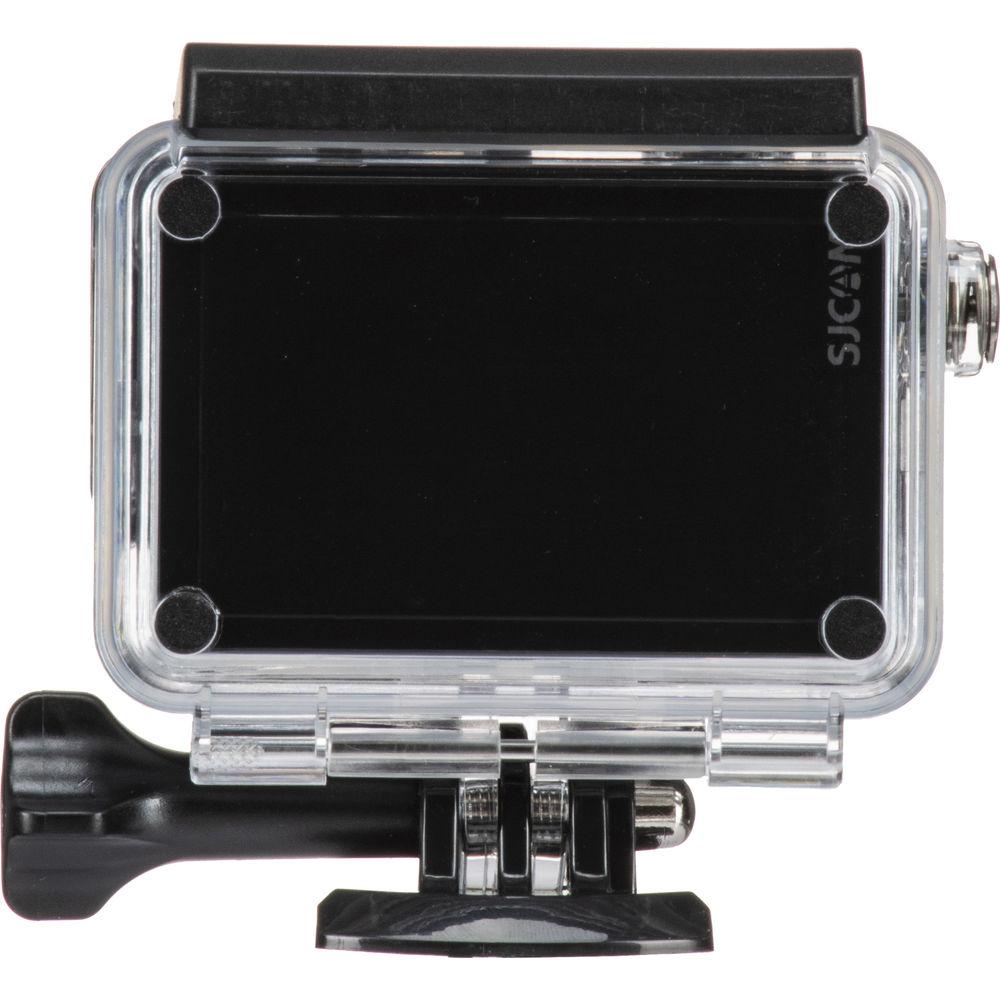

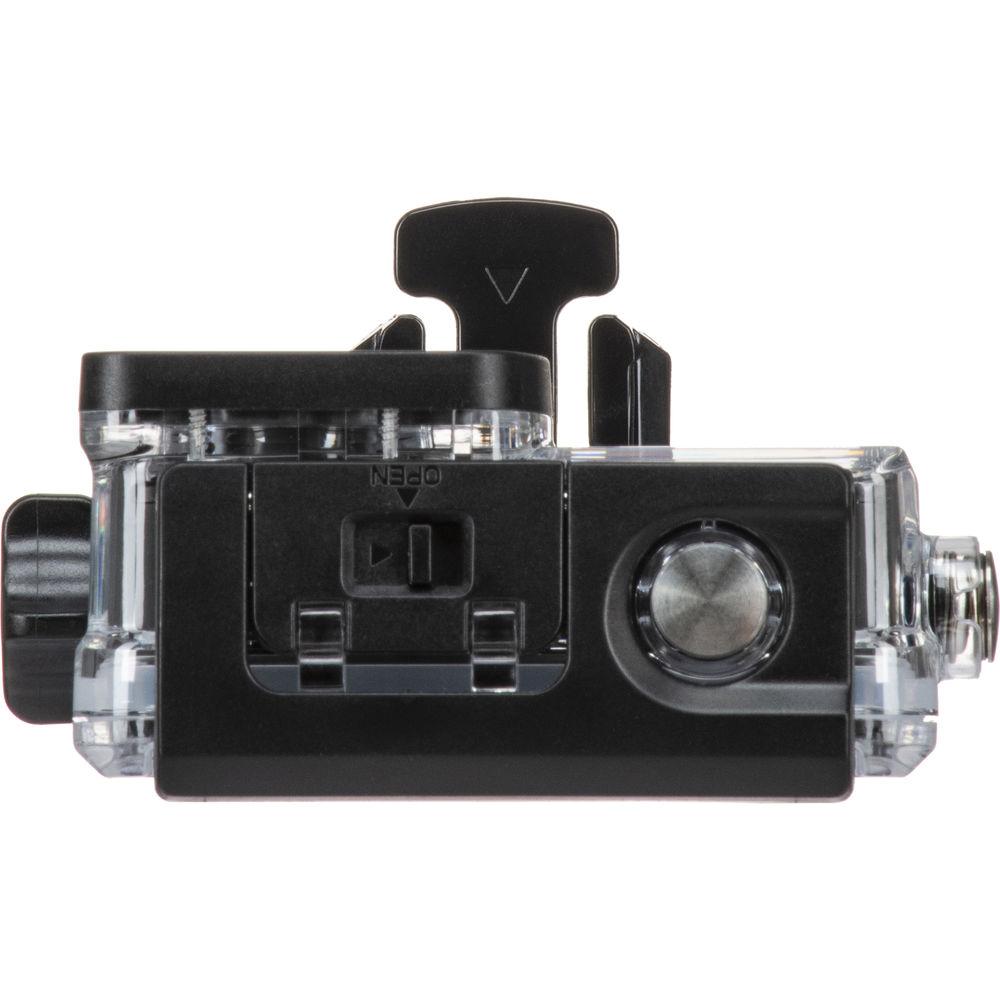

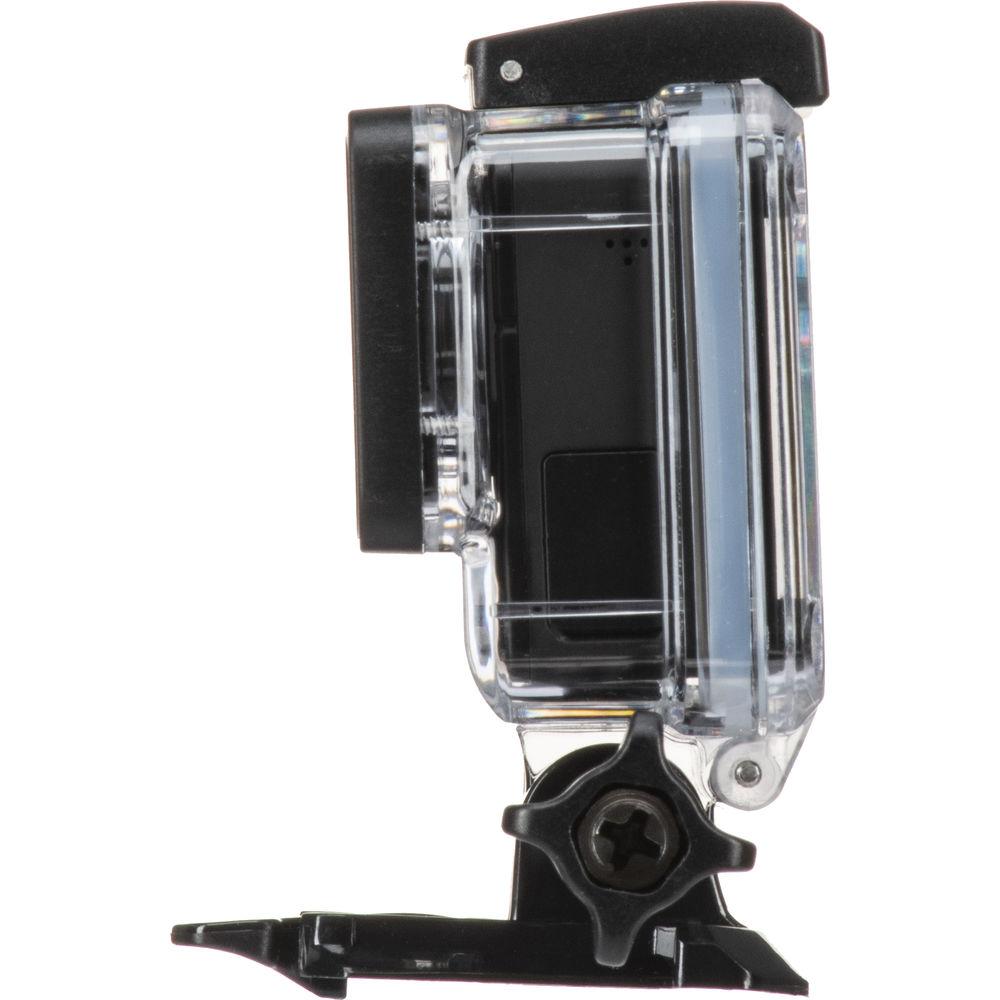

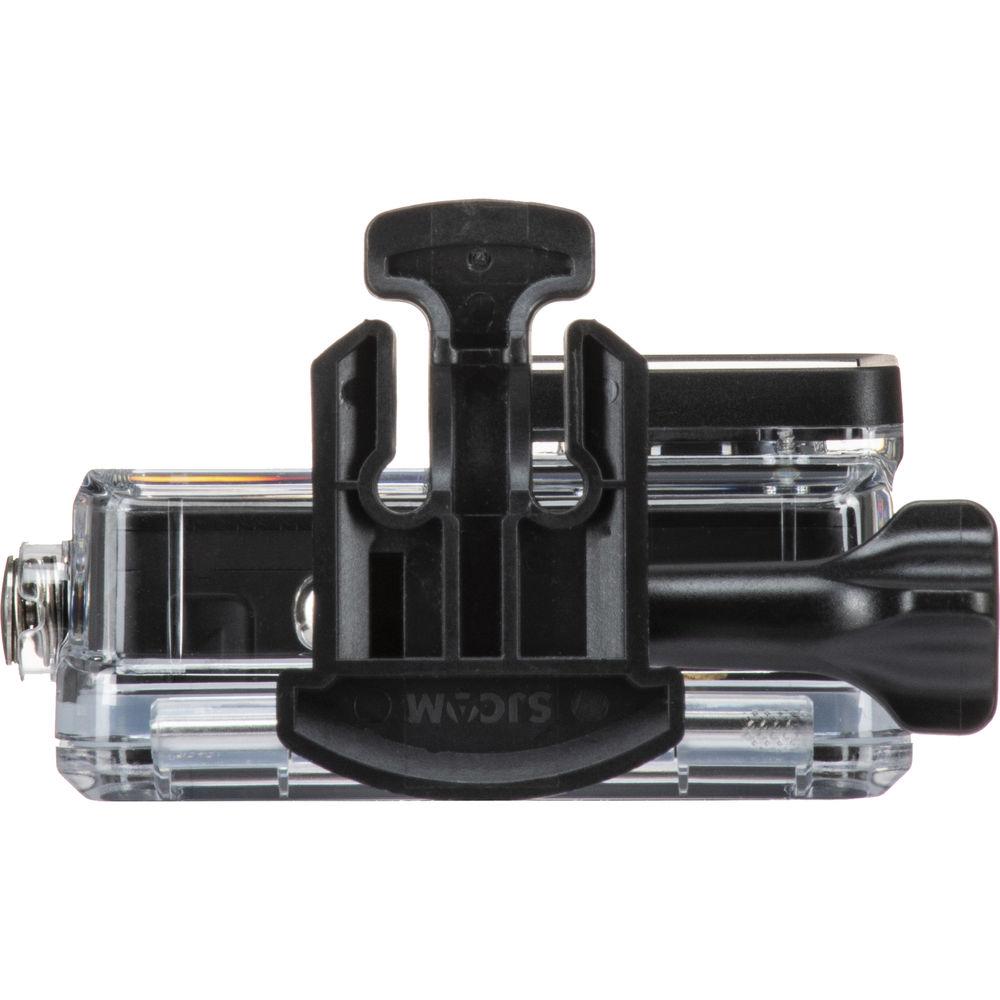

The SJ8 comes with multiple mounting options, bases, and plates for optimal placement flexibility, as well as a waterproof housing for underwater shots. The camera package also includes a USB Type-C cable, lens cap, and cleaning cloth. - Panasonic MN34112PA CMOS sensor; Novatek NT96658 chipset
- MP4 H.264 video at a maximum resolution of 1728 x 1296p at 30 fps; slow-motion recording at 640 x 480p at 240 fps
- 14.24MP JPEG photos at a maximum resolution of 4320 x 3240
- 2.33" retina LCD touchscreen with access to settings and modes
- Numerous camera modes including time-lapse, photo burst, slow motion, video+photo, and TV mode, as well as settings for car (syncs to engine with optional cable) and FPV (first person view) modes
- Configurable settings: brightness, color temperature, external mic, frequency, language, power, format, date/time, UI, and Wi-Fi
- 2.4 GHz Wi-Fi connectivity, optional remote control to control on/off, shutter, burst, and start/stop functions
- SJCAM Zone smartphone app for camera control and photo/video editing available for iOS and Android
- Multiple mounts, bases, plates, waterproof and touchscreen-access housing doors included; USB Type-C cable, lens cap, and cleaning cloth also included
In the Box SJCAM SJ8 Air HD Action Camera (Black) Waterproof Housing 1200mAh Li-Ion Battery Waterproof Housing Bicycle Handlebar Stand Fixed Base Base Adapter Parallel Bracket 2 x Curved Flat Mount Bracket Tape USB Type-C Cable Lens Cover Cleaning Cloth Limited 1-Year Warranty User Manual PDF 8.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the SJCAM SJ8 Air HD Action Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSJCAM SJ8 Air Specs | | | Sensor | 1-Chip CMOS | | Color Filter | None | | Sensor Resolution | 14.24 MP | | | | Focal Length | 3.1mm | | Maximum Aperture | f/2.6 | | Angle of View | Wide: 160° | | | | Recording Media | 1 x microSD (128 GB Maximum) Class 10 or higher required | | Video Format | 1728 x 1296 at 30 fps
1920 x 1080p at 30 fps
1280 x 720p at 30 fps
640 x 480p at 240 fps | | Aspect Ratio | 16:9 | | Slow Motion Mode | 240 fps Recorded at 640 x 480p | | Still Image Resolution | JPEG: 14 Megapixel, 4320 x 3240 Maximum resolution | | | | Display Type | LCD | | Touchscreen | Yes | | Screen Size | 2.33" | | Status Display | No | | | | Shooting Modes | Burst Shooting
Low Light
Time-Lapse Movie
Underwater | | Remote Control | SJ Smart Remote (Optional) | | | | Waterproof Depth Rating | 90.0' / 30.0 m (Waterproof Housing) Maximum depth with the waterproof housing | | White Balance Modes | Auto | | Built-In Mic | Yes | | Built-In Speaker | Yes | | Built-In Light/Flash | Light - No
Flash - No | | Wi-Fi | Yes, 802.11b/g | | Accessory Shoe | None | | Tripod Mount | 1/4" - 20 | | | | Inputs | 1 x USB 3.0 Type-C | | Outputs | None | | Microphone Input | Yes External mic available through USB-C | | Headphone Jack | No | | | | Supported Languages | Czech
Danish
Dutch
English
French
German
Hungarian
Italian
Portuguese
Simplified Chinese
Spanish
Thai
Turkish | | Battery | Rechargeable Lithium-Ion Battery Pack, 1200 mAh
Max Runtime: 2 Hours per Charge Removable; 2 hours of battery life at 1080p when Wi-Fi and screen are off | | Charging Method | USB | | Power Adapter | None | | Dimensions (W x H x D) | 2.5 x 1.6 x 1.1" / 6.3 x 4.1 x 2.9 cm | | Weight | 2.82 oz / 80 g | | | | Package Weight | 1.38 lb | | Box Dimensions (LxWxH) | 9.9 x 5.1 x 2.7" |
