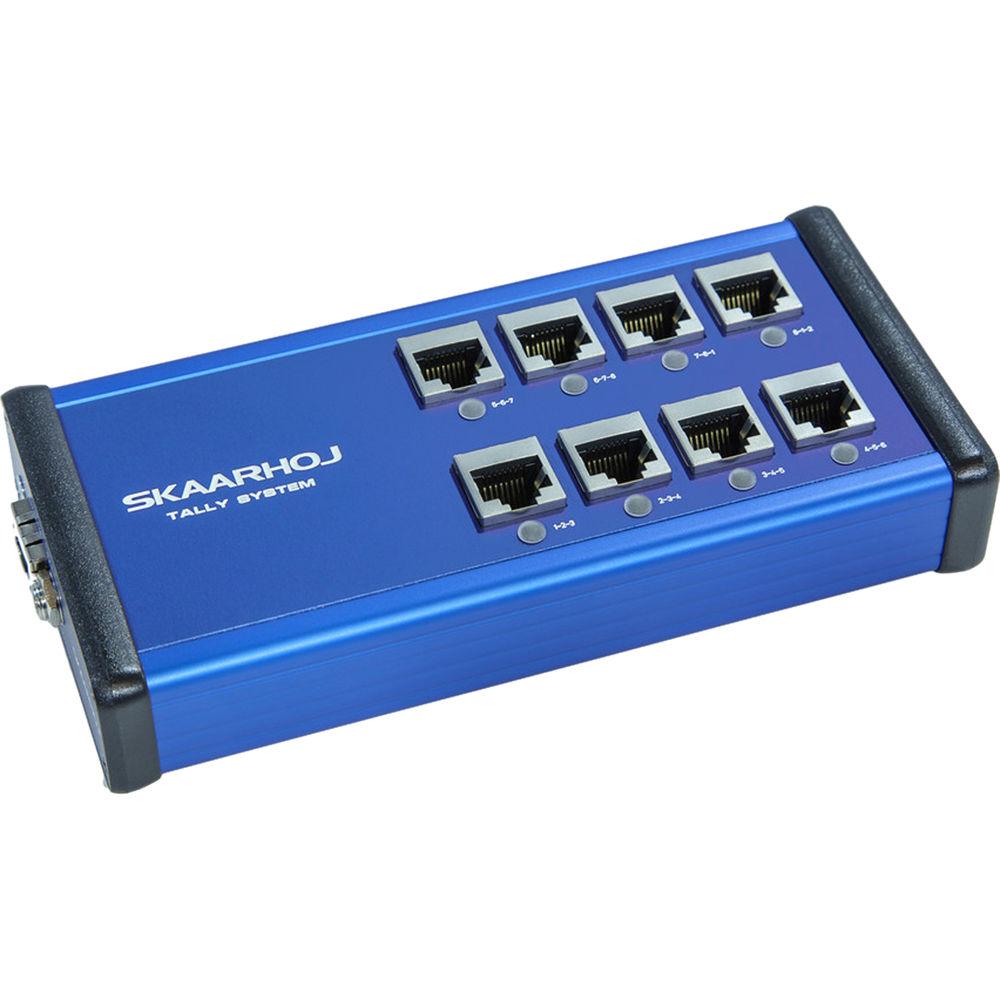

Product description The 8-Channel Tally Box System with Two Tally Lights from SKAARHOJ allows you to take full control of your live video production. The system includes an 8-channel tally box and two tally lights. Each light features two LEDs, a green/red one facing the camera operator and a larger red one facing the presenter. The system offers both program and preview tally, and the lights can be connected one by one or in a daisy chain. An RJ45 port on both the box and the light connects the two. - 8-Channel Tally Box Take full control of your live video production with the 8-Channel Tally Box from SKAARHOJ. The system supports up to eight tally lights and offers both program and preview tally. The lights can be connected one by one or in a daisy chain configuration with a maximum of three in a row. The Tally Box is compatible with Blackmagic Design ATEM, vMix, and TriCaster switchers.
- Program and preview tally
- LED indicator light for each output
- Tested with 656'-long cable

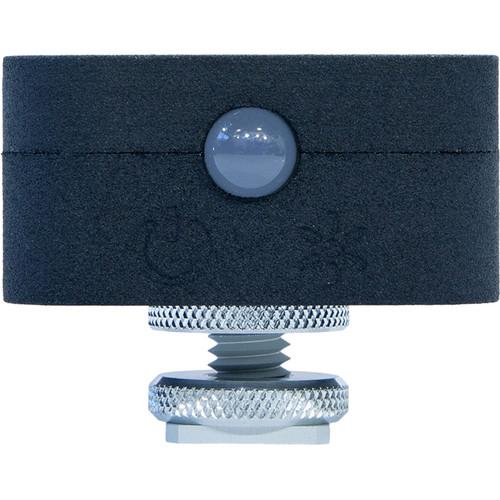

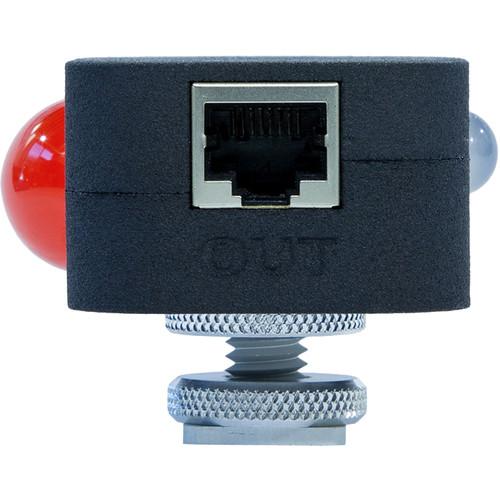

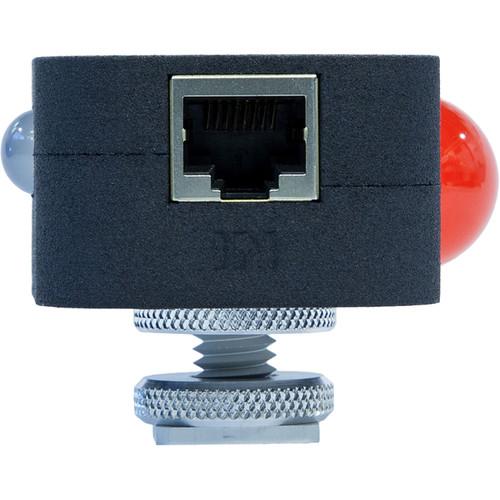

- Tally Light The Tally Light from SKAARHOJ is designed for use with the Tally Box System, allowing you to take full control during a live video production. The light features two LEDs, one facing the camera operator and a larger one facing the presenter. The operator LED shines red when on program and green when on preview. With the switch on the tally light, the LED can be dimmed when used in low-light conditions. The large main LED shines red and is visible for the presenter to know which camera is on program. It has an on/off switch on the light. The Tally Light has two RJ45 ports for connecting to the Tally Box and other lights, and an accessory shoe foot for mounting on cameras.
In the Box Bundle Items 8-Channel Tally Box yvufqxdqvbxt - Micro-USB Programming Cable
2 x Tally Light yvufqxdqvbxt Table of Contents
|
Upload User Manual
Have you got an user manual for the SKAARHOJ 8-Channel Tally Box System with Two Tally Lights in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 8-Channel Tally Box
| Channels | 8 | | Compatibility | Blackmagic Design ATEM, vMix, and TriCaster Switchers | | Connectors | 8 x RJ45, Tally Outputs
1 x RJ45, Ethernet port
1 x Micro-USB, Data Port
1 x DC, Power | | Indicators | 8 x LEDs | | Power Supply | 12 V | | Dimensions | 6.6 x 3.1 x 1.1" / 16.7 x 8.0 x 2.9 cm | | Weight | 12.3 oz / 350 g | - Tally Light
| Compatibility | Tally Box System | | LEDs | 1 x Main LED, Red
1 x Operator LED, Red/Green | | Connectors | 2 x RJ45 Ports | | Mount | Hot Shoe Mount | | Dimensions | 2.2 x 1.7 x 1.0" / 5.5 x 4.4 x 2.6 cm | | Weight | 2.1 oz / 60 g | | | | Box Dimensions (LxWxH) | 5.4 x 3.7 x 2.3" |
