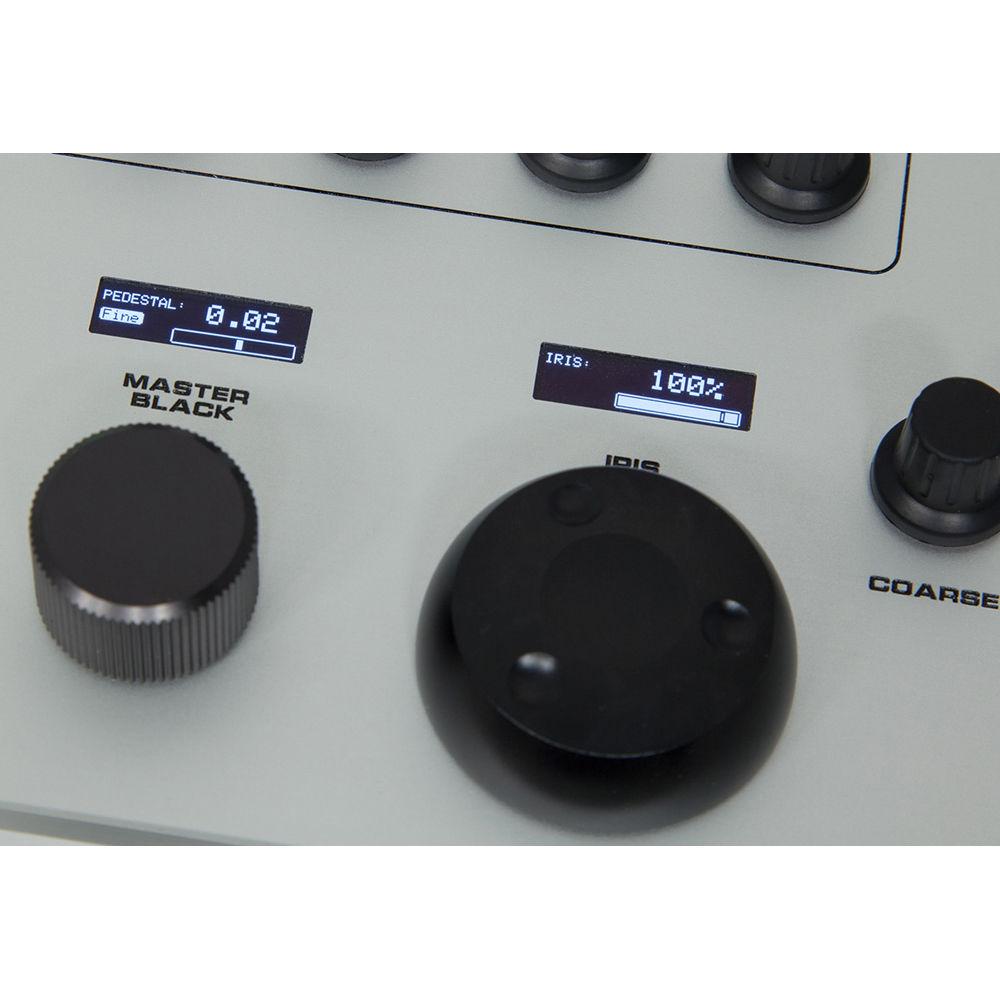

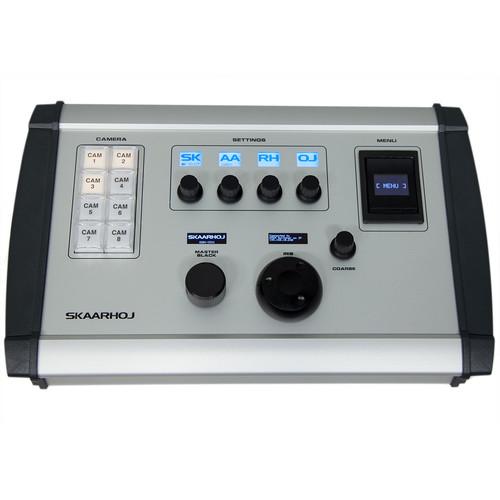

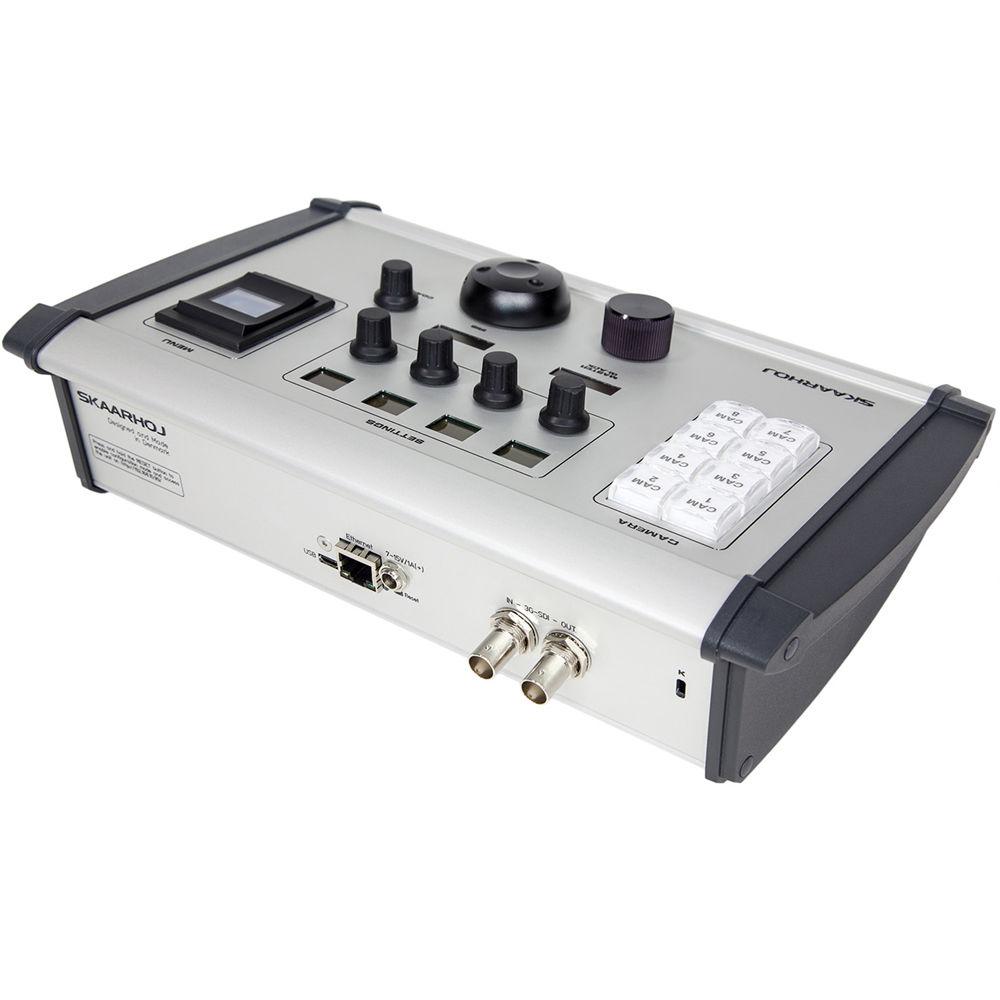

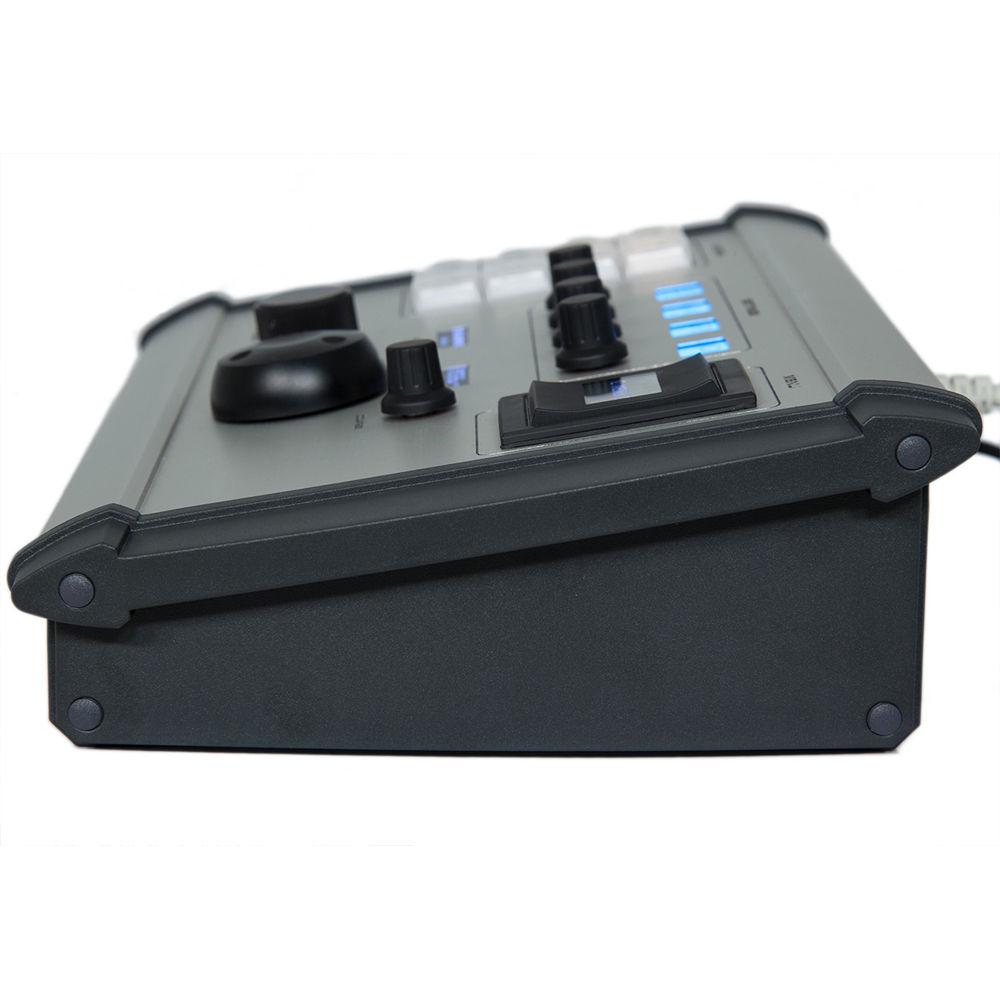

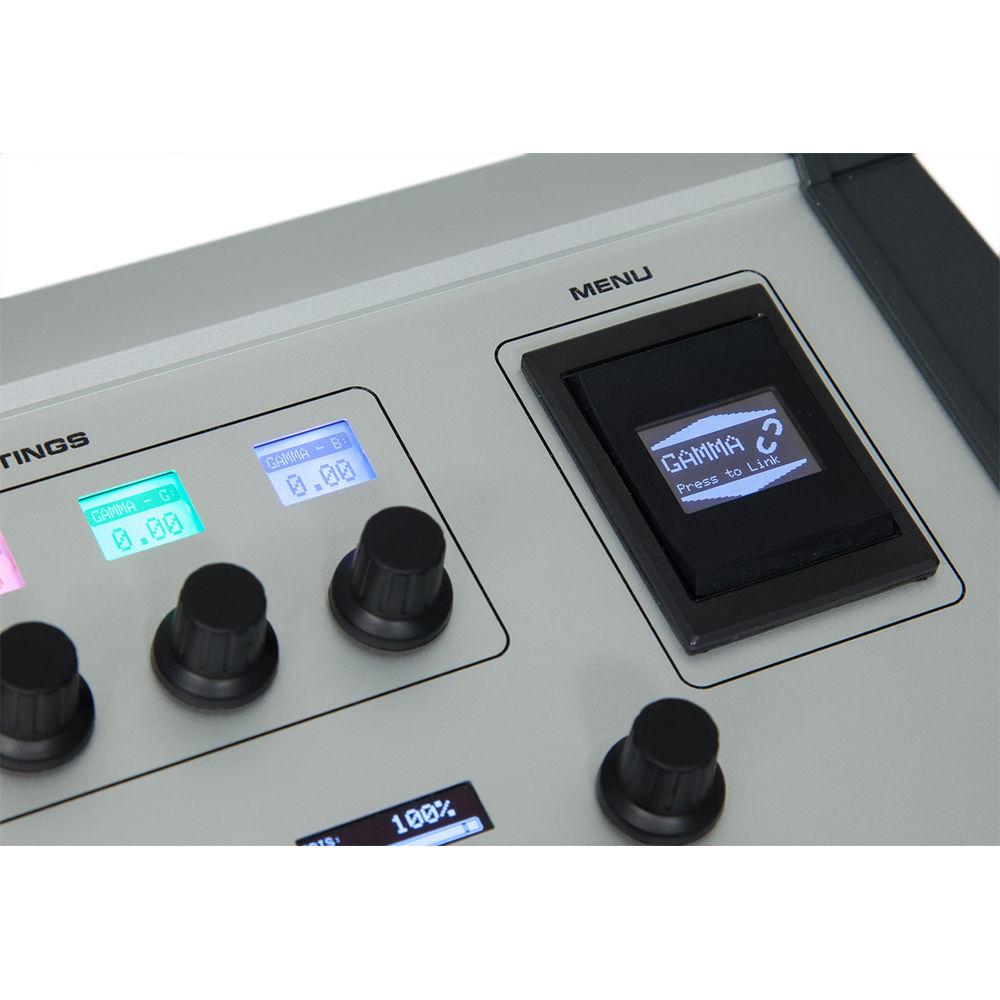

Product description Take full remote control of up to eight Blackmagic Design digital film or live production cameras with the ATEM CCU from SKAARHOJ. This hardware control surface allows you to adjust multiple camera parameters simultaneously. Master black and iris are controlled by multi-turn dials, while illuminated buttons and displays provide high visibility even in dark locations. The OLED menu rocker switch lets you toggle between all the settings you need to adjust and refine for each camera's image. The CCU relays information to the cameras via a separately available ATEM switcher, to which it connects via Ethernet. - Transparent button caps for custom labels
- Five preset menus and one custom menu
- Camera Selector

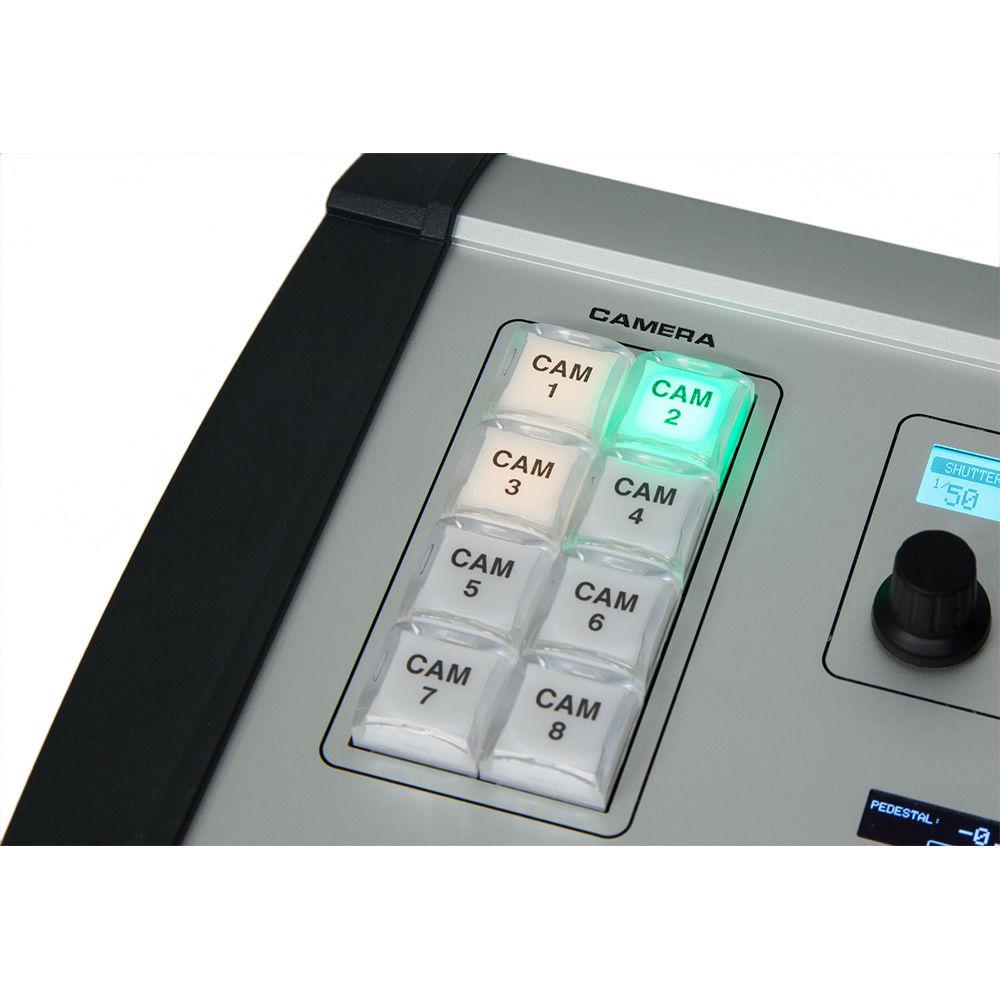

- By default, the ATEM CCU selects between CAM 1-8 on the camera selector. Alternatively, you can configure the ATEM CCU to select between the eight cameras on MultiViewer 1 or 2 by selecting this option in the web interface. In UniSketch OS, you can enable auto-route to a specific ATEM AUX channel or any other device capable of video routing.
- Camera Control via ATEM

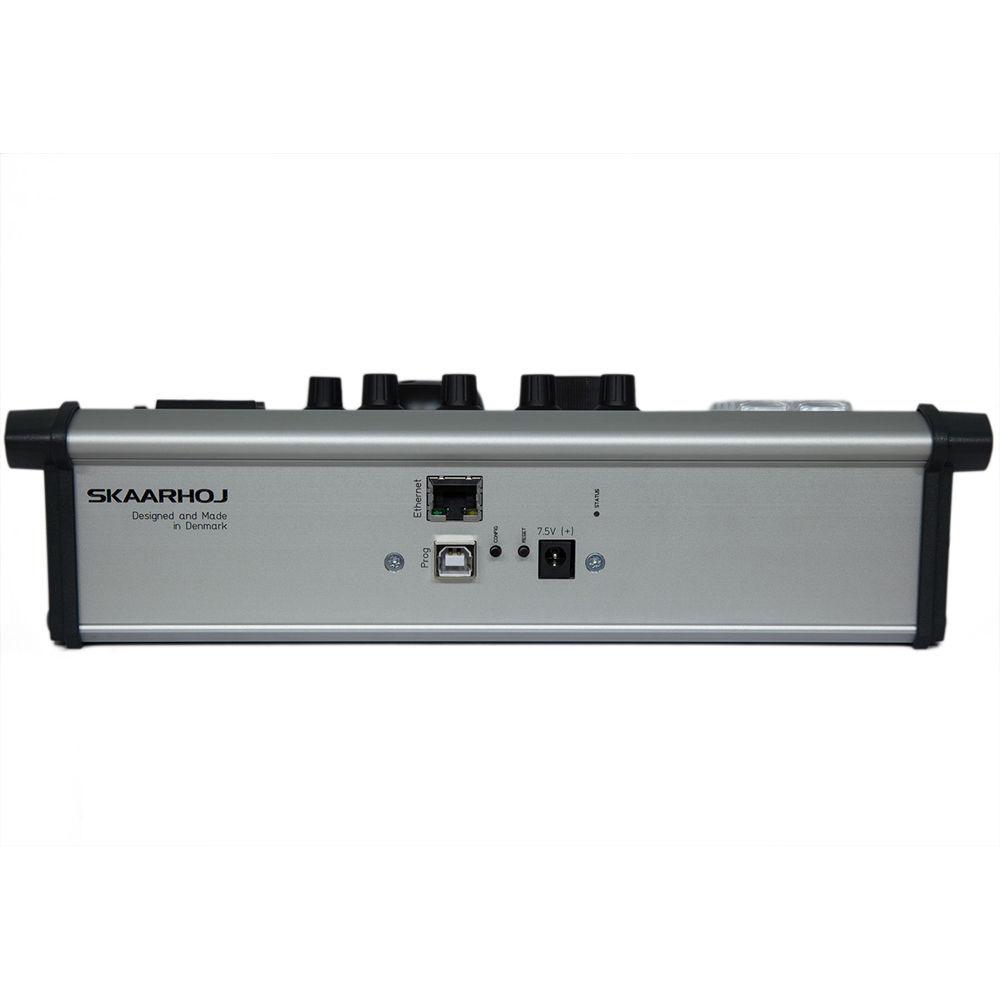

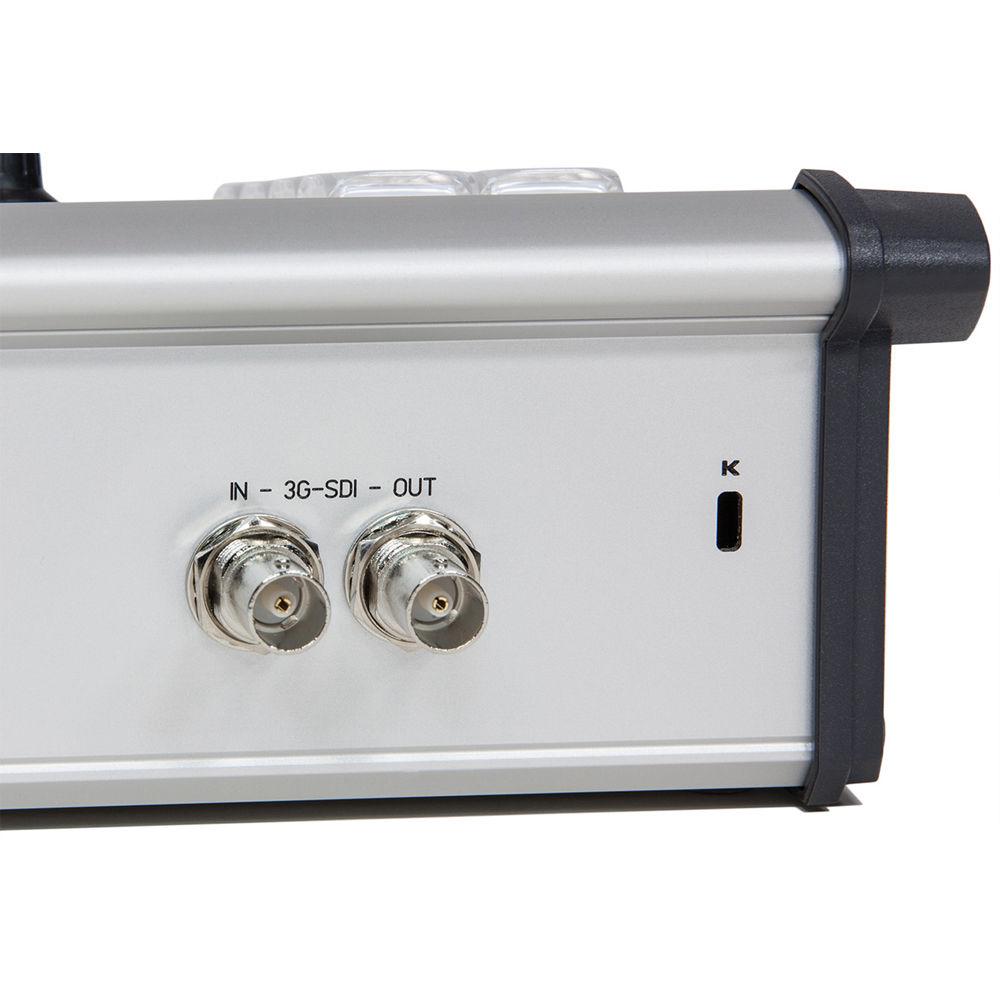

- The ATEM CCU connects to the ATEM Switcher either directly via Ethernet or via a network switch/hub. Once connected, the ATEM CCU communicates with the ATEM Switcher, which then relays CCU shading information to the cameras. An SDI return feed is required for the cameras you want to relay the CCU data. This setup is similar to using the ATEM Software Control Panel. The ATEM Software Control Panel and the ATEM CCU are in sync, so when changing shading parameters, these will be reflected both places.
- Camera Support
- Any camera that supports CCU control over the return SDI feed will work with the ATEM CCU. Some examples of compatible cameras are the Micro Studio Camera 4K, Studio Cameras, and the URSA Mini (+ Pro).
In the Box SKAARHOJ ATEM CCU 12V Power Supply USB Programming Cable Networking Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SKAARHOJ ATEM CCU in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSKAARHOJ ATEM-CCU-V1 Specs | Compatibility | Blackmagic Design Digital Film and Live Production Cameras that Support CCU Control over Return SDI Feed | | Connection | Ethernet | | Controls | 8 x Red/Green/Amber Broadcast Buttons for Camera Selection

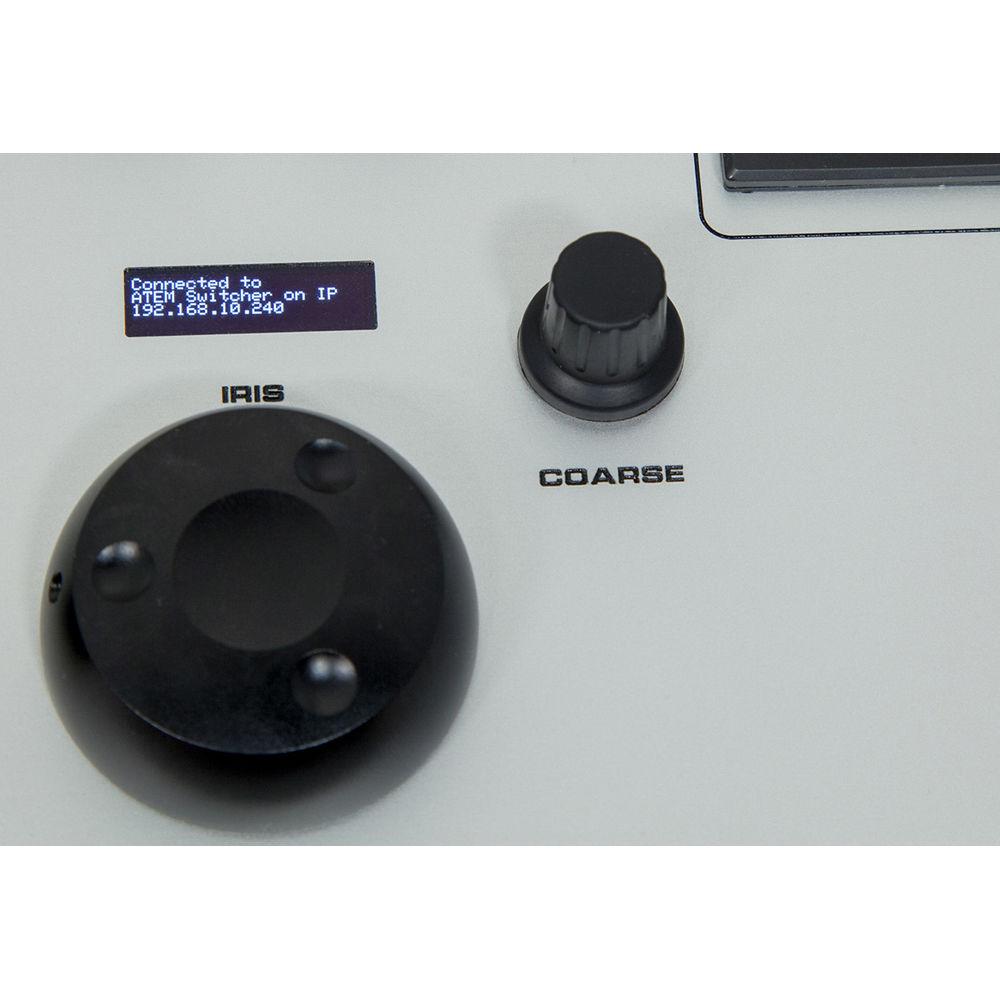

35 mm Multi-Turn Aluminum Dial Knob for Iris
24 mm Multi-Turn Aluminum Dial Knob for Master Black
OLED Rocker Switch for System Menu Control (96 x 64 pixels) | | Displays | 2 x High-Contrast 128 x 32 Mini OLED Displays, White on Black

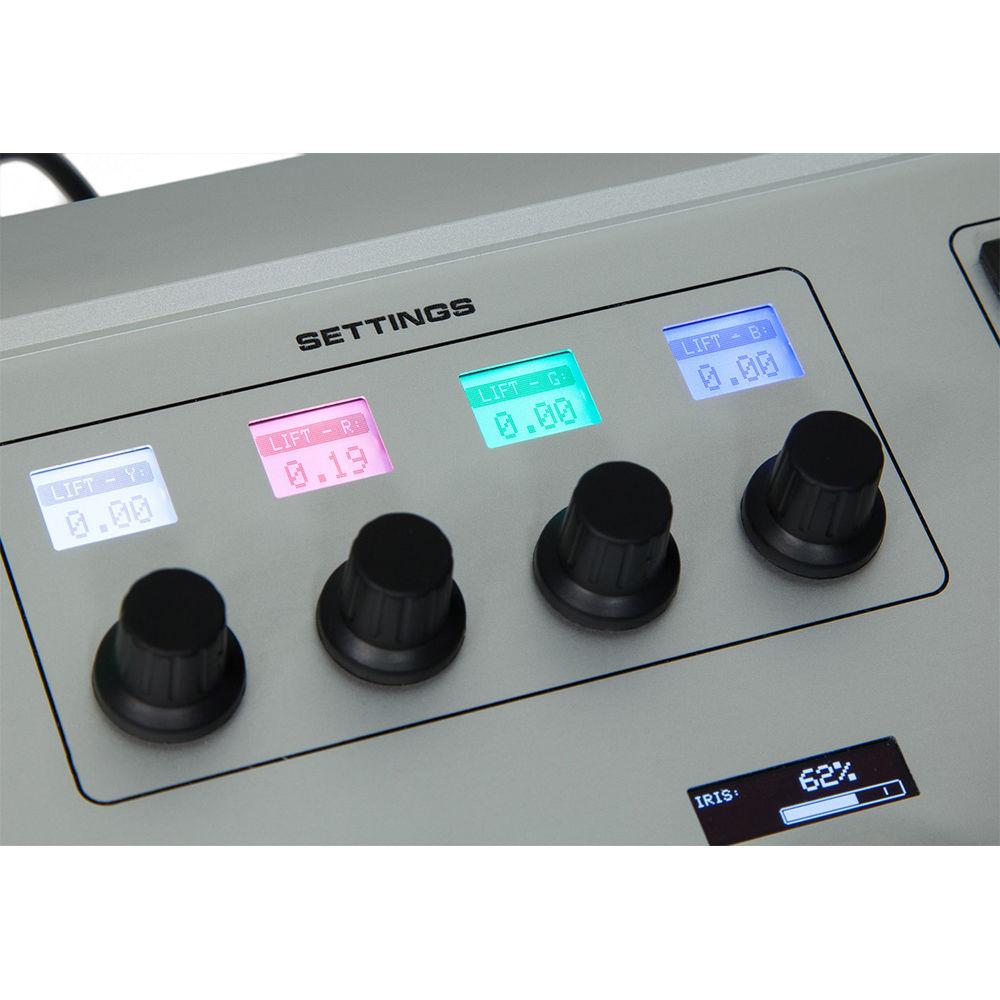

4 x Backlit 64 x 32 Pixel Displays, RGB | | Menu Options | Menu 1: Lift: YRGB
Menu 2: Gamma: YRGB
Menu 3: Gain: YRGB
Menu 4: Contrast, Saturation, and Hue
Menu 5: Gain, Shutter, White Balance, and Focus
Menu 6: Gain, Shutter, White Balance, and Zoom | | Encoders | 5 x Rotary Encoders | | Dimensions | 11.6 x 7.1 x 3.0" / 29.5 x 18.0 x 7.5 cm | | Weight | 2.4 lb / 1.1 kg | | | | Package Weight | 4.65 lb | | Box Dimensions (LxWxH) | 17.2 x 8.9 x 5.6" |
