User Manual for SKAARHOJ ATEM GPI and Tally Interface Breakout Board Click to enlarge the picture
Contents of the user manual for the SKAARHOJ ATEM GPI and Tally Interface
- Product category: Controller Options SKAARHOJ
- Brand: SKAARHOJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SKAARHOJ Controller Options
 |
User manual for the SKAARHOJ ATEM GPI and Tally Interface contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SKAARHOJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SKAARHOJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SKAARHOJ product will considerably shorten its lifespan!
|

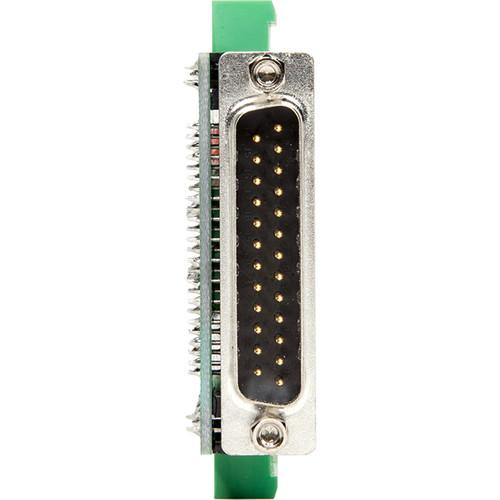

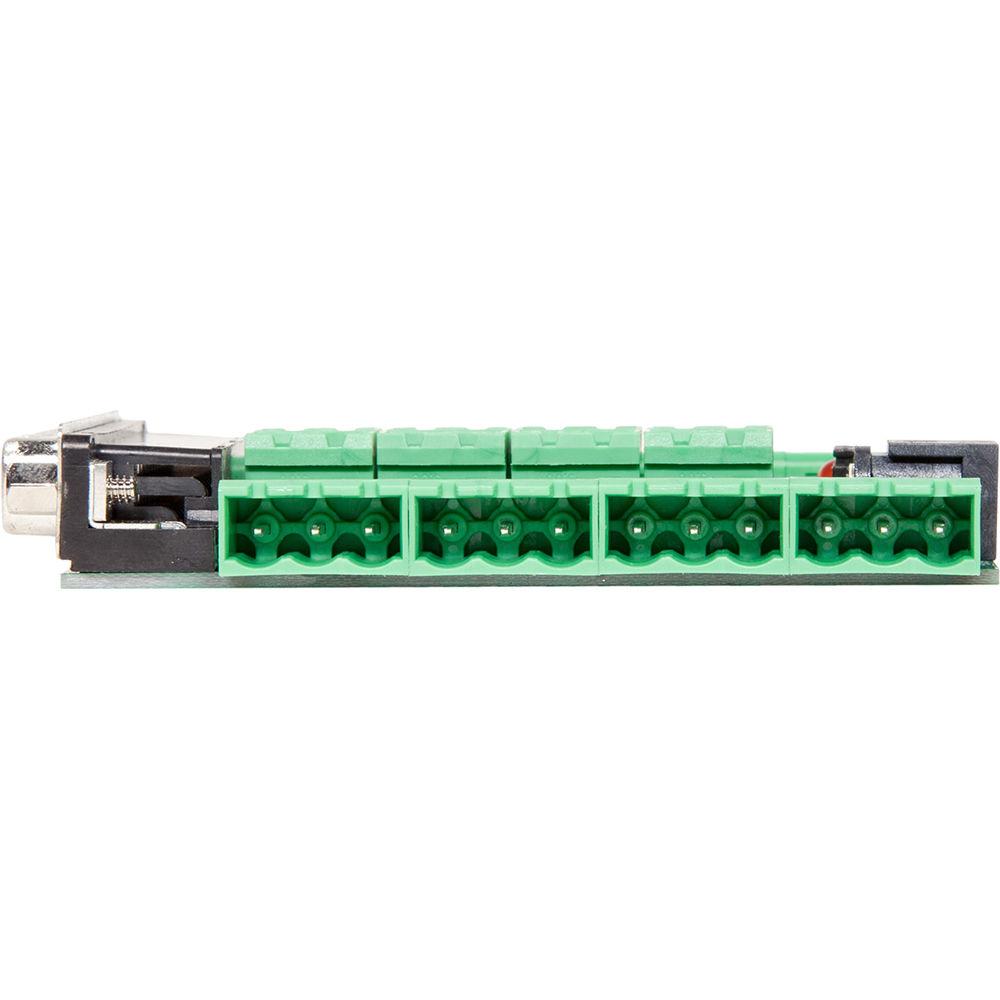

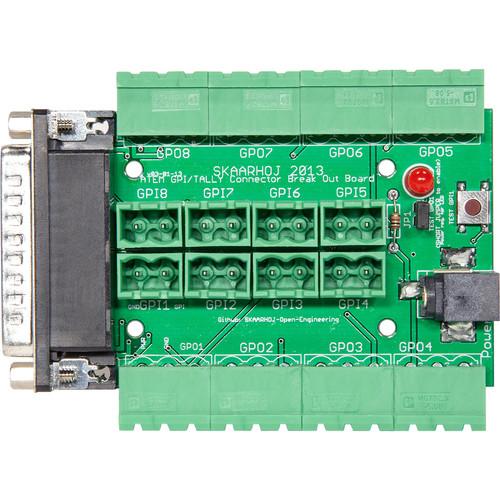

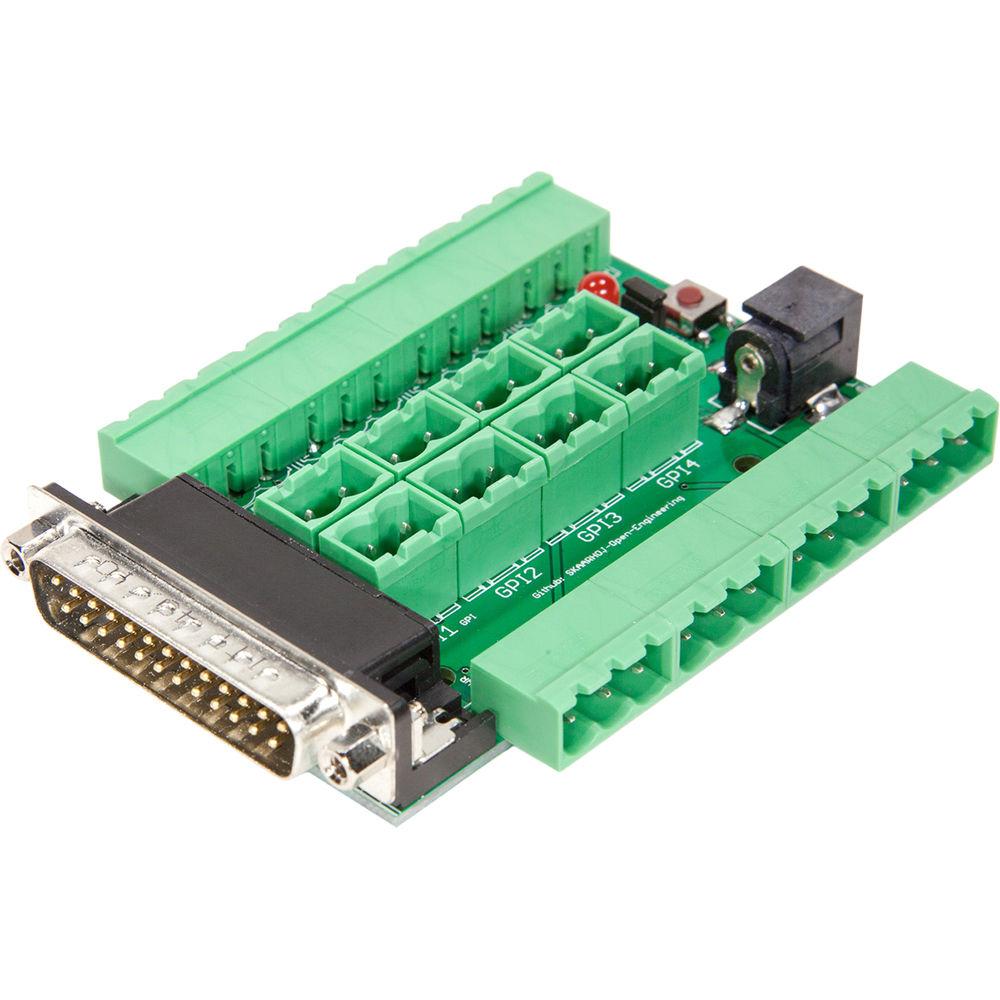

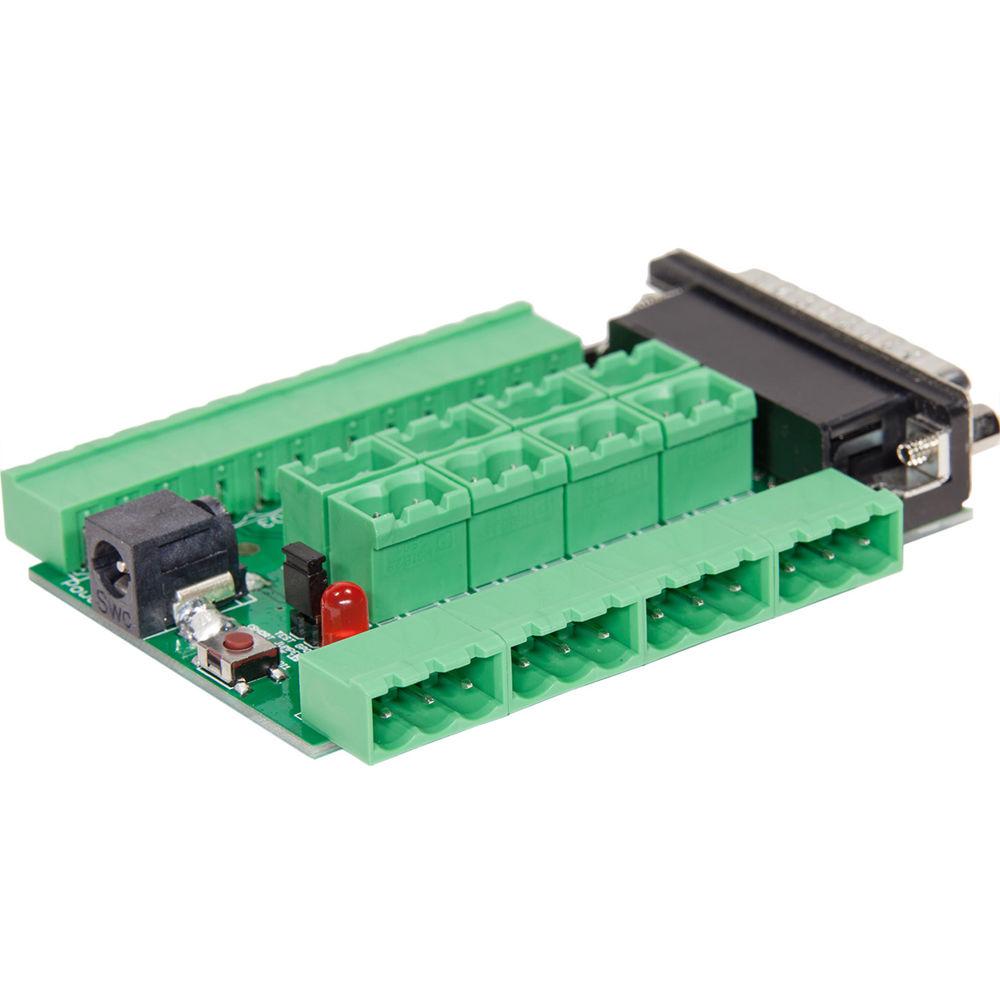

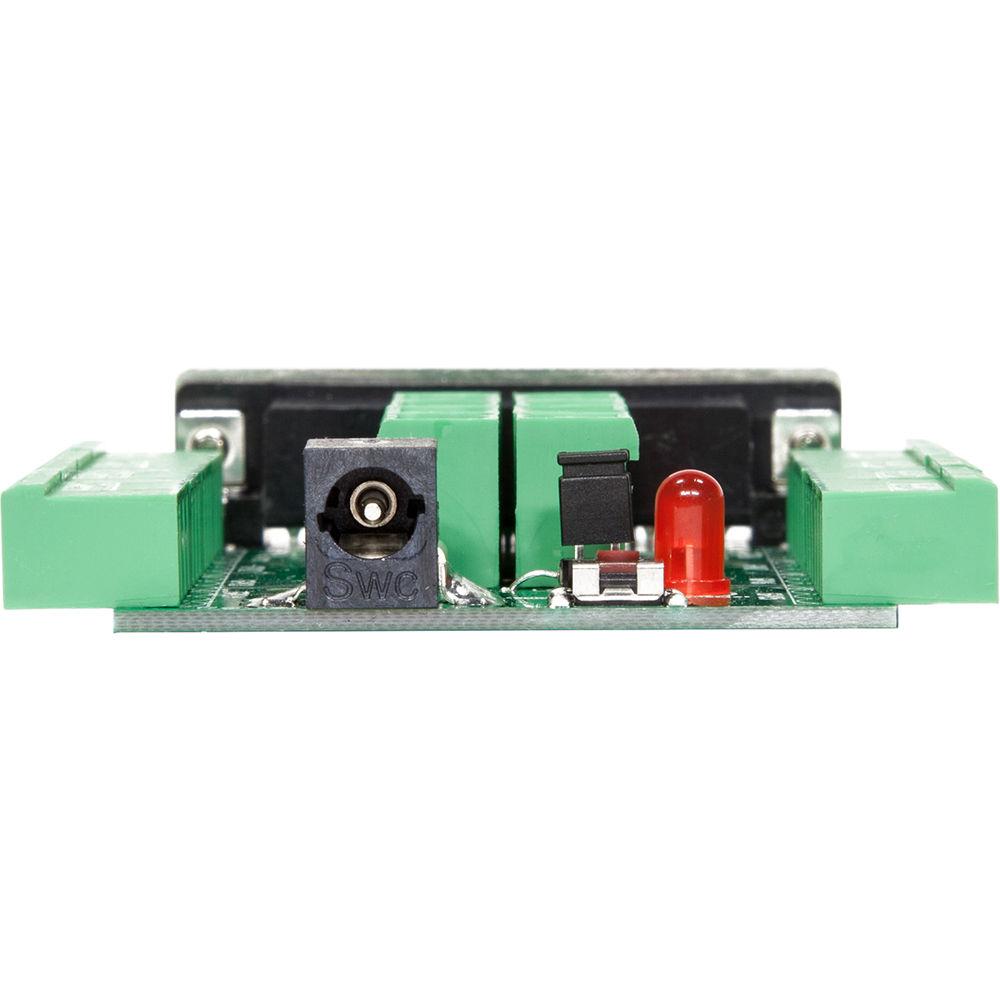

Product description The ATEM GPI and Tally Interface Breakout Board from SKAARHOJ connects through the 25-pin D-Sub connector port to ATEM GPI and tally interfaces, ETH-GPI Link series, and Blackmagic Design GPI/tally boxes. The ATEM GPI and tally interface provides an easy interface for individual tally lamp control to your ATEM. It features eight sturdy onboard GPI Phoenix input connectors and eight GPO Phoenix output connectors, plus a DC plug for external power. The board features a confirmation LED which lights up when tally is on input 1, and a push button which lets you test the GPI of input 1. In the Box SKAARHOJ ATEM GPI and Tally Interface Breakout Board Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SKAARHOJ ATEM GPI and Tally Interface Breakout Board in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSKAARHOJ ATEM-GPITALLY-BO-BOARD Specs | Compatibility | ATEM GPI and Tally Interface
ETH-GPI Link Series
Blackmagic Design GPI/Tally Boxes | | Connectors | 1 x 25-Pin D-Sub Male, I/O Interface
8 x 2-Pin Male Phoenix, GPI Input
8 x 3-Pin Male Phoenix, GPO Output
1 x 5.5 mm DC Barrel, Power Input | | Indicators | 1 x LED, Tally GPO Output 1 | | Control | 1 x Button, Test GPI Input 1 | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 7.7 x 4.7 x 2.4" |
