Product description
URSA Mini CCU-RCP with BlackMagic Arduino Shield
SKAARHOJ RCP General Demonstration
RCP - Shield vs ATEM and webinterface
RCP - Joystick Override
RCP - Camera Selection

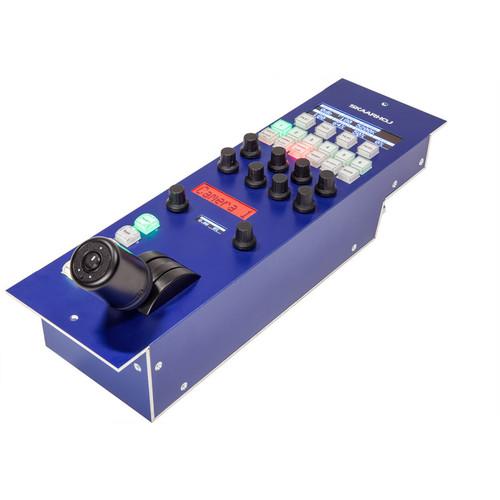

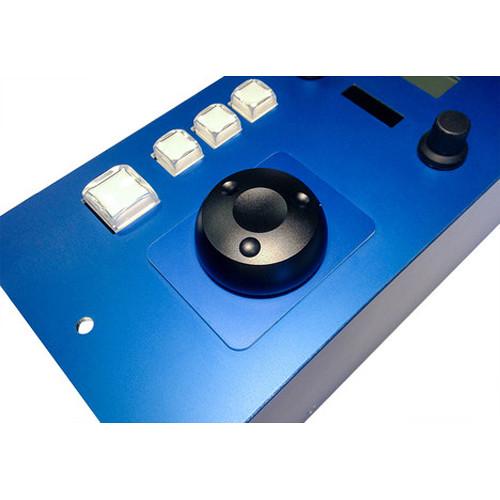

The Remote Control Panel from SKAARHOJ is a Sony form factor remote control panel designed for Blackmagic cameras such as the URSA Mini (+ Pro) or Studio camera series. It controls the camera via an ATEM switcher or via the Blackmagic Arduino shield. This remote control operates using a single axis joystick iris control with a master black wheel and top push-button, and fits in your existing OB van rack with a Sony RCP-1500 form factor. A 12V power supply, a USB programming cable, and a networking cable are included.
Fits in your existing OB van rack with a Sony RCP form factor (4" wide)

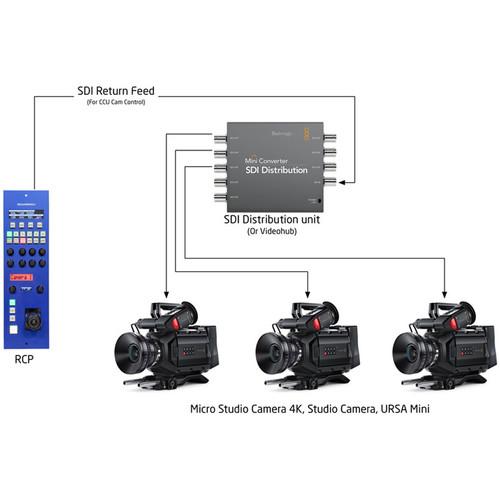

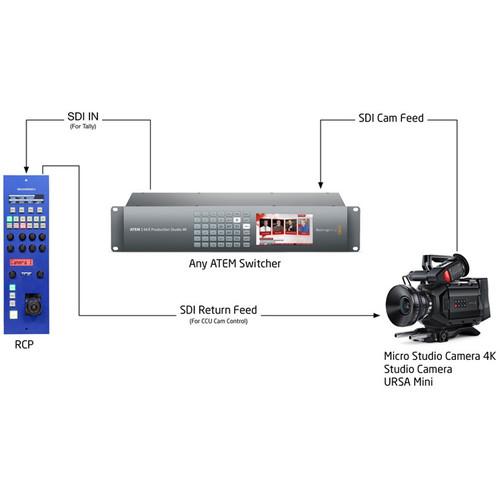

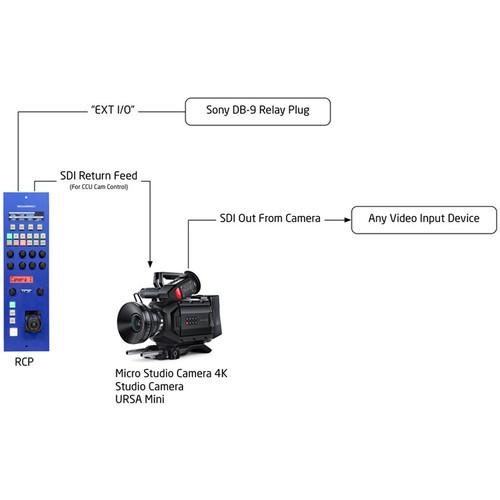

Embeds CCU data on the 3G-SDI return feed via a Blackmagic Design Arduino shield
Blackmagic 3G-SDI Arduino shield supports 720p50/59.94/60, 1080i50/59.94/60, and 1080p23.98/24/25/29.97/30/50/59.94/60 outputs (The camera doesn't have to be running the same video format as the program input)

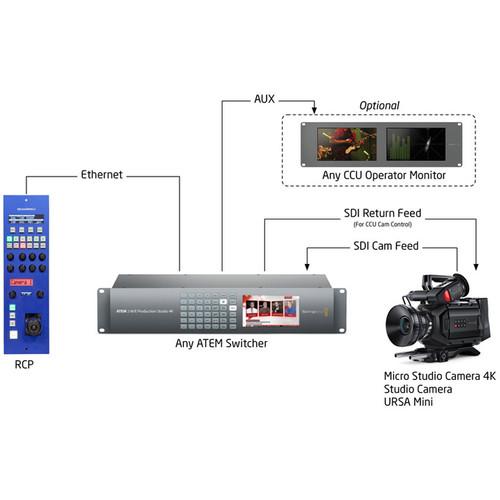

Sends CCU data via a Blackmagic ATEM switcher (currently subject to limitation in connected ATEM clients)

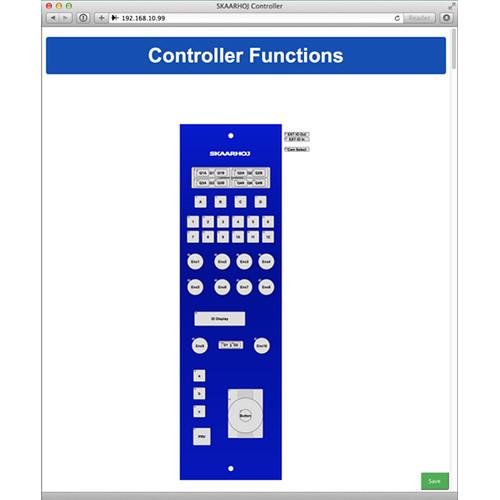

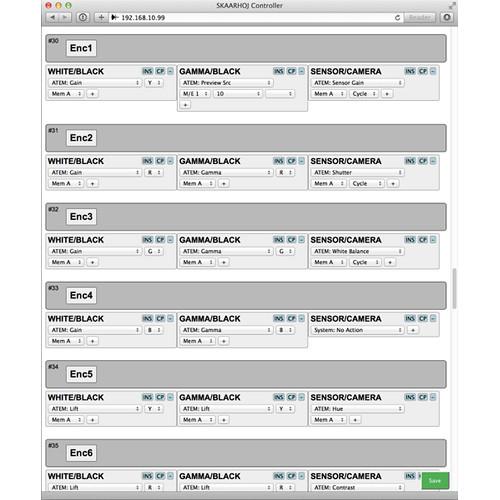

Customize the RCP via the UniSketch OS (interface components included)

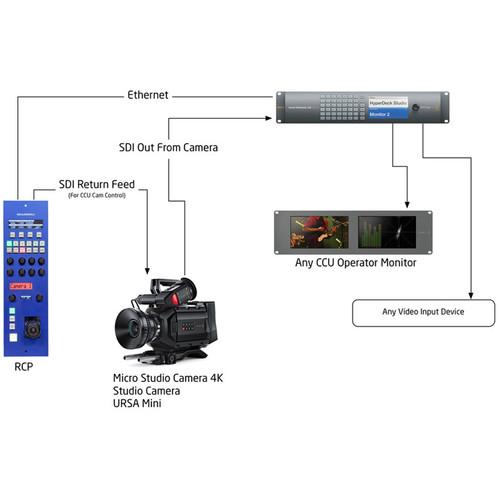

Use a Blackmagic Design Videohub, ATEM switcher AUX output, or Sony DB-9 relay plug (pin 1+2+3) to control CCU operator monitor via joystick push-button
Connect external trigger and control external devices with the DB-9 "EXT I/O" relay output and GPI trigger connector

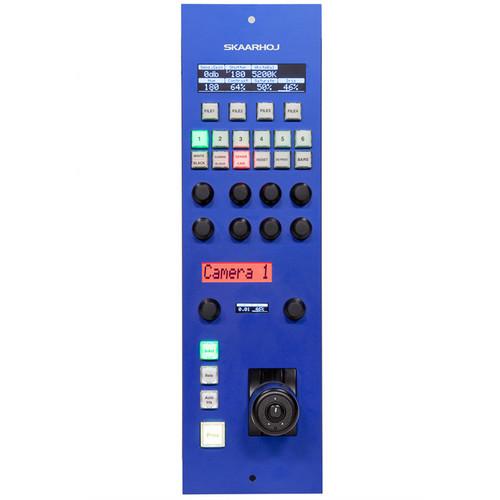

Clear ID indication with large eight-character camera ID display featuring tally backlight
Shade with dedicated encoder knobs for lift, gamma, and gain
Access camera settings such as shutter speed, sensor gain, contrast, saturation, and detail
Advanced Active Panel, Relative, and Limits functions
Overview of encoder settings with the 256 x 64-pixel OLED display
Store and recall settings with four scene stores and dedicated control buttons
Send Auto Iris command via ATEM or Blackmagic 3G-SDI Arduino shield (camera must support this feature)
In the Box SKAARHOJ Remote Control Panel for CCU Control of Blackmagic URSA Mini/Studio Cameras
12V Power Supply
USB Programming Cable
Networking Cable
UniSketch OS Web Interface
Limited 1-Year Warranty
Table of Contents
Upload User Manual
Have you got an user manual for the SKAARHOJ Remote Control Panel for CCU Control of Blackmagic URSA Mini Studio Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters
SKAARHOJ RCP Specs
Ports
1 x 3G-SDI BNC, input 1 x 3G-SDI BNC, output 1 x 9-pin D-Sub, EXT input/output 1 x RJ45, Ethernet 1 x DC 12 V power 1 x USB, programming
Controls
1 x CCU joystick 16 x 12 mm buttons for system control 3 x 12 mm bicolor buttons for InActive, Relative, Auto Iris 1 x 17.4 mm button for preview toggle 10 x Rotary encoder knobs
Display
256 x 64-pixel OLED, encoder settings 8-character, camera ID indication 128 x 32 black and white pixel OLED miniature
Dimensions
Enclosure Size: 4.0 x 14.0 x 5.3" / 10.2 x 35.5 x 13.5 cm (top of joystick)
Weight
2.56 lb / 1.16 kg
Package Weight
4.2 lb
Box Dimensions (LxWxH)
17.4 x 5.9 x 5.8"
