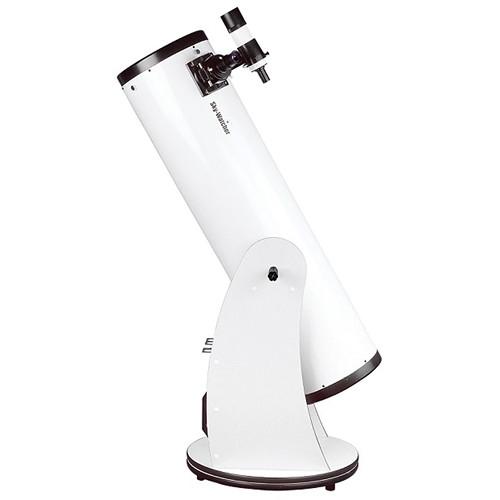

User Manual for Sky-Watcher 10" f 4.7 Traditional Dobsonian Telescope Click to enlarge the picture
Contents of the user manual for the Sky-Watcher 10" f 4.7 Traditional Dobsonian
- Product category: Reflectors Sky-Watcher
- Brand: Sky-Watcher
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sky-Watcher Reflectors
|
User manual for the Sky-Watcher 10" f 4.7 Traditional Dobsonian contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sky-Watcher product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sky-Watcher user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sky-Watcher product will considerably shorten its lifespan!
|
Product description Sporting the large light bucket users have come to expect from a Dobsonian, the Sky-Watcher 10" f/4.7 Traditional Dobsonian Telescope gives users performance at a reasonable price. Its large parabolic primary mirror is highly reflective and corrects spherical aberration to eliminate distortion across the entire field of view, especially at the edges. The four-arm secondary mirror bracket is made with 0.5mm thick fine supports to reduce light loss and diffraction spikes.The large 10" aperture draws in copious amounts of light to make detailed observations of the Moon and planets, and still reach out past our solar system to discover dim deep-sky subjects that smaller scopes are unable to resolve. Its f/4.7 focal ratio and Crayford focuser makes this an ideal choice for imaging. Its fast focal ratio enables devices to capture images in less time than slower scopes, while the unique focusing mechanism employed in the Crayford-style gives it the ability to achieve tack-sharp focusing with zero back-lash that rack-and-pinion focusers generally are unable to. This 2" focuser will accept larger eyepieces so users can enjoy a truly immersive visual experience, and a 1.25" adapter is included to enable the use of the more common size eyepieces and accessories.The heavy base weighs in at 25 pounds and provides a rock-steady platform with very low vibrations. This alt-az rocker mount features Teflon azimuth bearings and a tension clutch on altitude axis. Finally, the tension control handle allows users to adjust the settings allowing them to move the mount easily and smoothly by hand with minimal vibration and maintain its position when released. - Optical Performance
-
- 10" aperture
- f/4.7 focal ratio
- 1200mm focal length
- Efficient, highly reflective mirrors increase image brightness
- Mount
-
- Alt-az rocker design
- Teflon azimuth bearings
- Teflon bearings and tension clutch on altitude axis
- Tension control handle allows for smoother rotation to reduce vibrations and limit over-compensation
- Focuser
-
- Single-speed rack-and-pinion
- Accepts 2" eyepieces and accessories
- Crayford focusers use a toothless friction system that allows for super-fine precision focusing without backlash
- Includes a 2"-to-1.25" adapter
- Eyepiece & Accessories
-
- Eyepieces:
- 1.25" diameter barrel
- 25mm yields 48x power
- 10mm yields 120x power
- Finderscope:
- 9x50
- Straight-through viewing
UPC: 050234116206 In the Box Sky-Watcher 10" f/4.7 Traditional Dobsonian Telescope - 9x50 Finderscope
- 10mm Super Eyepiece
- 25mm Super Eyepiece
- 2"-to-1.25" Eyepiece Adapter
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sky-Watcher 10" f 4.7 Traditional Dobsonian Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSky-Watcher S11620 Specs | | | Optical Design | Newtonian Reflector | | Aperture | 254 mm / 10" | | Focal Length | 1200 mm | | Focal Ratio | f/4.7 | | Focuser | Single-Speed Crayford | | Eyepiece Barrel Diameter | 1.25", 2" | | Diagonal | None | | Finderscope | Yes | | Mounting System | None | | | | Batteries | None | | GPS | None | | Wi-Fi | None | | Weight | 28.0 lb / 12.7 kg (OTA)
25.0 lb / 11.3 kg (Mount)
53.0 lb / 24.0 kg (Fully Assembled) | | | | Package Weight | 73.2 lb | | Box Dimensions (LxWxH) | 50.1 x 26.0 x 25.1" |
