Sky-Watcher 12" Dobsonian Telescope

Search your instruction manual in PDF to download

User Manual for Sky-Watcher 12" Dobsonian Telescope

Click to enlarge the picture
Sky-Watcher 12" Dobsonian Telescope Contents of the user manual for the Sky-Watcher 12" Dobsonian Telescope
  • Product category: Reflectors Sky-Watcher
  • Brand: Sky-Watcher
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Sky-Watcher Reflectors

Sky-Watcher 12" Dobsonian Telescope Sky-Watcher 12" Dobsonian Telescope Sky-Watcher 12" Dobsonian Telescope
User manual for the Sky-Watcher 12" Dobsonian Telescope contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Sky-Watcher product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Sky-Watcher user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Sky-Watcher product will considerably shorten its lifespan!



Product description

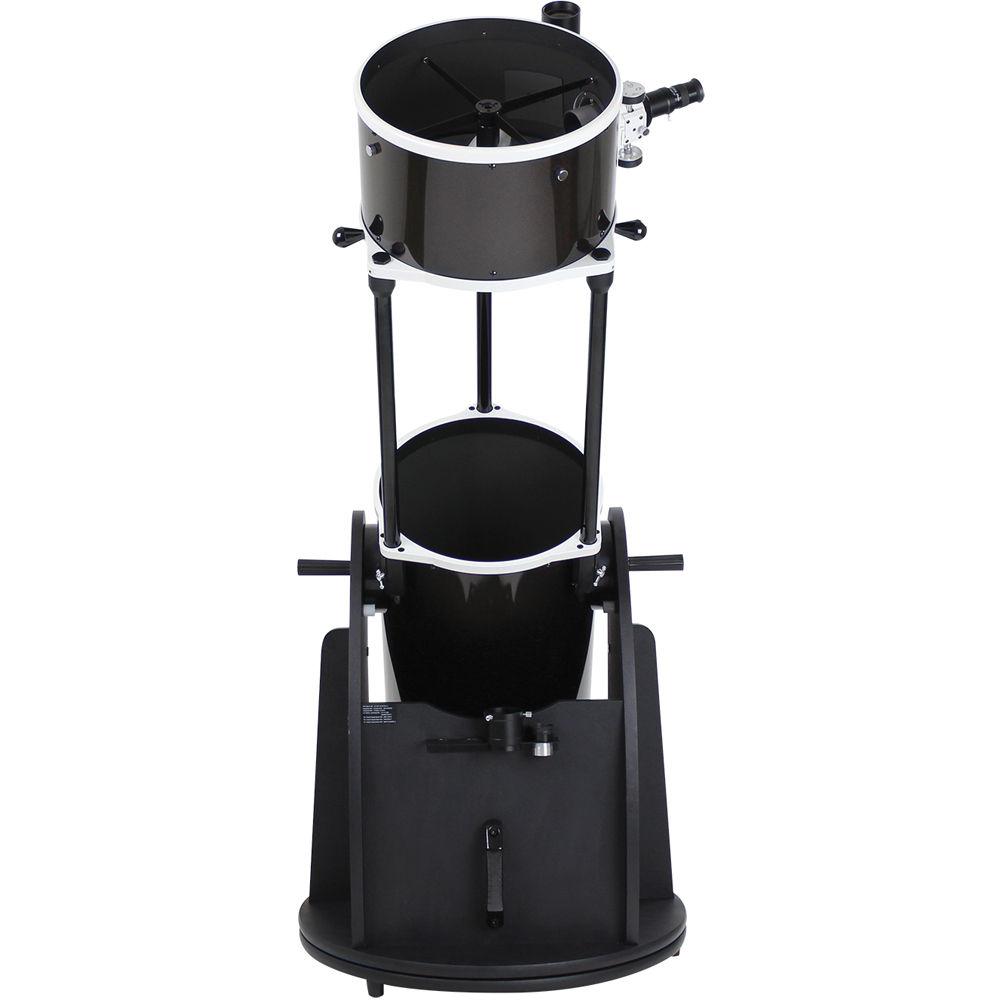

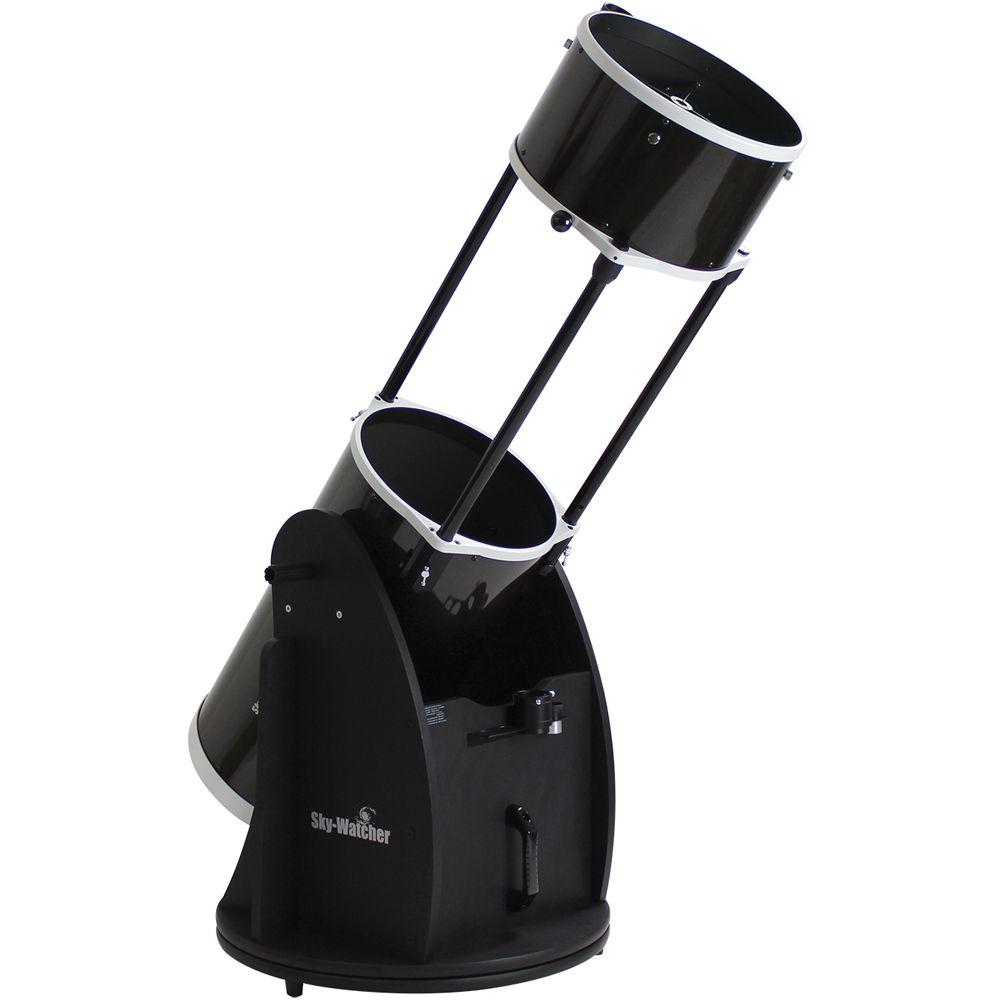

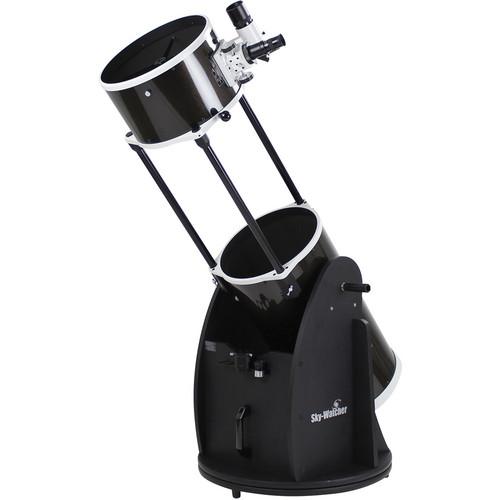

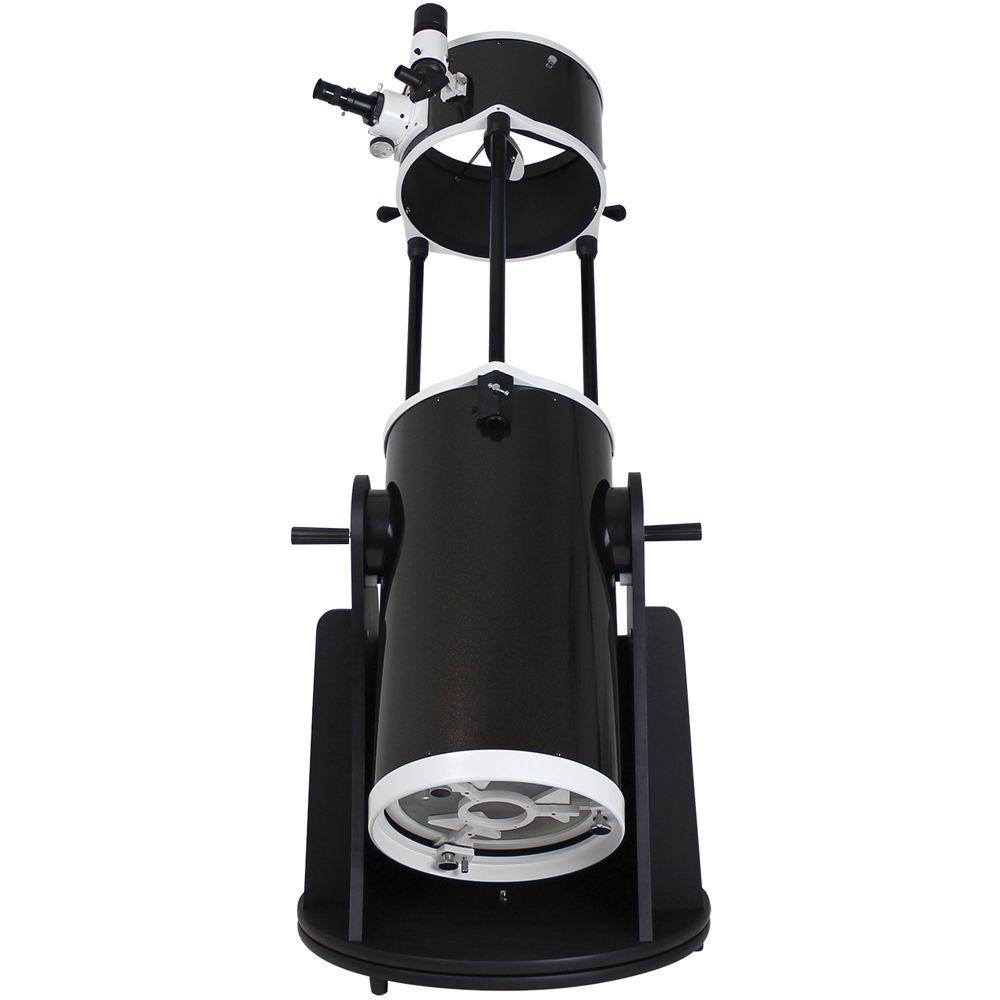

The 12" Dobsonian Telescope from Sky-Watcher is a large-aperture, short focal-length, Newtonian reflector. It provides big light-bucket gathering, good optical quality and unique utility. It has an inspiring simple construction, emphasizing ease-of-use and greater aperture for lower cost. Sky-Watcher's optical tube design utilizes their proprietary truss support system. That system allows the optical tube's front and back tubes to collapse together, aligning on the truss support rods, and locking down for secure transport. This one piece, low-hassle OTA design is mechanically simple and results in a large aperture telescope that can be reasonably handled and transported by one individual. This innovation gives Sky-Watcher users tremendous functional ease-of-use. The Sky-Watcher Dobsonian's large aperture and fast focal ratio make it the ideal dedicated telescope for wide-field, deep-space observation of faint galaxies, nebulae, and star clusters. For ease-of-use, Sky-Watcher uses a high-performance Teflon bearing system in both axes combined with tension adjusters in altitude that assure smooth manual movement. Sky-Watcher Dobsonian telescopes offer quality optics, huge aperture, solid construction, and superb value for the investment. In viewing deep-space, aperture counts big time. With this telescope you have tremendous light gathering power. Some prominent deep-space objects that can be seen under the right viewing conditions in an 12" SW Dob are the Horsehead Nebula, M76, M97, M61 and many more. On each parabolic primary mirror, and elliptical diagonal mirror, aluminum is vacuum deposited to the front glass surface and then over coated with hard quartz (SiO4). Additional layers of titanium dioxide (TiO2) and (SiO4) are then applied. An 8x50mm right angle optical viewfinder provides both magnification and light gathering to help narrow your search for those elusive fuzzies while star-hopping. The standard, backlash-free, 2" Crayford Focuser insures ultra smooth focusing adjustments. Multi-coated, 4-element Plossl eyepieces (25mm and 10mm) provide a spacious 52° Apparent Field of View.
  • Large aperture 12" (305 mm) Dobsonian-style Newtonian for more light gathering ability at less cost
  • 2" Crayford-style focuser with 1.25" adaptor brings those warm fuzzies into quicker and clearer focus
  • Two, 4-element, Plossl 1.25" eyepieces; 25 mm and 10 mm
  • Conveniently located accessory tray holds 3 eyepieces
  • 8x50 RA viewfinder to help find target object
  • Solid rocker-mount with Teflon bearings and tension clutch facilitates smooth vertical and horizontal movement
  • Truss-support system allows the optical tube's front and back tubes to collapse together for easy and secure transport
UPC: 050234117401 In the Box Sky-Watcher 12" Dobsonian Telescope
  • 2 x Plossl Eyepieces; 10 mm and 25 mm
  • Finderscope
  • Eyepiece Tray
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Sky-Watcher 12" Dobsonian Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Sky-Watcher S11740 Specs

    Optical Design Newtonian Reflector
    Aperture 305 mm / 12"
    Focal Length 1500 mm
    Focal Ratio f/4.9
    Eyepiece Barrel Diameter 1.25"
    Finderscope Yes
    Type Manual; Alt-Azimuth
    Batteries None
    Weight 46.2 lb / 21.0 kg
    Package Weight 107.0 lb
    Box Dimensions (LxWxH) 41.0 x 29.5 x 26.0"

    Rating

    96% users recommend this product to others. And what about you?
    Rating: 4.8 of 5

    This product has already been rated by 19 owners. Add your rating and experience with the product.
