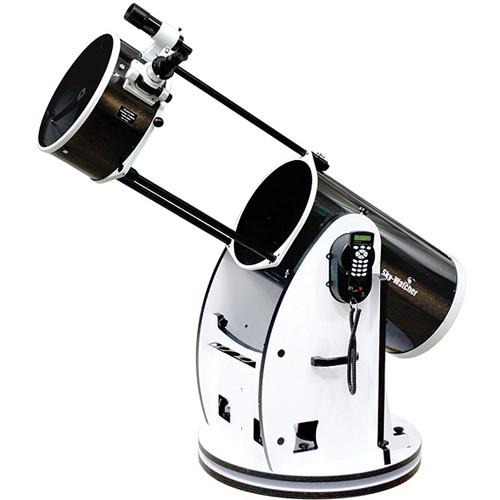

User Manual for Sky-Watcher 14" f 4.9 Collapsible GoTo Dobsonian Telescope Click to enlarge the picture
Contents of the user manual for the Sky-Watcher 14" f 4.9 Collapsible GoTo
- Product category: Reflectors Sky-Watcher
- Brand: Sky-Watcher
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sky-Watcher Reflectors
|
User manual for the Sky-Watcher 14" f 4.9 Collapsible GoTo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sky-Watcher product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sky-Watcher user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sky-Watcher product will considerably shorten its lifespan!
|
Product description Sky-Watcher improves on the often unwieldy standard design of Dobsonians with their 14" f/4.9 Collapsible GoTo Dobsonian Telescope. It features a patented truss tube system that enables the front corrector plate/eyepiece assembly to be moved back and locked against the main rear tube to greatly reduce the size of the OTA for storage and transportation. This open OTA also has the benefit of reducing overall weight versus standard Dobs. To add another level of usability to the scope is a motorized ground-based rocker alt-az mount. Equipped with dual servo motors, they are controlled using the SynScan computer hand controller. This self-contained system features over 42,000 celestial objects with alignment assistance, guided tours and full go-to capabilities. Its dual encoders, coupled with the patented Tension Control Handle, enable users to manually move the scope without having to realign it.It features an exceptionally large 14" aperture conical parabolic mirror to draw in copious amounts of light to make detailed observations of the Moon and planets, and still reach out past our solar system to discover dim deep-sky subjects that smaller scopes are unable to resolve. A conical mirror, as opposed to a standard parabolic, helps to reduce the mirror's weight while allowing it the ability to more evenly acclimate to the ambient temperature. Its f/4.6 focal ratio and two-speed Crayford focuser makes this an ideal choice for imaging. Its fast focal ratio enables devices to capture images in less time than slower scopes, while the unique focusing mechanism employed in the Crayford-style gives it the ability to achieve tack-sharp focusing with zero back-lash that rack-and-pinion focusers generally are unable to. - Optical Performance
-
- 14" aperture
- f/4.9 focal ratio
- 1650mm focal length
- Efficient, highly reflective mirrors increase image brightness
- SynScan System
-
- Motor type: DC Servo Motors
- Resolution:
- Motor encoder: 1,620,000 counts per revolution
- Main axis encoder: 11,748 counts per revolution
- Slew speeds: 1.0X, 2.0X, 8X, 16X, 32X, 200X, 400X, 600X, 800X, 1000X
- Tracking Rates: Sidereal, Lunar, Solar
- Tracking Mode: Dual Axes Tracking
- Alignment Method: Brightest-Star Alignment, Two-Star Alignment
- Database: 25 user defined objects. Complete M, NGC and IC catalog, partial SAO catalogues, total 42,900 objects
- Go-To Pointing Accuracy: Up to 5 arc min
- Focuser
-
- Crayford-style, two-speed
- Accepts 2" eyepieces and accessories
- Coarse focus wheel for fast focusing
- Fine smaller focus dial for precision focusing
- Crayford focusers use a toothless friction system that allows for super-fine precision focusing without backlash
- Includes 2-to-1.25" adapter
- Mount
-
- Alt-az rocker design
- Teflon azimuth bearings
- Teflon bearings and tension clutch on altitude axis
- Tension control handle allows for smoother rotation to reduce vibrations and limit over-compensation
- Eyepiece & Accessories
-
- Eyepieces:
- 4-element Plossl
- 1.25" diameter barrel
- 25mm yields 66x power
- 10mm yields 165x power
- Finderscope:
- 8x50 erect-image
- Right-angle viewing
UPC: 050234118309 In the Box Sky-Watcher 14" f/4.9 Collapsible GoTo Dobsonian Telescope - 8x50 Finderscope
- 10mm Plossl Eyepiece
- 25mm Plossl Eyepiece
- 2"-to-1.25" Adapter
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sky-Watcher 14" f 4.9 Collapsible GoTo Dobsonian Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSky-Watcher S11830 Specs | Optical Design | Reflector | | Aperture | 14" / 356 mm | | Focal Length | 1650 mm | | Focal Ratio | f/4.9 | | Eyepiece Barrel Diameter | 2" directly to focuser
1.25" with included adapter | | Diagonal | N/A | | Finderscope | 8x50 right angle erect-image | | Tripod | None | | Mount Type | Motorized alt-az | | Power Source | 10 - 15 VDC 1 A
2.1 mm plug | | Optical Tube Dimensions | Not specified by manufacturer | | Weight | Tube: 53.0 lb / 24.0 kg
Base: 94.0 lb / 42.6 kg
Assembled: 147.0 lb / 66.7 kg | | | | Package Weight | 207.0 lb | | Box Dimensions (LxWxH) | 58.0 x 43.0 x 27.0" |
