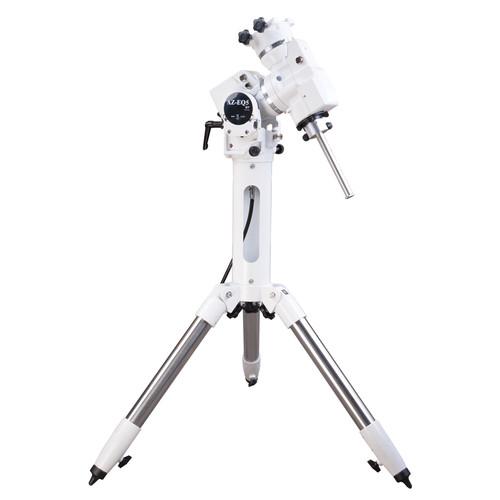

Product description Designed and built to provide a versatile platform for astronomers and astrophotographers of all levels, the Sky-Watcher AZ-EQ5 Equatorial / Alt-Az Motorized GoTo Mount is outfitted with precision motors, a quiet low-backlash belt drive, a computer controller, and a sturdy tripod to provide an ideal platform for observation and imaging. This unique mount ships configured as a German Equatorial mount capable of long-term RA tracking when properly polar aligned. To expand its versatility and usability, it can be reconfigured to an alt-azimuth mount, and with a simple mode change on the hand controller it will function flawlessly with dual-axis tracking. For star parties or separate observation and imaging rigs, it can be converted to a dual optical tube assembly (OTA) setup.The SynScan system has an internal database of 42,900 celestial objects including the complete Messier, NGC, and IC catalogs and 25 user-defined objects. To keep it current its firmware is updatable through the built-in serial port via updates downloaded through the Internet. With multiple alignment options, 10 slew speeds, and automatic tracking capabilities, finding and keeping objects centered in the field of view is easy no matter if you're viewing the fast-moving Moon or much slower deep-space subjects. - Mount Configurations
-
- Three configurations based on need
- Equatorial mode: Precise astronomical tracking for observation and imaging
- Alt-Az mode: General purpose celestial and terrestrial viewing
- Dual OTA mode: The ability to mount two OTAs, opposed to each other, on a single mount for star parties or separate observation and imaging rigs

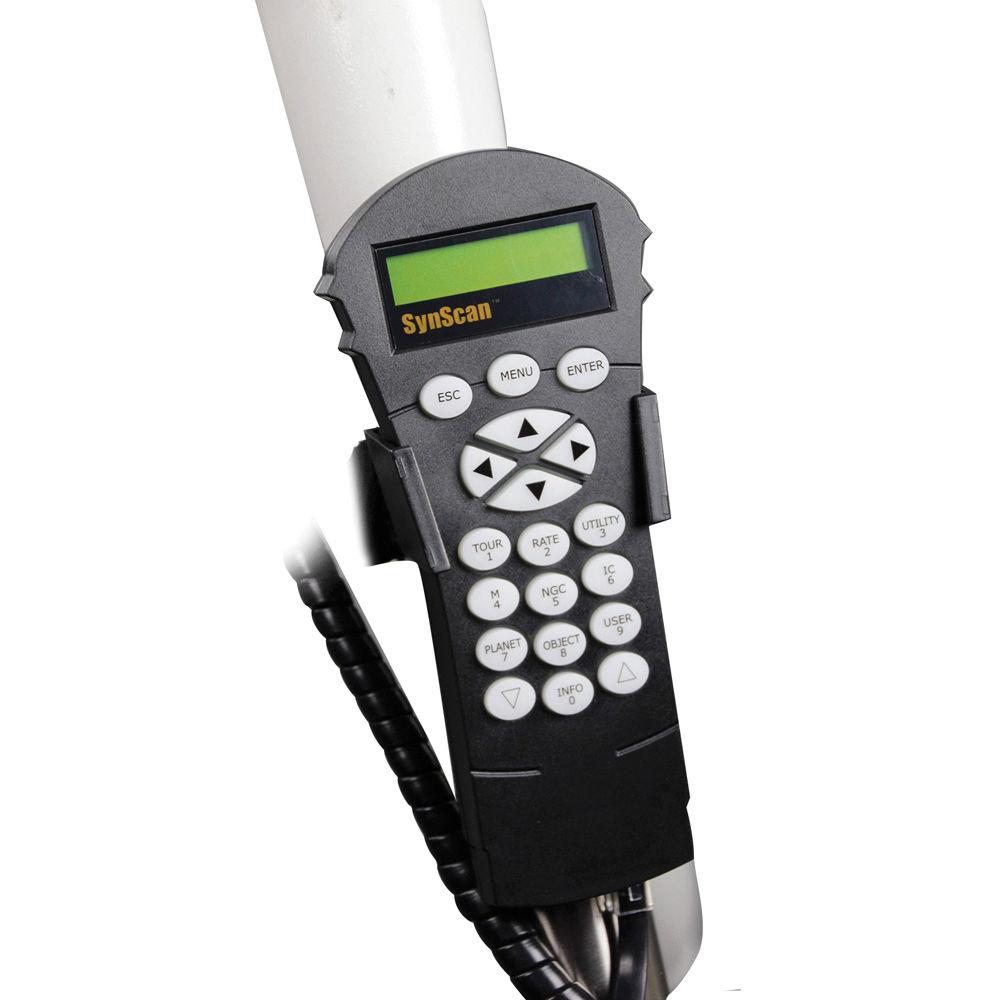

- SynScan Hand Controller
-
- Wired handheld computer controller for mount
- 42,900-object database including the complete Messier, NGC, and IC catalogs
- 25 user-defined objects
- Alignment assistance: One-, two-, three-star alignment
- Permanent Periodic Error Correction (PPEC) removes inaccuracies inherent in gears and allows for more accurate tracking, especially for long-exposure astrophotography
- Connect to a computer via user-supplied RS-232 cable
- Flash upgradable via Internet download
- Mount
-

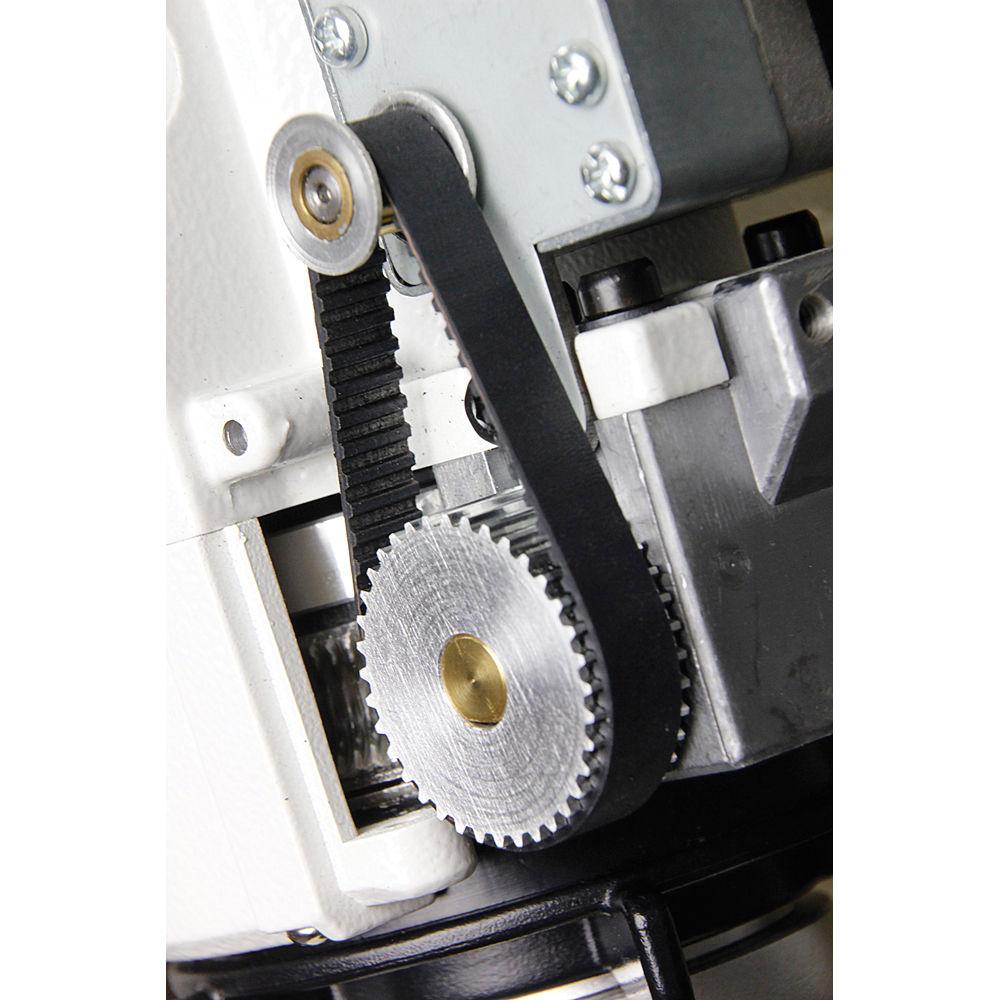

- Low backlash belt drive with silent slewing
- ±5 arcseconds native periodic error
- Dual shutter release control for batch exposures of astrophotography
- Dual-axis and Equatorial tracking modes
- Tracking rates: Sidereal, Lunar, Solar
- Primary axis encoder tracks mount position and enables users to move mount manually without having to realign
- 1.8° hybrid stepper motor
- Slew speeds: 1000x, 800x, 600x, 400x, 200x, 32x,16x, 8x, 2x, 1x

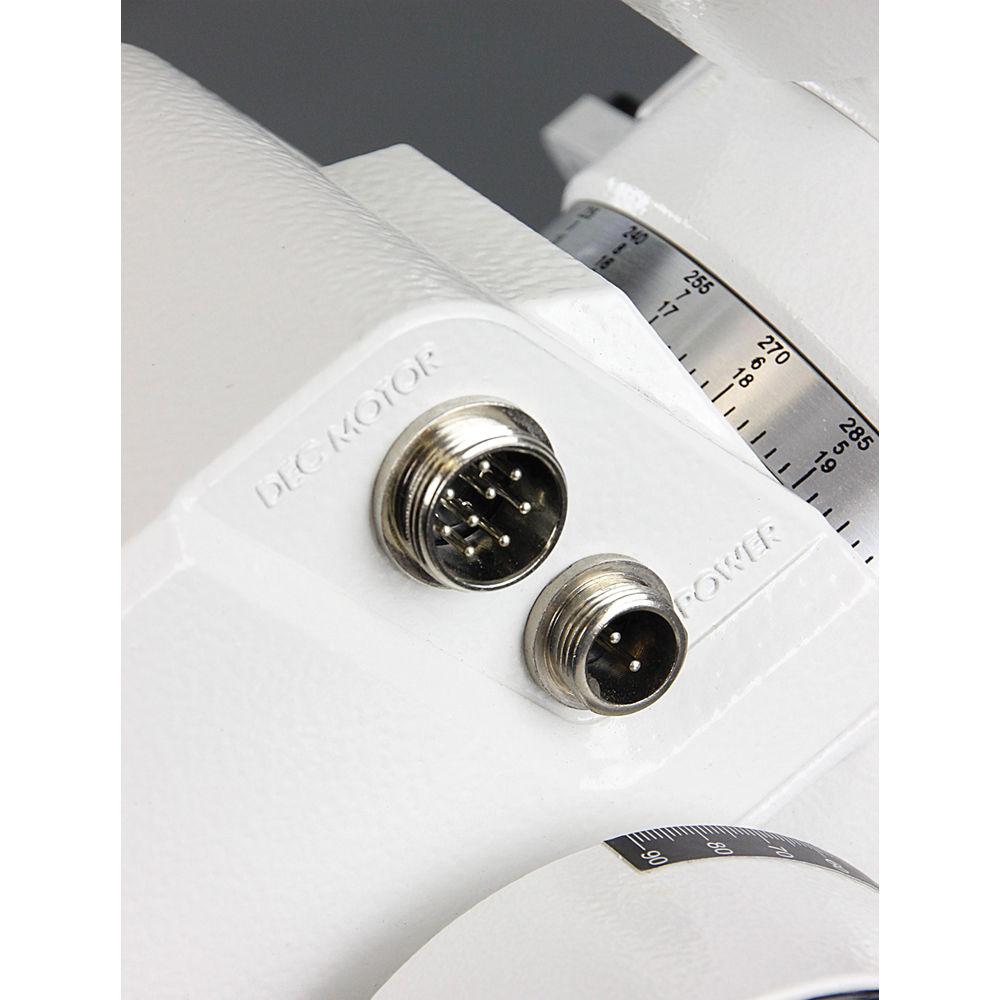

- Secure-fit power supply connections
- Tripod
-
- 30 lb payload capacity
- Corrosion-resistant stainless steel legs
- Two-section adjustable height
- Spiked feet provide a sure footing on rough or soft earth
- Weighs 33 lb to provide a stable, low-vibration platform
- Counterweight and Shaft
-
- Counterweight shaft retracts into mount to reduce or eliminate interference with tripod or other equipment
- Counterweight shaft extension
- Stainless steel counterweight shaft
- Includes two 7.5 lb counterweights
UPC: 050234302005 In the Box Sky-Watcher AZ-EQ5 Equatorial / Alt-Az Motorized GoTo Mount 2 x Vixen-Style Saddles 12VDC Car/Vehicle Power Cord Counterweight Shaft Extensions 7.5lb Counterweights Limited Two-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sky-Watcher AZ-EQ5 Equatorial Alt-Az Motorized GoTo Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSky-Watcher AZ-EQ5 Specs | Mount Type | Alt-Az or Equatorial | | Load Capacity | 30.0 lb / 13.6 kg | | Motor | DC servo | | GoTo Capability | Yes. SynScan hand controller | | Polar Axis Scope | None | | Includes Tripod/Pier | Yes
Adjustable-height
Stainless steel | | Power Requirements | 11 to 16 VDC, 4 A | | Weight | 33 lb / 15 kg | | | | Package Weight | 56.8 lb | | Box Dimensions (LxWxH) | 35.0 x 25.0 x 18.0" |
