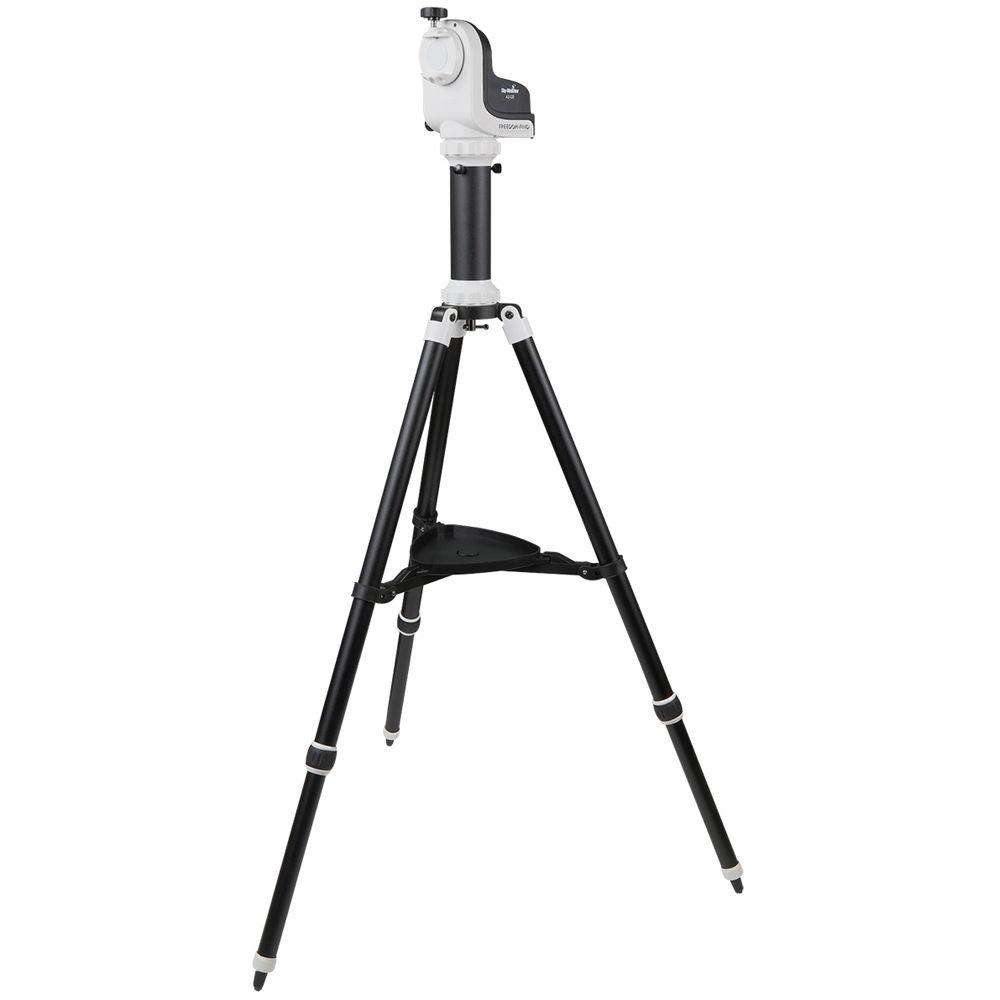

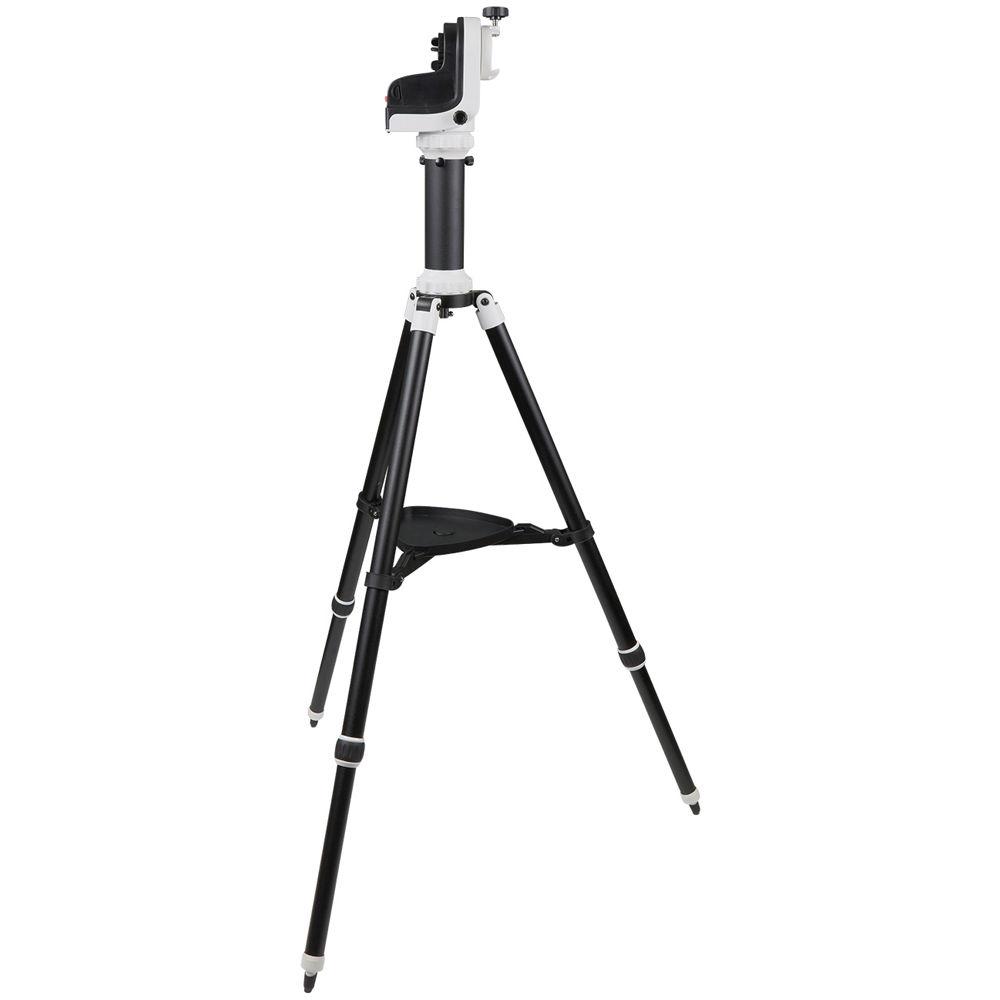

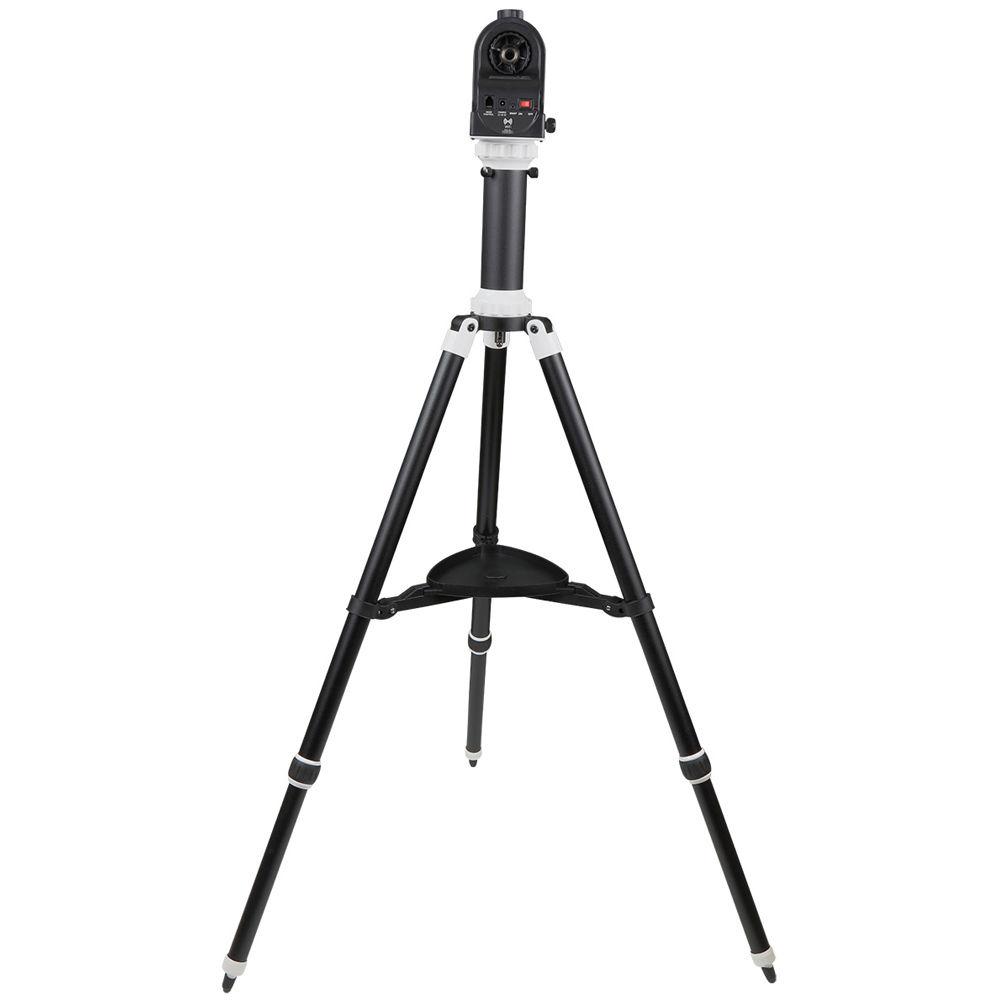

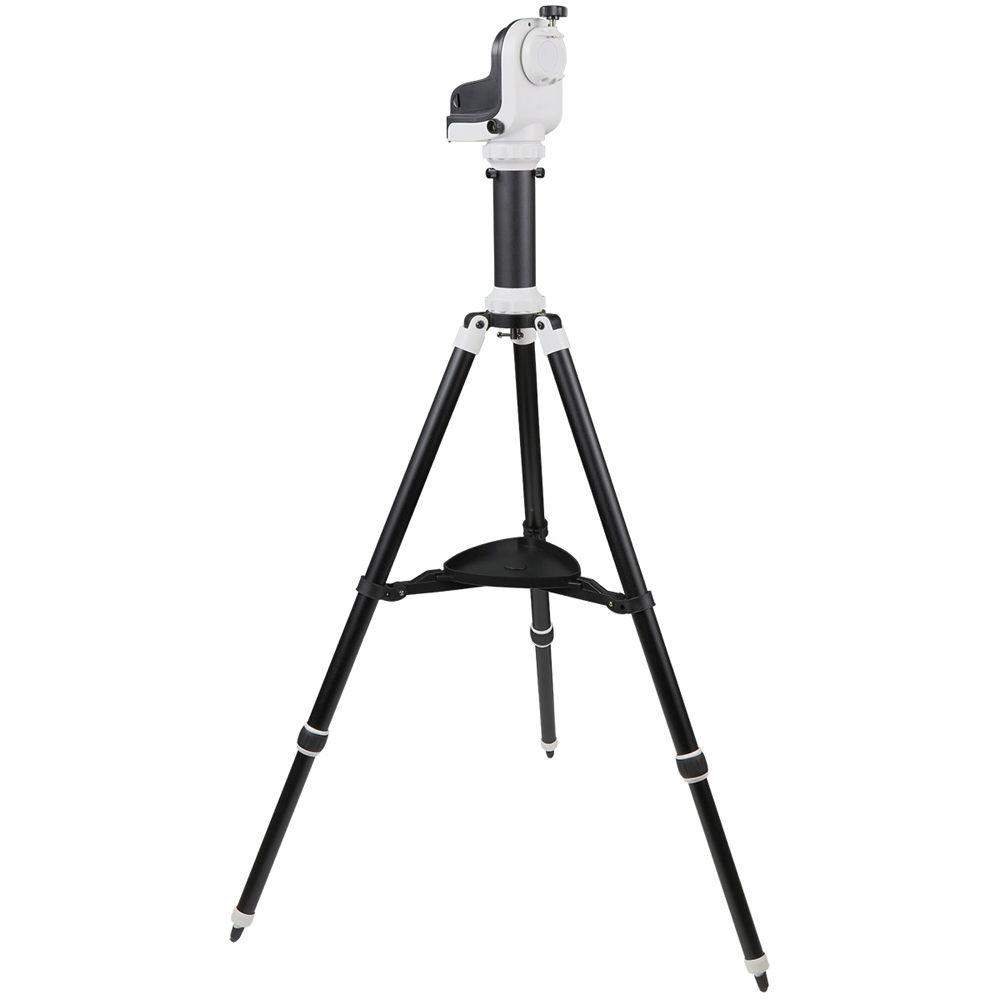

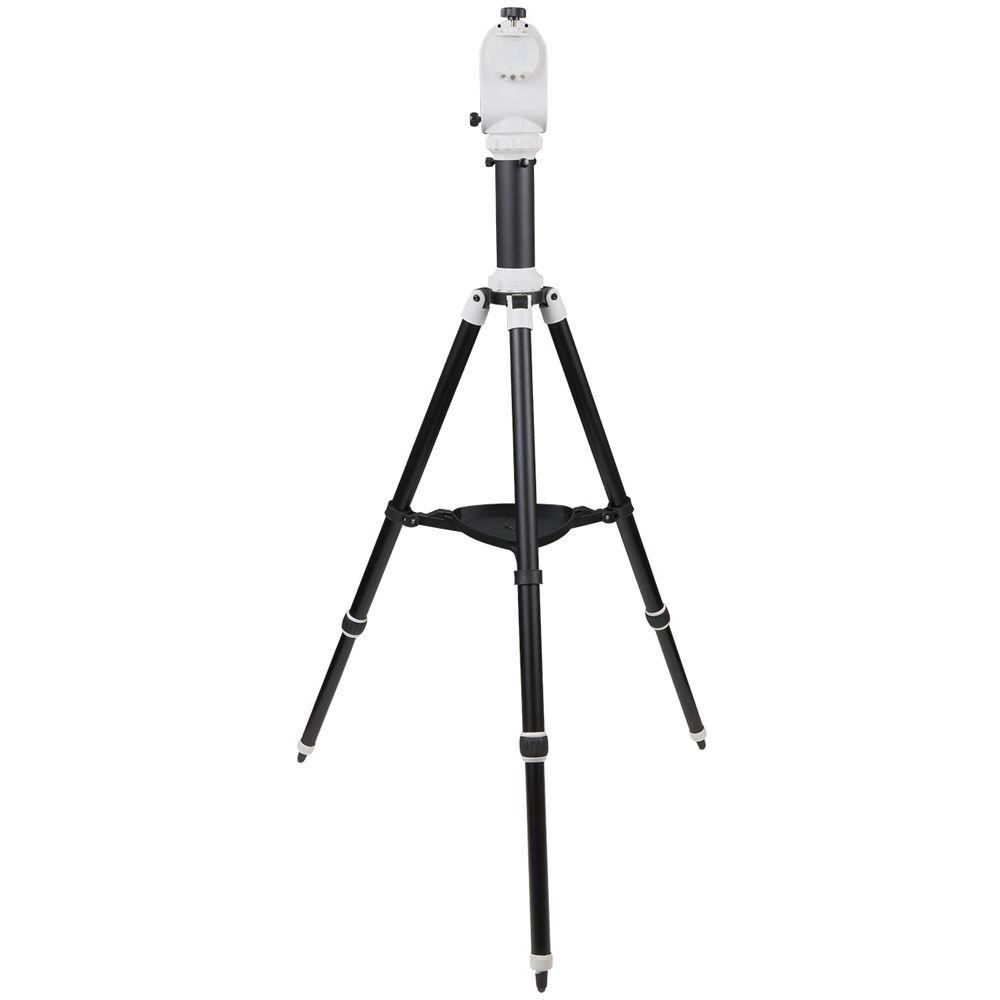

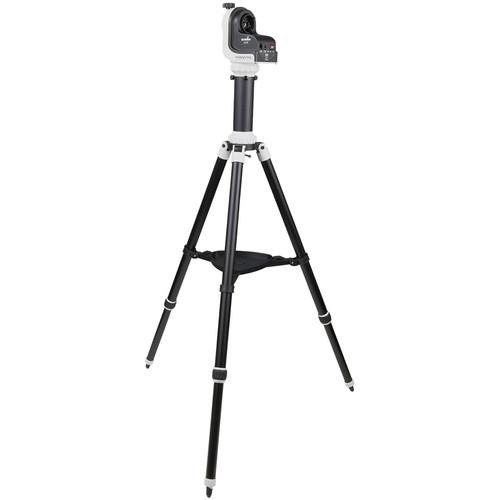

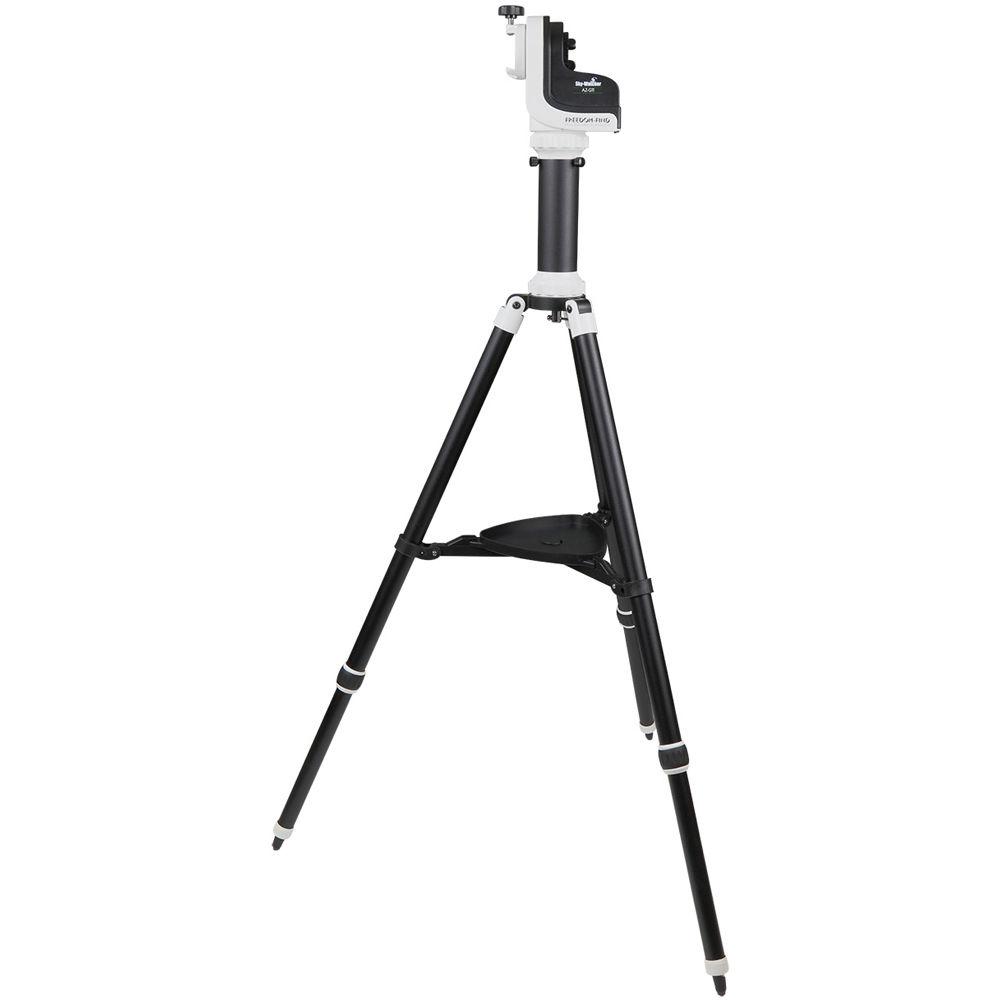

User Manual for Sky-Watcher AZ-GTi GoTo AZ Mount Click to enlarge the picture
Contents of the user manual for the Sky-Watcher AZ-GTi GoTo AZ Mount
- Product category: Mounts Sky-Watcher
- Brand: Sky-Watcher
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sky-Watcher Mounts
 |
User manual for the Sky-Watcher AZ-GTi GoTo AZ Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sky-Watcher product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sky-Watcher user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sky-Watcher product will considerably shorten its lifespan!
|
Product description Ideal for small- to medium-aperture refractors and catadioptrics, the Sky-Watcher AZ-GTi GoTo AZ Mount features an integrated WiFi module that generates its own local network signal to allow wireless control via a smartphone running their free SynScan Pro app for Android and iOS devices. The app is intuitively laid out for easy setup, navigation, and exploration of the sky—even if you've never looked through a telescope before. Packed with over 42,900 objects with daytime and nighttime alignment-assistance procedures, plus advanced features such as periodic error correction (PEC), backlash compensation, tours, and DSLR camera control, the SynScan app is a powerful yet easy-to-use way to control the mount.Dual-axis motors slew to and track objects, while dual encoders on each axis precisely follow the mount's movement and maintain its alignment—even if the mount is moved by hand. A Vixen-style dovetail saddle makes mounting a variety of optical tube assemblies (OTAs) fast and easy, and with a payload capacity of up to 11 pounds it is ideal for refractors and Maksutov-Cassegrain telescopes. Supporting the mount is an adjustable-height aluminum tripod. The AZ-GTi comes with a pier extension that is located between the tripod and mount head to provide additional height for easier viewing without sacrificing stability when the OTA is aimed at or near the zenith. - Mount
-
- Motorized alt-azimuth design
- Integrated WiFi module allows for direct connection to smartphones without the need for routers or Internet connection
- DC servo motors precisely move the mount on both axes with minimum vibration
- Dual encoders on each axis maintain alignment, even when mount is moved by hand, letting you move the mount manually across the sky while keeping GoTo functionality
- Altitude and azimuth clutch knobs enable easy manual movement
- SNAP port allows optional remote shutter-release cables to be connected to mount for advanced astrophotography
- Runs on eight user-supplied AA batteries or optional 12 VDC power cord
- SynScan App
-
- Free app for Android and iOS devices
- Align, move, and control mount wirelessly
- Automatic day, date, time, and location using the device's GPS unit
- 42,900+ object database, similar to the conventional SynScan hand controller
- Sky tour shows best deep-sky objects visible at a specific day/date/time
- Solar, lunar, sidereal tracking rates
- Slew speeds: 0.5x, 1x, 8x, 16x, 32x, 64x, 128x, 400x, 600x, Max (800x/3.4°/sec)
- Assisted nighttime and daytime alignment procedures
- Periodic error correction (PEC) allows user to train out intrinsic tracking errors and save them into the permanent memory to improve GoTo and tracking accuracy over time
- Backlash compensation eliminates the backlash experienced when gears stop and settle for improved GoTo and slewing accuracy
- DSLR shutter release and exposure control enable long-exposure, time-lapse, and other advanced astrophotography techniques to be controlled by the app through the SNAP port on mount
Database Details:- Solar system, including Moon, Sun, and planets
- NGC catalog
- IC catalog
- Messier catalog
- Caldwell catalog
- SAO catalog
- Named stars
- Double (binary) stars
- Variable stars
- User-defined celestial and terrestrial objects
- Tripod and Extension Pier
-
- Adjustable-height aluminum-legged tripod
- Max height: 43.3"
- Max leg spread: 42.3"
- Spiked feet provide greater stability on rough, uneven, and soft ground
- Center tray holds accessories such as eyepieces, filters, phones, and flashlights
- Extension pier placed between the tripod and mount head adds height for more comfortable viewing without sacrificing stability or increasing vibration when the OTA is pointed at or near the zenith
UPC: 050234211109 In the Box Sky-Watcher AZ-GTi GoTo AZ Mount Pier Extension Tripod with Tray Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sky-Watcher AZ-GTi GoTo AZ Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSky-Watcher AZ-GTi Specs | Mount Type | Motorized alt-azimuth | | Load Capacity | 11 lb / 5.0 kg | | Motor | Dual axis with digital encoders | | GoTo Capability | Yes | | Altitude / Latitude Adjustment | Not specified by manufacturer | | Polar Axis Scope | None | | Includes Tripod/Pier | Aluminum, adjustable height
Max height: 43.3" / 110.0 cm
Max leg spread: 42.3" / 107.4 cm
Pier extension | | Power Source | 8 x AA batteries or 12VDC power cord | | Dimensions | 5.9 x 3.5" / 15.1 x 9.0 cm | | Weight | Mount: 2.9 lb / 1.3 kg
Tripod: 4.2 lb / 1.9 kg
Pier extension: 1.1 lb / 0.5 kg | | | | Package Weight | 13.85 lb | | Box Dimensions (LxWxH) | 45.0 x 10.0 x 9.0" |
