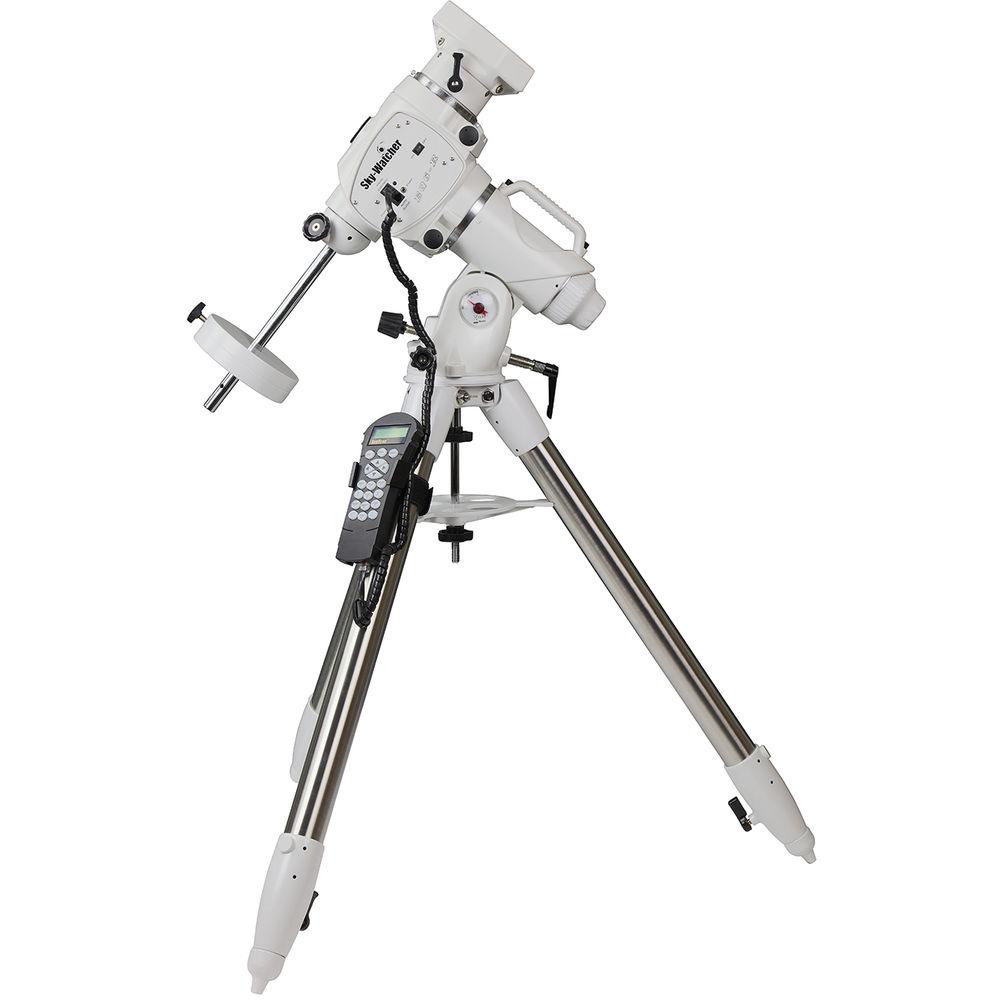

User Manual for Sky-Watcher EQ6-R Equatorial GoTo mount Click to enlarge the picture
Contents of the user manual for the Sky-Watcher EQ6-R Equatorial GoTo mount
- Product category: Mounts Sky-Watcher
- Brand: Sky-Watcher
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sky-Watcher Mounts
 |
User manual for the Sky-Watcher EQ6-R Equatorial GoTo mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sky-Watcher product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sky-Watcher user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sky-Watcher product will considerably shorten its lifespan!
|

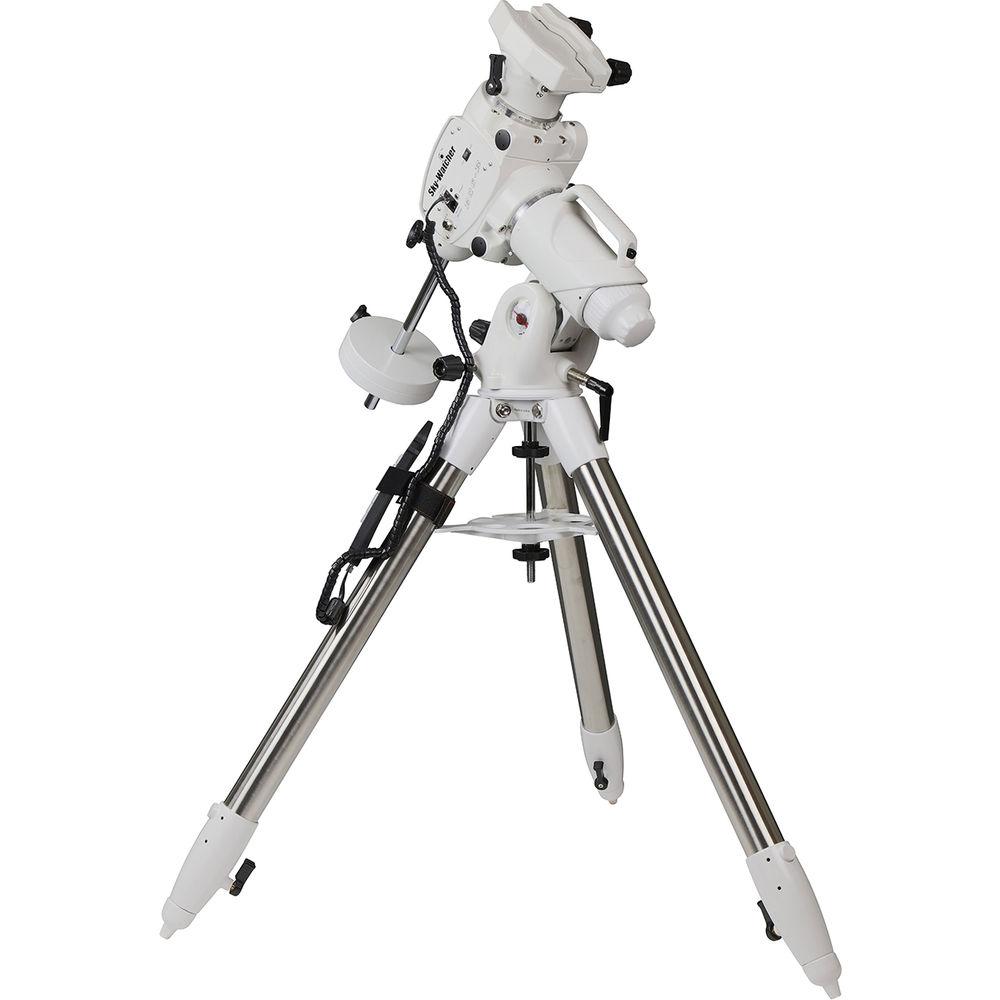

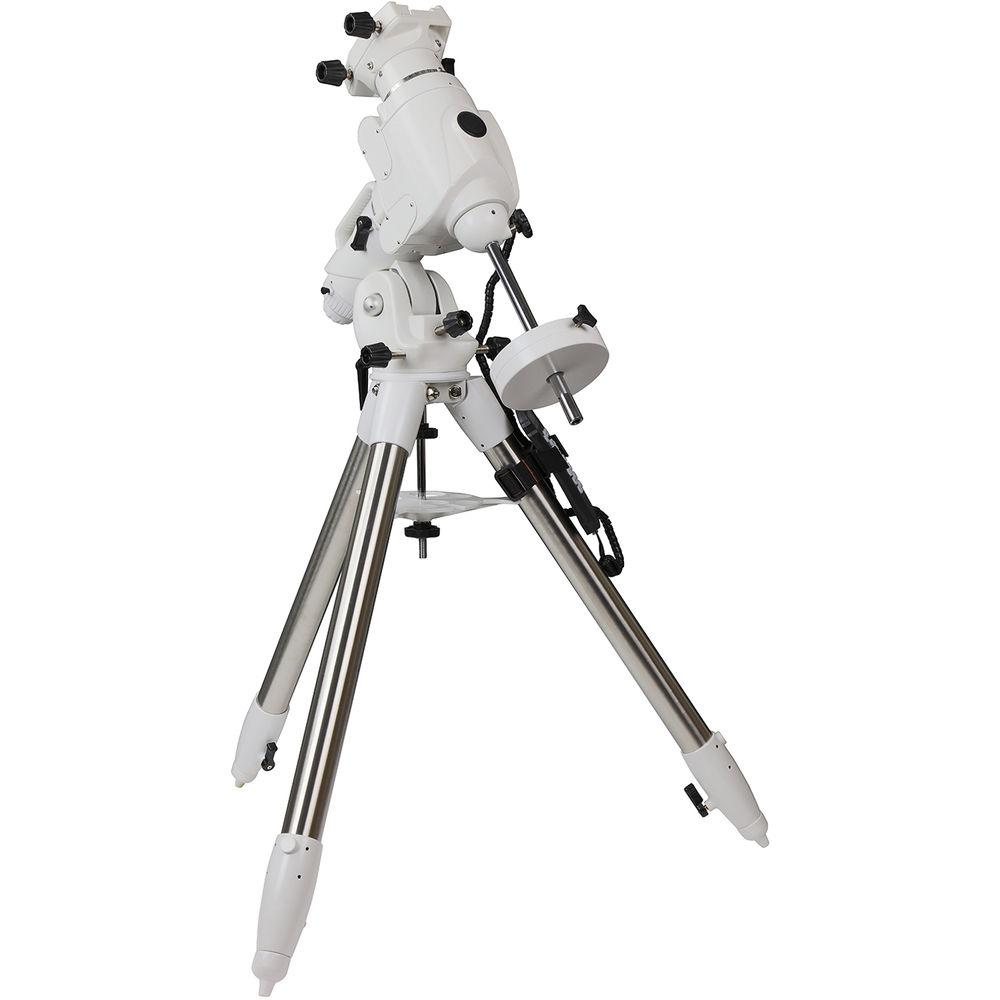

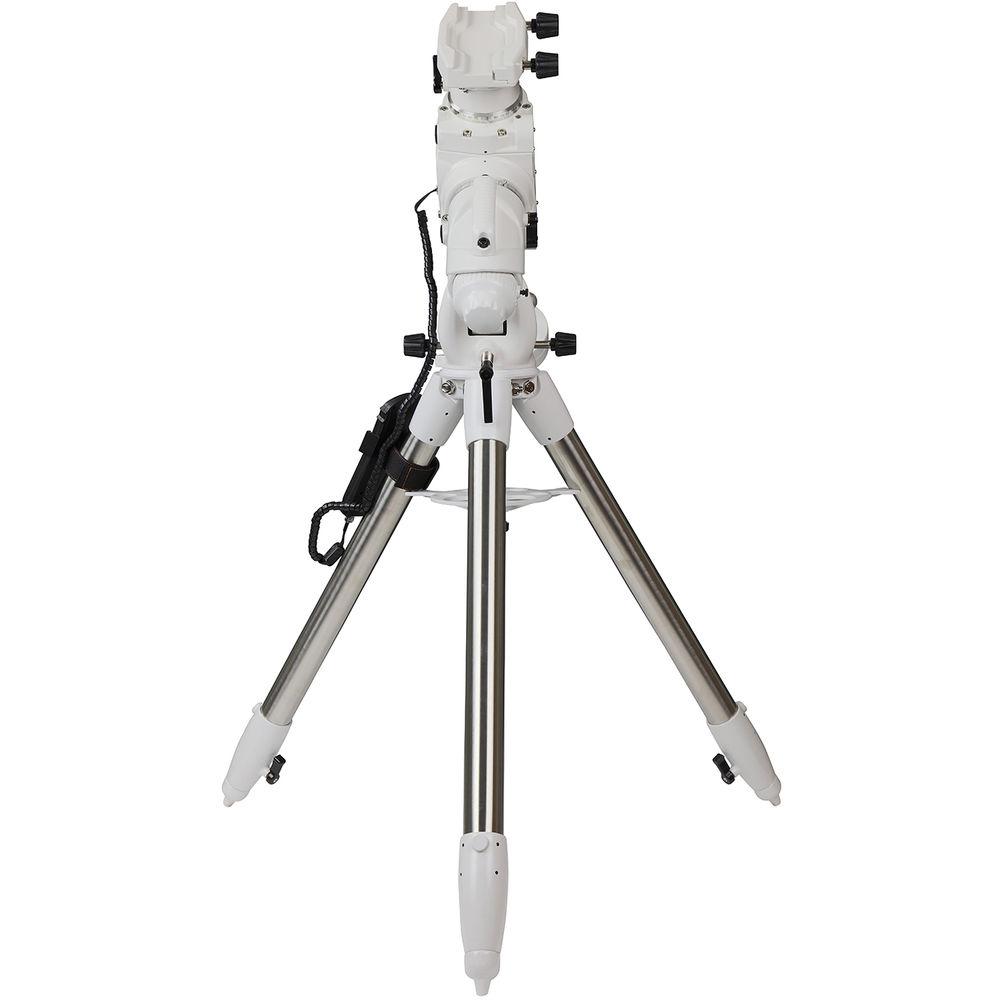

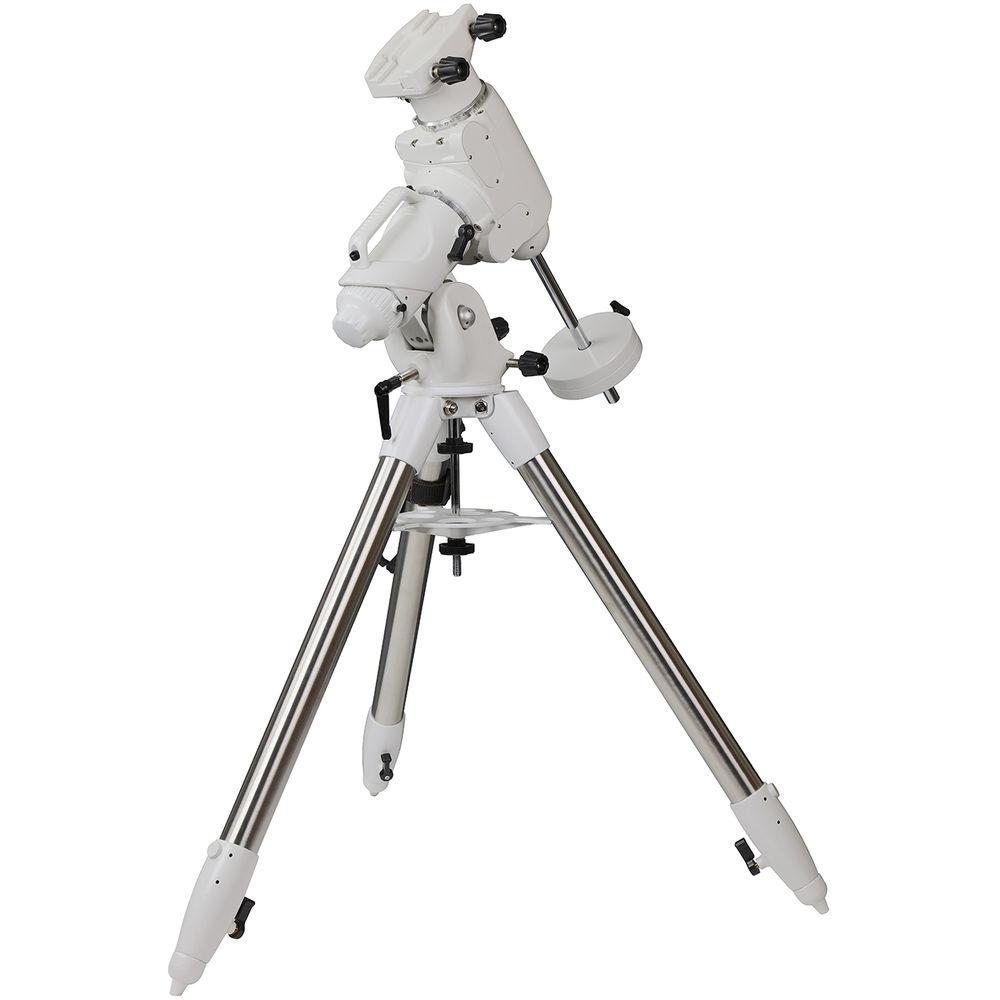

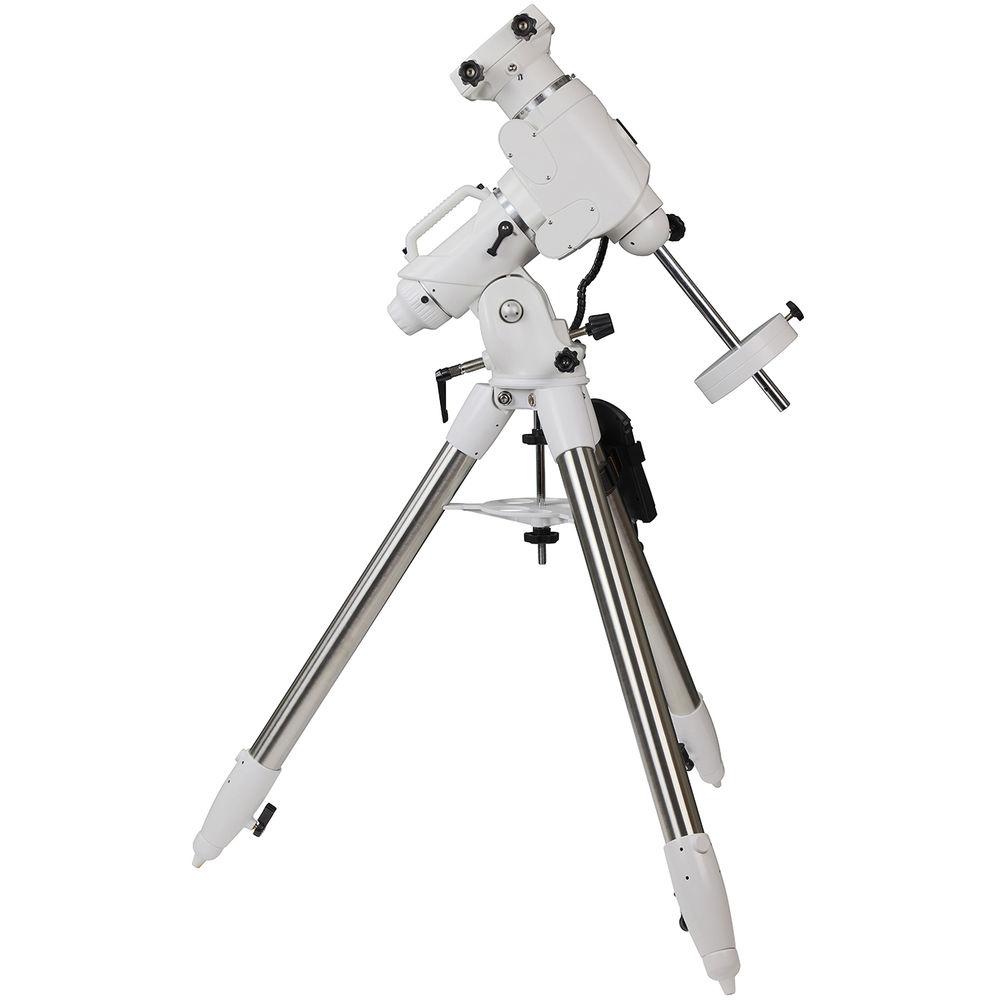

Product description With an upgraded belt-drive system to improve tracking precision and the addition of a SNAP port to control a DSLR shutter release for easier astrophotography, the Sky-Watcher's EQ6-R GoTo Equatorial Mount is designed for a quality observing and imaging experience. This mount features dual stepper servomotors, the SynScan computer hand controller, a stainless steel adjustable tripod, and a built-in illuminated polar scope. For precise tracking, as required during long-exposure astrophotography or observation sessions, the EQ6-R has a belt drive that reduces Periodic Error Correction (PEC) common to worm gears in many mounts. A SNAP port permits operation of your DSLR through the SynScan controller. With a maximum payload capacity of up to 44 lb, this mount can support most medium-to-large refractor, reflector, or catadioptric optical tube assemblies (OTAs) and still handle imaging rigs, and an integrated carry handle makes transport easy. The mount features a dual mounting saddle with compatibility for Vixen- or Losmandy-style dovetail plates.The SynScan system has an internal database of 42,900 celestial objects, including the complete Messier, NGC, and IC catalogs and 25 user-defined objects. To keep it current its firmware can be updated through the built-in serial port via updates downloaded through the Internet. Using the same computer connection, the SynScan can be controlled with many popular astronomy software systems for additional versatility. With multiple alignment options, 10 slew speeds, and automatic tracking capabilities, finding and keeping objects centered in the field of view is easy no matter whether you're viewing the fast-moving Moon or much slower deep-space subjects.The heavy-duty tripod has a center stabilizer bar that allows users to lock the accessory tray into the legs to provide additional stabilization and vibration reduction. Spiked feet give the tripod a sure footing on rough, uneven, and soft ground. With a total weight of 77 lb, including the two 11 lb counterweights, this mount and tripod provide a strong and sturdy platform for most of your astronomical observation and imaging needs. - Mount
-
- SNAP port permits control of DSLR camera through SynScan controller
- Motorized and computer-guided equatorial mount with 44 lb payload capacity
- Dual-axis tracking with Sidereal, Lunar, Solar tracking rates
- Losmandy/Vixen dual saddle accepts any compatible OTA

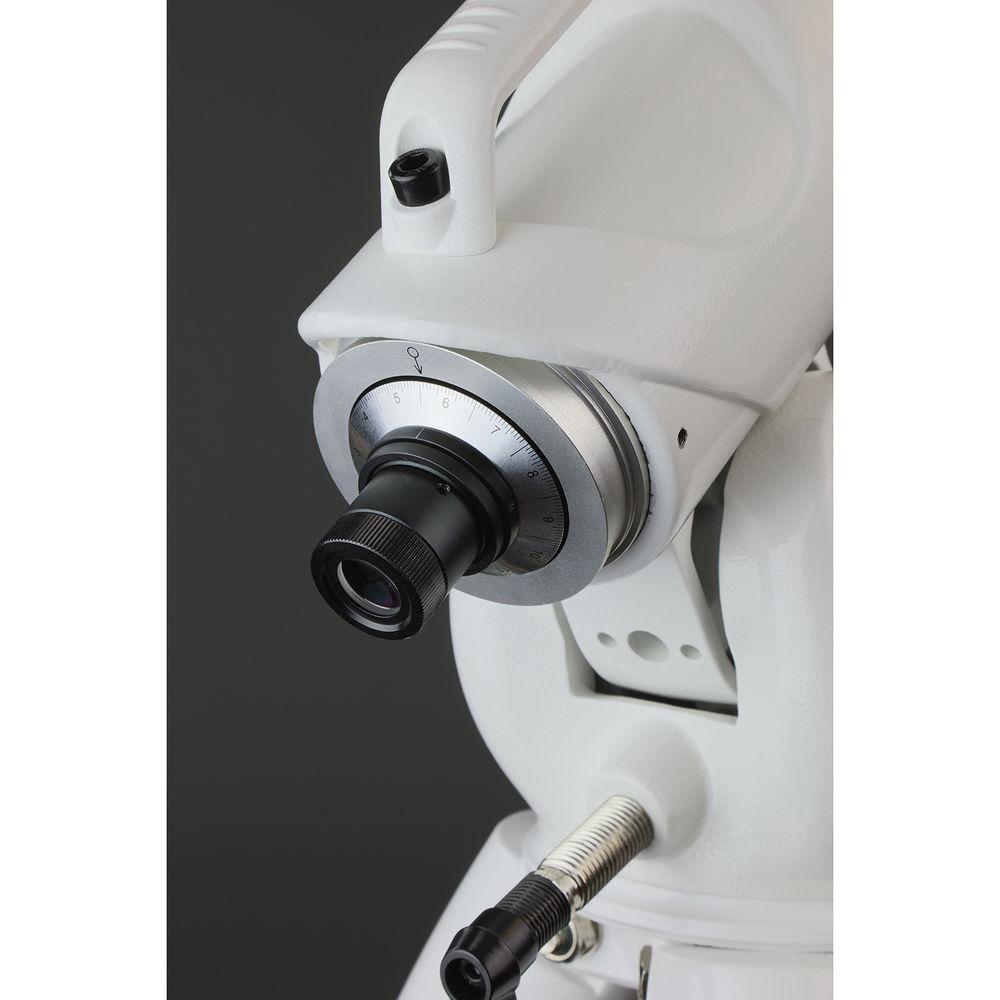

- Built-in illuminated polar alignment scope for faster setup
- Control many DSLR shutter releases for advanced photography techniques such as long-exposure astrophotography or star-scapes
- 64 microstep driven 1.8° stepper DC servomotors
- Slew speeds: 1000x, 800x, 600x, 400x, 200x, 32x, 16x, 8x, 2x, 1x
- Guiding speed selectable from 0.25x, 0.50x, 0.75x, or 1x

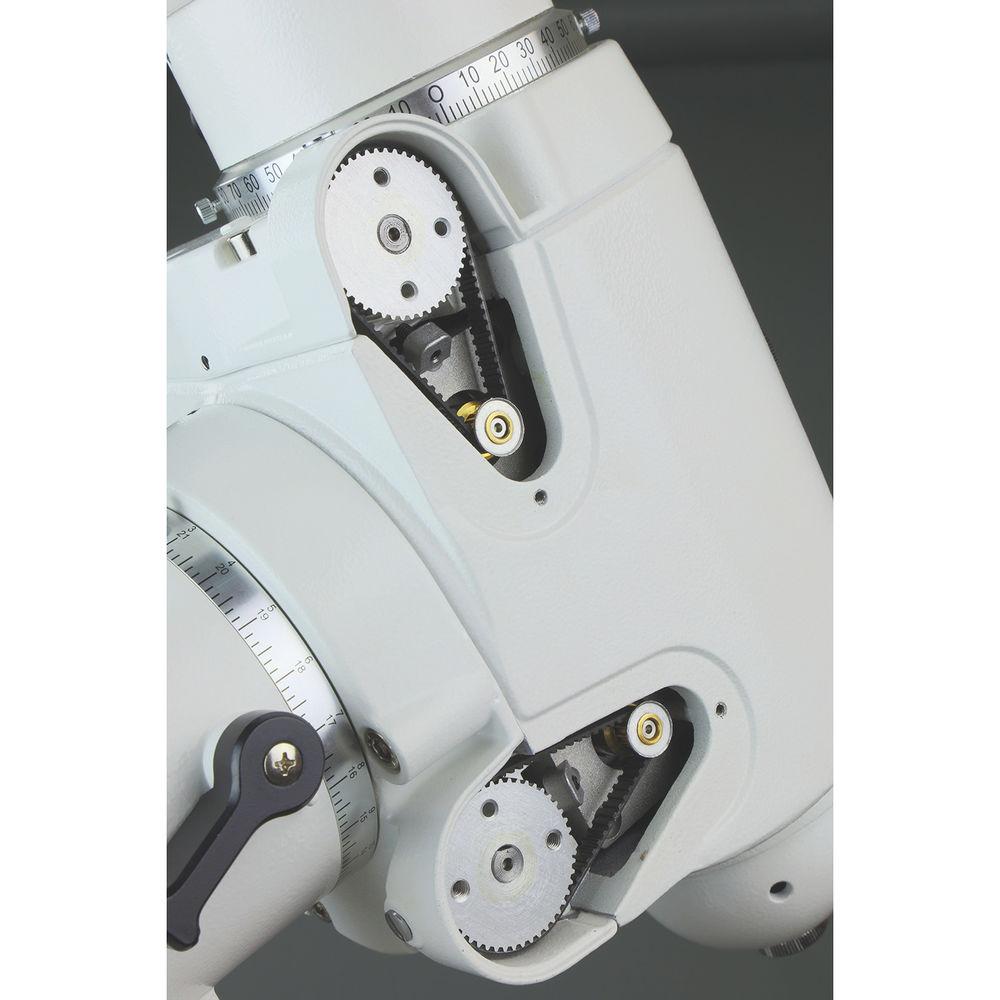

- Belt drive reduces gear backlash for finer pointing and tracking
- Positioning accuracy up to 1 arcminute
- Auto guider interface for astrophotography
- Etched indicators on RA and dec axes
- Clutches for manual manipulation
- Integrated carry handle for safe and secure handling during setup and breakdown

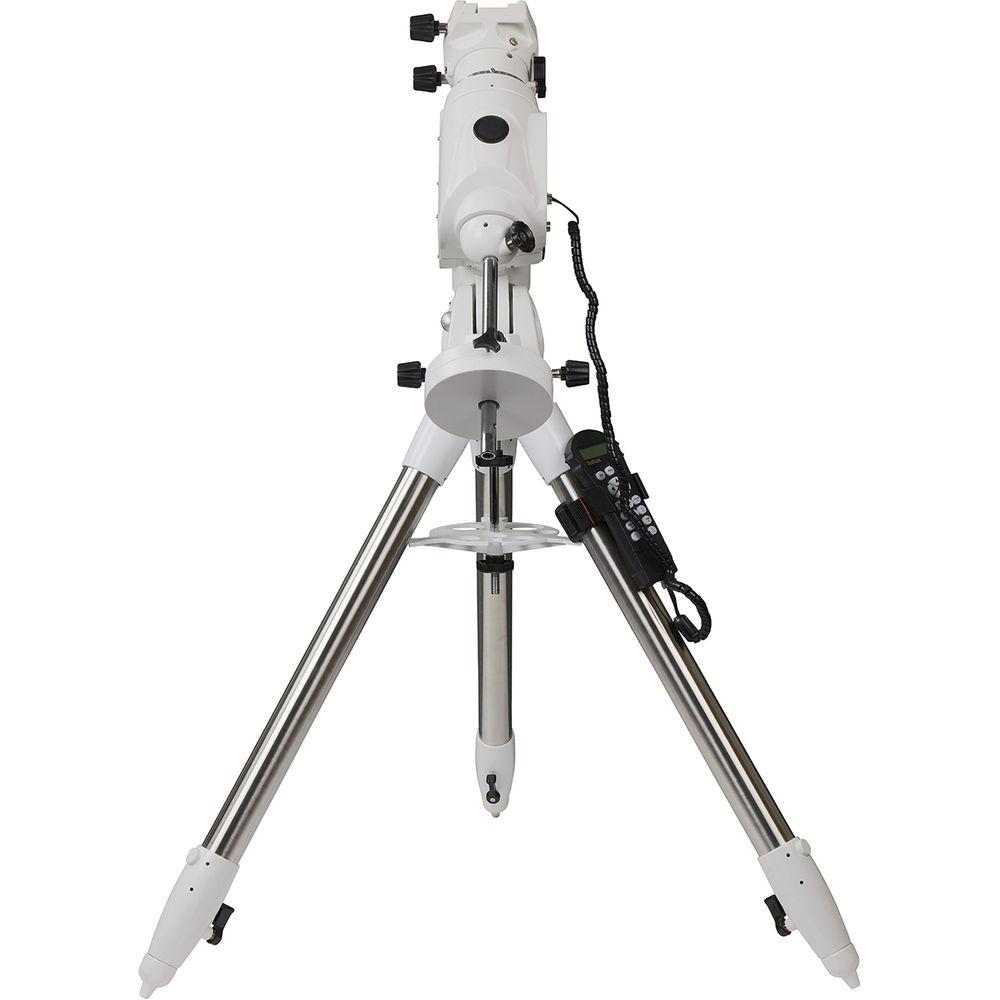

- SynScan Hand Controller
-
- Wired handheld computer controller for mount
- 42,900-object database including the complete Messier, NGC, and IC catalogs
- 25 user-defined objects
- Alignment assistance: One-, two-, three-star alignment
- Periodic Error Correction (PEC) removes inaccuracies inherent in gears and allows for more accurate tracking, especially for long-exposure astrophotography
- Connect to a computer via user-supplied RS-232 cable
- Flash upgradable via Internet download
- Tripod
-
- 77 lb total weight minimizes vibrations
- Corrosion-resistant stainless steel legs
- Two-section adjustable height
- Accessory tray with 1.25" and 2" eyepiece holders
- Center stabilizer bar locks tray against legs to increase stability and reduce vibrations
- Spiked feet provide a sure footing on rough or soft earth
- Counterweight and Shaft
-
- Counterweight shaft retracts into mount to reduce or eliminate interference with tripod or other equipment
- Stainless steel counterweight shaft
- Includes two 11 lb counterweights
UPC: 050234030304 In the Box Sky-Watcher EQ6-R Equatorial GoTo mount 12 VDC Car/Vehicle Power Cord SynScan Hand Controller 2 x 11 lb Counterweights Counterweight Bar Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sky-Watcher EQ6-R Equatorial GoTo mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSky-Watcher EQ6-R Specs | Mount Type | German equatorial | | Load Capacity | 44.0 lb / 20.0 kg | | Motor | 64 micro-step DC servos | | GO-TO Capability | Yes, SynScan hand controller | | Polar Axis Scope | Built-in, illuminated | | Includes Tripod/Pier | Yes | | Power Source | 12 VDC | | Weight | 77 lb / 35 kg, including counterweights | | | | Package Weight | 93.5 lb | | Box Dimensions (LxWxH) | 45.5 x 23.0 x 21.0" |
