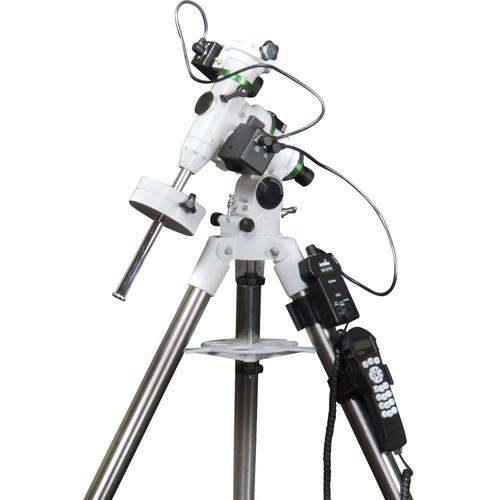

User Manual for Sky-Watcher EQM-35 EQ GoTo Mount Click to enlarge the picture
Contents of the user manual for the Sky-Watcher EQM-35 EQ GoTo Mount
- Product category: Mounts Sky-Watcher
- Brand: Sky-Watcher
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sky-Watcher Mounts
|
User manual for the Sky-Watcher EQM-35 EQ GoTo Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sky-Watcher product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sky-Watcher user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sky-Watcher product will considerably shorten its lifespan!
|
Product description Designed for small- to medium-aperture refractors and Maksutov-Cassegrain optical tube assemblies (OTAs), the Sky-Watcher EQM-35 EQ GoTo Mount is an ideal mount for most astrophotography and visual astronomy needs.With a 22-pound payload capacity, two counterweights, and a Vixen-style dovetail saddle, the mount is made to deliver the smooth movement and tracking required for long-exposure shots. The equatorial design and built-in polar alignment scope allow for fast and precise alignment with the capability to track along the right ascension axis and avoid the field rotation that alt-azimuth mounts suffer from, maintaining the subject's orientation throughout the exposure period. Removing the declination assembly allows the use of optional Star Adventurer L-brackets or ball head adapters, turning the mount into a heavy-duty tracking system for wide-field photography of the star field and Milky Way galaxy with a camera and lens.The brain of the mount is the SynScan hand controller. This system has an internal database of 42,900+ celestial objects, multiple daytime and nighttime alignment-assistance procedures, deep-sky tours, and updatable firmware. Periodic Error Correction (PEC), backlash compensation, and Pointing Accuracy Enhancement (PAE) systems allow you to improve the slew, GoTo, and tracking performance over time to make the mount more precise as you use it. With multiple slew speeds and automatic tracking capabilities, finding and keeping objects centered in the field of view is easy whether you're viewing the fast-moving Moon or much slower deep-space subjects.Whether you want to view celestial objects, photograph them through a telescope, or simply take wide-field shots of the stars, the EQM-35 EQ GoTo Mount will handle it all with precision. - Mount
-
- Recommended for refractors up to 100mm or up to 127mm Maksutov-Cassegrain OTAs
- German equatorial design for smoother and more accurate tracking
- 22-pound payload capacity, excluding counterweights
- Removable declination assembly allows the use of Star Adventurer L-brackets or ball head adapters, turning the mount into a heavy-duty tracking system for wide-field photography with a camera/lens
- Dual- or single-axis tracking allows for right ascension–only tracking for improved images without field rotation during long exposures
- Vixen-style dovetail saddle is compatible with a wide variety of OTAs
- Built-in polar alignment scope for precision polar alignment—important for long-exposure astrophotography
- Includes two 7.5-pound counterweights
- Adjustable-height steel tripod with center locking column and tray for improved stability and enhanced vibration suppression
- SynScan Hand Controller
-
- 18-character/2-line LCD screen with adjustable contrast and backlight brightness
- 19-key alphanumeric backlit keypad with adjustable brightness
- 42,900+ object database
- User-friendly menu-driven system navigation
- Deep sky tour shows best deep-sky objects visible at a specific day/date/time
- Solar, lunar, sidereal tracking rates
- Slew speeds: 0.5x, 1x, 8x, 16x, 32x, 64x, 128x, 400x, 600x, Max (800x/3.4°/sec)
- Assisted nighttime alignment procedures: 1-star, 2-star, 3-star, polar alignment, brightest star
- Daytime assisted alignment procedures: Sun, Moon, brightest star
- Periodic error correction (PEC) allows user to train out intrinsic tracking errors and save them into the permanent memory to improve GoTo and tracking accuracy over time
- Backlash compensation eliminates the backlash experienced when gears stop and settle for improved GoTo and slewing accuracy
- Pointing Accuracy Enhancement (PAE) function enables the mount to achieve enhanced pointing accuracy in specific areas
- Multi-purpose port: Connects and interfaces with an external device such as a computer, GPS module, camera, or other accessory
- Updatable via Internet using RS-232 port
Controller Database Details:- Solar system, including Moon, Sun, and planets
- NGC catalog
- IC catalog
- Messier catalog
- Caldwell catalog
- SAO catalog
- Named stars
- Double (binary) stars
- Variable stars
- 25 user-defined objects
UPC: 050234305006 In the Box Sky-Watcher EQM-35 EQ GoTo Mount 2 x 7.5-Pound Counterweight for EQ5, EQ6, EQ6-R tcseuvecwqweftxczuasvtzfedtxxycz Counterweight Shaft SynScan Controller with Coiled Cable 2 x Motor Assemblies with Control Box and Cables Stainless Steel Tripod with Tray Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sky-Watcher EQM-35 EQ GoTo Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSky-Watcher EQM-35 Specs | Mount Type | German equatorial | | Load Capacity | 22.0 lb / 10.0 kg, excluding counterweight | | Motor | 1.8° hybrid stepper motor | | GoTo Capability | SynScan controller | | Azimuth Adjustment Range | Not specified by manufacturer | | Latitude Adjustment Range | Not specified by manufacturer | | Polar Axis Scope | Built-in | | Includes Tripod/Pier | Stainless steel, adjustable height | | Counterweight(s) | 2 x 7.5 lb / 3.4 kg | | GPS | None | | Power Requirement | 11 - 16 VDC, 4A | | Dimensions | Not specified by manufacturer | | Weight | 22.7 lb / 10.3 kg, fully assembled with tripod and counterweights | | | | Package Weight | 25.0 lb | | Box Dimensions (LxWxH) | 42.0 x 17.0 x 9.0" |
