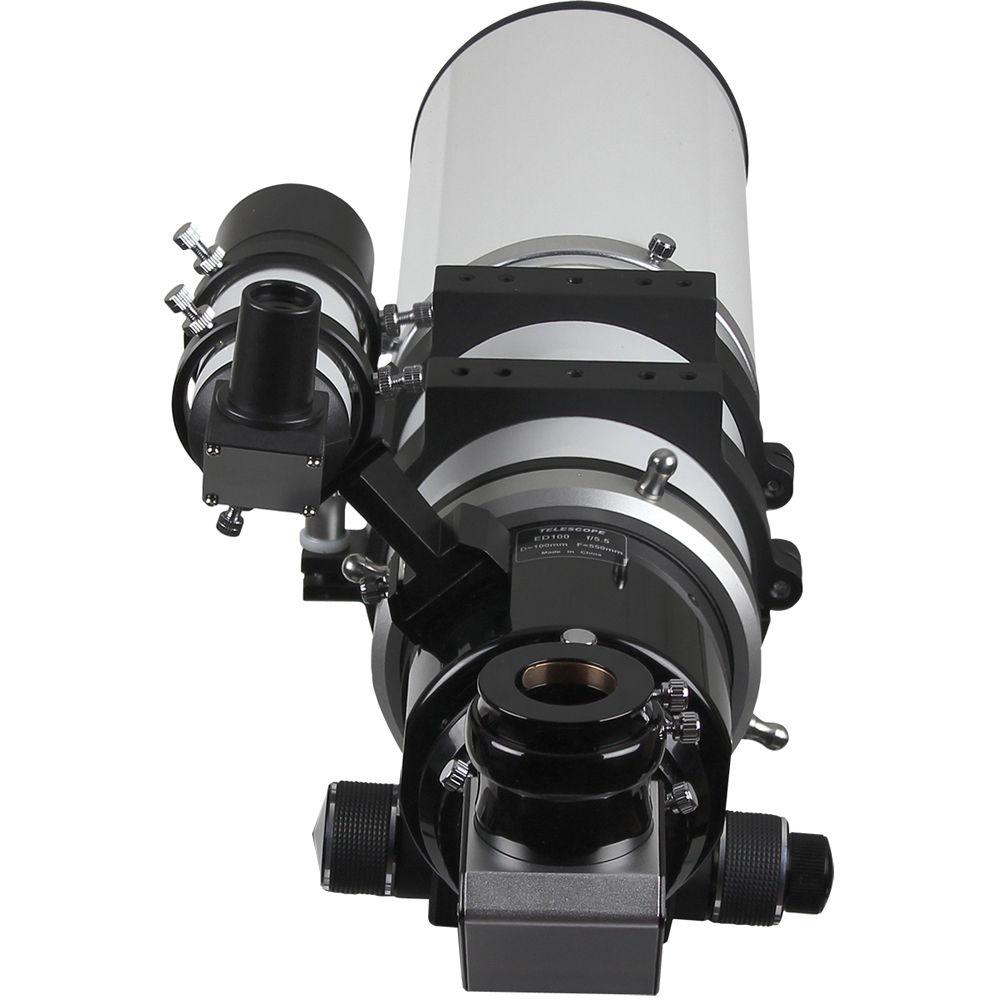

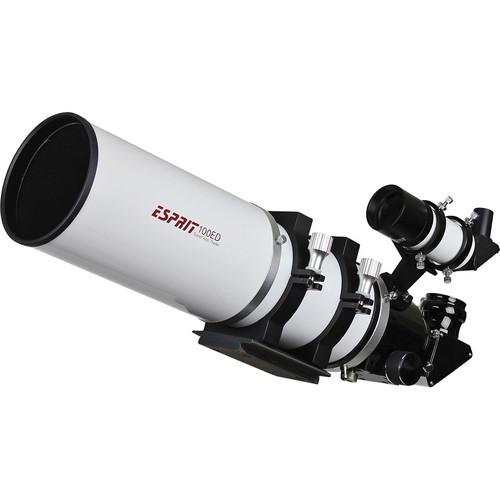

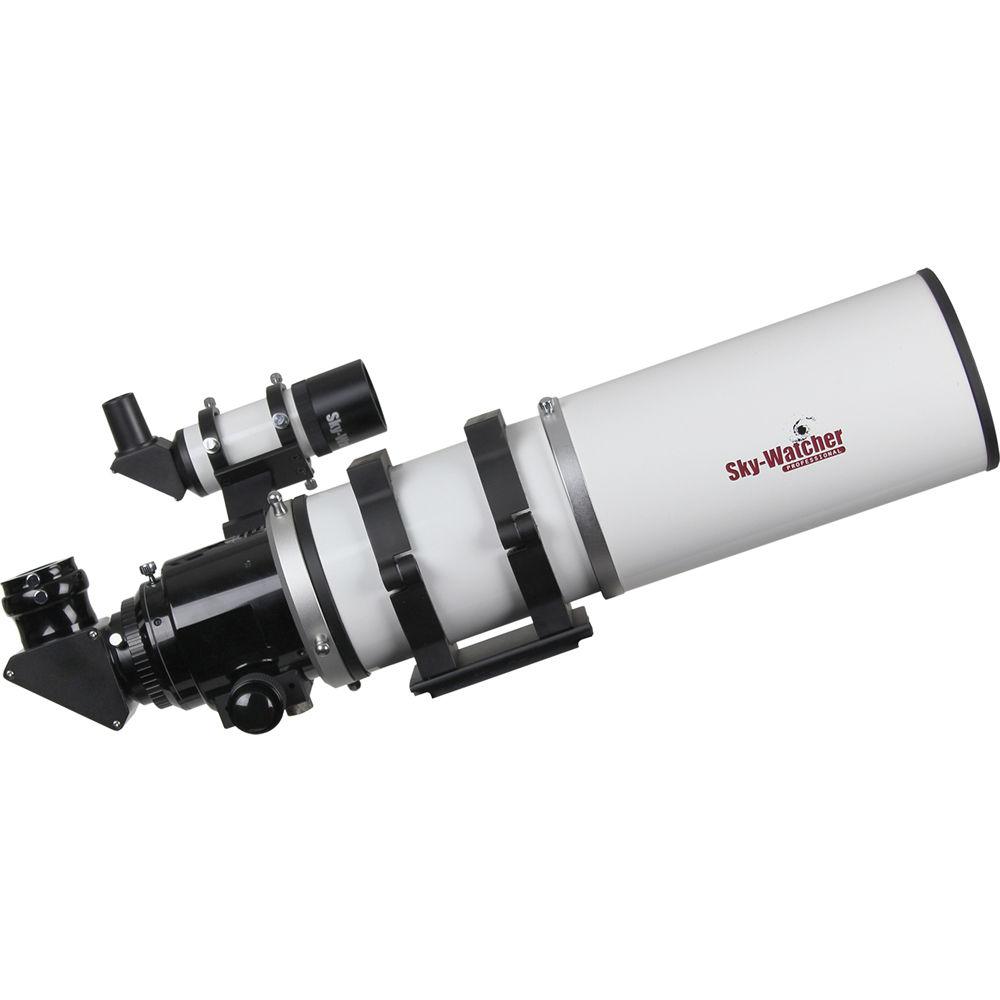

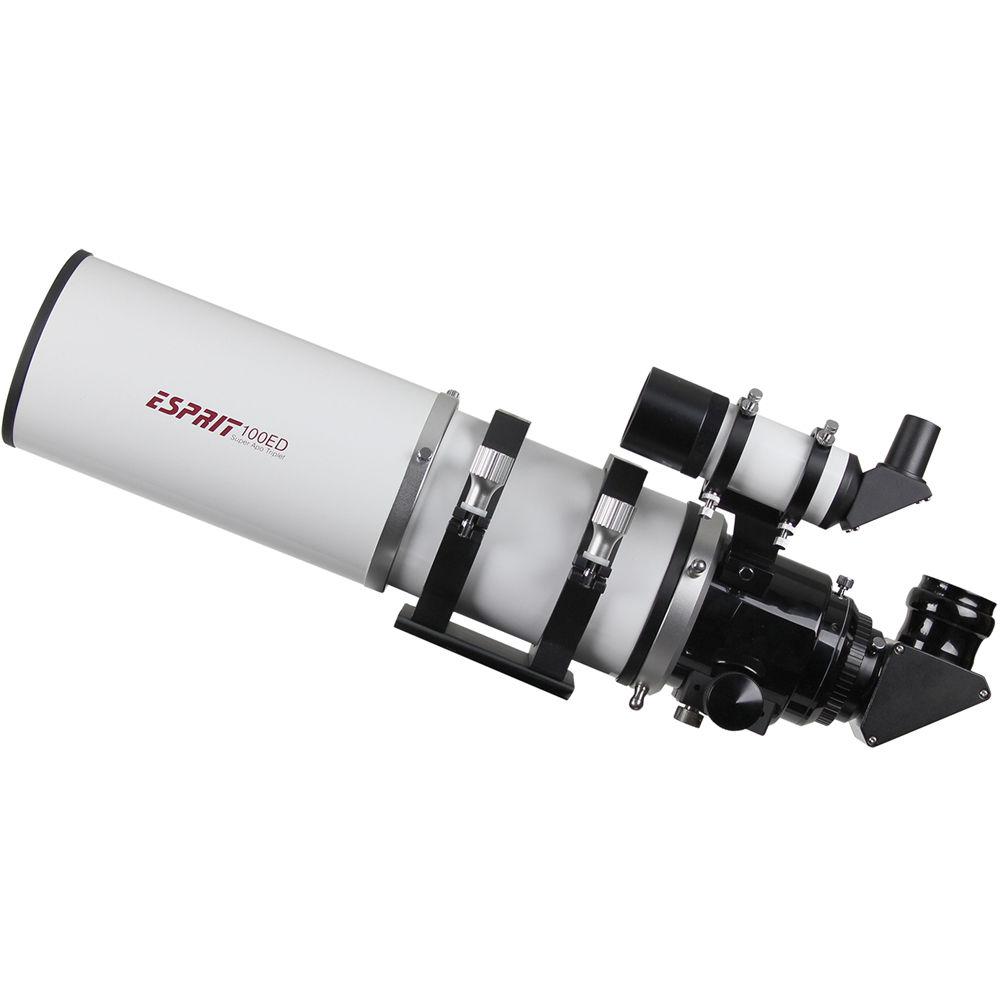

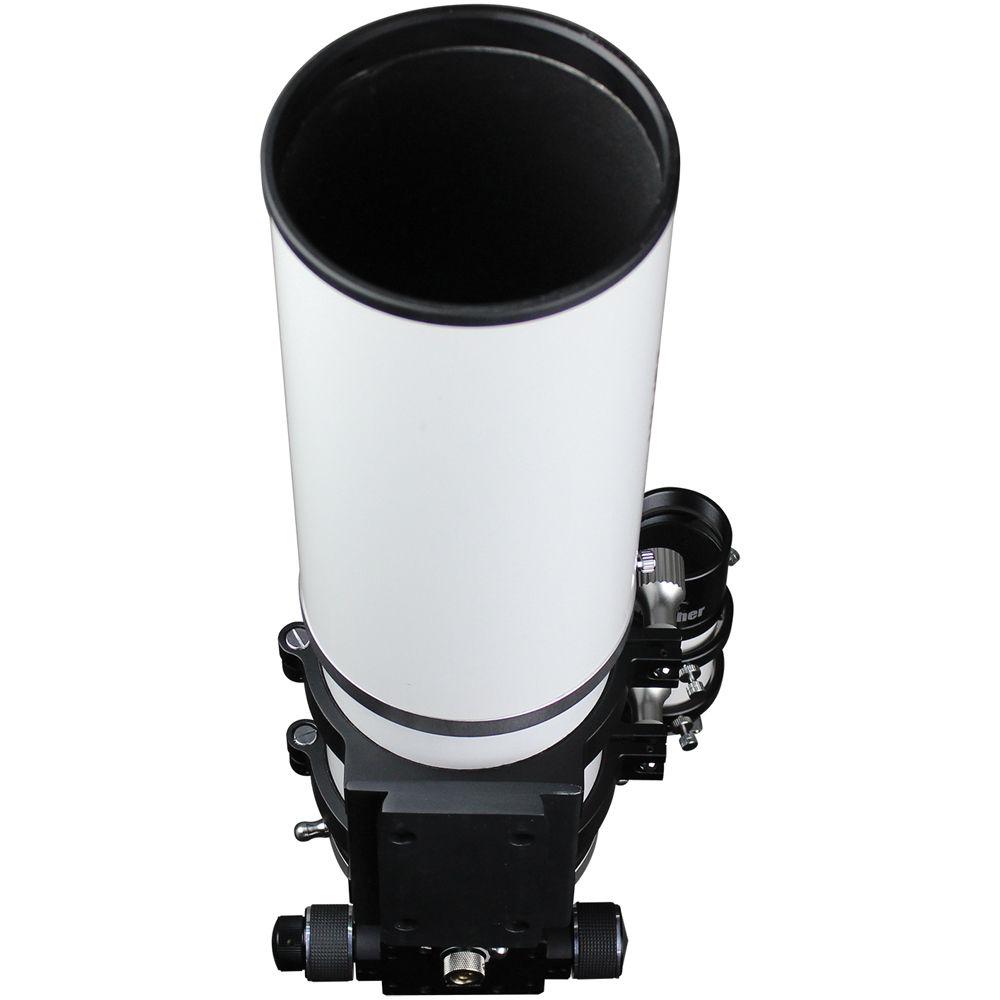

User Manual for Sky-Watcher Esprit ED APO 100mm f 5.5 Refractor Telescope Click to enlarge the picture
Contents of the user manual for the Sky-Watcher Esprit ED APO 100mm f
- Product category: Refractors Sky-Watcher
- Brand: Sky-Watcher
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sky-Watcher Refractors
 |
User manual for the Sky-Watcher Esprit ED APO 100mm f contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sky-Watcher product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sky-Watcher user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sky-Watcher product will considerably shorten its lifespan!
|

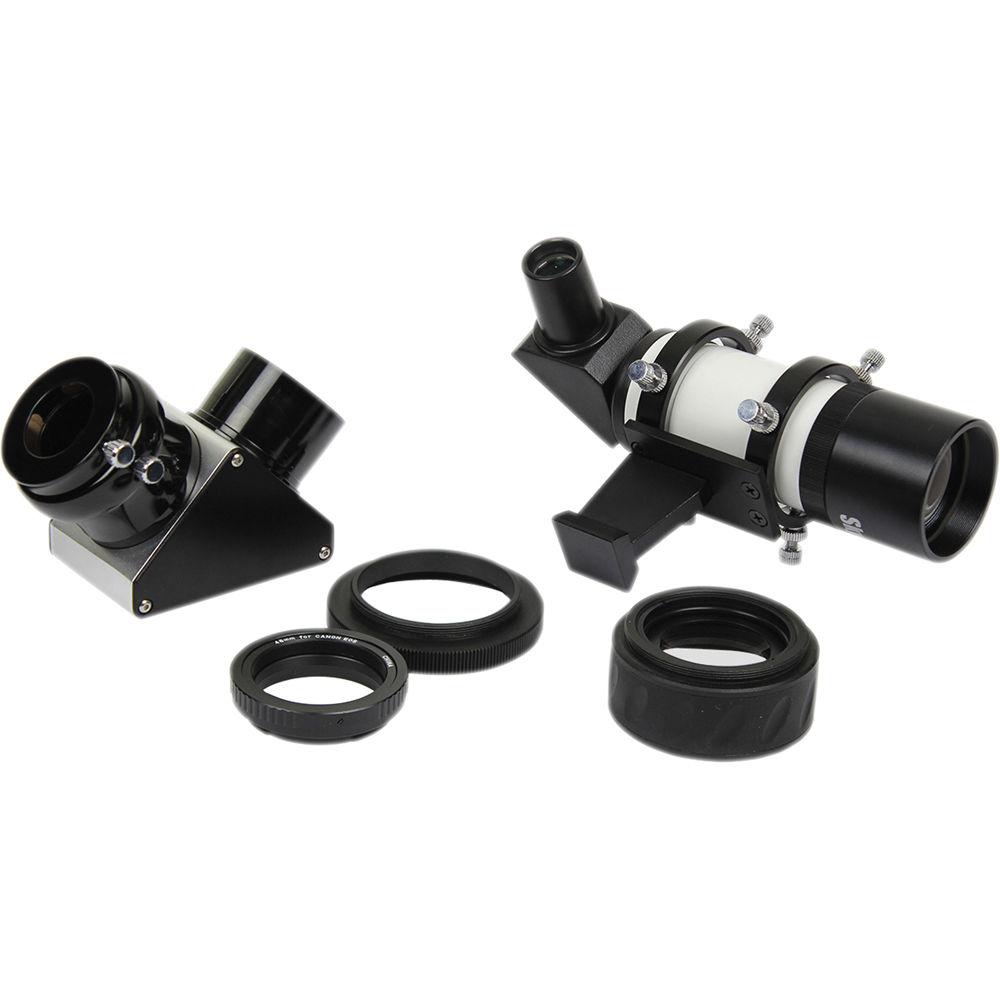

Product description The Esprit ED APO 100mm Telescope from Sky-Watcher is a 3-element refractor telescope designed for astrophotographers. The optical system features apochromatic extra-low dispersion (ED) glass and fully multicoated optics. A 2-element threaded field-flattener corrects distortion that can occur at the edges of the field of view. This combination makes astrophotographic images clear and sharp, with high-contrast and true-color transmission, from one edge of the field of view to the other. With a focal ratio of f/5.5, this fast telescope is well-suited for astrophotography.The 2" rack-and-pinion Helinear Track focusing system allows you to bring celestial objects into precise focus with virtually no shift. The focuser features tracks above and below the focus tube. This gives the mechanism two points of contact, keeping focuser level even with a camera mounted on it. The Esprit comes with a 90° star diagonal with dielectric coatings. These coatings provide better than 99% light reflection. The telescope also comes with a 8x50 right-angle erector finderscope, a Cannon 48mm T-Ring photo adapter, and a foam-lined aluminum case. - Optical Performance
-
- 3-Element Refractor
- Aperture: 100mm
- Focal length: 550mm
- Focal ratio: f/5.5
- Apochromatic extra-low (ED) dispersion glass
- Fully multicoated optics
- Use and Handling
-
- 2" rack-and-pinion Helinear Track focusing system
- Thread-on 2-element field flattener
- 90° star diagonal with dielectric coatings
- Construction Details
-
- Anodized aluminum optical tube assembly
- Tube rings with Celestron CGE-style dovetail bar

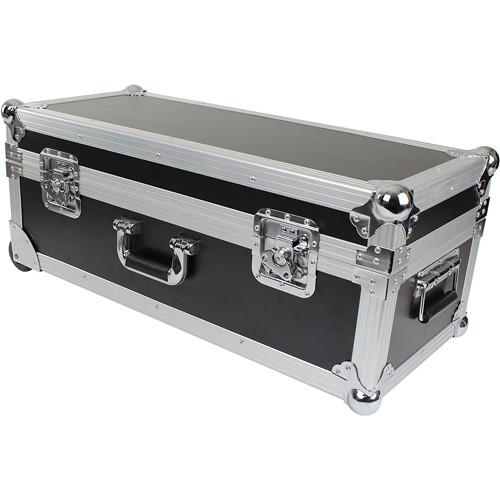

UPC: 050234114103 In the Box Sky-Watcher Esprit ED APO 100mm f/5.5 Refractor Telescope Canon 48mm T-Ring Photo Adapter Tube Rings with CGE-Style Dovetail Bar Aluminum Foam-Lined Carrying Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sky-Watcher Esprit ED APO 100mm f 5.5 Refractor Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSky-Watcher Esprit 100ED Specs | | | Optical Design | Refractor | | Aperture | 100 mm / 3.9" | | Focal Length | 550 mm | | Focal Ratio | f/5.5 | | Eyepiece Barrel Diameter | 2" | | Diagonal | Yes, 90
