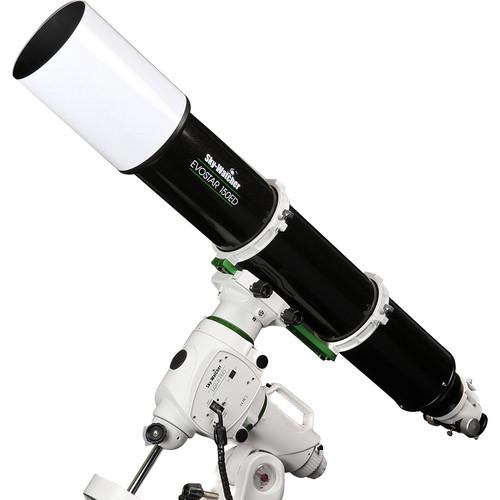

User Manual for Sky-Watcher Evostar ED APO 150mm f 8 Refractor Guidescope Click to enlarge the picture
Contents of the user manual for the Sky-Watcher Evostar ED APO 150mm f
- Product category: Refractors Sky-Watcher
- Brand: Sky-Watcher
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sky-Watcher Refractors
|
User manual for the Sky-Watcher Evostar ED APO 150mm f contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sky-Watcher product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sky-Watcher user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sky-Watcher product will considerably shorten its lifespan!
|
Product description Use the Sky-Watcher Evostar ED APO 150mm f/8 Guidescope to improve the precision of your autoguiding system, for wide-field astrophotography, or as an exceptional platform for observation sessions.The large 150mm aperture is complemented by an extra low-dispersion (ED) element set in a doublet apochromatic lens design. These two optical features make the Evostar much more precise than standard refractors and guidecopes, producing crisp and clear high-resolution views with limited edge distortion and accurate color representation. To achieve the sharpest focus possible, Sky-Watcher utilizes a Crayford-style focuser. Unlike a conventional rack-and-pinion system, the focuser utilizes a toothless friction mechanism that smoothly moves the drawtube without the backlash that rack-and-pinion focusers suffer from. The focuser has a large 2" drawtube to accommodate full-frame imaging sensors without vignetting.A mounting cradle-ring assembly clamps over the optical tube assembly (OTA) and lets the user adjust the orientation and position of the scope relative to the mount to optimize viewing comfort and to help with balancing, while avoiding interference with other equipment. The scope is offered without a mount or tripod, but a Vixen-style dovetail plate makes it compatible with any mount head with a Vixen-style saddle. Protecting the optical tube and accessories during transport and storage, a hard aluminum carrying case is provided. - Uses
-
- Autoguider: The optical performance improves the precision of autoguiding systems by being able to finely focus the field and resolve guide-stars better
- Wide-field astrophotography: Using 2" or 1.25" imaging systems directly into the drawtube enables tack-sharp and highly resolved wide-field images of the night sky, galaxies, constellations, and other objects
- Visual: Its optical performance, focal length, and mounting rings make it an ideal platform for lunar, planetary, and deep sky observation
- Optical Tube Assembly
-
- Large 150mm aperture is especially useful for lunar, planetary, and deep sky observations and imaging
- 1200mm focal length helps to produce a moderate magnification potential
- Moderate f/8 focal ratio is ideal for observations and long-exposure astrophotography
- Apochromatic doublet lens design with an extra low-dispersion element eliminates chromatic and spherical aberrations for true color rendition without distortion across the entire field of view
- Hard aluminum carrying case to safely store and transport the OTA and accessories
- Focuser
-
- Dual-speed Crayford-style
- Crayford focusers use a toothless friction system that allows for super-fine precision focusing without backlash
- Large 2" drawtube prevents vignetting when using wide-field eyepieces for viewing, or large imaging sensors for astrophotography
- Integrated M48 T-mount threads accept camera-specific T-rings to directly connect DSLRs and imaging systems to the drawtube
- Mounting
-
- OTA only; mount head and tripod required for proper use
- Cradle-ring assembly for dovetail plate allows the scope orientation to be changed based on mount configuration
- Vixen-style dovetail plate is compatible with any alt-az or equatorial mount with a Vixen-style saddle
- Weight: 20.5 pounds
UPC: 050234111904 In the Box Sky-Watcher Evostar ED APO 150mm f/8 Refractor Guidescope (OTA Only) Mounting Ring Assembly Aluminum Carrying Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sky-Watcher Evostar ED APO 150mm f 8 Refractor Guidescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSky-Watcher Evostar Specs | Optical Design | Apochromatic doublet refractor | | Aperture | 150mm | | Focal Length | 1200mm | | Focal Ratio | f/8 | | Eyepiece Barrel Diameter | 2"
1.25" with included adapter | | Diagonal | None | | Finderscope | None | | Tripod | None | | Mount Type | Vixen-style dovetail | | Power Source | None | | Optical Tube Dimensions | 50.5 x 7.1" / 128.3 x 18.0 cm | | Weight | 20.5 lb / 9.3 kg |
