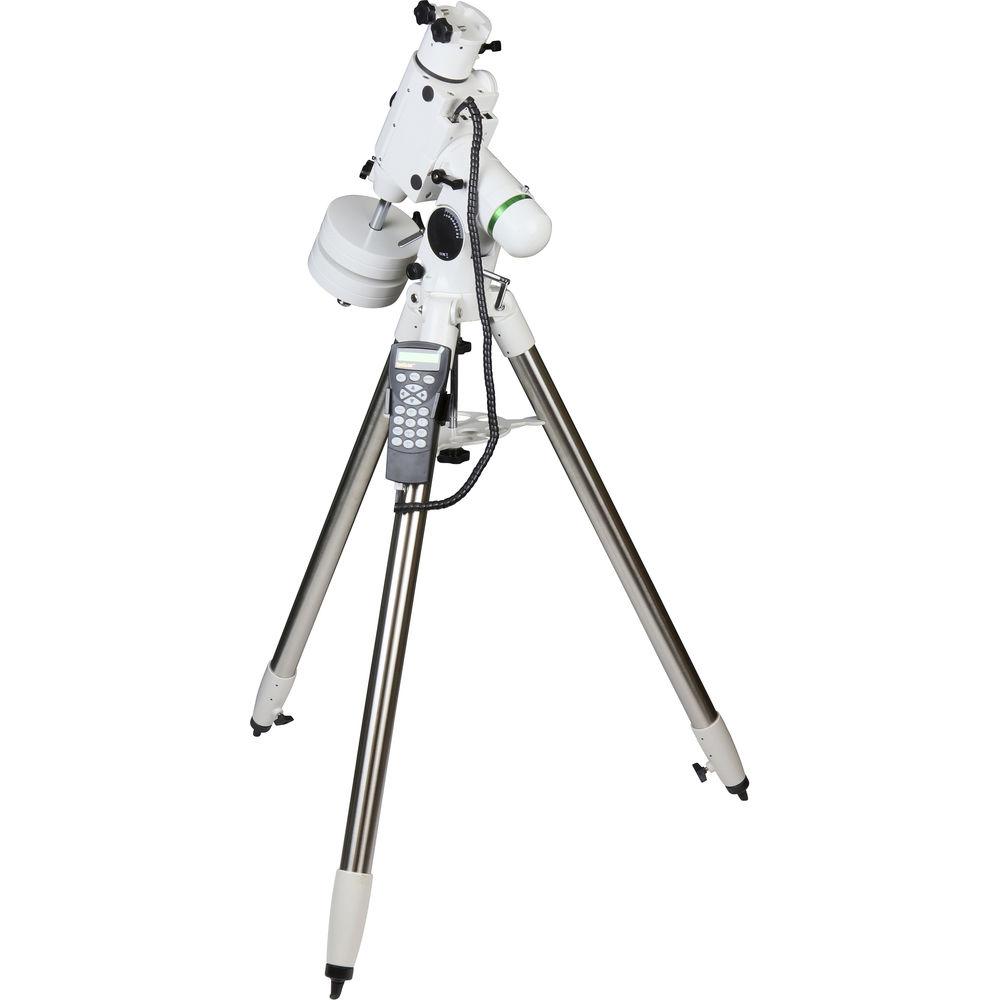

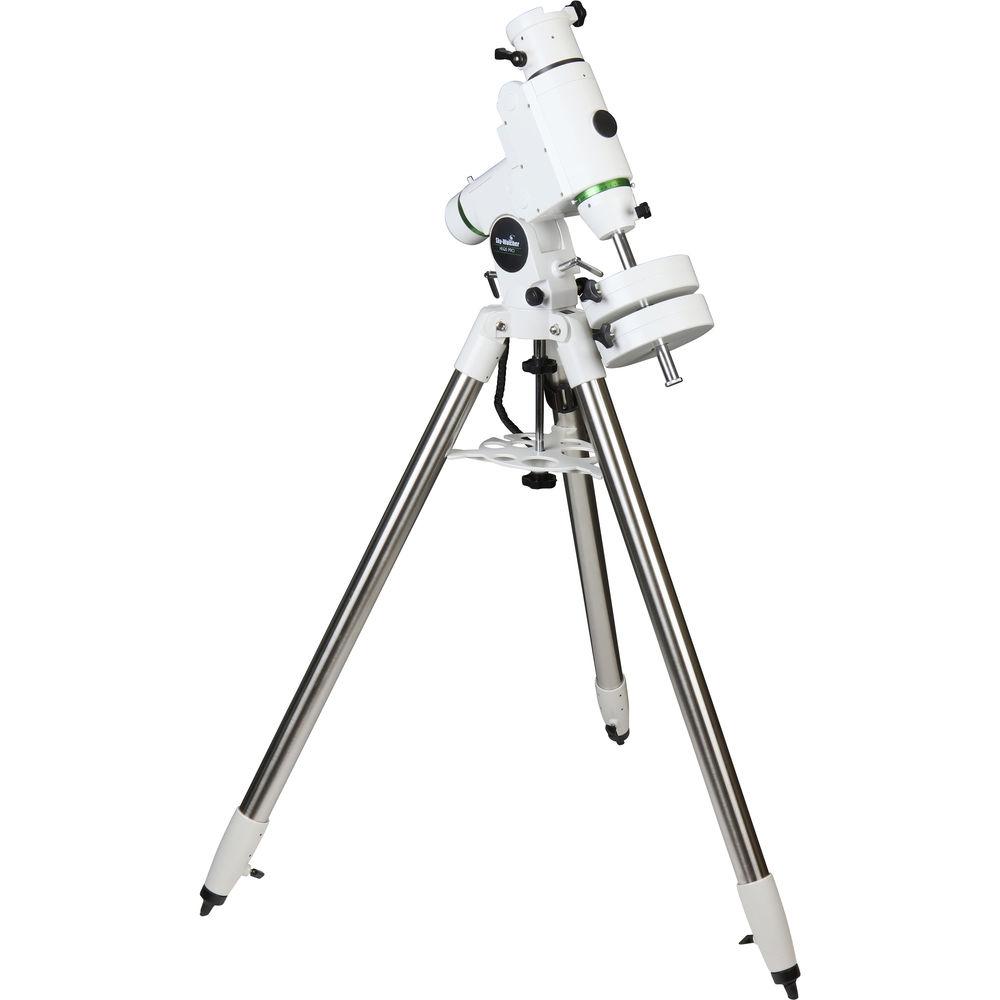

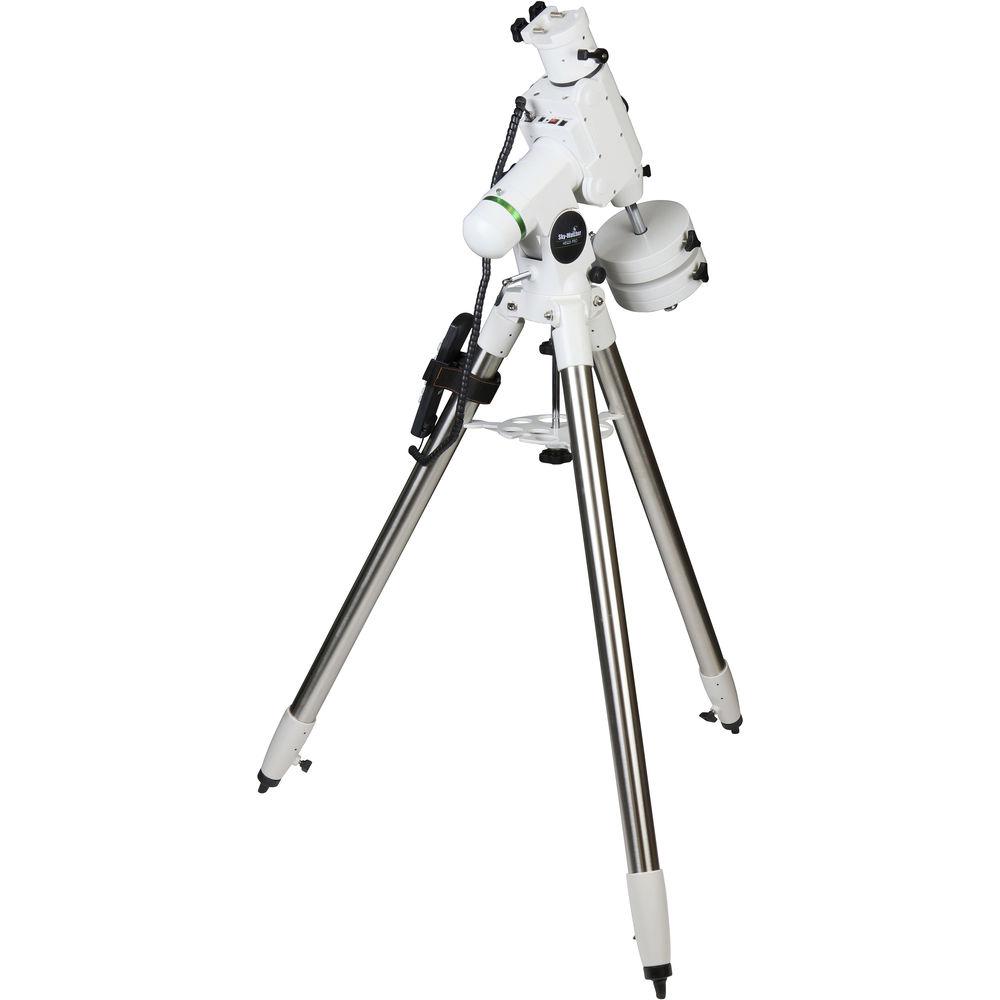

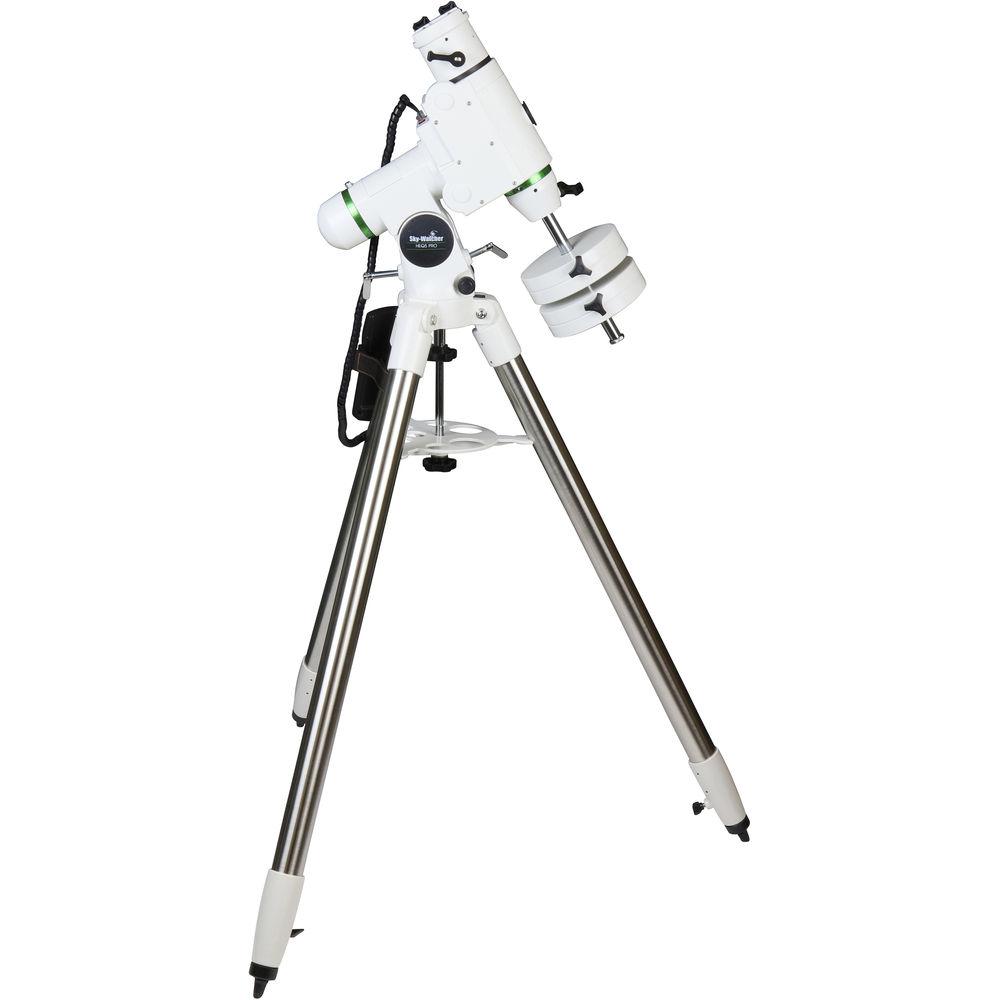

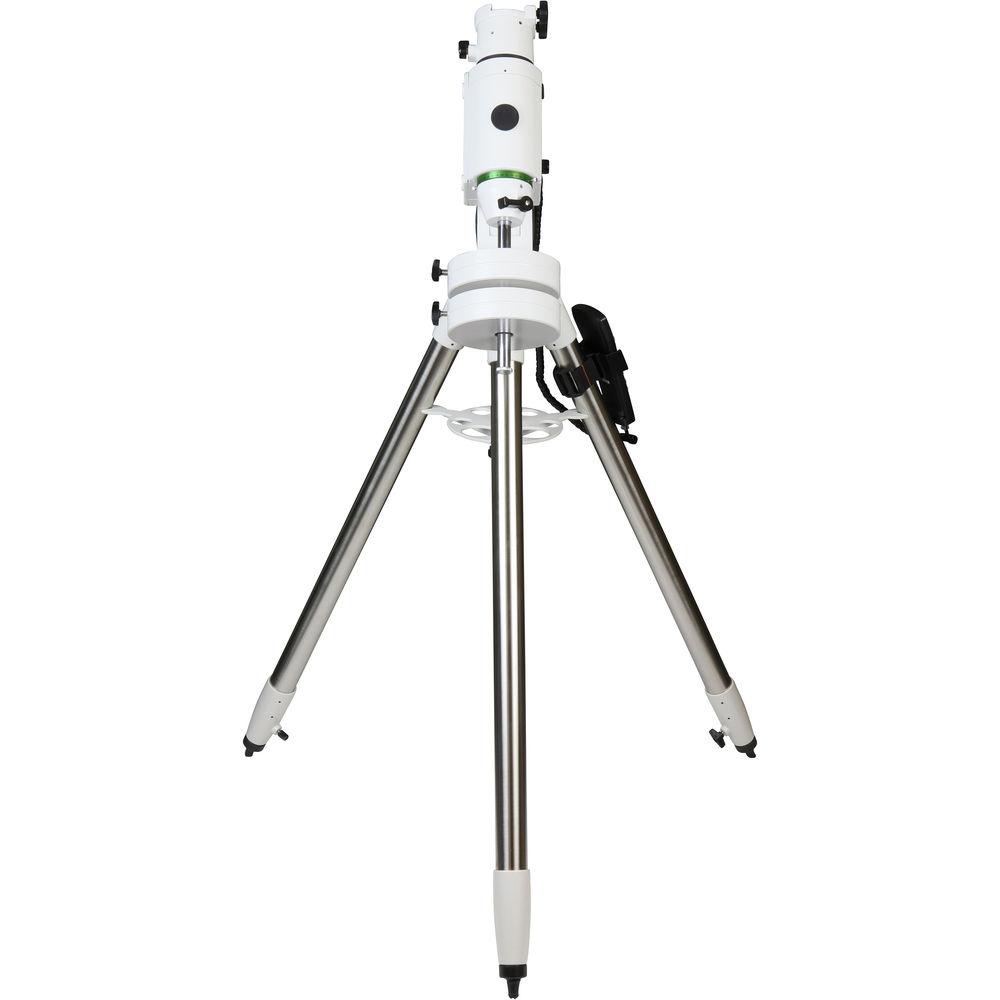

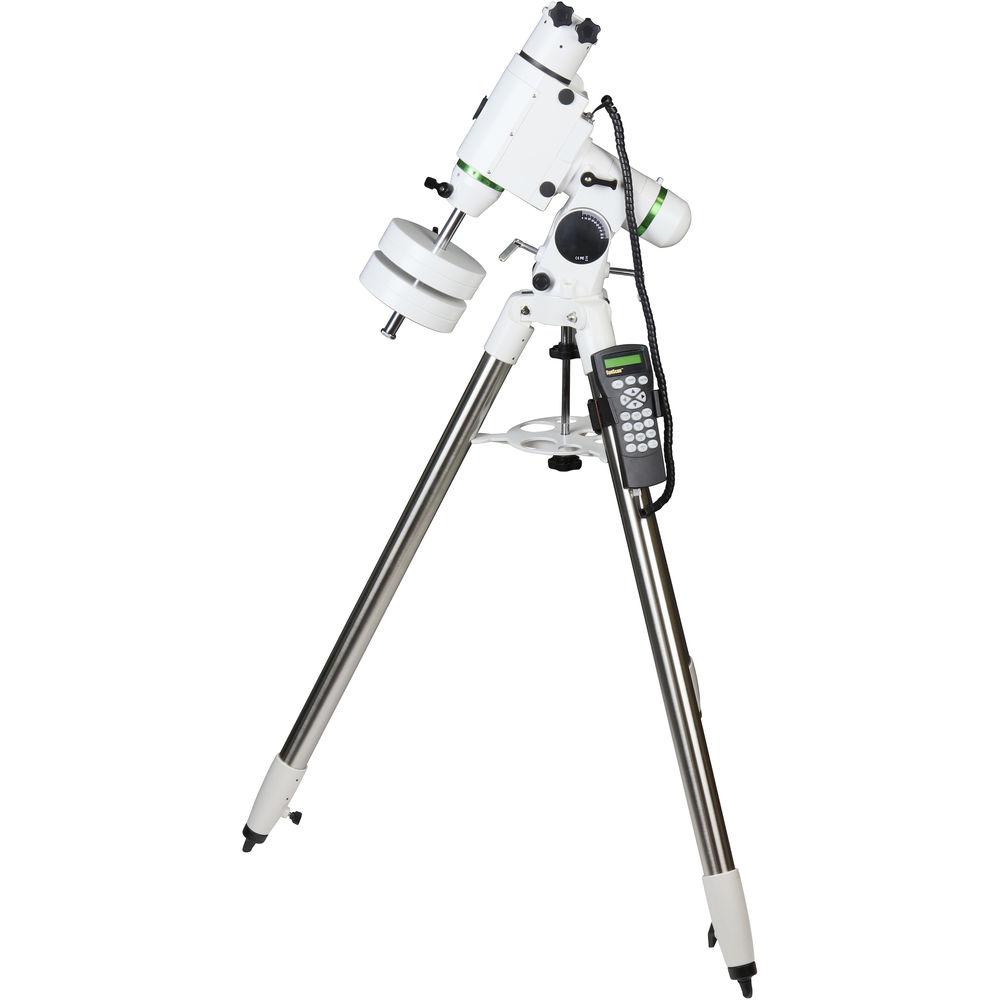

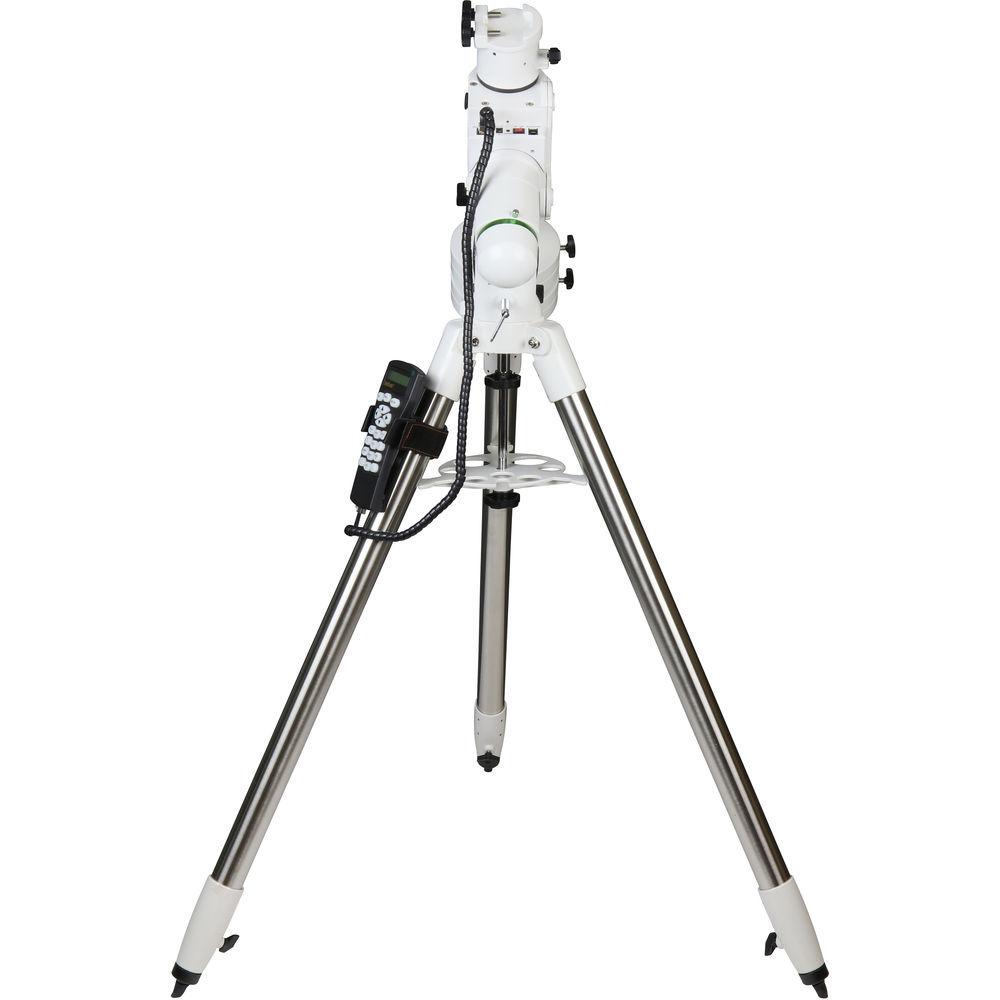

User Manual for Sky-Watcher HEQ5 Equatorial GoTo Mount Click to enlarge the picture
Contents of the user manual for the Sky-Watcher HEQ5 Equatorial GoTo Mount
- Product category: Mounts Sky-Watcher
- Brand: Sky-Watcher
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sky-Watcher Mounts
 |
User manual for the Sky-Watcher HEQ5 Equatorial GoTo Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sky-Watcher product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sky-Watcher user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sky-Watcher product will considerably shorten its lifespan!
|
Product description Designed for novice and experienced astronomers alike, the Sky-Watcher USA HEQ5 Equatorial GoTo Mount is built to similar specifications of their more robust mounts for those who are looking for something that is a bit more easy to manage without having to sacrifice performance. It features a hefty 30-pound payload capacity, a motorized mount head with the SynScan computer hand controller, a 1.75" stainless steel adjustable tripod, and a polar axis scope. The mount also has a Vixen-style dovetail saddle for mounting compatible telescope optical tube assemblies (OTAs) and accessories.The brains of the mount is the SynScan controller that is packed with an internal database of nearly 43,000 celestial objects from comets and asteroids to galaxies and nebulae. With multiple slew speeds and automatic tracking capabilities, finding and keeping subjects centered in the field of view is easy—whether you're viewing the fast-moving moon or much slower deep-space subjects.The included polar axis scope is installed through the body of the mount to make your initial polar alignment faster, easier, and more precise. Stainless steel legs and an accessory tray that also doubles as a leg-locking spreader provide a solid and stable platform for all your gear with natural vibration suppression to ensure clear views even at high magnification. This mount head is also outfitted with two counterweights for precisely balancing your optical tube and gear so it will move smoothly without adding excessive load to the motors. - Mount
-
- German equatorial mount tracks objects across the right ascension without field rotation, making it ideal for observation and astrophotography when properly polar aligned
- 30-pound payload capacity can hold most small to medium optical tubes plus visual or photographic accessories and gear
- Vixen-style dovetail saddle is compatible with the most popular style of OTA mounting systems
- Integrated polar alignment scope makes initial alignment faster, easier, and more precise
- Clutches on each axis enable free movement without the need to run the motors
- Includes two counterweights and a shaft to properly balance the OTA and accessories, relieving stress and strain on motors for easier movement with reduced vibration
- Runs on 12 VDC power
- SynScan Controller
-
- Wired handheld computer controller for mount
- 42,900-object database including the complete Messier, NGC, and IC catalogs
- 25 user-defined objects
- Alignment assistance: One-, two-, three-star alignment
- Periodic Error Correction (PEC) removes inaccuracies inherent in gears and allows for more accurate tracking, especially for long-exposure astrophotography
- Connect to and control with a computer via user-supplied RS-232 cable, compatible with many popular planetarium software programs
- Flash upgradable via Internet download
- Tripod
-
- Adjustable height accommodates a variety of users and observation positions
- 1.75" diameter stainless steel legs offer improved stability and vibration absorption versus aluminum
- Center tray provides a place to keep accessories like eyepieces and filters while doubling as a spreader to lock legs in position for even greater stability
UPC: 050234304009 In the Box Sky-Watcher HEQ5 Equatorial GoTo Mount SynScan Controller with Cable Stainless Steel Tripod with Tray Counterweight Bar 2 x Counterweights Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sky-Watcher HEQ5 Equatorial GoTo Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSky-Watcher HEQ5 Specs | Mount Type | German Equatorial | | Load Capacity | 30.0 lb / 13.6 kg | | Mounting | Vixen-style Dovetail | | GoTo Capability | Yes. SynScan Controller | | Polar Axis Scope | Optional | | Includes Tripod/Pier | Yes. Stainless Steel Tripod | | Power Source | 12 VDC | | Weight | Not Specified by Manufacturer |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 56 owners. Add your rating and experience with the product.
