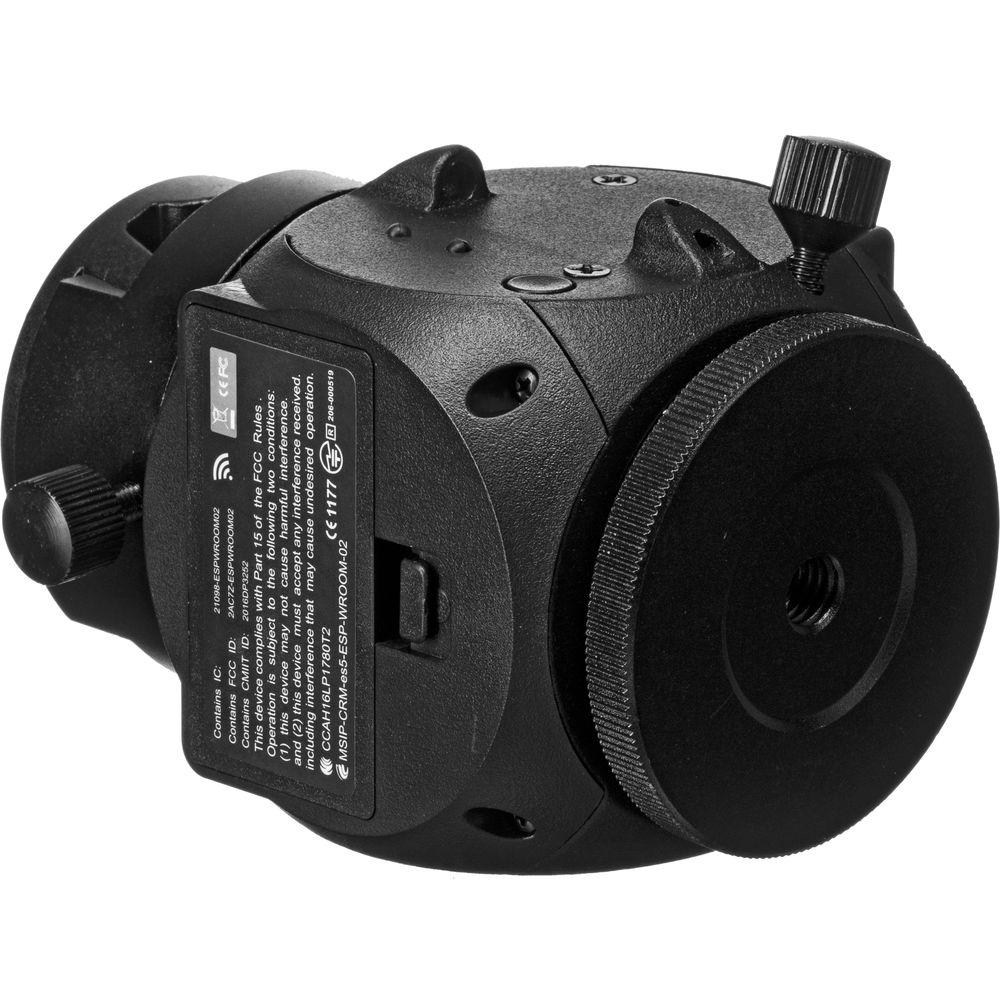

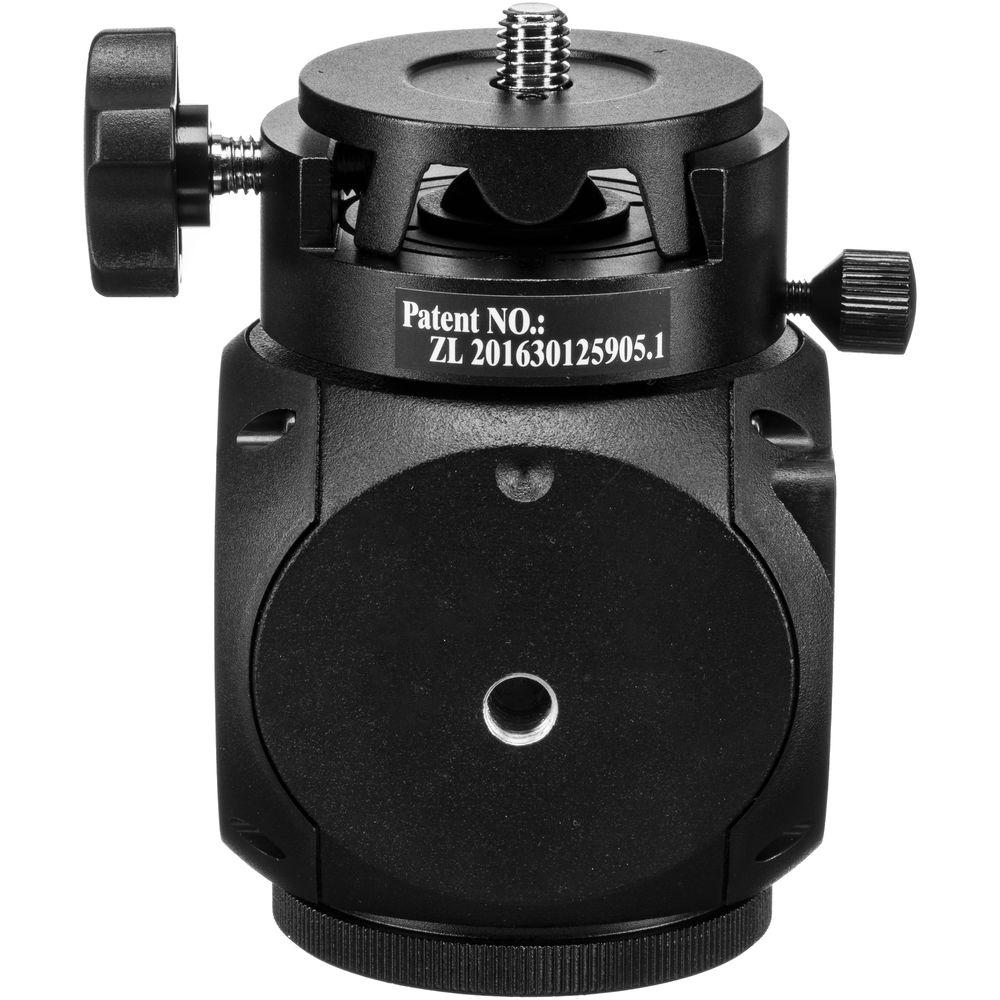

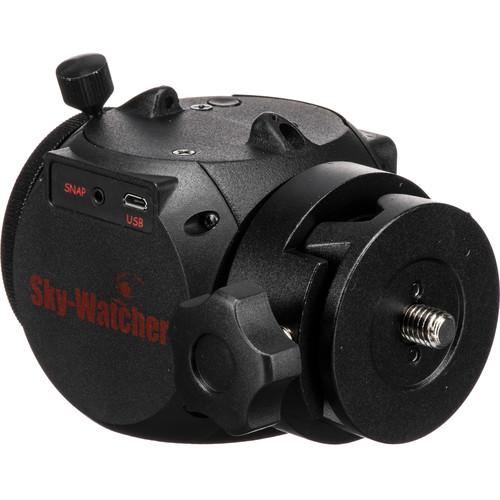

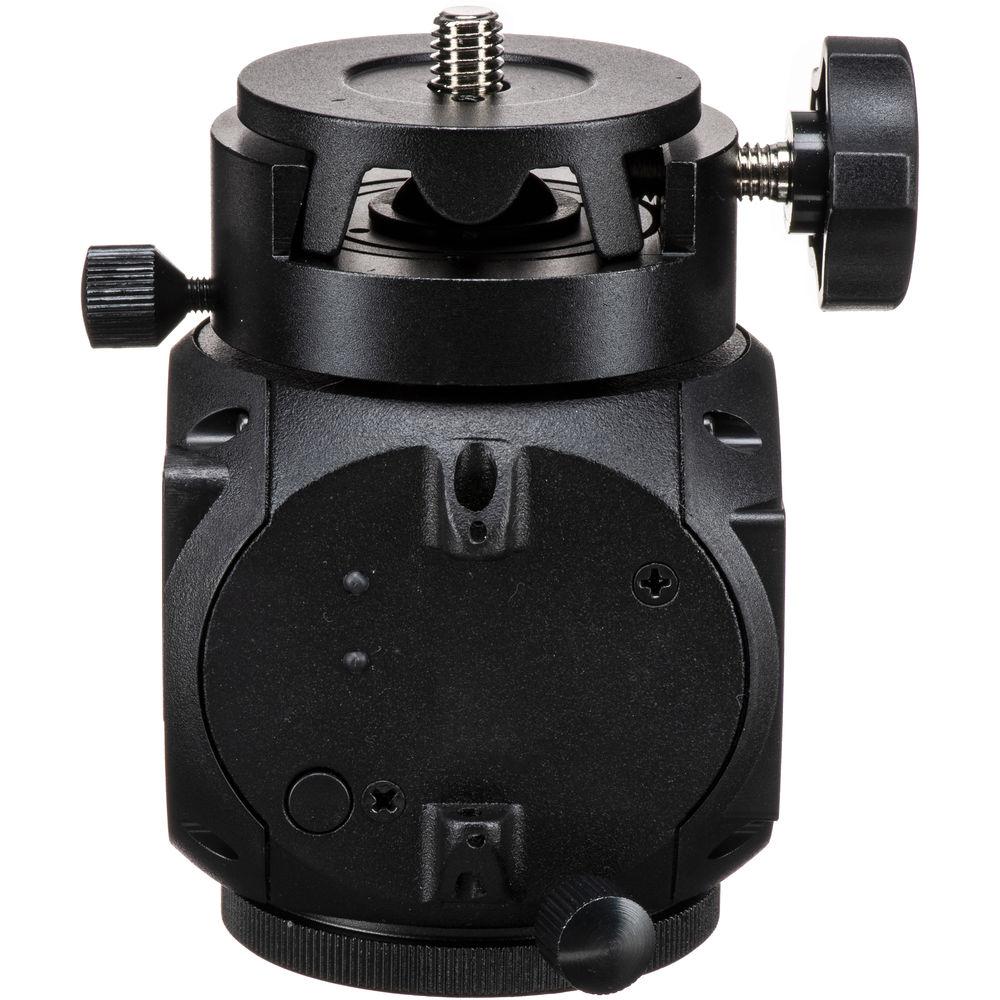

Product description Enjoy advanced photographic techniques such as astroimaging, star-scapes, and timelapse terrestrial or astronomic photography with the Sky-Watcher Star Adventurer Mini EQ Camera Tracking Mount Head. It is outfitted with a right ascension DC servo tracking motor with multiple tracking rates for the sun, moon, and other celestial bodies — with more tracking and control options available using the built-in WiFi and the companion Android/iOS control app. The head can attach to most astronomic, photo, video, or field tripod using the 3/8"-16 mount, or the included 1/4"-20 adapter. An included ball head plate accepts most ball heads for mounting a DSLR, and an integrated port on the head enables the unit to activate the camera's shutter to pre-programmed intervals. - Tracking Head
-
- Supports payloads up to 6.6 pounds
- Right Ascension axis DC servo motor tracks celestial objects as they move across the sky
- Solar, lunar, and sidereal tracking rates for astrophotography
- Supports star-scape and timelapse star-scape, long and short exposure timelapse photography techniques
- Illuminated polar axis scope enables precise alignment for accurate tracking of celestial objects
- 36mm, 72-tooth aluminum alloy wheel gear
- 11mm, high-tension brass worm gear
- Runs on two user-supplied AA batteries, or 5 VDC mini-USB external power source
- Star Adventurer Mini Console Control App
-
- Free for Android and iOS
- Connects directly to tracking head via internal WiFi module
- Adds 0.5x sidereal and 2x sidereal tracking rates for star-scape and other photography techniques
- Custom exposure times, photo intervals, or number of photos for a user-defined time range
- Save favorite profiles for faster set up
- Manual mode allows you to control the tracking motor without directly touching the unit for more precise handling
- Video capture option with custom settings including frame rate, and length
- Timelapse mode: Photo or video capture, Swing range, and Pan rate in degree/hour and direction
- Polar axis scope utility helps determine correct settings for current day/time for accurate alignment
- Mounting
-
Tracking Head to Tripod:- Mounts directly to tripod for conventional terrestrial timelapse photography
- Bottom and side mounting points provide options for camera orientation
- 3/8"-16 tripod mount with 1/4"-20 adapter makes it compatible with most astronomic, photo, video, or field tripods
Tracking Head to Camera:- Dovetail saddle accepts included ball head adapter to easy set up without tools
- Ball head adapter has standard 3/8"-16 stud
- With ball head on tracking head, the camera attaches as normal
- DSLR shutter control port for multiple brands including Canon, Nikon, Sony, and Olympus
UPC: 050234205801 In the Box Sky-Watcher Star Adventurer Mini EQ Camera Tracking Mount Head Ball Head Adapter 1/4"-20 Mount Adapter Polar Axis Scope with Illuminator Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sky-Watcher Star Adventurer Mini EQ Camera Tracking Mount Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSky-Watcher Star Adventurer Specs | Payload Capacity | 6.6 lb / 3.0 kg | | Motors | DC servo | | Polar Axis Scope | Included
10° field of view
Northern and Southern hemispheres | | Power Requirements | 2 x AA batteries, 24 h max runtime
5 VDC micro-USB, optional | | Operating Temperature | 14 to 104°F / -10 to 40°C | | Dimensions | 4.1 x 3.0 x 2.8" / 10.3 x 7.6 x 7.0 cm | | Weight | 24.0 oz / 680.4 g | | | | Package Weight | 2.305 lb | | Box Dimensions (LxWxH) | 7.05 x 6.3 x 4.9" |
