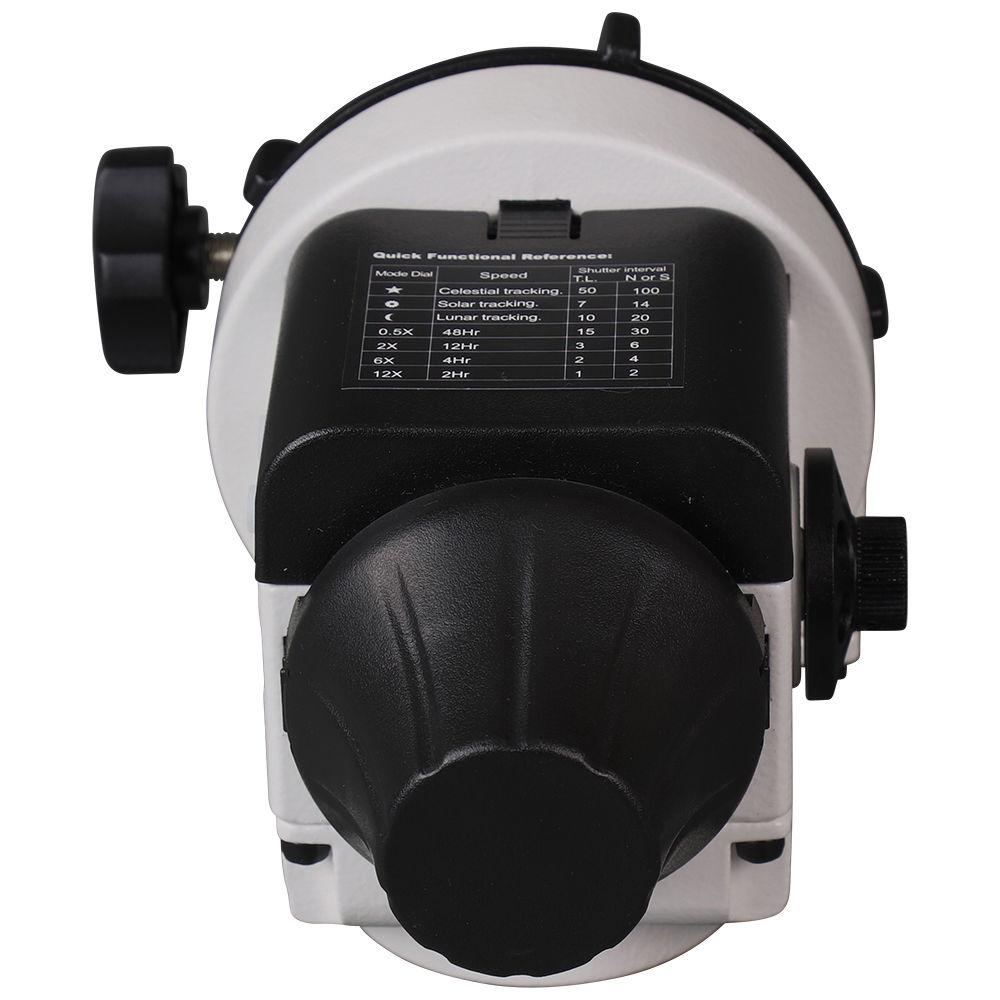

User Manual for Sky-Watcher Star Adventurer Motorized Mount Photo Package Click to enlarge the picture
Contents of the user manual for the Sky-Watcher Star Adventurer Motorized Mount Photo
- Product category: Astrophotography Sky-Watcher
- Brand: Sky-Watcher
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sky-Watcher Astrophotography
 |
User manual for the Sky-Watcher Star Adventurer Motorized Mount Photo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sky-Watcher product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sky-Watcher user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sky-Watcher product will considerably shorten its lifespan!
|

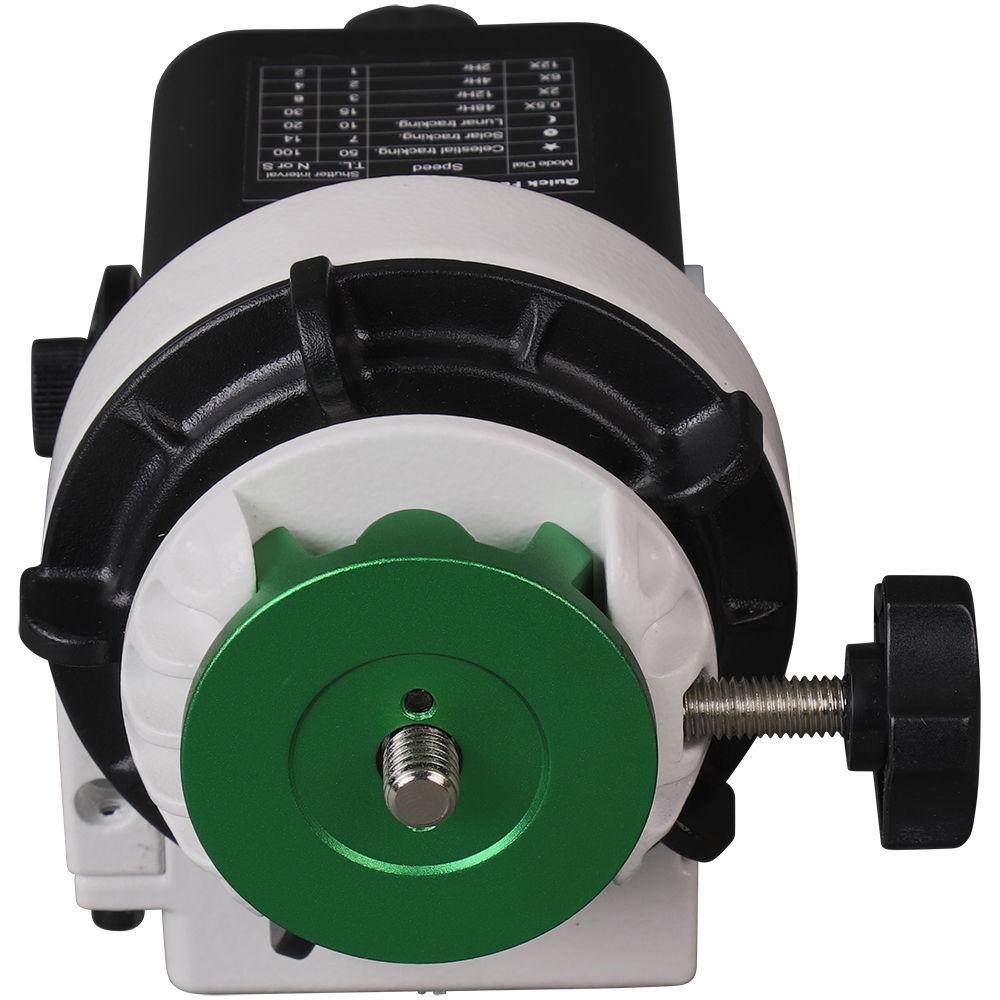

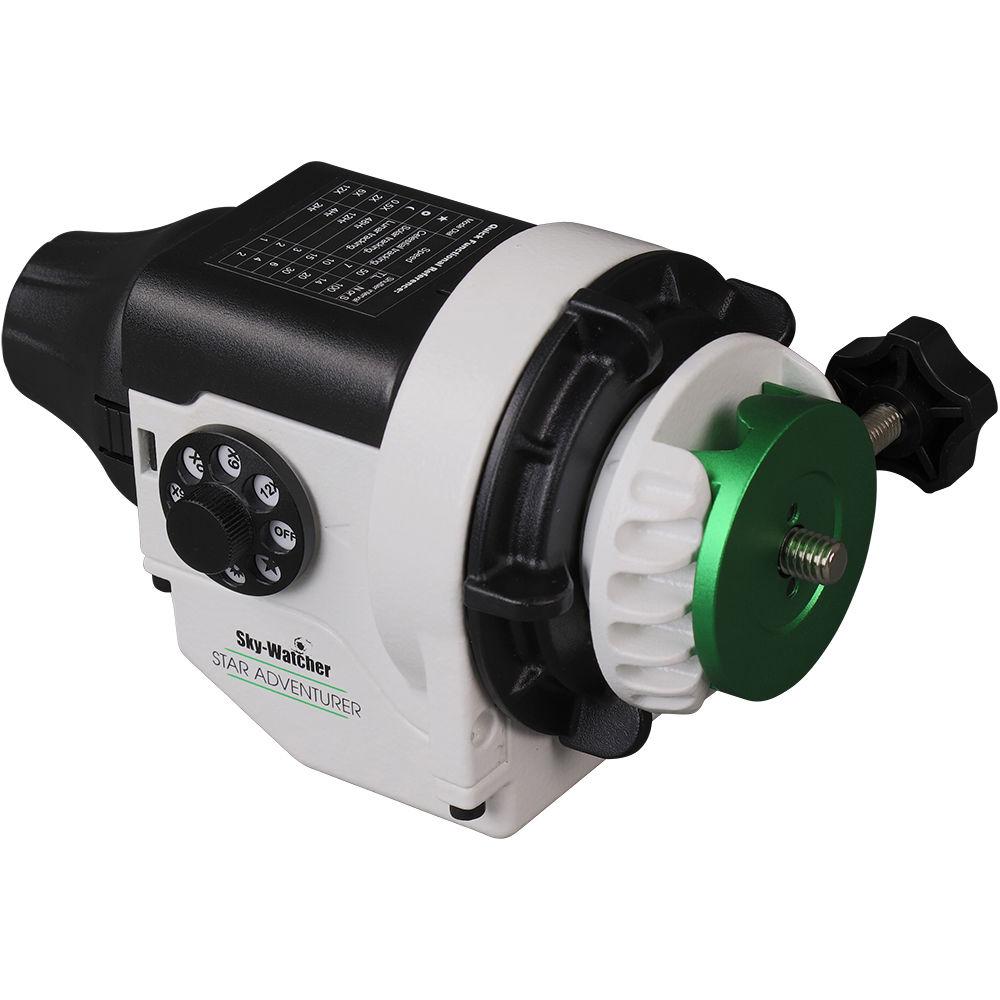

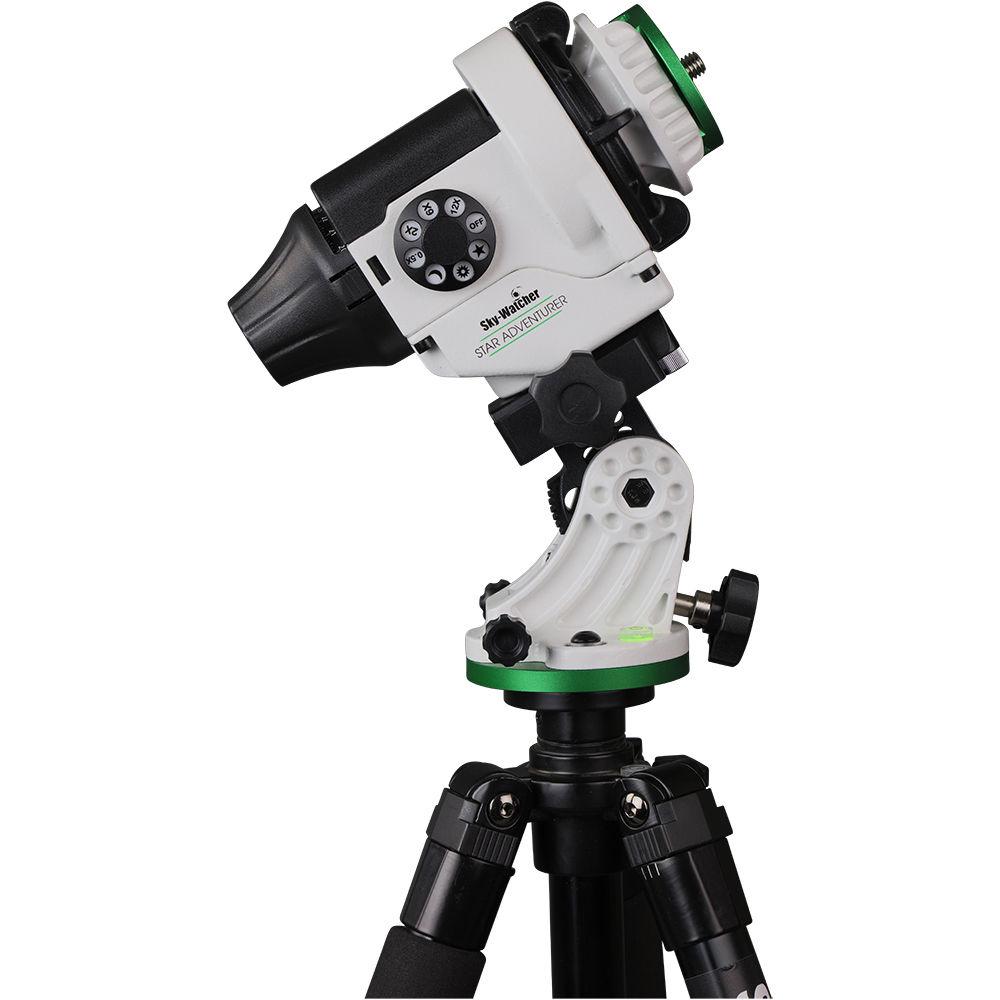

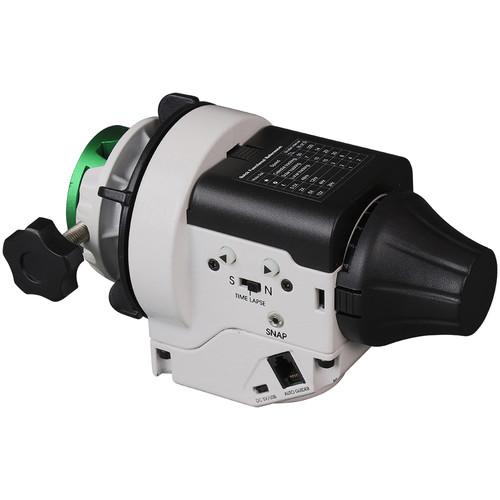

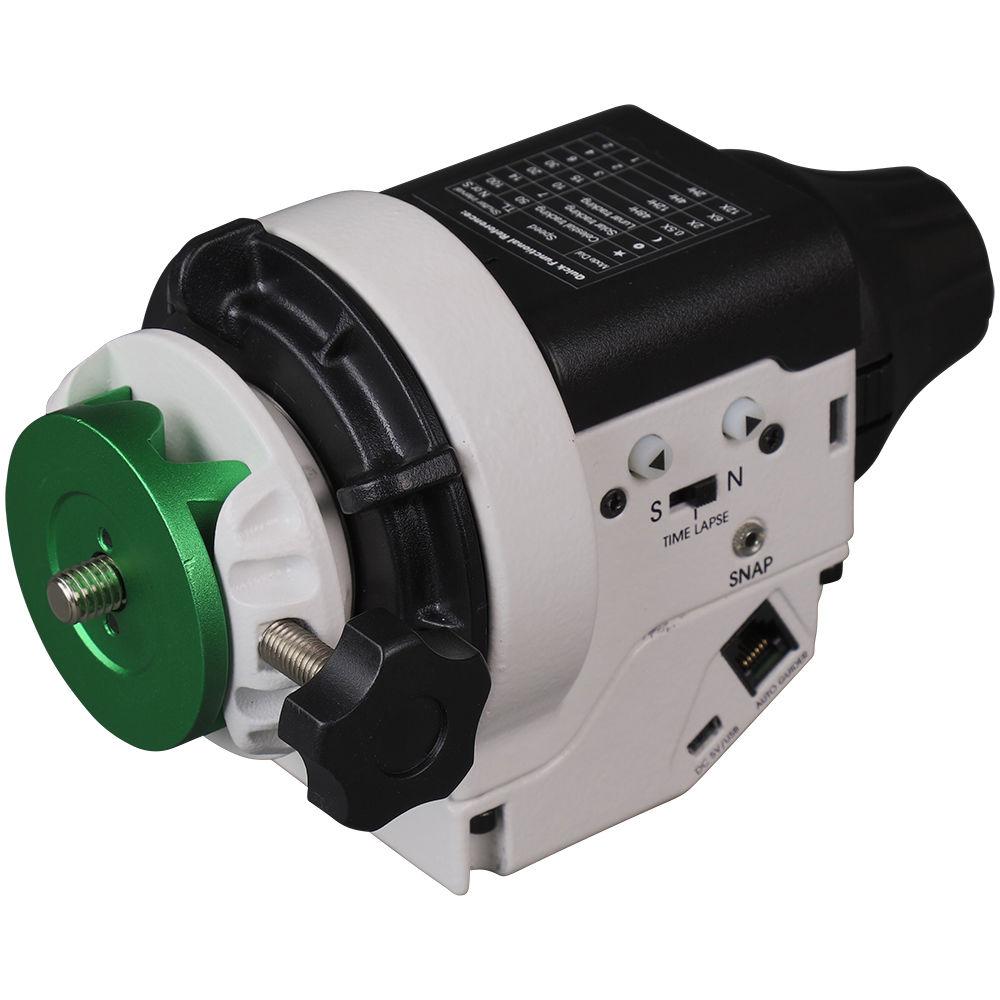

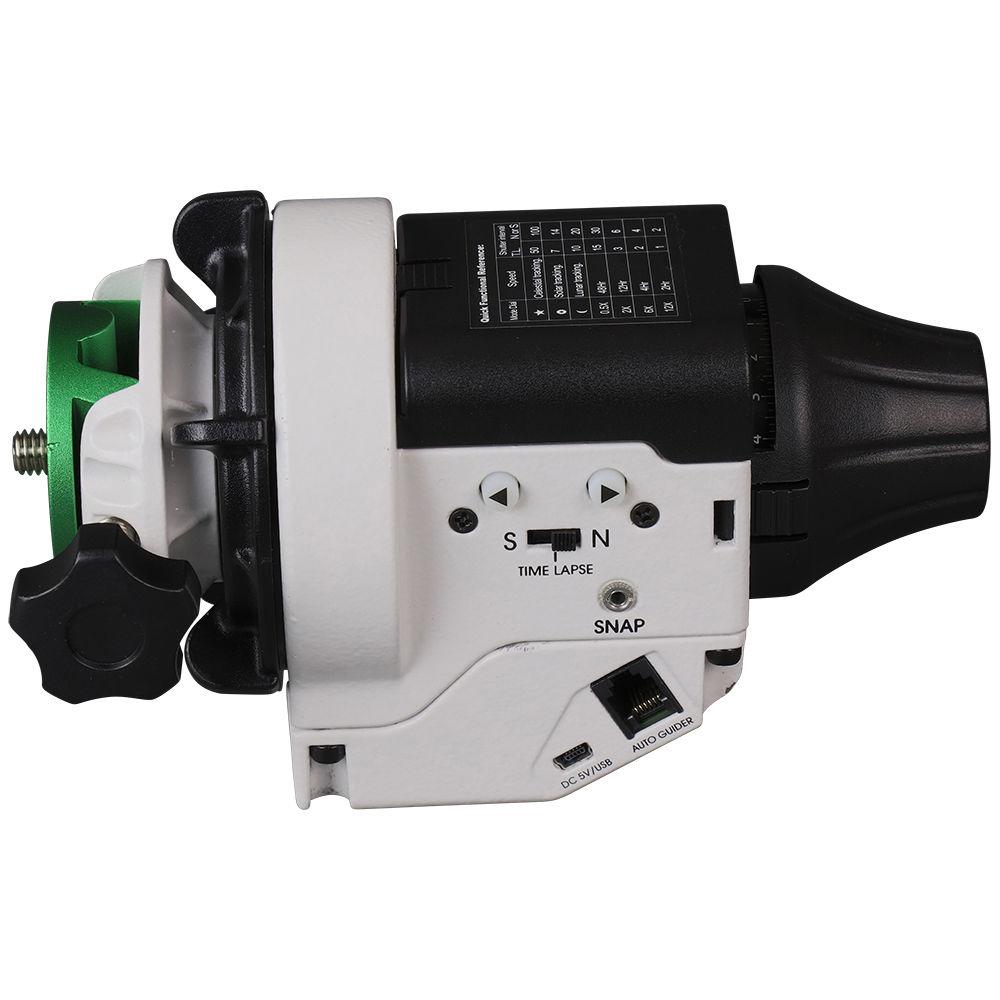

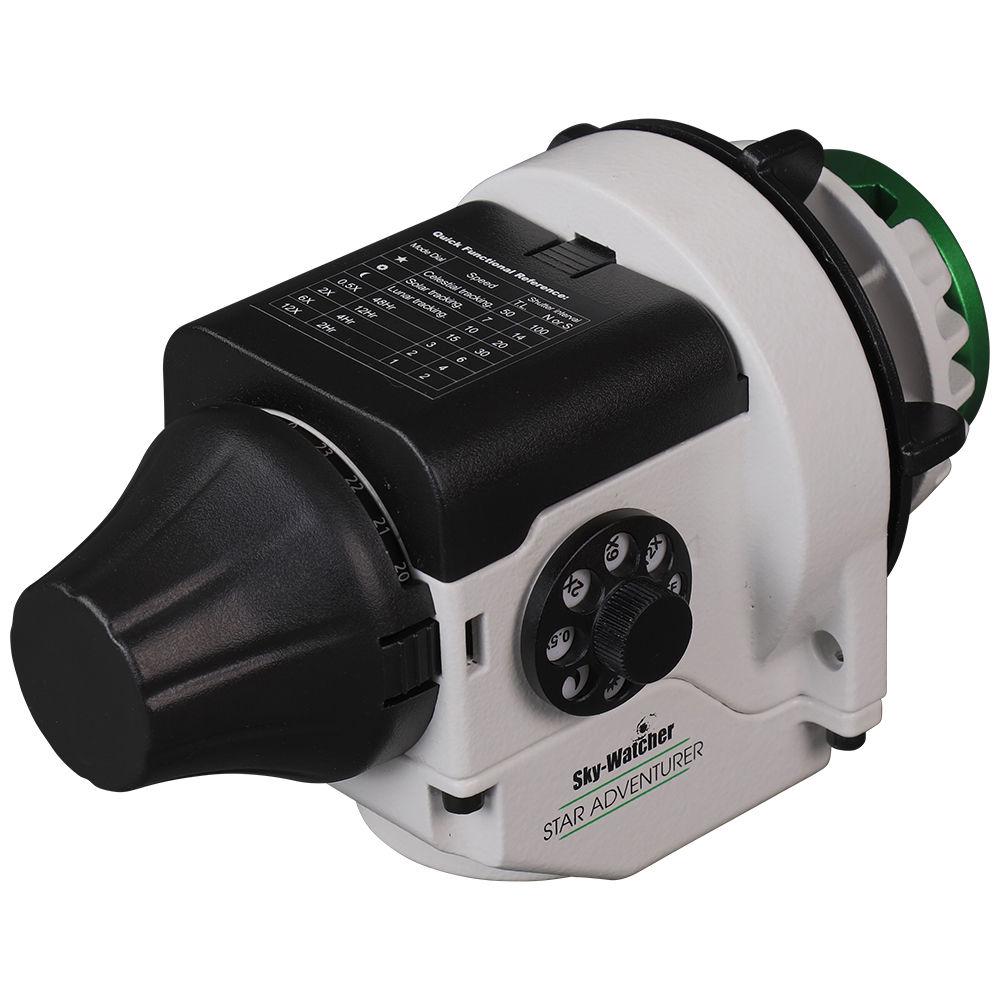

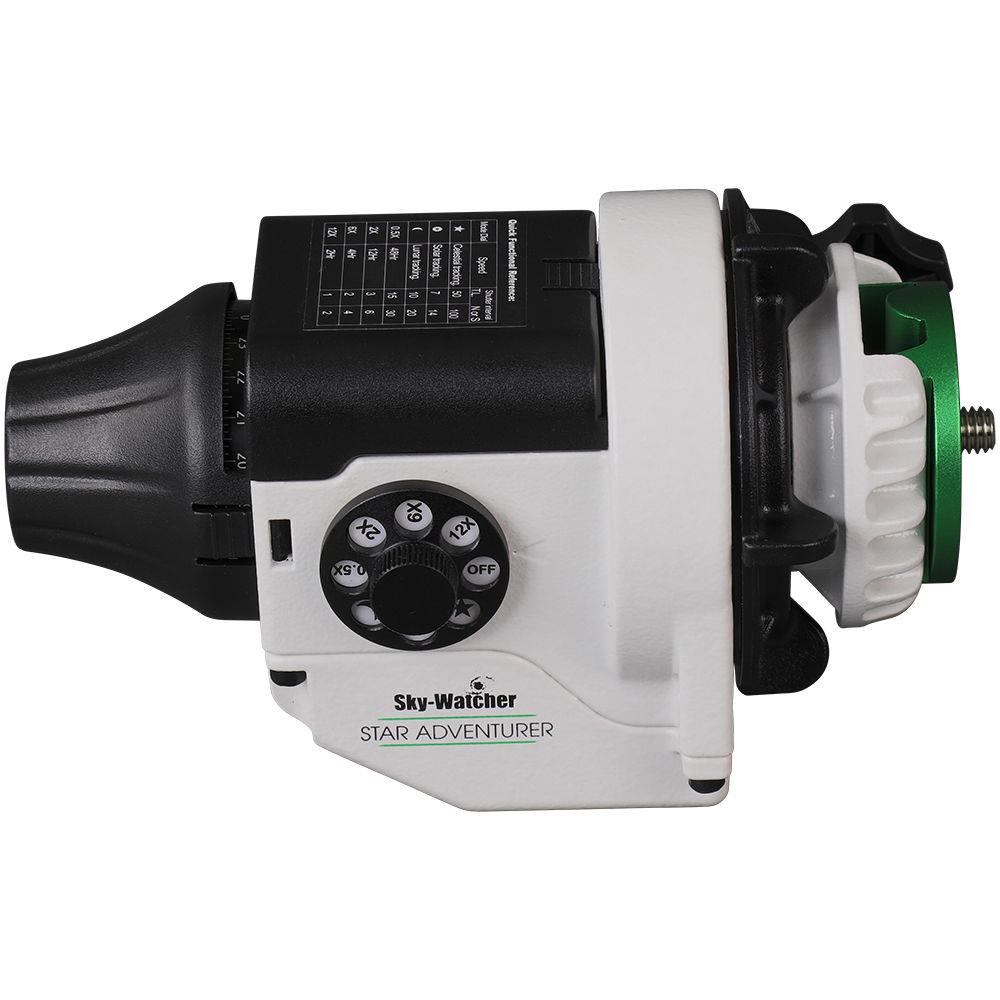

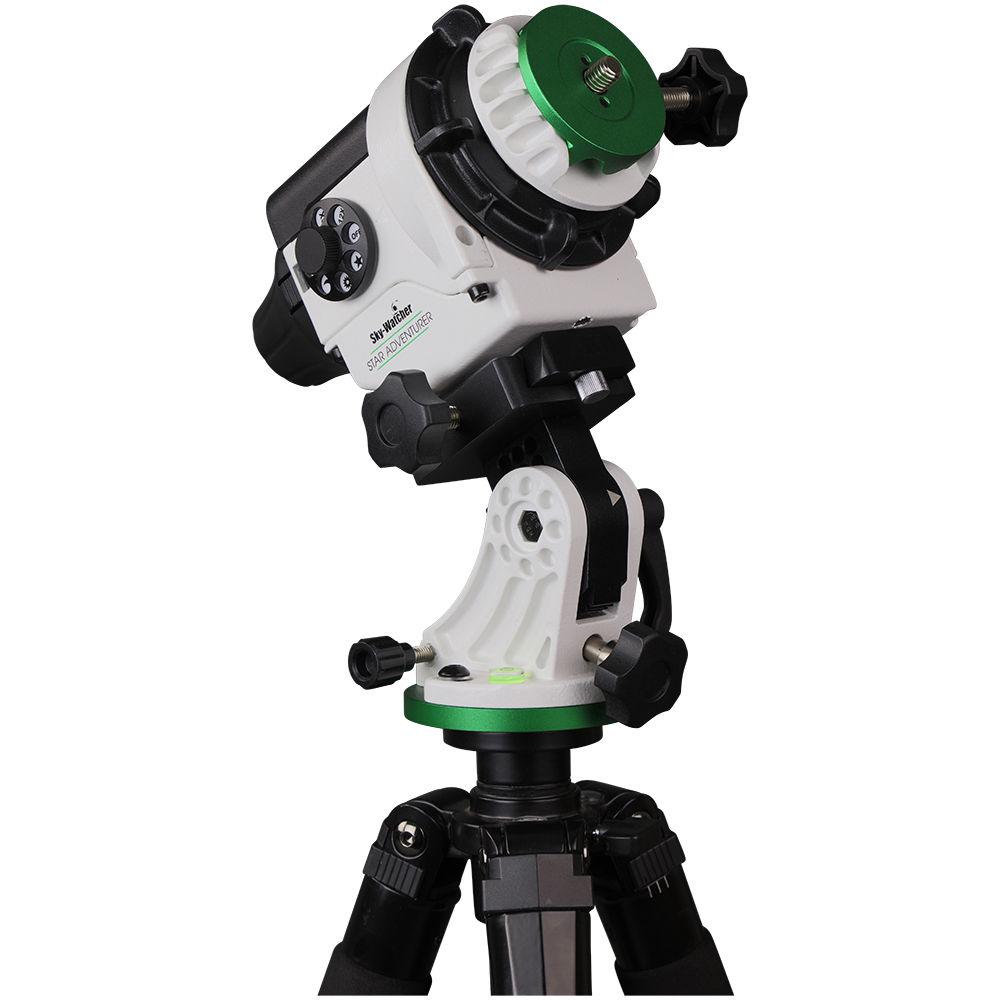

Product description Sky-Watcher's Star Adventurer Motorized Mount Photo Package is an easy-to-use equatorial mount that offers accurate tracking capabilities for time-lapse and long-exposure wide-field astrophotography. With a simple turn of a dial, select from Lunar, Solar, or Star tracking modes, or four speeds from 0.5x to 12x if the modes are not exactly right. An integrated polar alignment scope with an included illuminator help the alignment process in either the Northern or Southern Hemispheres, and a date dial compensates for star drift over time to extend the usability of the scope.Included with the Star Adventurer is a ball head adapter with a 3/8"-16 screw to mount a photo ball head to adapt it for use with a DSLR camera. A 2.5mm three-segment stereo jack is integrated into the mount and gives the mount the ability to control a compatible DSLR's shutter release for long-exposure or time-lapse photography. Pre-programmed intervals, based on the tracking mode selected, optimize the exposure times for the subjects selected.The Star Adventurer mount features a Vixen-style dovetail saddle for compatible accessories and optical tube assemblies (OTAs). It has both 3.8"-16 and 1/4"-20 tripod mounts to fit on most astronomical, photo, or video tripods and is offered here without a tripod, OTA, or counterweights. - Motor and Gears
-
- DC servomotor
- 86mm diameter, 144-tooth aluminum-alloy wheel gear
- 13mm diameter brass worm gear
- Tracking
-
- Supports star-scape and time-lapse photography
- Selectable Solar, Lunar, Star tracking speeds
- 0.5, 2x, 6x, and 12x tracking speed options
- Manual clutch release facilitates faster alignment and adjustment
- Northern and Southern Hemisphere compatible
- Left/Right control buttons enable manual control of tracking up to 12x
- Free lifetime firmware updates
- Alignment
-
- Built-in polar alignment scope
- Includes polar scope illuminator
- Integrated RJ-12 single-axis right ascension auto-guider port supports ST-4-type guiders
- Power
-
- Runs on four AA batteries
- Mini USB port for external power or for updating the firmware
- Low energy consumption allows for up to 72 hours of continuous tracking on battery power
- Mount
-
- Includes a ball head adapter with a 3/8"-16 screw to mount a photo ball head to adapt it for use with a DSLR camera
- 3/8"-16 and 1/4"-20 tripod mounts
- Vixen-style dovetail saddle
- 11 lb payload capacity
UPC: 050234205207 In the Box Sky-Watcher Star Adventurer Motorized Mount Photo Package Star Adventurer Ball Head Adapter srqucswdttuxwqrb Polar Scope Illuminator Limited Two-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sky-Watcher Star Adventurer Motorized Mount Photo Package in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSky-Watcher S20520 Specs | Mount Type | Equatorial | | Load Capacity | 11 lb / 5 kg | | Motor | DC servo | | Gear Drive | Wheel gear: 86 mm diameter, 144 teeth, aluminum alloy
Worm gear: 13 mm diameter, brass | | GoTo Capability | No | | Polar Axis Scope | Yes. Built-in and illuminated | | Includes Tripod/Pier | No | | Power Source | 4 x AA batteries, up to 72 hr
Mini-USB port for external power | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions | 6.8 x 4.5 x 3.8" / 17.4 x 11.3 x 9.6 cm | | Weight | 2.2 lb / 1 kg | | | | Package Weight | 3.47 lb | | Box Dimensions (LxWxH) | 9.25 x 8.8 x 4.95" |
