User Manual for Slate Digital ML-1 Large-Diaphragm Modeling Microphone Click to enlarge the picture
Contents of the user manual for the Slate Digital ML-1 Large-Diaphragm Modeling Microphone
- Product category: Large Diaphragm Condenser Slate Digital
- Brand: Slate Digital
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Slate Digital Large Diaphragm Condenser
|
User manual for the Slate Digital ML-1 Large-Diaphragm Modeling Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Slate Digital product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Slate Digital user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Slate Digital product will considerably shorten its lifespan!
|
Product description - Slate Digital VIRTUAL MICROPHONE SYSTEM: The Future of Microphones
- Virtual Microphone System Shoot Out At NRG Studios

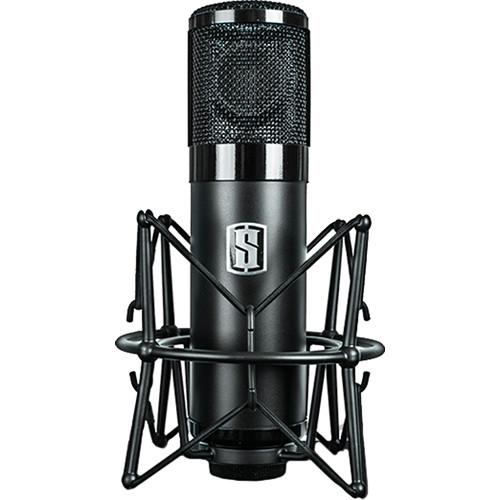

The Slate Digital ML-1 is a large-diaphragm condenser microphone that is meant to be used with the VMS (Virtual Microphone System) or the VRS (Virtual Recording Studio). The microphone captures a linear frequency response between 20 Hz to 20 kHz, doing so with minimal distortion. In this way, it can serve as the unpainted canvas on which you'd apply the digital color of Slate's microphone emulations. Indeed, paired with the VRS or VMS, the microphone aims to put heretofore cost-prohibitive, holy-grail mic/pre combinations at your fingertips.
Included with the ML-1 is a bundle of emulations of prized microphones often used on vocals. Models of the U47, U67, SM7, 251, and other famous microphones are included with your purchase. For preamps, Slate offers software versions of the classic British 73 preamp, and the German 76.
Here, the microphone is offered a la carte. It is recommended you pair the ML-1 with Slate's complementary preamps or interfaces, so that the emulations work to the best of their ability. If you prefer, you can use the mic with your existing preamp or interface, but the results may not be the same. - Low Latency Operation
- None of the processing included with this microphone should add latency to the audio signal, so if you use a low latency interface with the microphone, you can track through the VMS software without any audible monitoring delay. This low-latency operation can be achieved through Thunderbolt or high-speed USB, recording at 96 kHz with the lowest possible buffer size.
- Mac and Windows Compatible
- The software works with Mac and Windows systems. For Mac, it's recommended you're running OS X 10.9 or later. For Windows, you'll need Windows 7 and above. A second- or third-generation iLok is required. VST2, VST3, AU, and AAX formats are all supported.
- Overview of Mic Models Included
- More mic models are released sporadically, but at the very least, you get the following:
- FG-47: This mic model recreates a venerated vintage tube microphone with a thick, full-bodied low end, rich and present midrange, and a smooth top end. This mic works well on lead vocals, kick drums, drum kits overall, guitars, horns, and strings.
- FG-M7: A combination of a dynamic microphone made famous by Michael Jackson and the tube stage of a classic 47, this model offers a punchy, crisp sound with a cutting midrange.
- FG-800: This is a recreation of a popular modern tube microphone, used often on hip hop and pop vocals. It’s quite airy and bright, though the bottom-end is warm, resulting in a timbre that sounds polished right from the source. In addition to vocals, this model shines on acoustic guitars and drum overheads.
- FG-251: This model recreates a well-regarded vintage tube microphone with a crisp, yet warm sound. In addition to vocals, try this model on electric guitars, acoustic guitars, drums, and more.
- FG-800M: Slightly darker and fatter than the FG-800, this model captures the feeling of an older model with a Japanese tube stage. Use this when you like the sound of the FG-800, but want to mitigate brightness and sibilance.
- FG-67: This model emulates a classic 67 microphone, giving you the dark, bold, and thick sound that mic often delivers. Vocals, pianos, and horns can all benefit from the FG-67, or you can use it as your room mic model for drum kits.
- FG-269: This emulation captures a mic with the same circuit as the 67, but with a different tube stage. The result is an open and clear sound in the same German style of the 67 and 47 models.
- FG-12: Taking its cues from a classic Austrian microphone, this model delivers both a rich and smooth sound.
- Preamps Offered
-
- FG-73: The FG-73 preamp module is modeled after one of the most famous discrete solid-state preamps in the industry, made in Britain and used on countless recordings. It has a bold, present, and warm sound that works great on any audio source, including full mixes.
- FG-76: The FG-76 preamp module is modeled after a vintage German tube preamp that has been used on many classic recordings. It has a thick and colorful tone that can make tracks and mixes sound more lively. The bottom end saturates in a musical way, making it a great module for bass guitar and kick drum tracks.
In the Box Slate Digital ML-1 Large-Diaphragm Modeling Microphone (Black) Single License for Mic and Preamp Software Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Slate Digital ML-1 Large-Diaphragm Modeling Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSlate Digital ML-1 Specs | | | Sound Field | Mono | | Transducer | Condenser | | Diaphragm | 1.10" / 28 mm (Condenser) | | Tube | No | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | Cardioid: 77 dB A-Weighted | | Equivalent Noise Level | Cardioid: 17 dB A-Weighted | | Impedance | Cardioid: 200 Ohms | | Load Impedance | 10 kOhms Recommended | | Sensitivity | Cardioid: 20 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 48 V | | Length | 8.47" / 215.2 mm | | Diameter | 2.13" / 54 mm | | Weight | 1.28 lb / 582 g | | | | Package Weight | 5.75 lb | | Box Dimensions (LxWxH) | 12.2 x 11.4 x 6.4" |
