User Manual for Slate Digital RAVEN MTZ 43" Multitouch Control Screen for Pro Audio Applications Click to enlarge the picture
Contents of the user manual for the Slate Digital RAVEN MTZ 43" Multitouch
- Product category: Control Surfaces Slate Digital
- Brand: Slate Digital
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Slate Digital Control Surfaces
 |
User manual for the Slate Digital RAVEN MTZ 43" Multitouch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Slate Digital product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Slate Digital user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Slate Digital product will considerably shorten its lifespan!
|

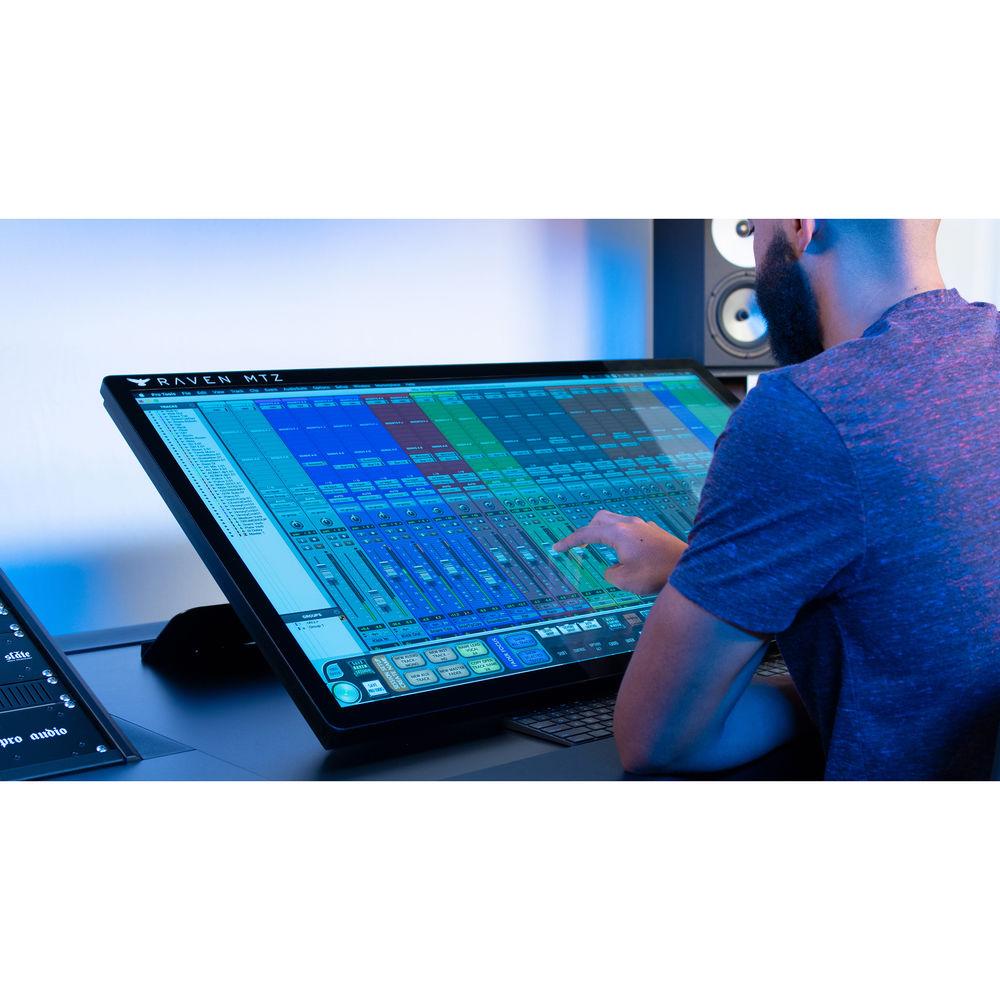

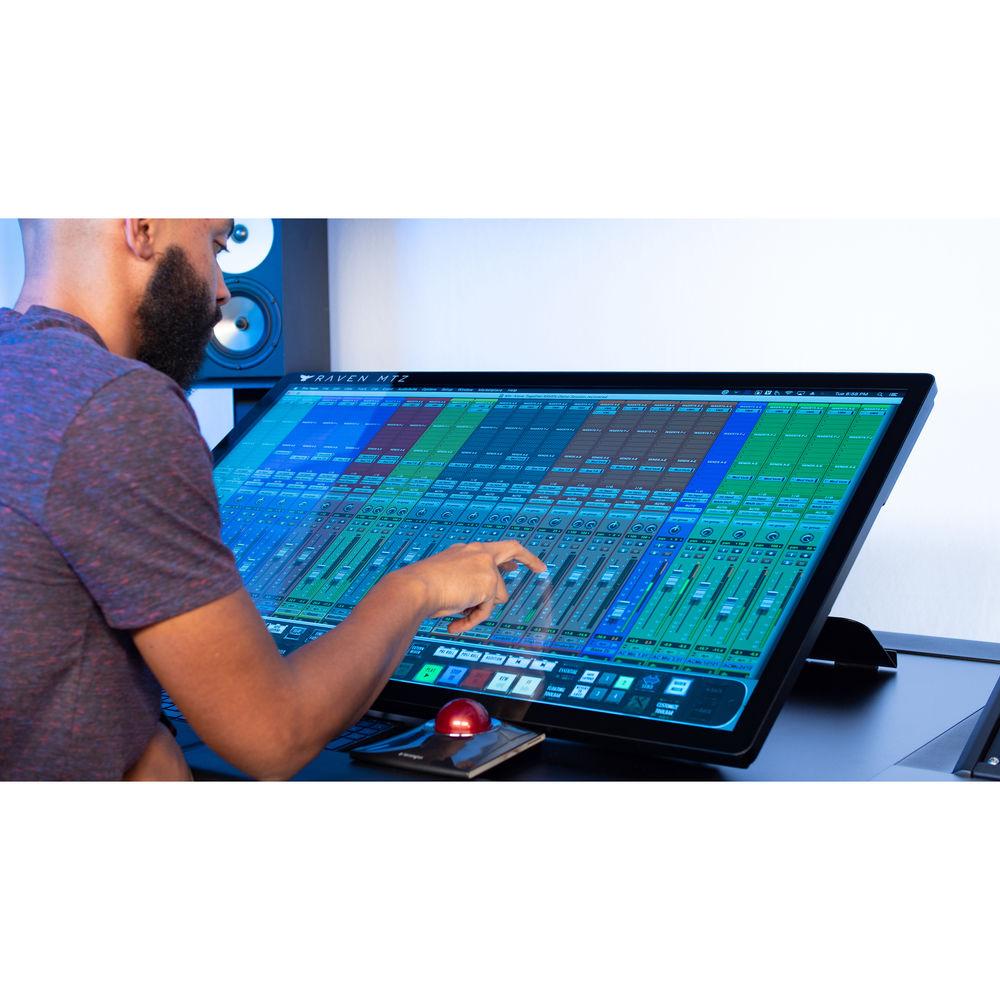

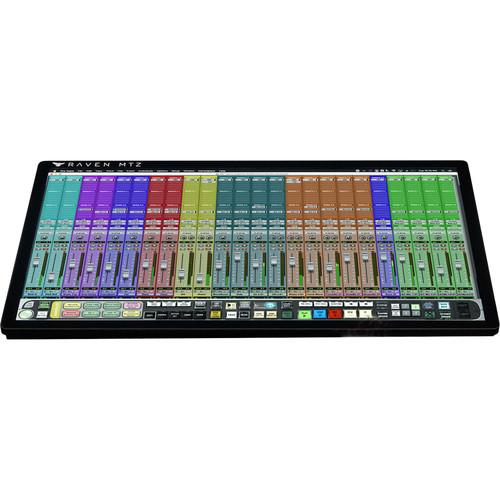

Product description The Slate Digital RAVEN MTZ marries the tactile control of yesterday’s mixing consoles with the convenience of today’s touchscreen technology. With the RAVEN MTZ, nevermore do you have to rely on your mouse for controlling your DAW. Instead, the RAVEN MTZ provides a tablet-like control surface that can raise and lower faders, facilitate touch-control over plug-ins, operate all the buttons of a traditional transport, and more.The MTZ represents the current iteration of RAVEN technology, putting it all in a 1.5"-deep, low-profile, no-bezel 43” screen that supports multitouch, gestural control. The screen sits on an included stand that is angle adjustable. With the MTZ, you can control many faders at once, manipulate pans and sends, and set up recording sessions quickly and efficiently.Common functions can be accessed and performed expediently through the customizable toolbar and Batch Commander, which can execute an entire series of key commands, mouse clicks, and menu selections via the press of one virtual button. Hundreds of presets are included for most major DAWs, and you can program custom commands housing up to 1000 functions per command.The RAVEN MTZ interfaces with most DAWs, and a DAW support license is included for the compatible DAW of your choice. Connections can be made to your Mac- or Windows-equipped computer by means of a video cable—HDMI, DVI-I, and VGA are supported— and a USB 2.0 connection. An iLok version 2 or 3 dongle (available separately) is required for operating the RAVEN. - Key Features at a Glance
-
- 43" multitouch display
- HD resolution of 1920×1080
- Backlit LED with projected capacitive touch panel
- 10-touch display allows multitouch interaction with functions such as fader control, zooming, mute/unmute, and opening/closing plug-in windows
- Powerful integration with most major DAWs
- Hands-on control of all your DAWs parameters
- Acts as your computer’s main touch-capable display
- Flexible and user-customizable
- Easy compatibility using a video connection (HDMI, DVI-I, or VGA) and a USB 2.0 connection
- FADERS 3.0
- FADERS 3.0 provides multi-touch virtual faders that allow precise control of your DAW's faders. By integrating multi-touch 100mm virtual faders directly into each DAW, you now have control over mix levels and automation over more than one track at a time. The FADERS 3.0 algorithm offers a naturalistic control over your faders-control that is both comfortable and fun to implement. A FINE FADER mode is on hand, which can quadruple the resolution of the faders to facilitate especially miniscule moves.
- GESTURES
- RAVEN control software now carries a technology called GESTURES, which facilitates classic, multi-touch gestures to control important elements of your DAW. Opening and closing plug-ins, muting and unmuting tracks, zooming in and out-all of this and more can be accomplished with familiar gestures.
- Toolbar
- In Toolbar mode, your DAW controls are more accessible, laid out right in front of you. You'll notice Transport, Edit/Mix window selector, and convenient tools for tracking such as Record Looping, Click, Create Group, and Undo. Use intuitive multi-touch gestures on the RAVEN NAVPAD to perform Scrub/Shuttle, Waveform Zoom, Track Zoom, and Track Banking, and RAVEN Batch Commands. Because the RAVEN Toolbar is virtual, it's user-customizable, so you can put the controls you want where you want them.
- Batch Command System
- The Batch Command System is a series of preset and customizable buttons that can execute up to 1,000 key commands and mouse clicks automatically. With just one button, the Batch Command System allows you to create instant headphone sends, to name tracks, to put entire drum tracks on the grid, to export stems, and more. The Batch Command System comes pre-programmed with 100 preset batch commands in every supported DAW, with layouts for Music, Mastering, Post Production and more. Record your own mouse click automation or program user commands with QUICKLIST, which features hundreds of predefined DAW operations. Just touch and hold on a Batch Command button to edit, and you'll have access to almost limitless possibilities.
- Slate Remote
- Slate Remote expands your workflow to your iOS-compatible. Slate Remote is a free app for iOS users and available at the app store to anyone with a RAVEN. Slate Remote automatically synchronizes with your RAVEN session via Wi-Fi and gives you access to your custom Batch Commands, allowing it to remotely perform time-saving tasks for you from the palm of your hand.
In the Box Slate Digital RAVEN MTZ 43" Multitouch Control Screen for Pro Audio Applications HDMI Cable USB 2.0 Cable Right-Angle IEC Power Cable Software Passcode Card Revitalizer Cleaning Cloth Hex Key 8mm Hex Screw Set Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Slate Digital RAVEN MTZ 43" Multitouch Control Screen for Pro Audio Applications in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSlate Digital RAVEN MTZ Specs | System Requirements | Mac OS X 10.7 to 10.11
macOS 10.12 or Later
2.5 GHz Xeon CPU or Faster for Mac Pro, i5 CPU or Faster for Mac Mini and MacBook Pro
4 GB RAM
Intel HD 4000 Graphics Card (512 MB VRAM) or Better
Two Available USB 2.0 Ports
iLok 2 or iLok 3 Dongle
Windows 8.1 or Later
2.9 GHz Intel i5 CPU or Faster
4 GB RAM
512 MB VRAM or More
Two Available USB 2.0 Ports
iLok 2 or iLok 3 Dongle | | Compatible Applications | Ableton Live 9 and 10 (Mac Only)
Apple Logic Pro X (Mac Only)
Avid Pro Tools 10 or Later
PreSonus Studio One 3 and 4 (Mac Only)
Steinberg Cubase
Steinberg Nuendo
MOTU Digital Performer (Mac Only) | | IP Rating | IP65 for Front Panel | | Screen Type | Backlit LED with Projected Capacitive Touch Panel | | Screen Size (Diagonal) | 43" / 109.2 cm | | Active Screen Area | 37.1 x 20.8" / 94.1 x 52.9 cm (H x V) | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Colors | 16.7 Million | | Brightness | 400 cd/m
