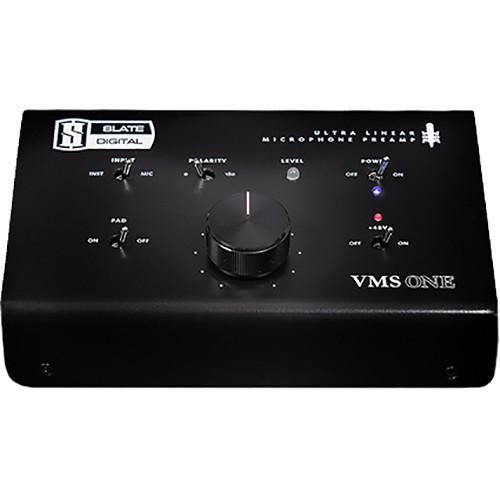

User Manual for Slate Digital VMS ONE Single-Channel Preamp Click to enlarge the picture
Contents of the user manual for the Slate Digital VMS ONE Single-Channel Preamp
- Product category: Microphone Preamps Slate Digital
- Brand: Slate Digital
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Slate Digital Microphone Preamps
|
User manual for the Slate Digital VMS ONE Single-Channel Preamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Slate Digital product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Slate Digital user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Slate Digital product will considerably shorten its lifespan!
|
Product description - Slate Digital VIRTUAL MICROPHONE SYSTEM: The Future of Microphones
- Virtual Microphone System Shoot Out At NRG Studios
For those who wish to use Slate Digital's modeling microphone systems with their own converters, Slate Digital offers the VMS ONE here. This is a single-channel preamp designed by Paul Wolff, whose name is well-regarded in pro-audio circles.
The VMS ONE features an XLR-1/4" combination jack from Neutrik that will accommodate both balanced XLR and unbalanced 1/4" inputs. Two output jacks are provided, one XLR connection and one 1/4", and it's best to use either one or the other at any one time.
With the +48V phantom power switch, you can power the ML-1 or ML-2 microphones that work best with the unit, though it'll also serve as a linear, transparent preamp for all sorts of microphones. A pad switch is provided to give you a fixed attenuation of -20 dB before the first stage of the input amplifier, so you can use microphones with loud sources. Other controls include an input selector switch, a polarity switch, and a prominent gain knob. The preamp is capable of 57 dB of gain.
The preamp is offered a la carte here. It's designed to be utilized with the ML-1 or ML-2 modeling microphone from Slate. Along with these mics and the corresponding modeling software, this item comprises one aspect of Slate's Virtual Microphone System. In the Box Slate Digital VMS ONE Single-Channel Preamp Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Slate Digital VMS ONE Single-Channel Preamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSlate Digital VMS One Specs | Maximum Gain | 57 dB | | Maximum Input Level | -2 dBu (without pad), +18 dBu (with pad) | | Maximum Output | +27 dBu | | Gain Range | -30 to +27 dB | | Noise | < -100 dBu, (-30 in adjusted to +4 dB out) | | Controls | Instrument/mic switch
Polarity switch
Power switch
Pad switch
Gain knob
48V phantom power switch | | Power Connector | 5-Pin XLR connection | | System Requirements (Mac) | Mac OS X 10.7 or later (32-/64-bit)
Mac Quad Core i5 Intel Processor
4 GB RAM
iLok 2 or 3 | | System Requirements (Windows) | Windows 7 or later (32-/64-bit)
Mac Quad Core i5
4 GB RAM
iLok 2 or 3 | | Supported Plug-In Formats | VST2, VST3, AU, AAX |
