User Manual for Slik 700DX Pro Tripod Legs Click to enlarge the picture
Contents of the user manual for the Slik 700DX Pro Tripod Legs
- Product category: Tripod Legs Slik
- Brand: Slik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Slik Tripod Legs
 |
User manual for the Slik 700DX Pro Tripod Legs contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Slik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Slik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Slik product will considerably shorten its lifespan!
|

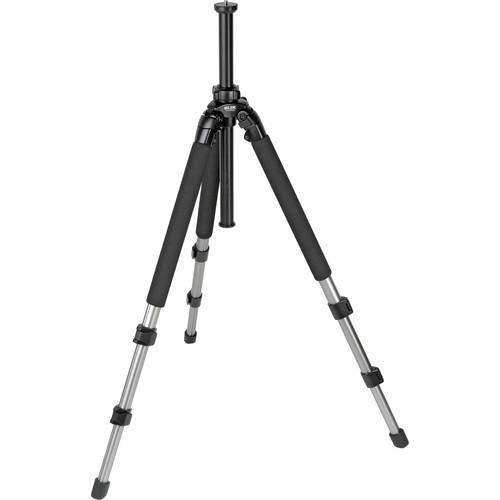

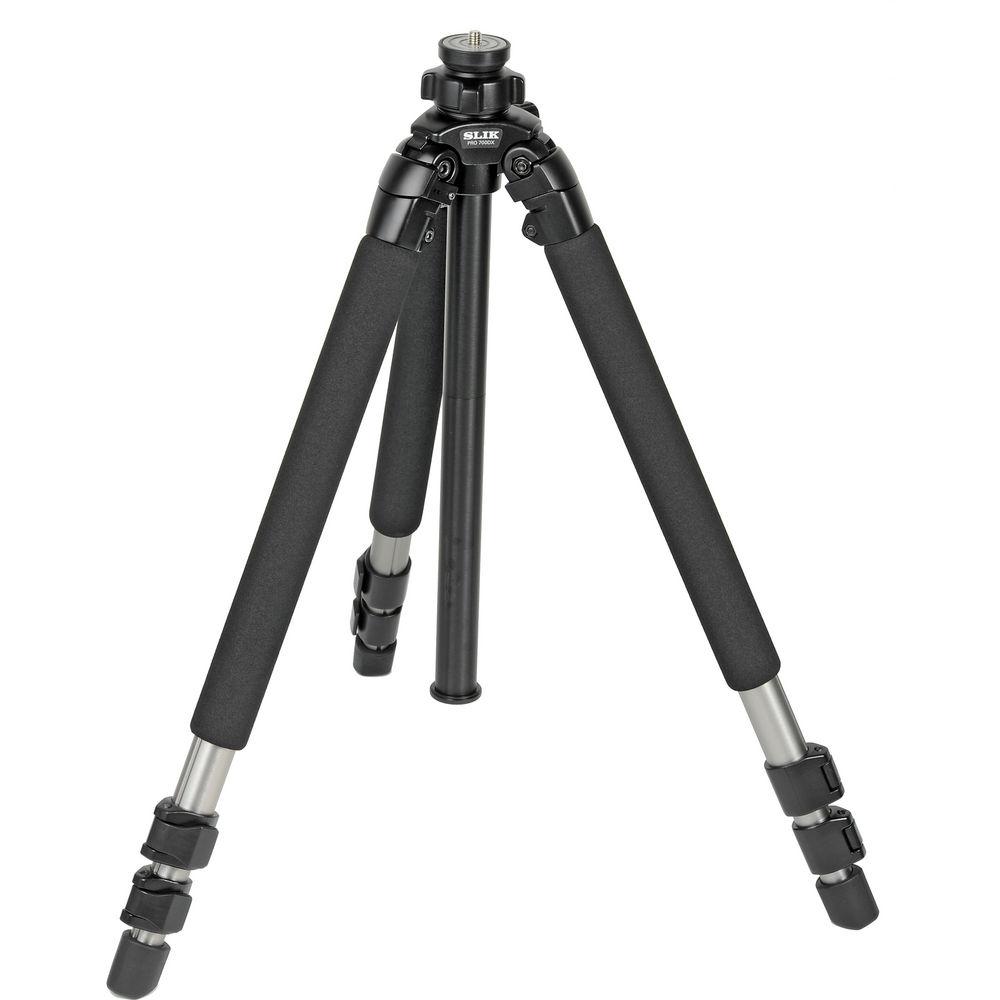

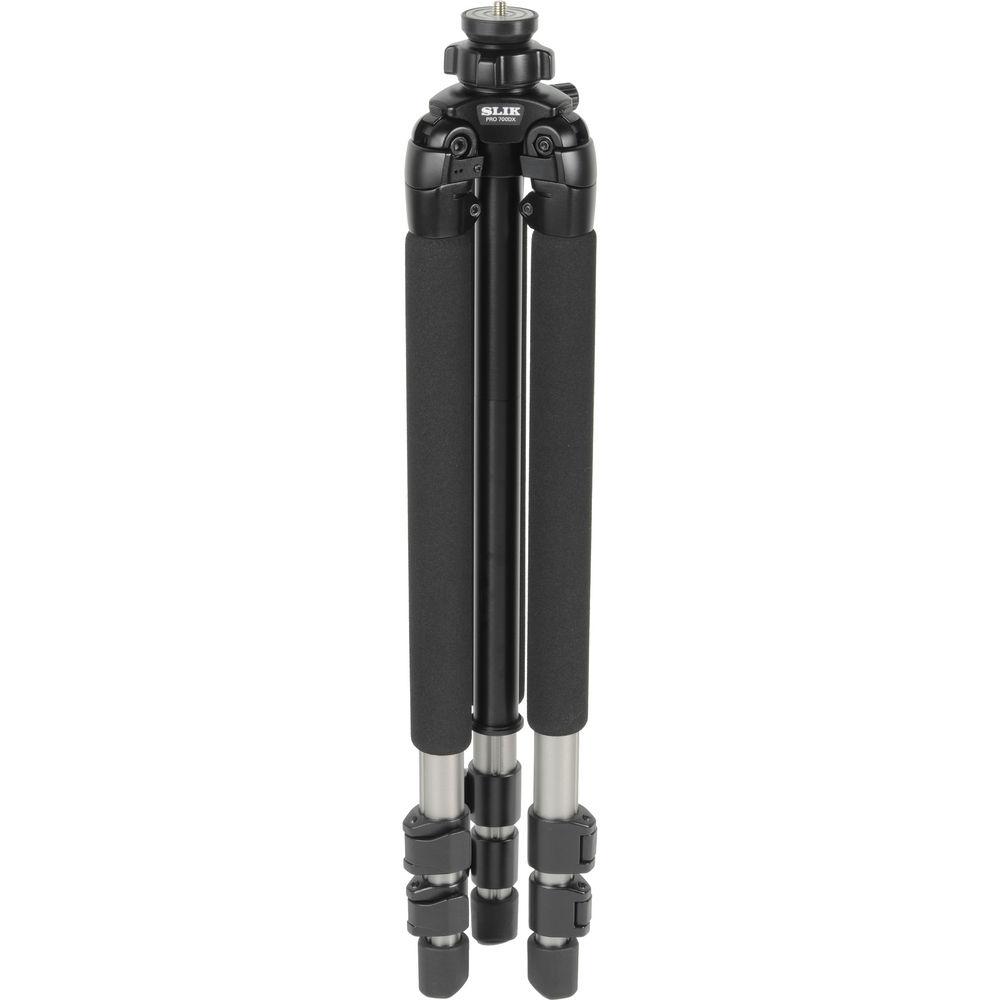

Product description Using a "Tri-Titanium" alloy compromised of aluminum, magnesium, and titanium, the Slik 700DX Pro Tripod Legs has a strength-to-weight ratio 40% greater than comparable tripods in its class. It is a very professional unit whether you're concerned with strength, fit and finish, or refinement of operation. The rapid-type center column cannot rotate accidentally, and the lever locks work securely with a minimum of movement. The 700DX has foam-padded upper segments to ease carrying on your shoulder and working in the cold, and its simple angled rubber feet give a firm footing on a wide variety of surfaces. - A professional's leg set with 30.2mm maximum diameter upper segments
- Dual alignment grooves on all leg segments eliminate leg twist and increase strength

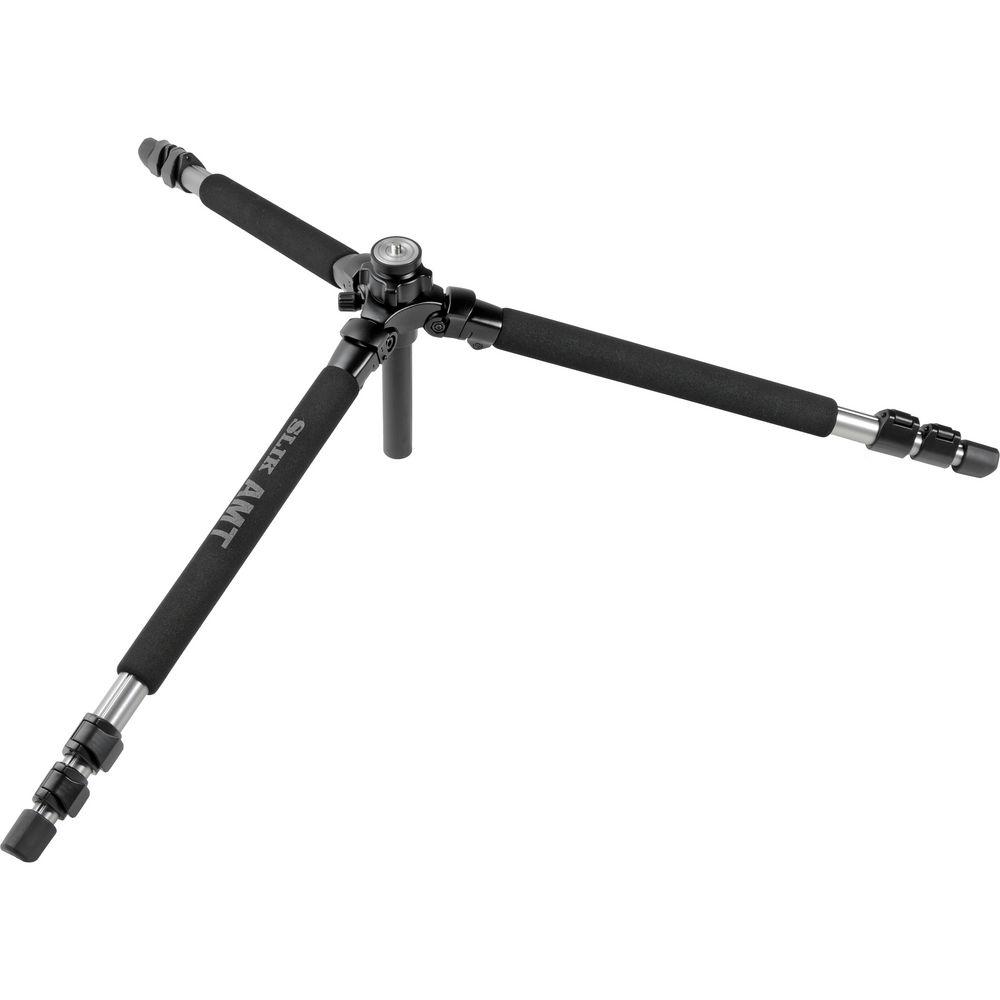

- Individual 3-position leg angle locks for low angle work or use on uneven terrain
- Rubber feet for maximum traction on a variety of surfaces
- Working height of 70.1" puts camera's viewfinder at or above eye level for most users
- Two-part center column allows lower minimum operating height
UPC: 049368701334 In the Box Slik 700DX Pro Tripod Legs (Titanium Finish) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Slik 700DX Pro Tripod Legs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSlik 700DX Pro Specs | | | Load Capacity | 15 lb / 6.8 kg | | Maximum Working Height | 70.1" / 178.1 cm | | Max Height without Center Column | 55.1" / 140 cm | | Minimum Working Height | 10.8" / 27.4 cm | | Folded Length | 26.2" / 66.5 cm | | Head Mount Type | 1/4"-20 Screw, 3/8"-16 Screw | | Weight | 5.9 lb / 2.7 kg | | Materials | Aluminum Alloy | | | | Leg Lock Type | Flip Lock | | Independent Leg Spread | Yes | | Leg Sections | 3 | | | | Center Column Sections | 2 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 7.5 lb | | Box Dimensions (LxWxH) | 34.0 x 6.6 x 6.5" |
