User Manual for Slik Able 300 DX Tripod with 3-Way, Pan-and-Tilt Head Click to enlarge the picture
Contents of the user manual for the Slik Able 300 DX Tripod with
- Product category: Tripods with Heads Slik
- Brand: Slik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Slik Tripods with Heads
 |
User manual for the Slik Able 300 DX Tripod with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Slik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Slik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Slik product will considerably shorten its lifespan!
|

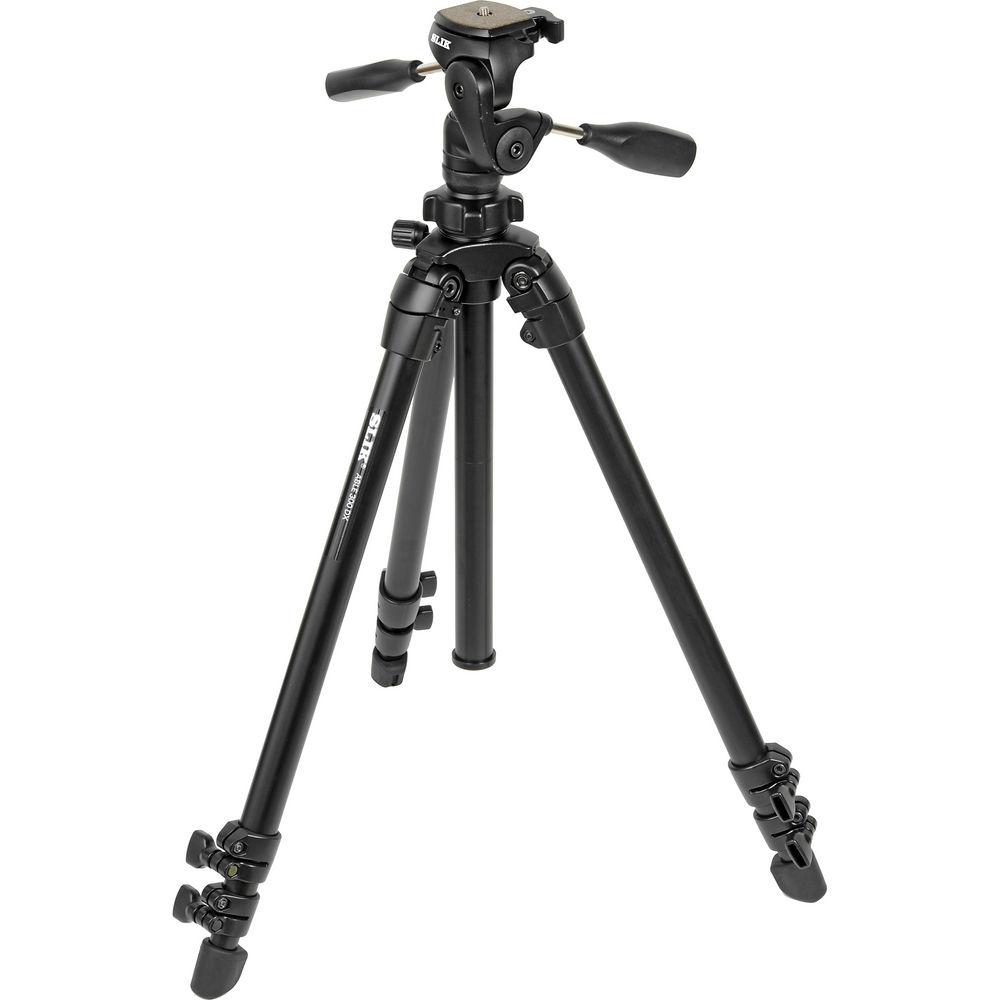

Product description Time-Lapse Tips and Tools Read More rsqeasucbbfqyqfvbbuquzzydatvu This SLIK Able 300 DX Tripod supports up to 11.0 lb, measures 25.8" when folded, and includes a 3-way, pan-and-tilt head with quick release plate. Each of its 3-section legs features an independent spread, a 3-position angle lock, and can be extended or collapsed by first loosening its thumbscrew lock. This tripod can be positioned for a minimum height of 18.5" to a maximum height of 50.6", or 61.0" with its push-and-pull, rapid center column fully raised. For added versatility, the center column is reversible, facilitating low-angle photography where an attached camera is positioned among the tripod's legs instead of above them. To further enhance stability on a wide variety of surfaces, each of the aluminum-alloy legs includes a rubber foot.
Cameras, sport optics, or camcorders that are compatible with a 1/4"-20 mount can be connected to the quick release plate, which is secured to the tripod's pan-and-tilt head using a quick release cam lock. The head can be rotated 360°, and tilted 90° backwards or forwards, as well as sideways for portrait orientation. Each of these three movements function independently of each other and can be locked into place. - Use and Handling
-
- Supports up to 11.0 lb
- Push-and-pull center column for rapid camera, lens, or sport optic positioning

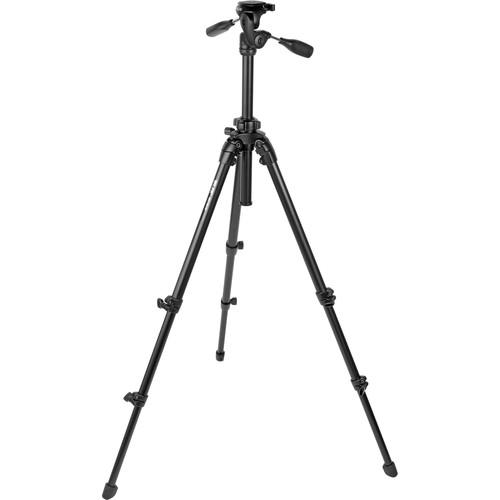

- Can be set for a minimum height of 18.5" to a maximum height of 50.6", or 61.0" with column fully raised

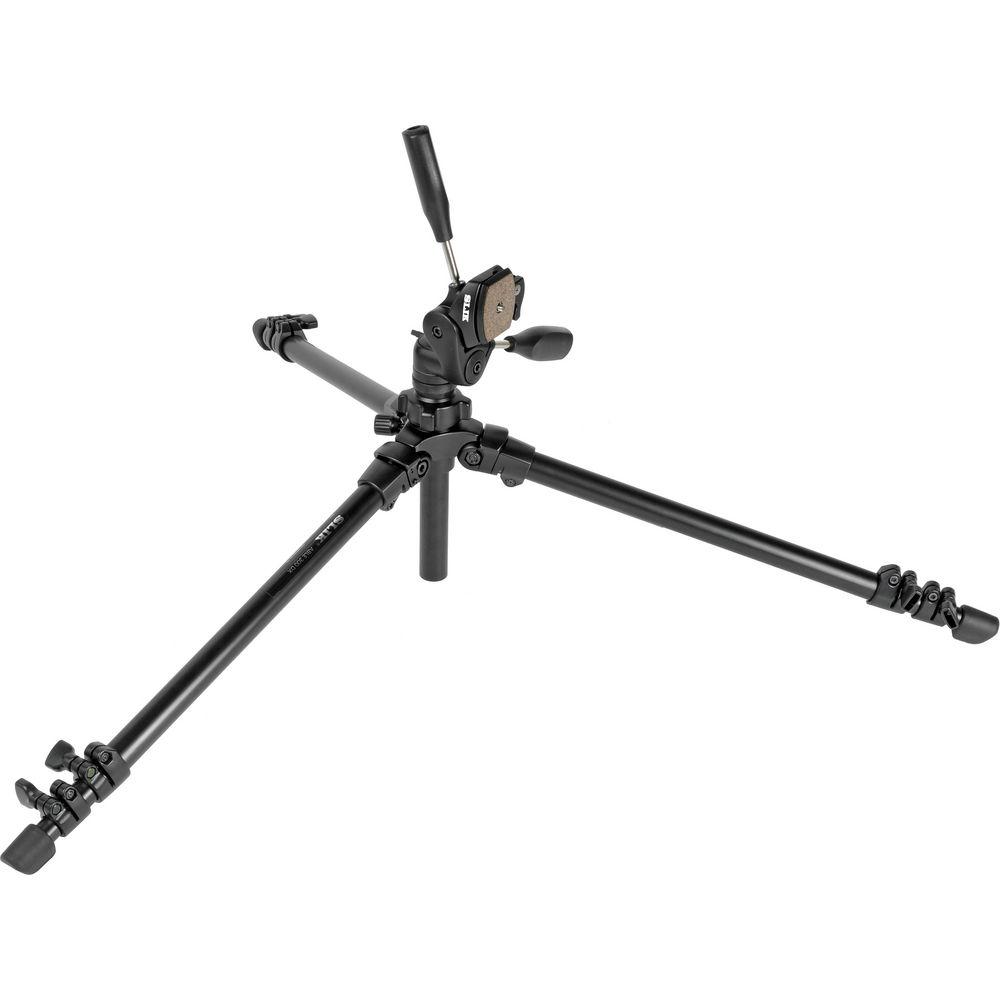

- Column is reversible, facilitating low-angle photography where an attached camera is positioned among the tripod's legs instead of above them
- Legs each feature three sections, an independent spread, a 3-position angle lock, and can be extended or collapsed by first loosening its thumbscrew lock
- Rubber feet for stability

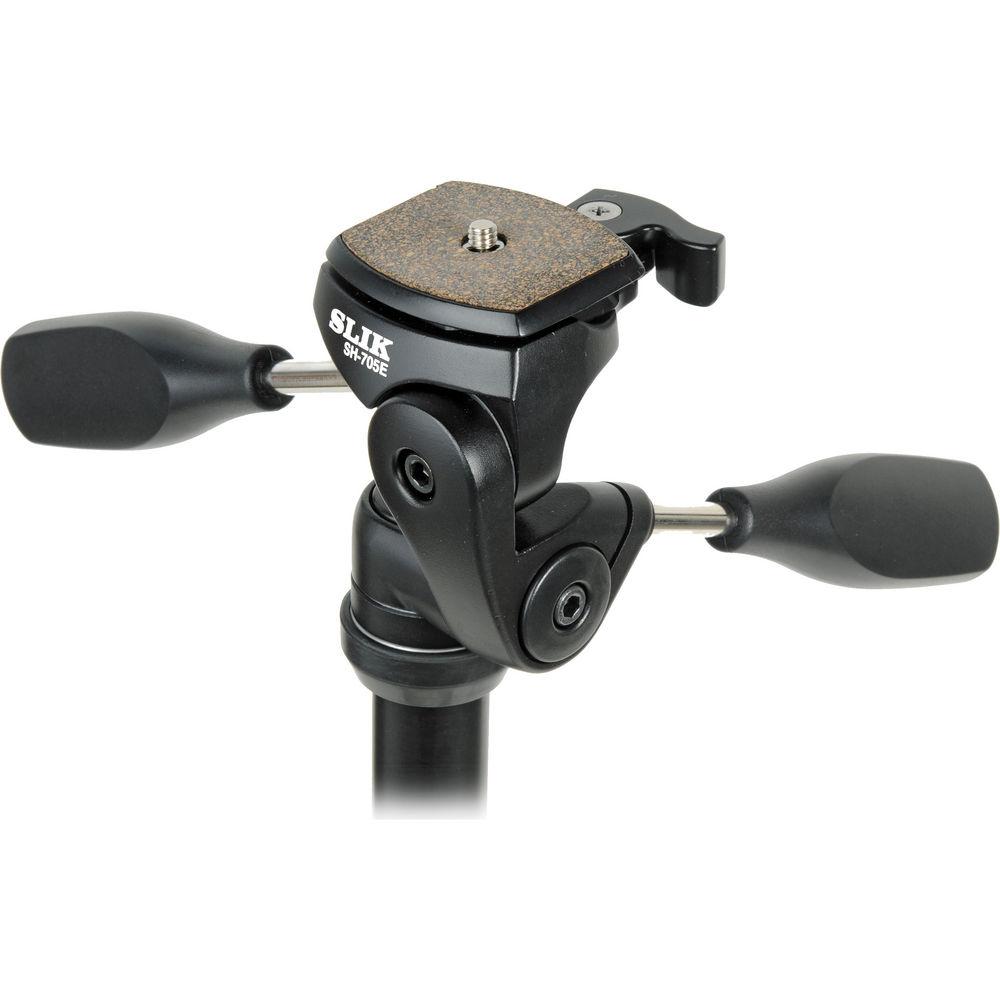

- 3-way, pan-and-tilt head can be rotated 360°, and tilted 90° backwards or forwards, as well as sideways for portrait orientation
- Rotation, backwards and forwards tilt, as well as portrait orientation tilt each function independently of each other and can be locked into place

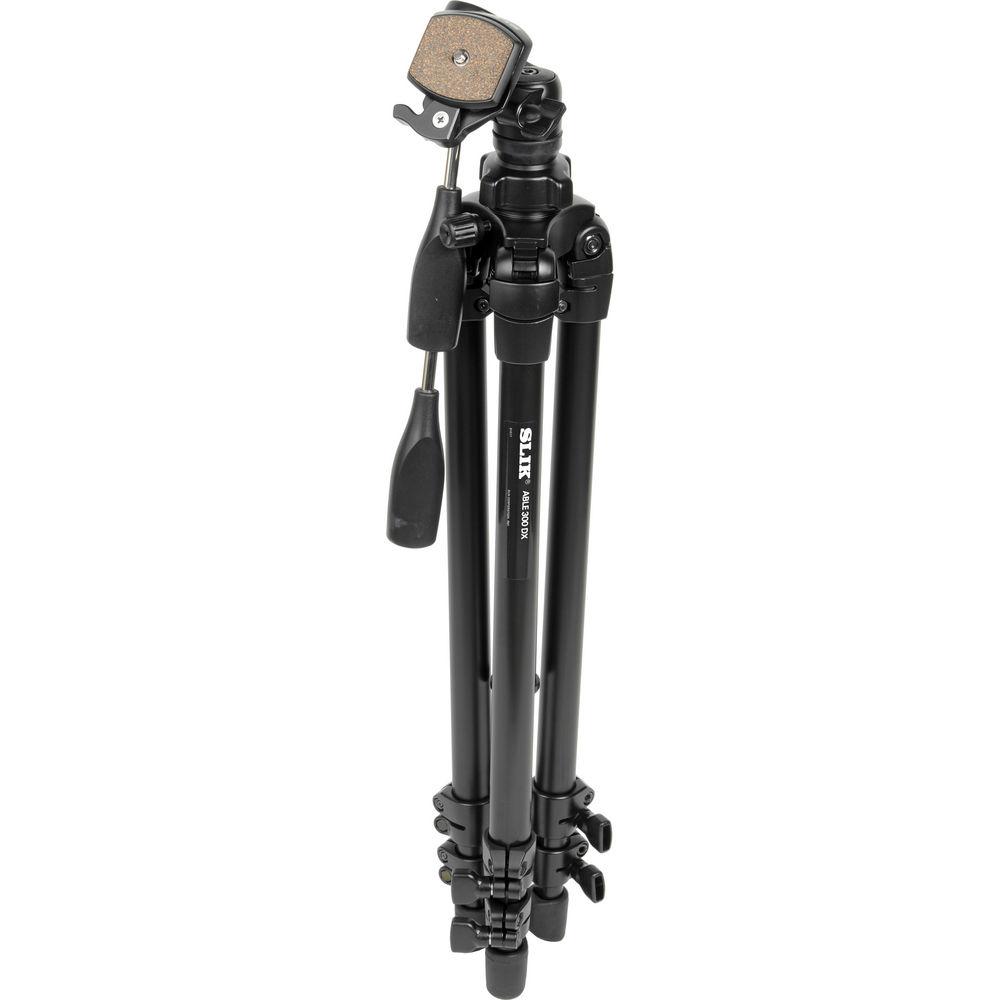

- Weighs 5.7 lb, measures 25.8" when folded
- Construction Details
-
- Aluminum-alloy legs and 3-way, pan-and-tilt head
- Quick release plate with 1/4"-20 mount with anti-slip, cork surface
UPC: 036791133009 In the Box Slik Able 300 DX Tripod with 3-Way, Pan-and-Tilt Head Quick Release Plate Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Slik Able 300 DX Tripod with 3-Way, Pan-and-Tilt Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSlik 300DX Specs | | | Head Type | Pan & Tilt Head | | Base Mount | 1/4"-20 Thread | | Camera Mounting Screw | 1/4"-20 Male | | | | Load Capacity | 11 lb / 5 kg | | Maximum Working Height | 61" / 154.9 cm | | Max Height without Center Column | 50.6" / 128.5 cm | | Minimum Working Height | 18.5" / 47 cm | | Folded Length | 25.8" / 65.5 cm | | Materials | Aluminum Alloy | | Weight | 5.7 lb / 2.6 kg | | | | Leg Lock Type | Wingnut | | Independent Leg Spread | Yes | | Leg Sections | 3 | | Bubble Level | No | | | | Center Column Sections | 1 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 6.4 lb | | Box Dimensions (LxWxH) | 27.0 x 5.0 x 5.0" |
