User Manual for Slik PBH-635AS Ball Head with 6507 Quick Release Plate Click to enlarge the picture
Contents of the user manual for the Slik PBH-635AS Ball Head with 6507
- Product category: Tripod Heads Slik
- Brand: Slik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Slik Tripod Heads
 |
User manual for the Slik PBH-635AS Ball Head with 6507 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Slik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Slik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Slik product will considerably shorten its lifespan!
|

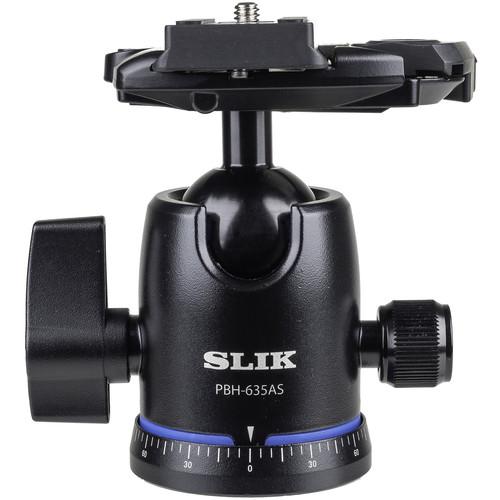

Product description The SLIK PBH-635AS Ball Head with 6507 Quick Release Plate is an Arca-type ball head that has a load capacity of 13.1 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. A reducer bushing is provided, which allows this ball head to be attached to tripods or other support systems that feature a 1/4"-20 mount.

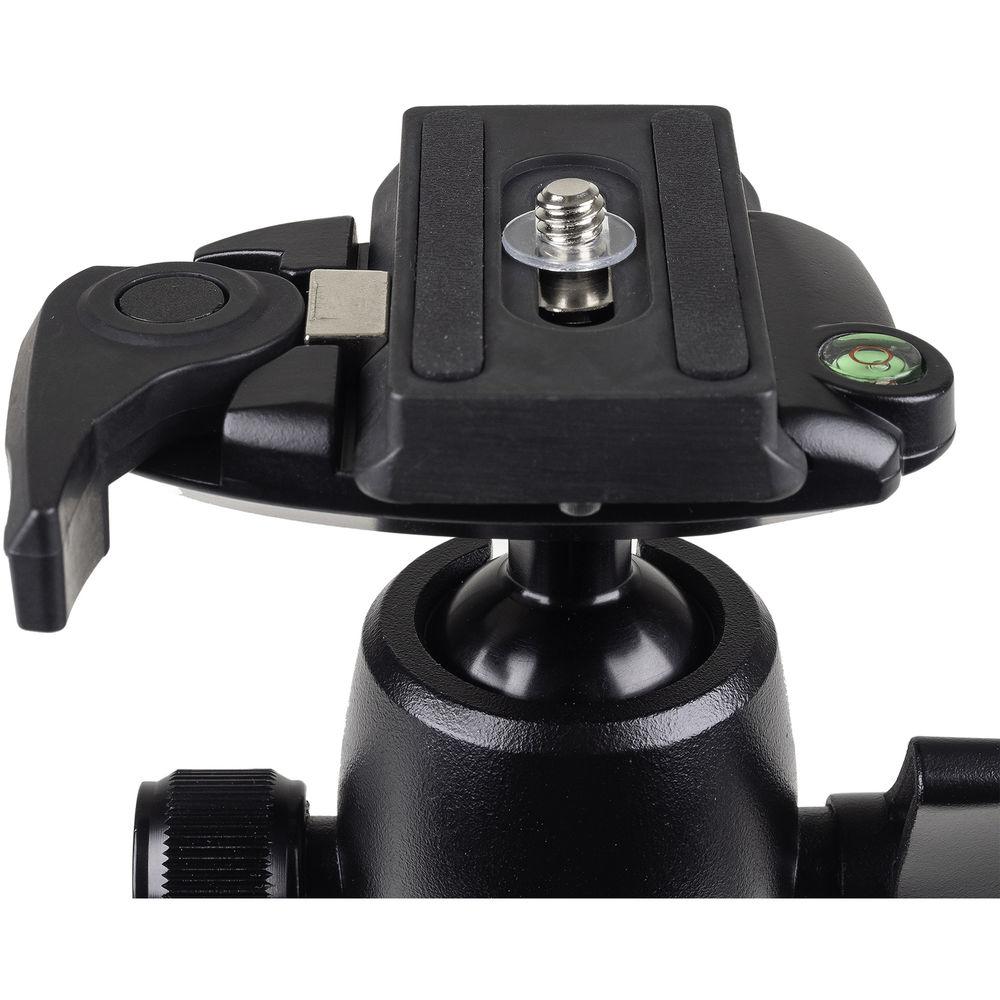

Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the included 6507 Quick Release Plate. The quick release plate can be attached or removed from the Arca-Type clamp located at the top of the head's ball-and-socket joint by pulling clamp's integrated cam lock lever, which also allows the plate to be reattached. The quick release plate features a rubberized, non-slip platform while a built-in bubble level along the edge of the clamp accommodates landscape orientations.

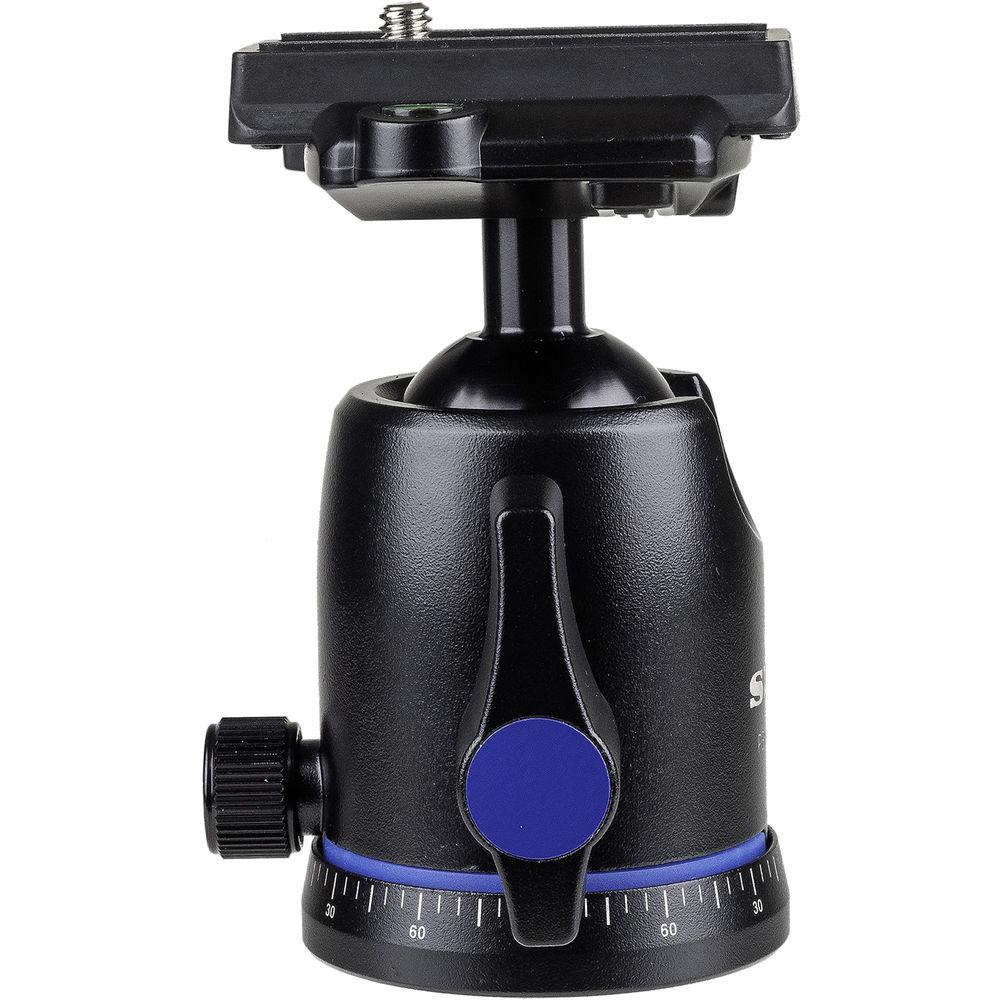

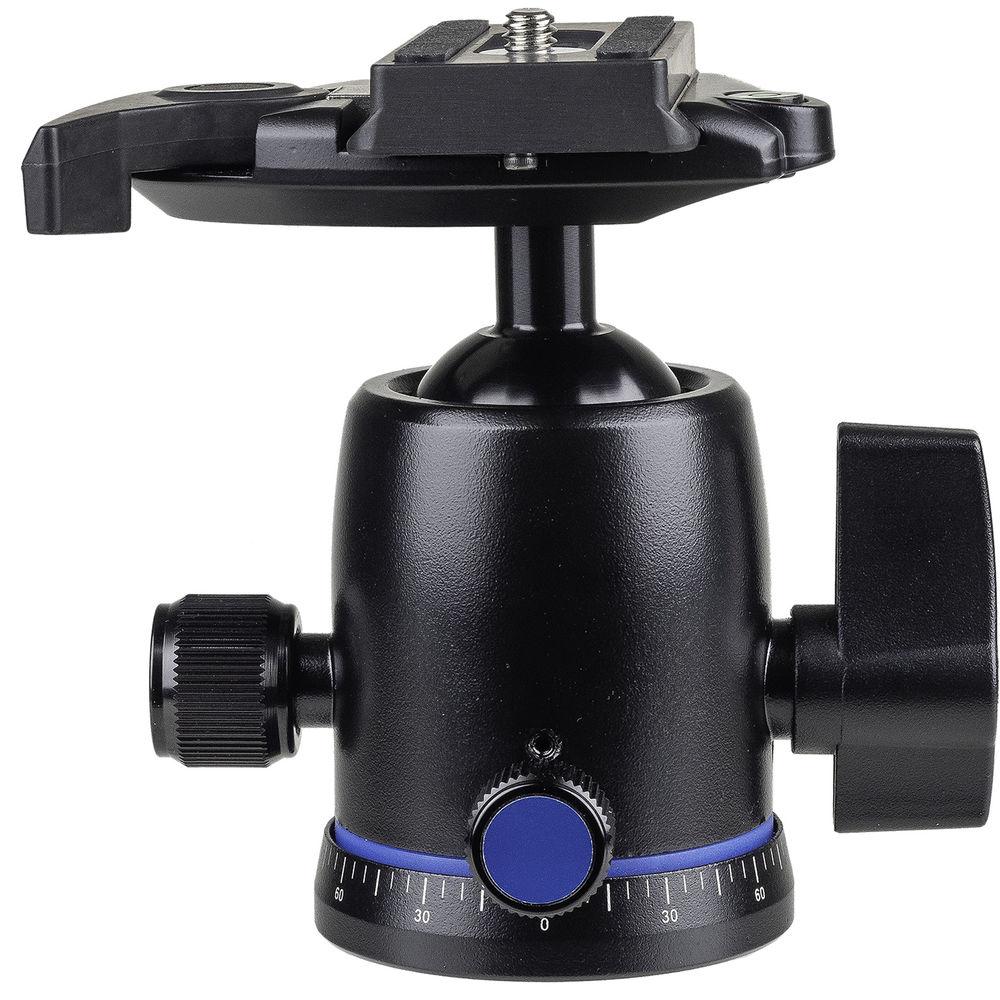

By loosening the ball head's primary locking knob, the head's ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. Variable tension can be applied to the ball-and-socket joint's movements by rotating the friction knob located on the opposite side of the primary locking knob. Between the primary locking knob and friction knob is a secondary locking knob, which controls the ability to rotate the head 360°. - PBH-635AS Ball Head
-
- Arca-type ball head with 13.1 lb load capacity
- Compatible with tripods or support systems that feature a 3/8"-16 mount
- Reducer bushing included for compatibility with tripods or support systems that feature a 1/4"-20 mount
- Uses ball-and-socket joint to help maximize pan-and-tilt flexibility
- Ball-and-socket joint provides 360° of swivel control, is tiltable down to a 90° angle, and can be locked into place
- Large, primary locking knob allows ball-and-socket joint to be quickly swiveled, angled, fully tilted, or returned to its upright position
- Knurled friction knob on the opposite side of the primary locking knob applies variable tension on the ball-and-socket joint's movements
- Secondary locking knob with knurled surface allows head to rotate 360°
- Integrated cam lock on top of the ball-and-socket joint is compatible with included 6507 Quick Release Plate
- Built-in bubble level along the edge of the clamp accommodates landscape orientations
- Durable, aluminum-alloy construction
- 6507 Quick Release Plate
-
- Compatible with Arca-type quick release clamps
- 1/4"-20 folding-wing thumb screw mount for easy installation and removal
- Durable, aluminum-alloy construction
UPC: 049368706162 In the Box Slik PBH-635AS Ball Head with 6507 Quick Release Plate 6507 Quick Release Plate 3/8"-16 to 1/4"-20 Reducer Bushing Limited 3-Year Warranty User Manual PDF 3.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Slik PBH-635AS Ball Head with 6507 Quick Release Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Slik PBH-635AS Ball Head with 6507 Quick Release Plate can be downloaded in PDF format at the link stated below.
Technical parametersSlik PBH-635AS Specs | | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread & 1/4"-20 with Bushing | | Camera Mounting Screw | 1/4"-20 Male | | Number of Bubble Levels | 1 | | Friction Control | Yes | | Independent Pan Lock | Yes | | | | Vertical Tilt | 90
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 09 owners. Add your rating and experience with the product.
