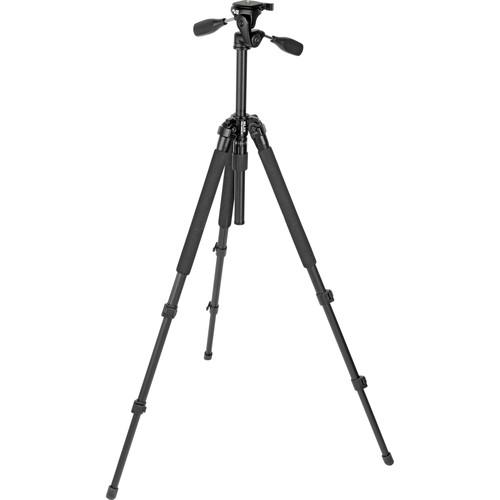

User Manual for Slik Pro 330 DX Tripod with SH-705E 3-Way, Pan-and-Tilt Head Click to enlarge the picture
Contents of the user manual for the Slik Pro 330 DX Tripod with
- Product category: Tripods with Heads Slik
- Brand: Slik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Slik Tripods with Heads
 |
User manual for the Slik Pro 330 DX Tripod with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Slik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Slik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Slik product will considerably shorten its lifespan!
|

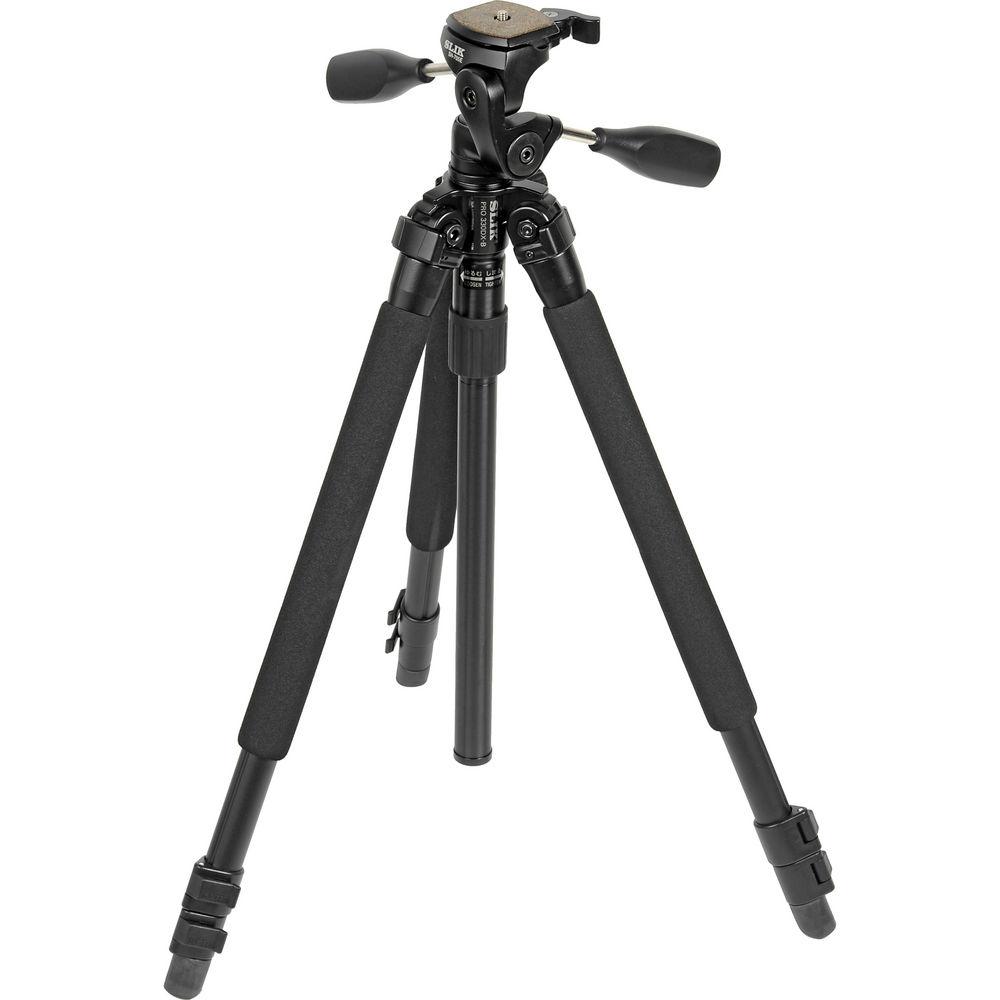

Product description Time-Lapse Tips and Tools Read More This black, SLIK Pro 330 DX Tripod with SH-705E 3-Way, Pan-and-Tilt Head supports up to 8.8 lb, measures 23.6" when folded, and includes a quick release plate. Each of its 3-section legs features an independent spread, a 3-position angle lock, and flip locks for fast deployment. The included push-and-pull, rapid center column is multi-sectional, which allows it to be converted to a shortened center column. This feature permits a minimum height of 20.1", or 9.6" when the center column is shortened. The SLIK Pro 330 DX Tripod provides a maximum height of 48.8", 52.5" with its center column shortened as well as fully raised, and 63.0" with the complete column fully raised.

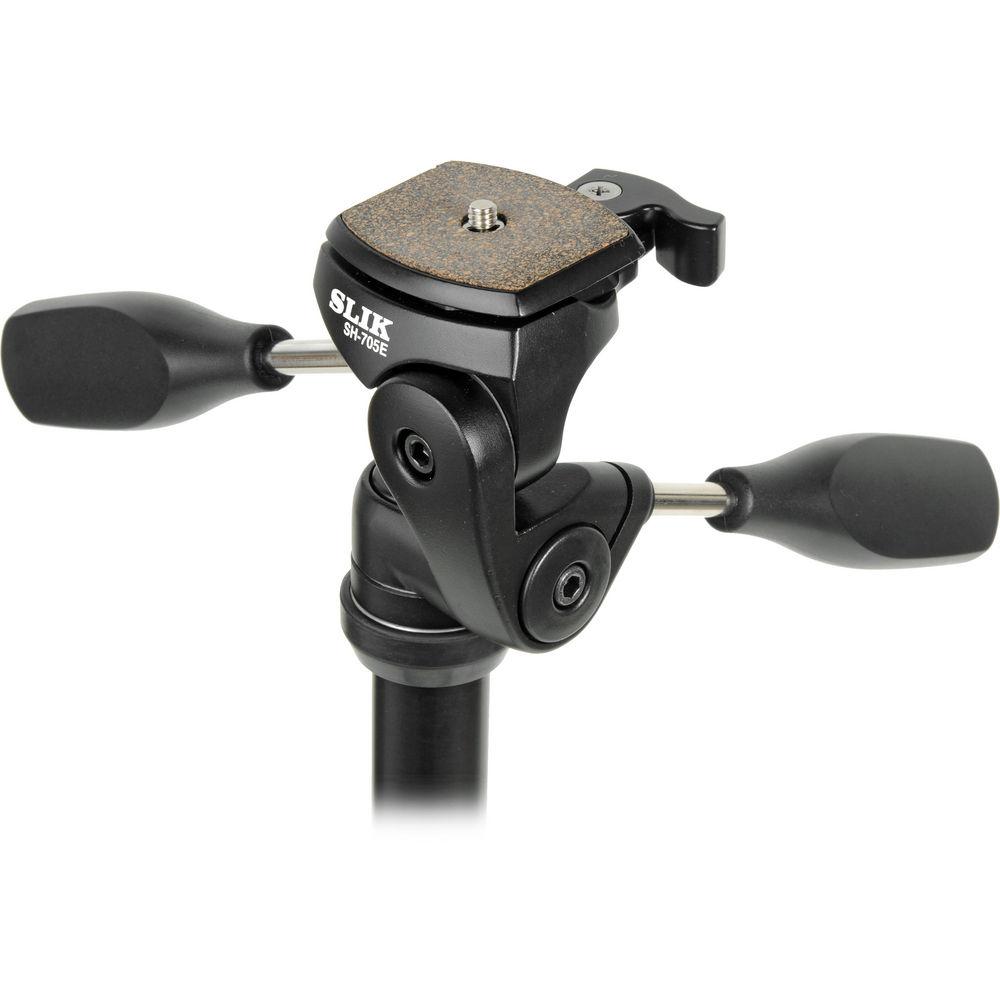

Cameras, sport optics, or camcorders that are compatible with a 1/4"-20 mount can be connected to the quick release plate, which is secured to the tripod's pan-and-tilt head using a quick release cam lock. The head can be rotated 360°, and tilted 90° backwards or forwards, as well as sideways for portrait orientation. Each of these three movements function independently of each other and can be locked into place.
For added versatility, the center column is reversible, facilitating low-angle photography where an attached camera is positioned among the tripod's legs instead of above them. Foam covers on each of the legs provide a secure and comfortable grip while moving the tripod, and rubber feet help to enhance stability on a wide variety of surfaces. - Use and Handling
-
- Supports up to 8.8 lb
- Push-and-pull center column for rapid camera, lens, or sport optic positioning
- Center column is multi-sectional, allowing it to be converted to a shortened center column that allows the tripod to be set at a minimum height of 20.1", or 9.6" when the column is shortened
- Tripod can be set to a maximum height of 48.8", 52.5" when the column is shortened as well as fully raised, and 63.0" with the complete column fully raised

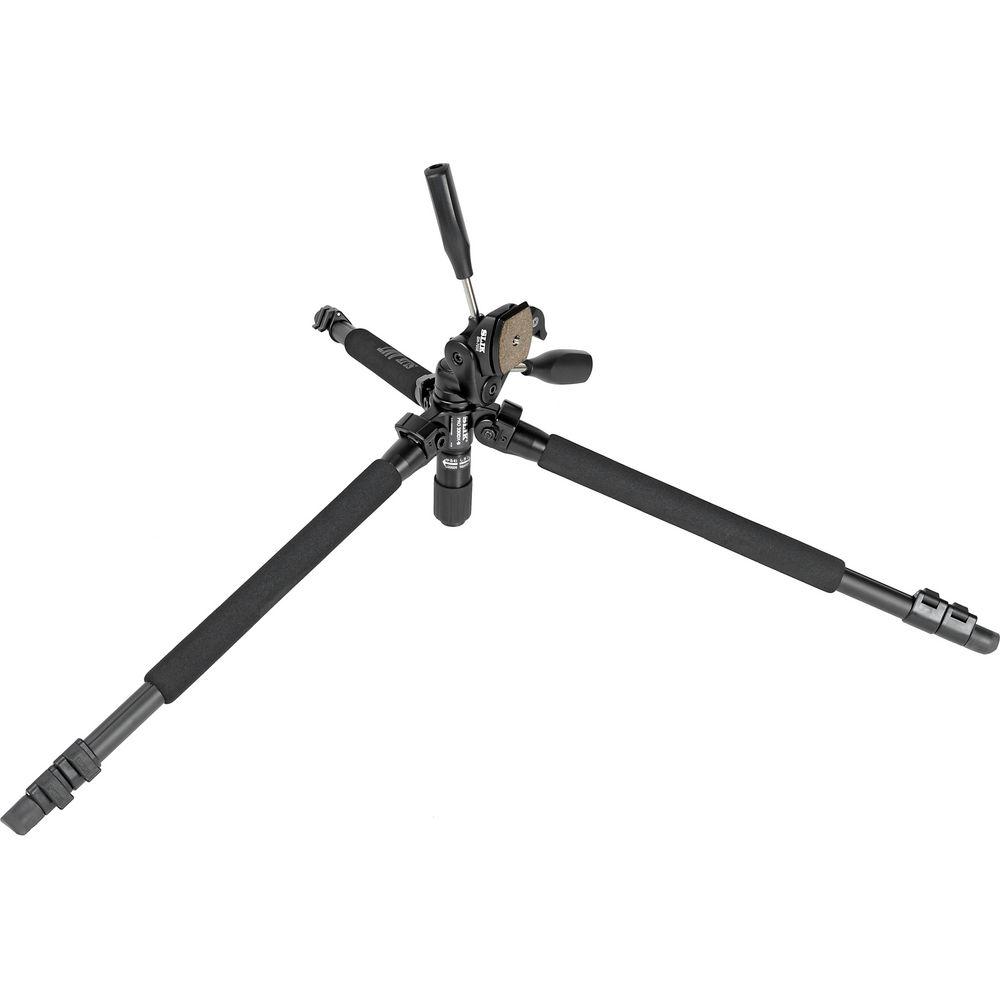

- Column is reversible, facilitating low-angle photography where an attached camera is positioned among the tripod's legs instead of above them
- Legs each feature three sections, an independent spread, a 3-position angle lock, and a flip lock for rapid deployment
- Foam covers on each of the legs provide a secure and comfortable grip
- Rubber feet for stability
- 3-way, pan-and-tilt head can be rotated 360°, and tilted 90° backwards or forwards, as well as sideways for portrait orientation
- Rotation, backwards and forwards tilt, as well as portrait orientation tilt each function independently of each other and can be locked into place

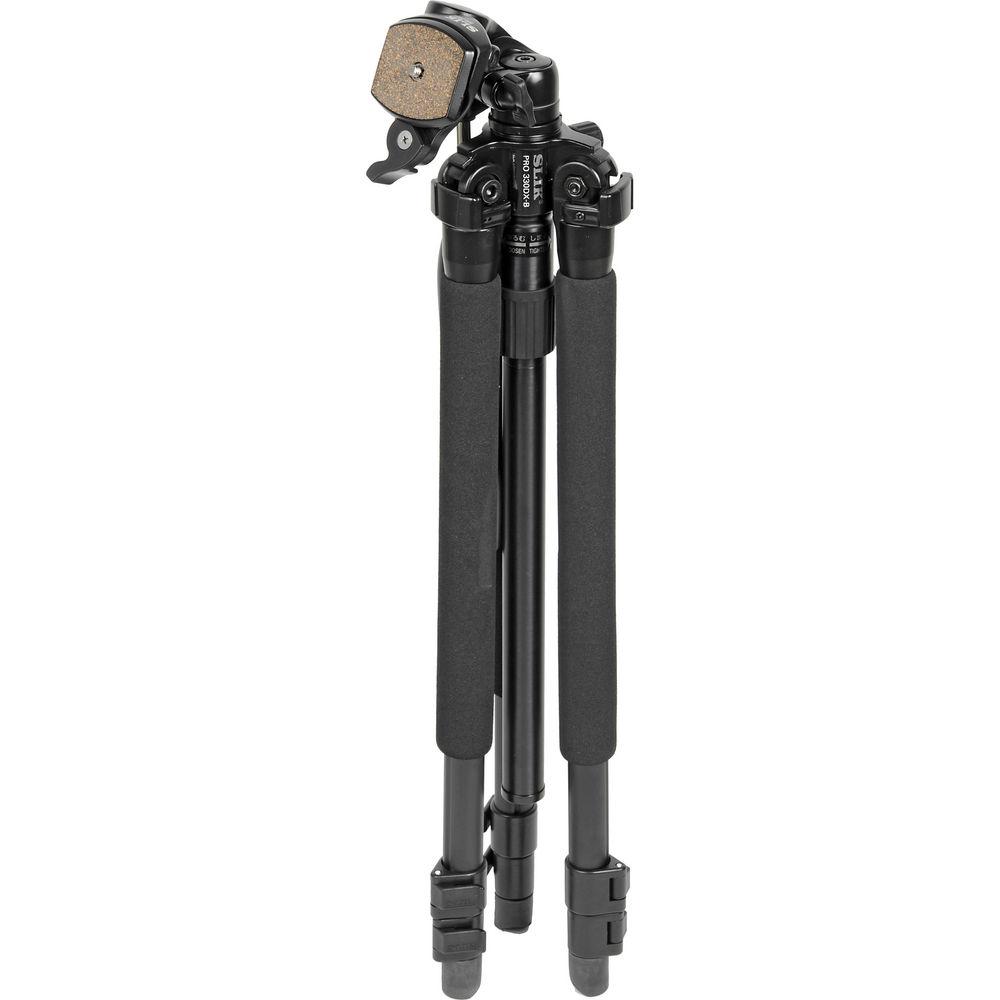

- Weighs 3.5 lb, measures 23.6" when folded
- Construction Details
-
- Aluminum, magnesium, and titanium-alloy legs with cast-aluminum 3-way, pan-and-tilt head
- Quick release plate with 1/4"-20 mount with anti-slip, cork surface
UPC: 036791133313 In the Box Slik Pro 330 DX Tripod with SH-705E 3-Way, Pan-and-Tilt Head (Black) SH-705E 3-Way Pan/Tilt Head txqyfcydxtwcewtfwrcrztxtfuq Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Slik Pro 330 DX Tripod with SH-705E 3-Way, Pan-and-Tilt Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSlik 330DX Specs | | | Head Type | Pan & Tilt Head | | Base Mount | 1/4"-20 Thread | | Camera Mounting Screw | 1/4"-20 Male | | | | Load Capacity | 8.8 lb / 4 kg | | Maximum Working Height | 63" / 160 cm | | Max Height without Center Column | 48.8" / 124 cm | | Minimum Working Height | 9.6" / 24.4 cm | | Folded Length | 23.6" / 59.9 cm | | Materials | Aluminum Alloy, Magnesium Alloy, Titanium Alloy | | Weight | 3.5 lb / 1.6 kg | | | | Leg Lock Type | Flip Lock | | Independent Leg Spread | Yes | | Leg Sections | 3 | | Bubble Level | No | | | | Center Column Sections | 2 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 4.6 lb | | Box Dimensions (LxWxH) | 24.5 x 5.5 x 5.0" |
