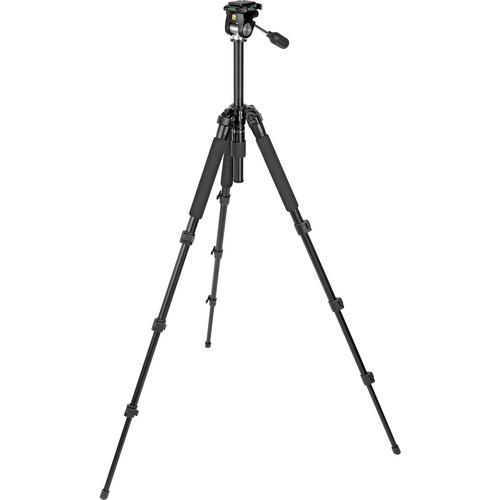

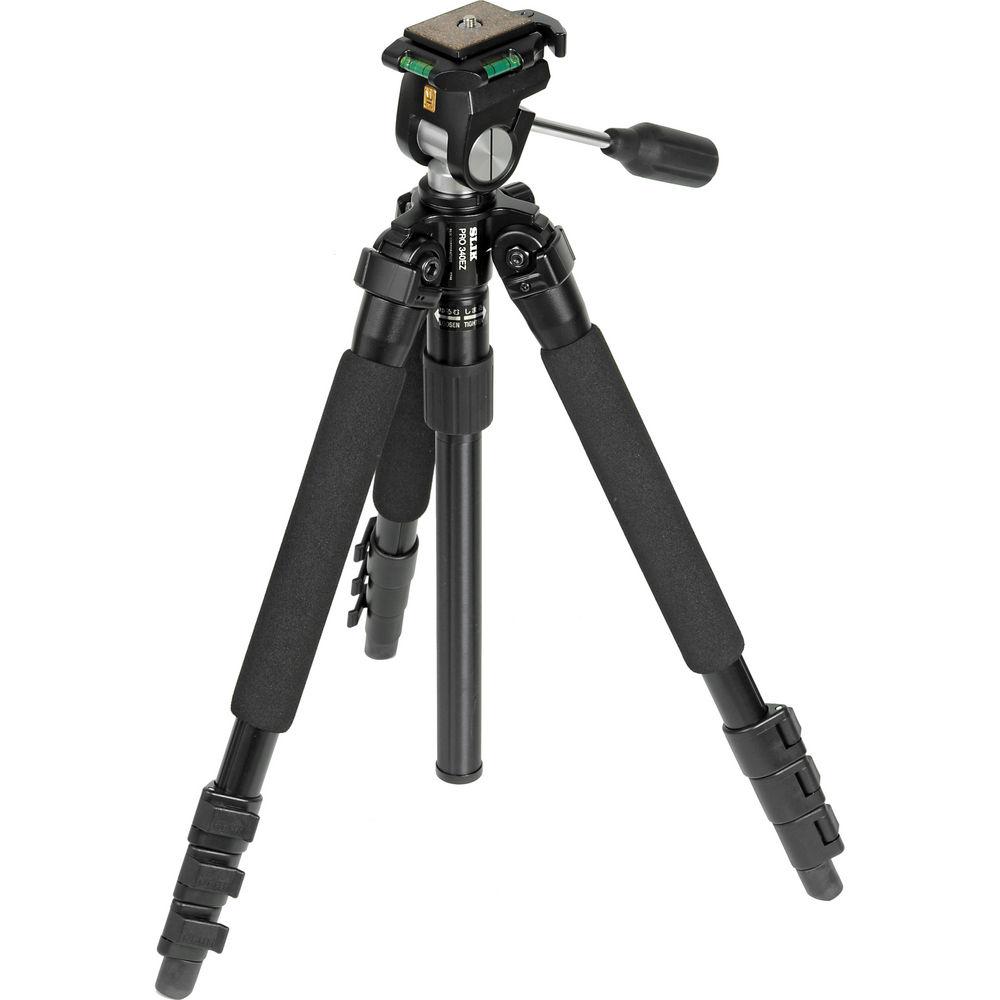

Product description Time-Lapse Tips and Tools Read More This Pro 340 EZ Tripod with SH-707E 2-Way, Pan-and-Tilt Head from SLIK supports up to 8.8 lb, measures 19.3" when folded, and includes a quick release plate. Each of its 4-section legs features an independent spread, a 3-position angle lock, and flip locks for fast deployment. The included push-and-pull, rapid center column is multi-sectional, which allows it to be converted to a shortened center column. This feature permits a minimum height of 18.1", or 9.0" when the center column is shortened. The SLIK Pro 340 EZ Tripod provides a maximum height of 45.8", 48.9" with its center column shortened as well as fully raised, and 58.0" with the complete column fully raised.

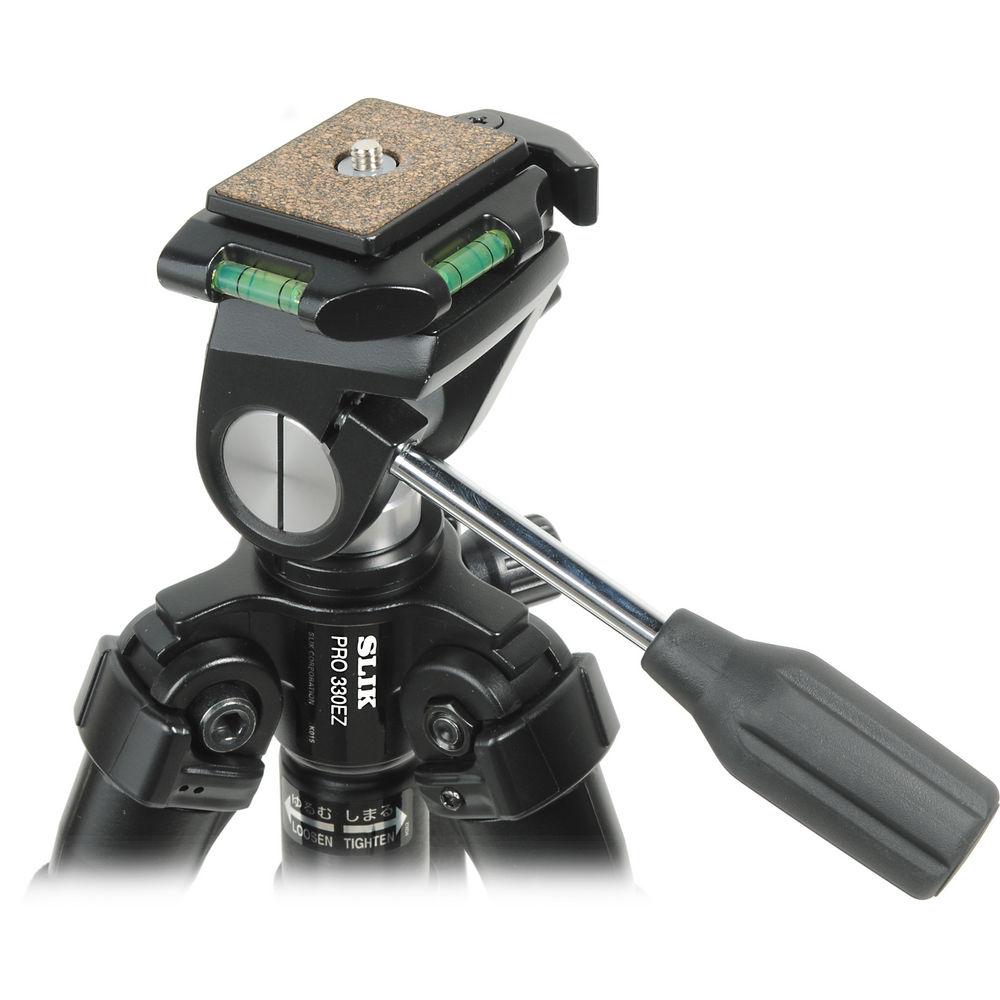

Cameras, lenses, or sport optics that are compatible with a 1/4"-20 mount can be connected to the quick release plate, which is secured to the tripod's pan-and-tilt head using a quick release cam lock. The head can be rotated 360°, and tilted 90° backwards or forwards. These two movements function simultaneously, and both the rotation and tilt can be set in place using the pan bar's integrated twist lock.
The cam lock assembly can be rotated 360° independently of the head, and a dedicated friction lock is used to keep the cam lock assembly in place. To change from a landscape to portrait orientation, the cam lock assembly's friction lock can be loosened while the attached camera, lens, or sport optic is physically held in place so that it continues to face the subject. The head itself can then be rotated 90° toward the left, and tilted 90° forward before closing the cam lock assembly's friction lock as well as the pan bar's twist lock.
For added versatility, the center column is reversible, facilitating low-angle photography where an attached camera is positioned among the tripod's legs instead of above them. Foam covers on each of the legs provide a secure and comfortable grip while moving the tripod, and rubber feet help to enhance stability on a wide variety of surfaces. - Use and Handling
-
- Supports up to 8.8 lb
- Push-and-pull center column for rapid camera, lens, or sport optic positioning
- Center column is multi-sectional, allowing it to be converted to a shortened center column that allows the tripod to be set at a minimum height of 18.1", or 9.0" when the column is shortened
- Tripod can be set to a maximum height of 45.8", 48.9" when the column is shortened as well as fully raised, and 58.0" with the complete column fully raised

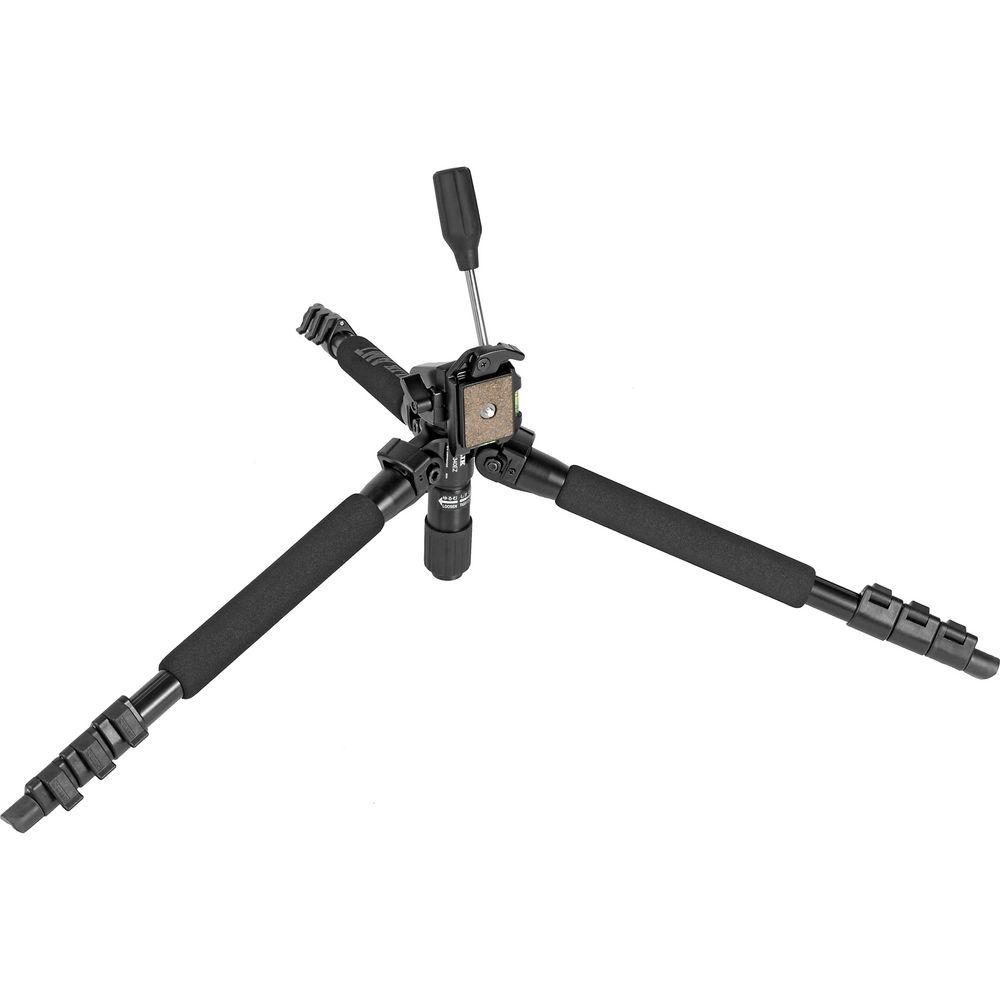

- Column is reversible, facilitating low-angle photography where an attached camera is positioned among the tripod's legs instead of above them
- Legs each feature four sections, an independent spread, a 3-position angle lock, and a flip lock for rapid deployment
- Foam covers on each of the legs provide a secure and comfortable grip
- Rubber feet for stability
- Two-way, pan-and-tilt head can be rotated 360°, and tilted 90° backwards or forwards
- Head rotation, as well as backwards-and-forwards-tilt movements function simultaneously
- Quick release plate secures to the tripod's pan-and-tilt head using a quick release cam lock
- Friction lock for cam lock assembly allows cam lock assembly and head to rotate 360° independently of each other
- While the friction lock for the cam lock assembly is opened; attached camera, lens, or sport optic is physically held in place while the head can then be rotated 90° toward the left and tilted 90° forward to achieve portrait orientation

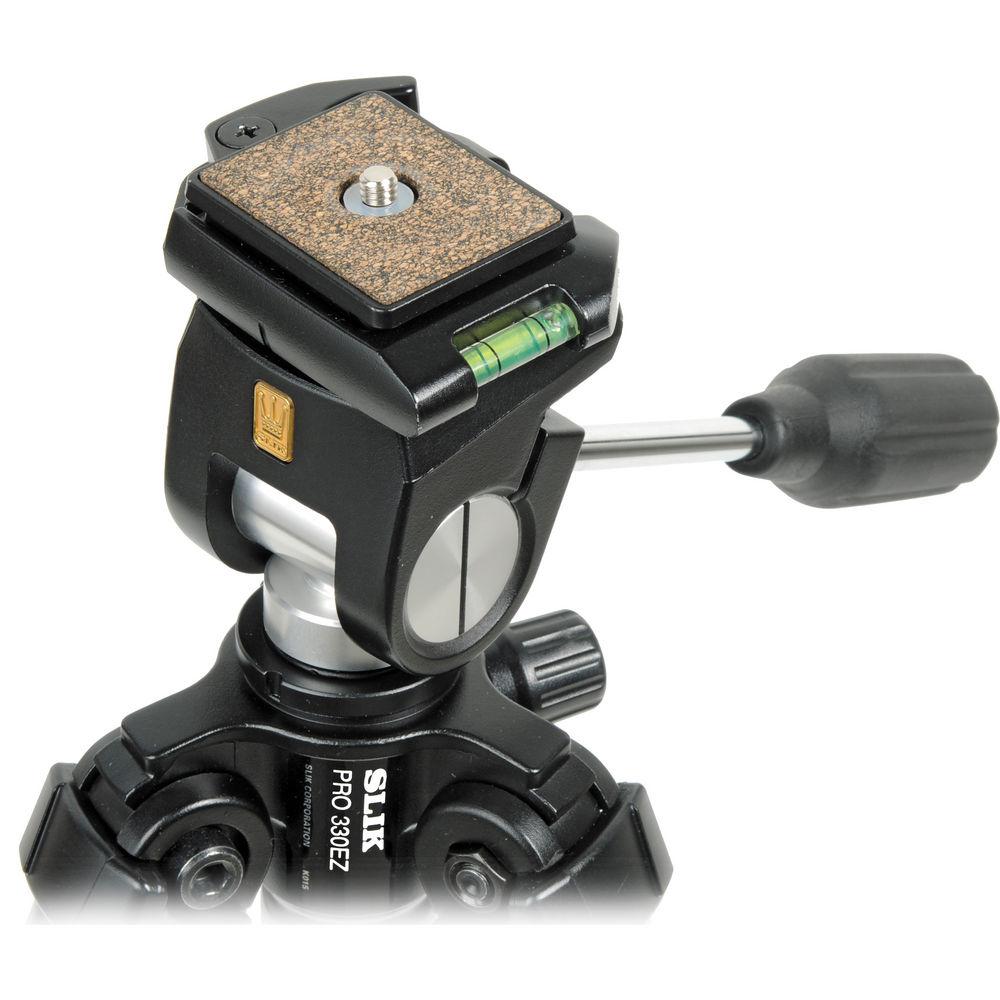

- Two built-in bubble levels along the edges of the cam lock accommodate landscape or portrait orientations

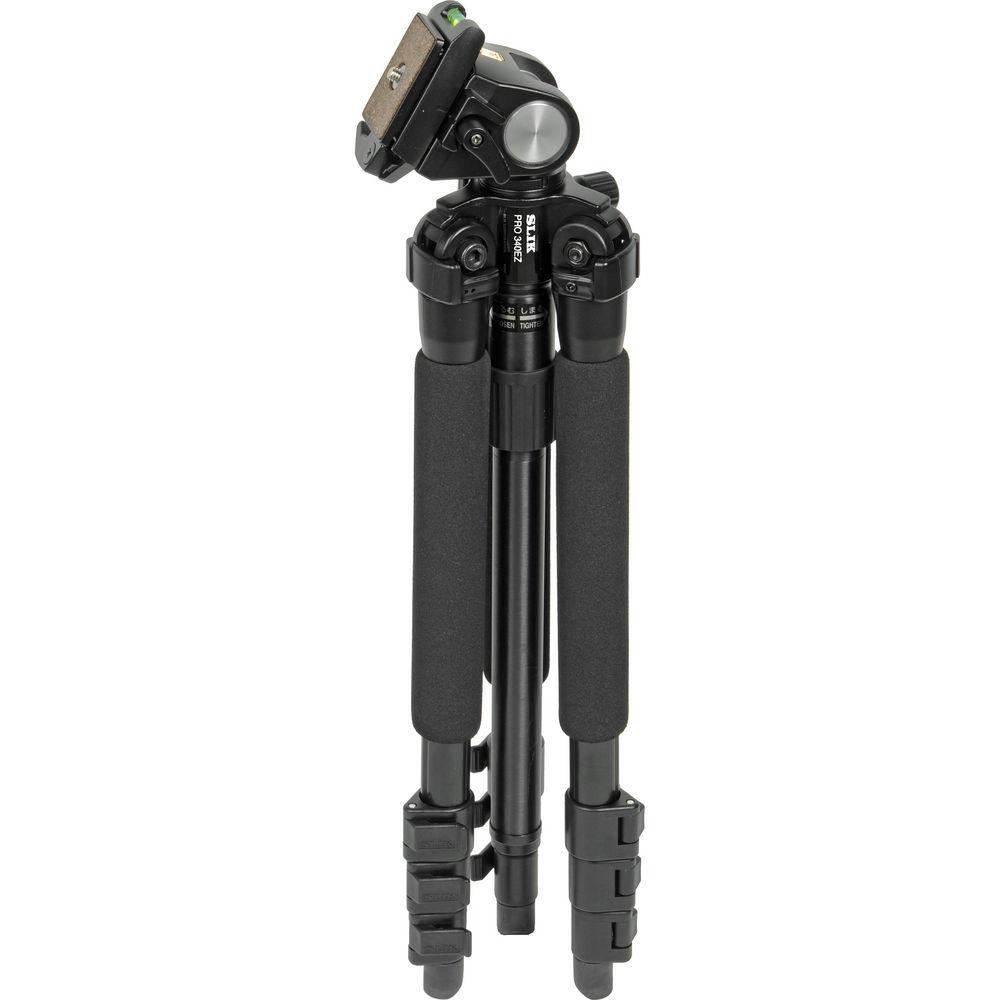

- Weighs 3.5 lb, measures 19.3" when folded
- Construction Details
-
- Aluminum, magnesium, and titanium-alloy legs with cast-aluminum 2-way, pan-and-tilt head
- Quick release plate with 1/4"-20 mount with anti-slip, cork surface
UPC: 049368702973 In the Box Slik Pro 340 EZ Tripod with SH-707E 2-Way, Pan-and-Tilt Head SH-707E 2-Way Pan/Tilt Head Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Slik Pro 340 EZ Tripod with SH-707E 2-Way, Pan-and-Tilt Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSlik Pro-340EZ Specs | | | Head Type | Pan & Tilt Head | | Base Mount | 1/4"-20 Thread | | Camera Mounting Screw | 1/4"-20 Male | | Number of Bubble Levels | 2 | | | | Load Capacity | 8.8 lb / 4 kg | | Maximum Working Height | 58" / 147.3 cm | | Max Height without Center Column | 45.8" / 116.3 cm | | Minimum Working Height | 9" / 22.9 cm | | Folded Length | 19.3" / 49 cm | | Materials | Aluminum Alloy, Magnesium Alloy, Titanium Alloy | | Weight | 3.5 lb / 1.6 kg | | | | Leg Lock Type | Flip Lock | | Independent Leg Spread | Yes | | Leg Sections | 4 | | Bubble Level | No | | | | Center Column Sections | 2 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 4.55 lb | | Box Dimensions (LxWxH) | 24.004 x 5.9 x 4.6" |
