User Manual for Slik Pro 724CFL Carbon Fiber Tripod with PBH-525DS Ball Head Click to enlarge the picture
Contents of the user manual for the Slik Pro 724CFL Carbon Fiber Tripod
- Product category: Tripods with Heads Slik
- Brand: Slik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Slik Tripods with Heads
 |
User manual for the Slik Pro 724CFL Carbon Fiber Tripod contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Slik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Slik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Slik product will considerably shorten its lifespan!
|

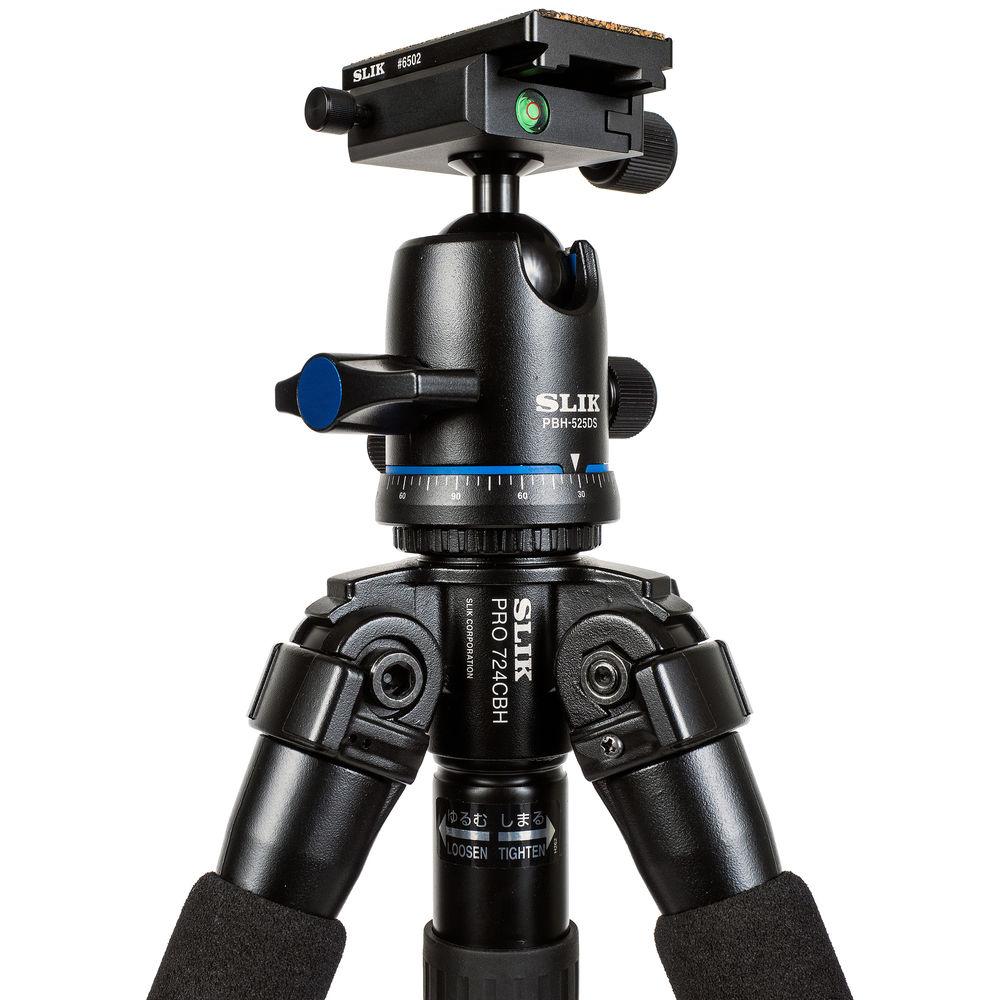

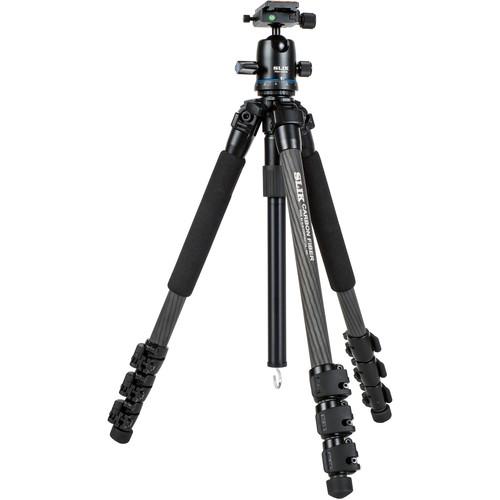

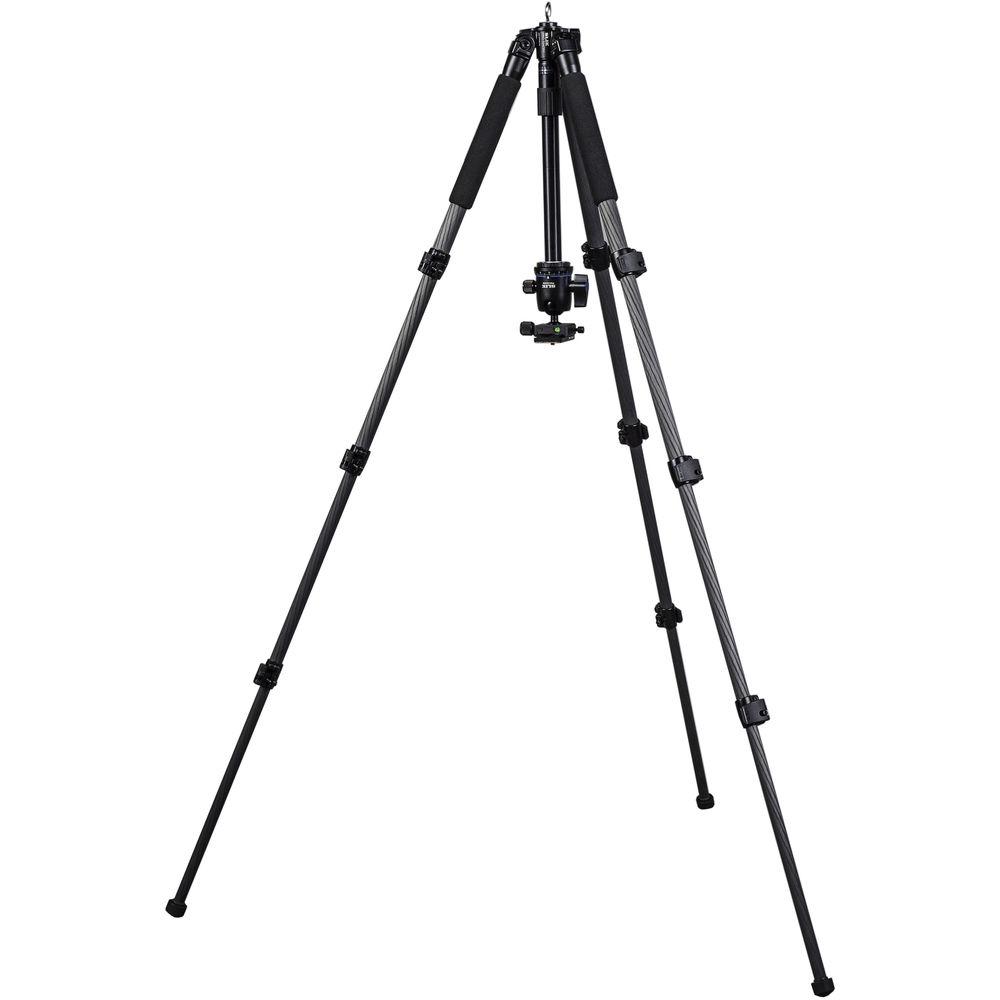

Product description Time-Lapse Tips and Tools Read More The Pro 724CFL Carbon Fiber Tripod with PBH-525DS Ball Head from Slik stabilizes cameras on smooth surfaces or on uneven terrain. The four-section tripod has a weight capacity of 8.8 lb and the can reach a maximum height of 66". The legs have three variable leg angles, which enable the tripod to have a minimum height of 12". Additionally, the Arca-type compatible ball head has two independent locks, one for the ball movement and the other for the pan. - PBH-525DS Ball Head with Arca-Swiss Quick Release The PBH-525DS Ball Head from Slik is a versatile, professional tripod head which features an Arca-type quick release system for enhanced compatibility with Arca-type accessories.

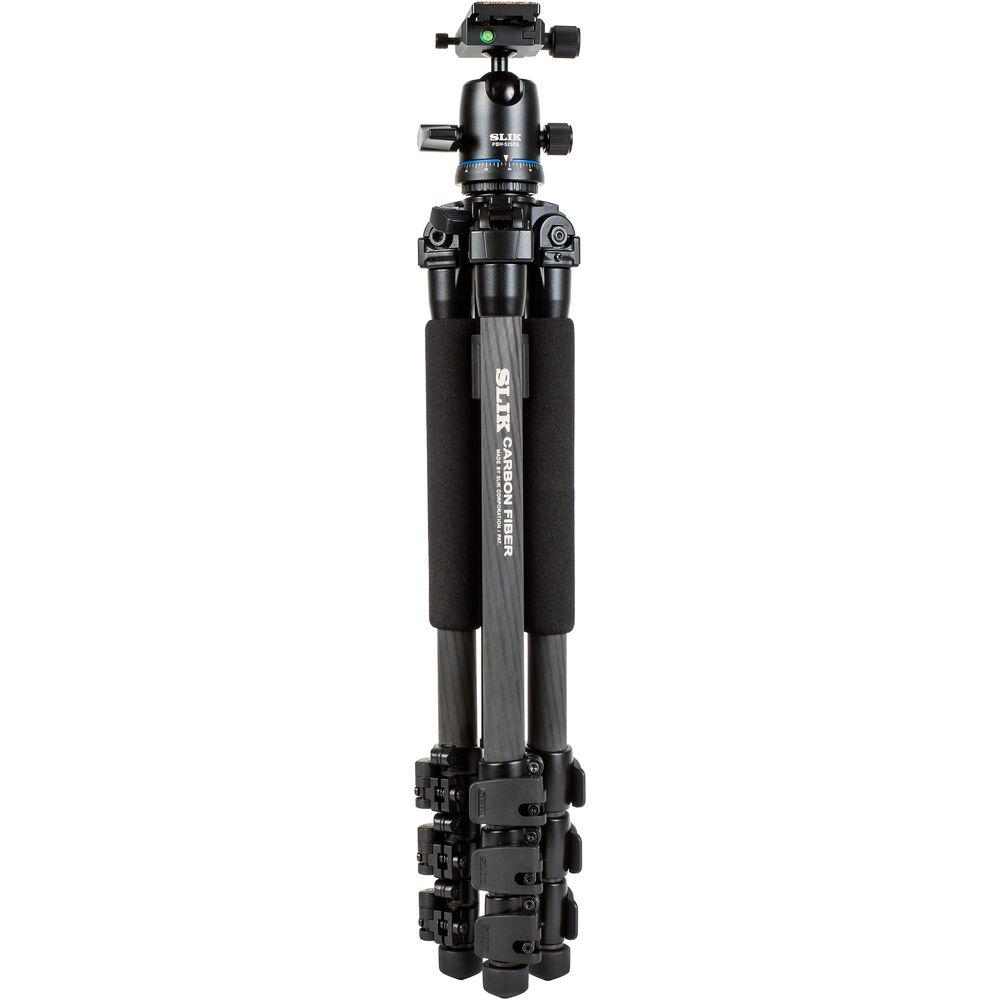

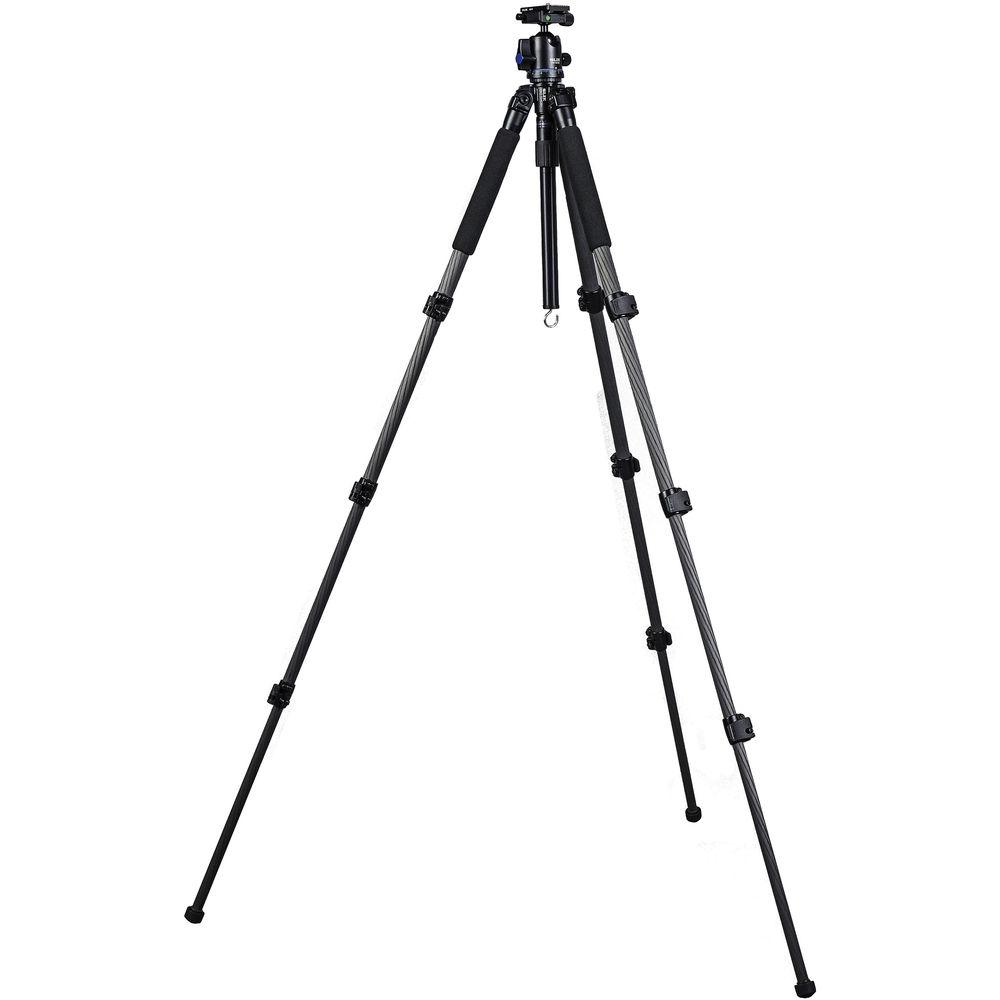

The head weighs 1.2 lb, supports up to 8.8 lb, and is 4.3" in height. A separate pan lock allows the head to rotate 360° while keeping the ball locked in place. The separate ball control lock is paired with a tension knob which permits the user to control the speed of the ball's movement. UPC: 049368705233 - PRO 724 CFL Carbon Fiber Tripod The Slik PRO 724 CFL Tripod is a camera support made from 8X multi-layered carbon fiber. It can hold 11 lb of gear, extends from 7.9" to 62", and folds down to 19.5" for transport.
The tripod's 4 leg sections are secured via flip lock and feature an anti-rotational system, preventing the sections from twisting inside of each other, and making it easier to extend or collapse the legs. The rapid center column is constructed from two parts, so that when one is removed a short center column is available for getting your camera as low as possible.
Each leg has an independent lock that sets it to one of three angles varying the height and stance of the tripod, and making it easier to set up the tripod on uneven ground. Two of the legs have foam grips, making carrying the tripod more comfortable, especially in cold or hot weather, An included carrying bag protects your tripod during transport. - S.R.L.

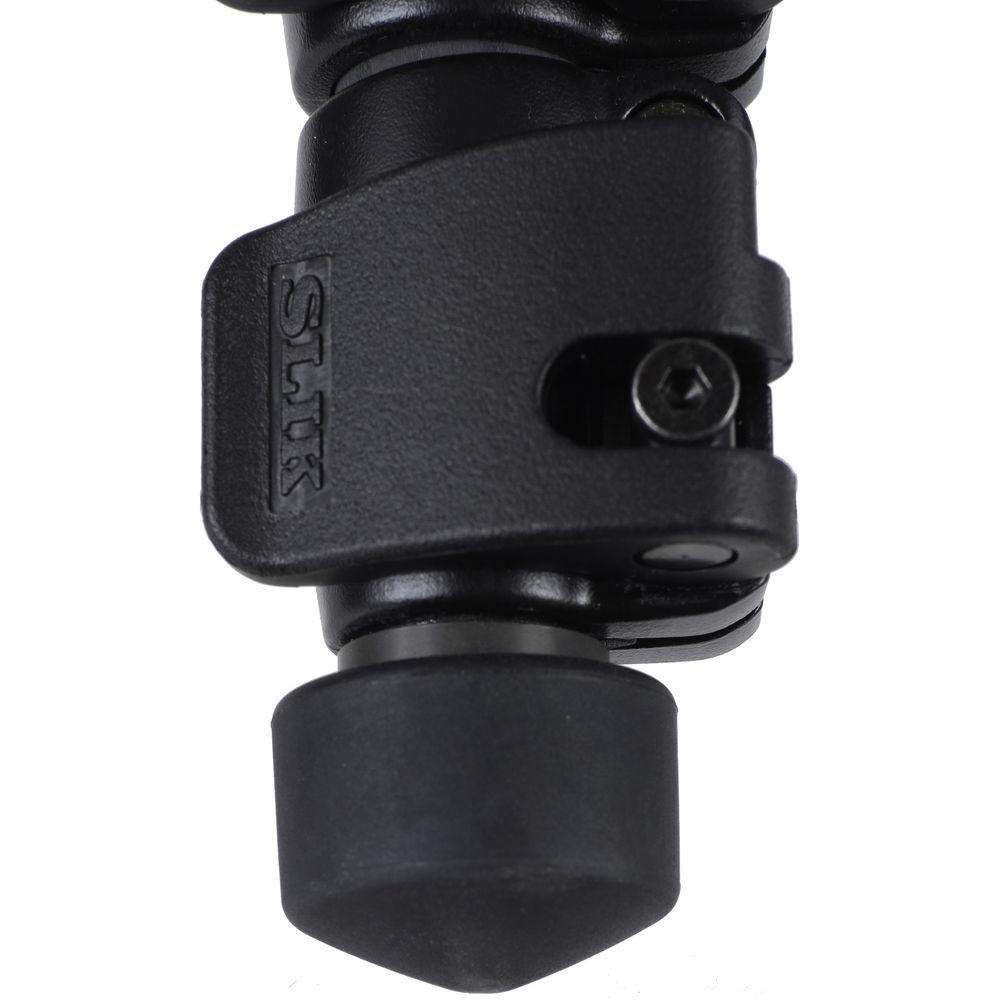

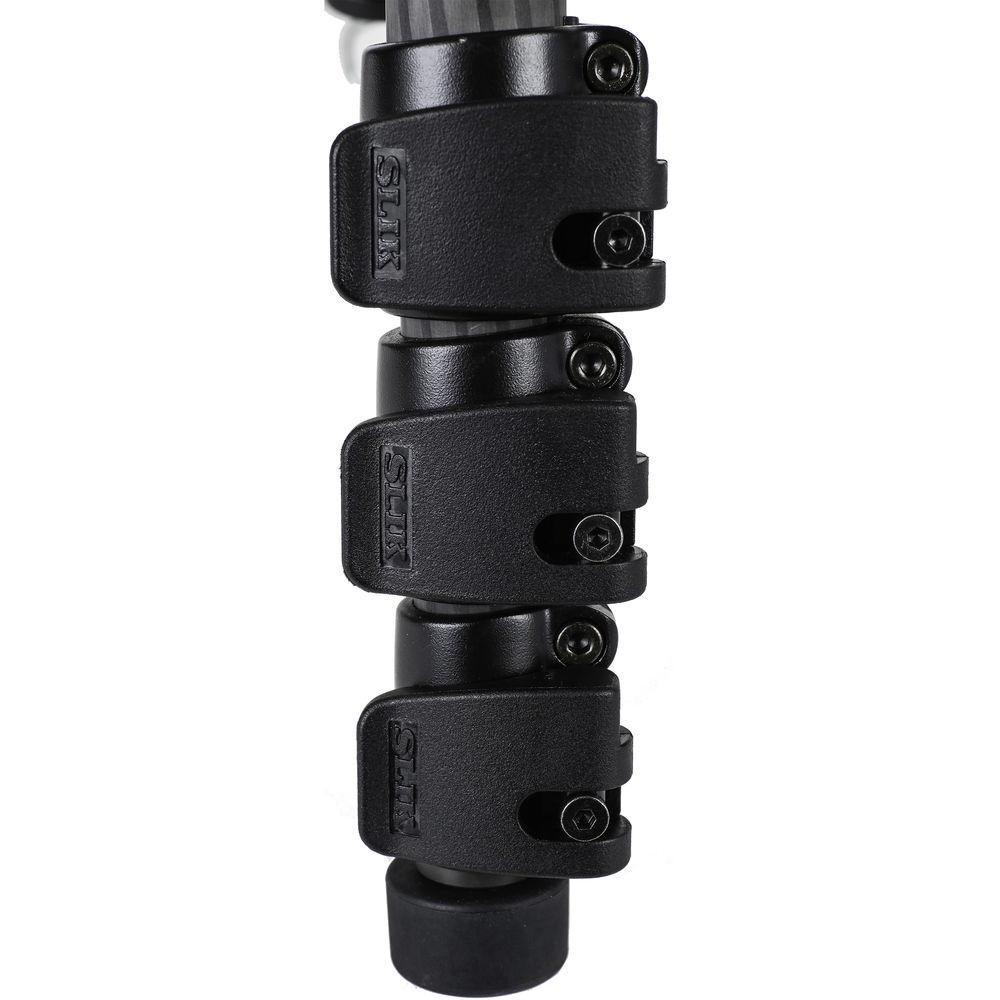

- The Speed Release leg Locks are spring-loaded flip locks that do not snap back, reducing the chance of pinching fingers.

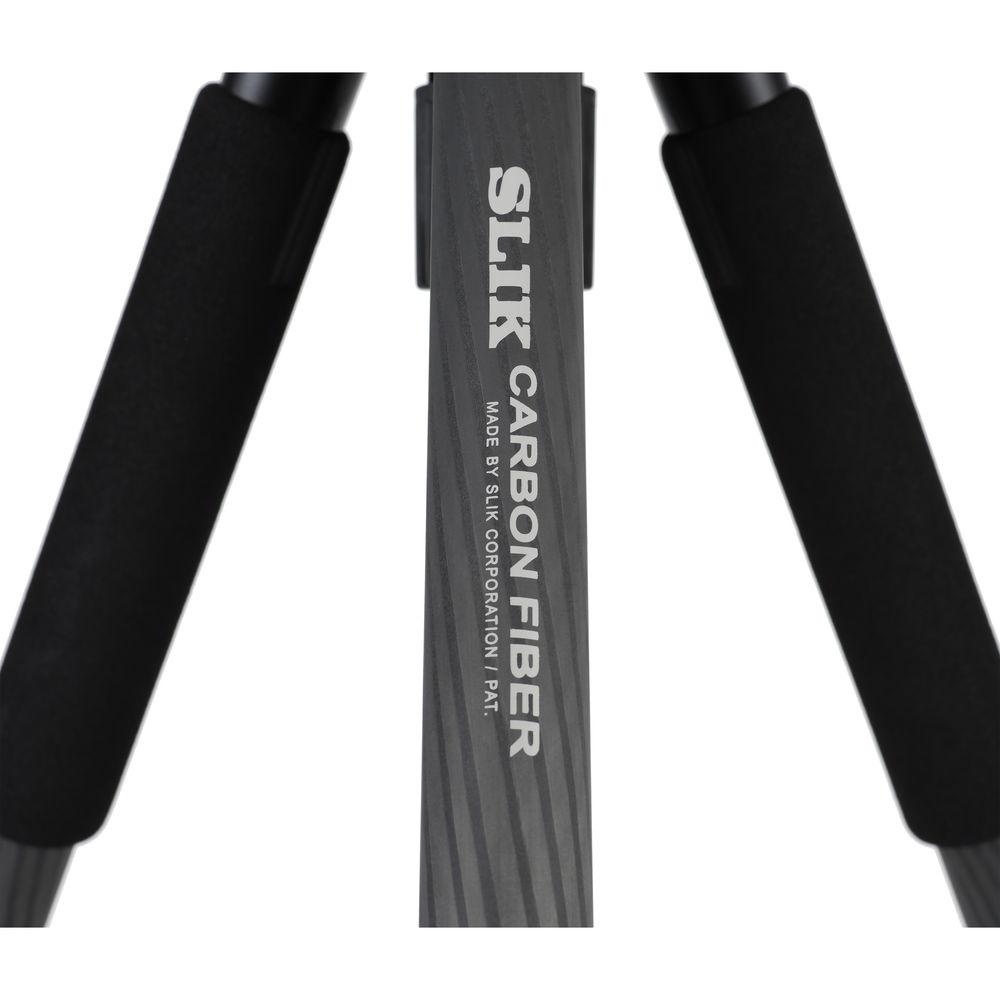

- 8X Multi-Layered Carbon Fiber
- Made from 8 layers of inter-woven carbon strands that are bonded together in a sealed, high-pressure furnace.
- A.R.S.
- The Anti-Rotational System is designed to prevent the leg tubes from rotating inside each other, making it easier to lock and release.

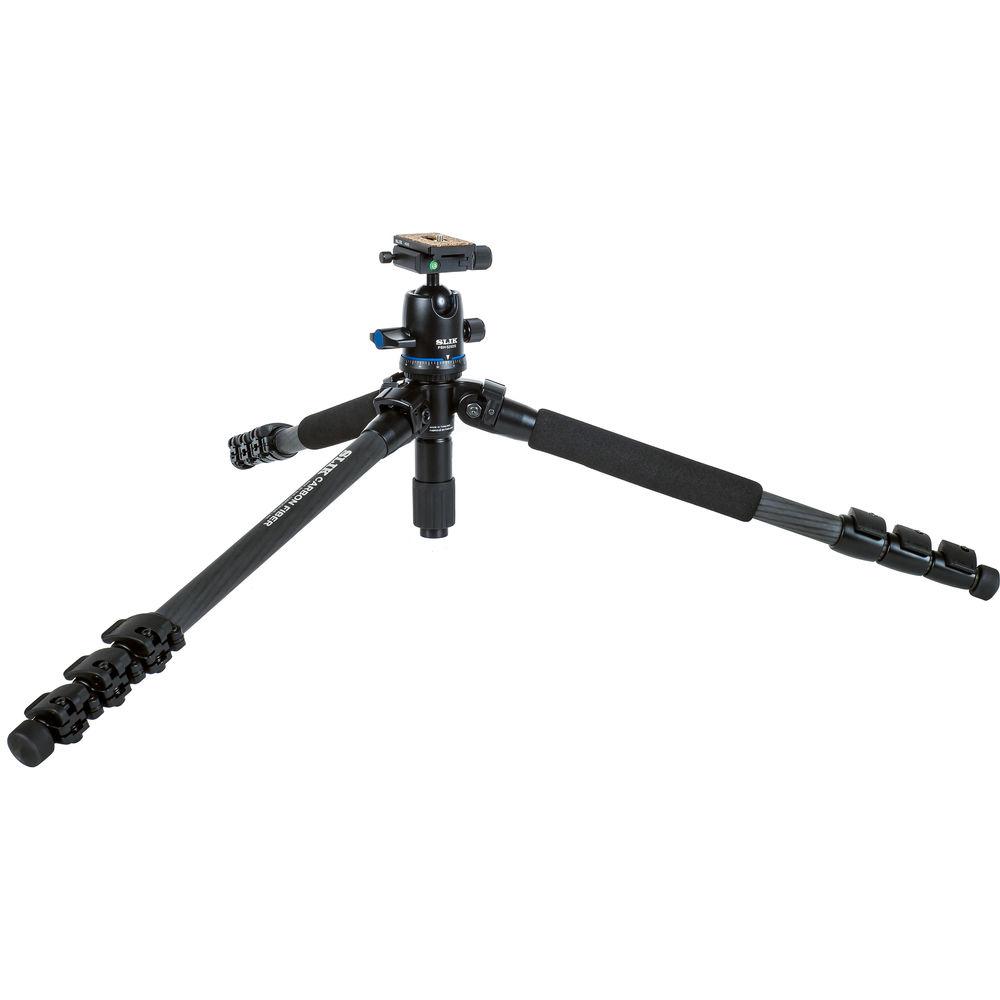

- Multi-Angle Leg Locks
- Each leg has an independent lock that sets in one of three angles to vary the height and stance of the tripod, making it simple to level the tripod on uneven ground.
- Built-in Short Column
- The center column unscrews into two pieces to create a much shorter column for use in low angle photography, or to reduce weight.
UPC: 049368704014 In the Box Bundle Items PBH-525DS Ball Head with Arca-Swiss Quick Release uywdtdfuctcbtssu - 3/8"-16 to 1/4"-20 Adapter Bushing
PRO 724 CFL Carbon Fiber Tripod
Also Includes Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Slik Pro 724CFL Carbon Fiber Tripod with PBH-525DS Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Slik Pro 724CFL Carbon Fiber Tripod with PBH-525DS Ball Head can be downloaded in PDF format at the link stated below.
Technical parameters - PBH-525DS Ball Head with Arca-Swiss Quick Release
| | | Head Type | Ball Head | | Base Mount | 1/4"-20 & 3/8"-16 Threads | | Quick Release Plate Type | Arca-Type | | Load Capacity | 8.8 lb / 4 kg | | Friction Control | Yes | | Independent Pan Lock | Yes | | | | Dimensions | H: 4.3" / H: 10.7 cm | | Weight | 1.2 lb / 530.0 g | | | | Box Dimensions (LxWxH) | 5.6 x 4.1 x 4.0" | - PRO 724 CFL Carbon Fiber Tripod
| | | Load Capacity | 11 lb / 5 kg | | Maximum Working Height | 62" / 157.5 cm | | Minimum Working Height | 7.9" / 19.6 cm | | Folded Length | 19.5" / 49.5 cm | | Head Mount Type | 3/8"-16 Screw, Reversible 1/4"-20 or 3/8"-16 Screw | | Weight | 3.5 lb / 1.6 kg | | Materials | Carbon Fiber | | | | Leg Lock Type | Flip Lock | | Independent Leg Spread | Yes | | Leg Sections | 4 | | | | Center Column Features | Split | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Box Dimensions (LxWxH) | 31.25 x 6.0 x 5.5" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 87 owners. Add your rating and experience with the product.
