User Manual for Slik Pro 824 CF 4-Section Carbon Fiber Tripod Click to enlarge the picture
Contents of the user manual for the Slik Pro 824 CF 4-Section Carbon
- Product category: Tripod Legs Slik
- Brand: Slik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Slik Tripod Legs
|
User manual for the Slik Pro 824 CF 4-Section Carbon contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Slik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Slik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Slik product will considerably shorten its lifespan!
|

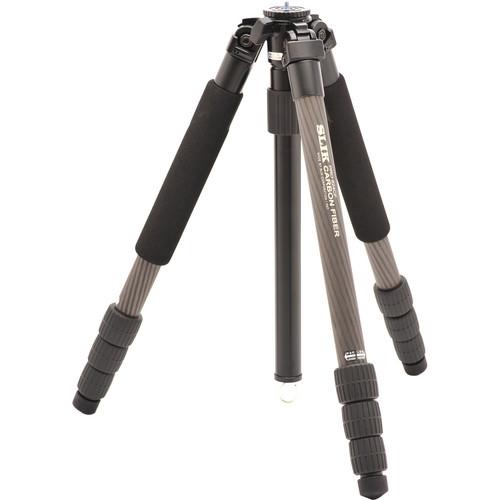

Product description The Slik Pro 824 CF 4-Section Carbon Fiber Tripod is a beefy photography tripod that supports enough weight (up to 18 lb) to be used with a video head and a camcorder. As for still cameras, the Pro 824 CF is suitable for use with almost any head paired with a medium or large format camera or a DSLR with a zoom or long telephoto lens. The 824 Pro reaches a maximum height of 64.1" and weighs 3.5 lb. The four leg sections are secured and freed by way of twist locks. Because the legs are non-rotating, you can unlock all of a leg's stages at once by twisting the three large rubber grips with one hand. This enables fast setup of the Pro 824 CF tripod. The rapid center column is removable as well as reversible for extreme low-angle shooting with an inverted camera. At the bottom of the center column is a metal hook for hanging a counterweight for additional stability for uneven loads or for windy conditions. - Neoprene grips on all three legs
- Legs can be set and locked at three angles – independently of each other
- Reversible screw – 1/4"-20 and 3/8"-16
UPC: 049368703741 In the Box Slik Pro 824 CF 4-Section Carbon Fiber Tripod Carry Bag Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Slik Pro 824 CF 4-Section Carbon Fiber Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSlik PRO 824 CF Specs | | | Load Capacity | 18.0 lb (8.2 kg) | | Head Attachment Fitting | 1/4"-20 & 3/8"-16 (reversible screw) | | Maximum Height | 64.1" (162.7 cm) | | Maximum Height w/o Column Extended | 51.5" (130.7 cm) | | Minimum Height | 7.6" (19.4 cm) | | Folded Length | 18.8" (47.8 cm) | | Weight | 3.5 lb (1.6 kg) | | | | Material | Carbon Fiber | | Leg Stages/Sections | 3/4 | | Diameter | Max. leg section: 1.10" (28mm) | | Leg Lock Type | Twist lock | | Independent Leg Spread | Yes | | Spiked/Retractable Feet | No | | Center Brace | No | | | | Center Column Type | Rapid | | Center Column Sections | 1 | | | | Package Weight | 5.9 lb | | Box Dimensions (LxWxH) | 31.0 x 6.0 x 5.1" |
