User Manual for Slik Professional 4 Tripod with SH-909 3-Way, Pan-and-Tilt Head Click to enlarge the picture
Contents of the user manual for the Slik Professional 4 Tripod with SH-909
- Product category: Tripods with Heads Slik
- Brand: Slik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Slik Tripods with Heads
 |
User manual for the Slik Professional 4 Tripod with SH-909 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Slik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Slik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Slik product will considerably shorten its lifespan!
|

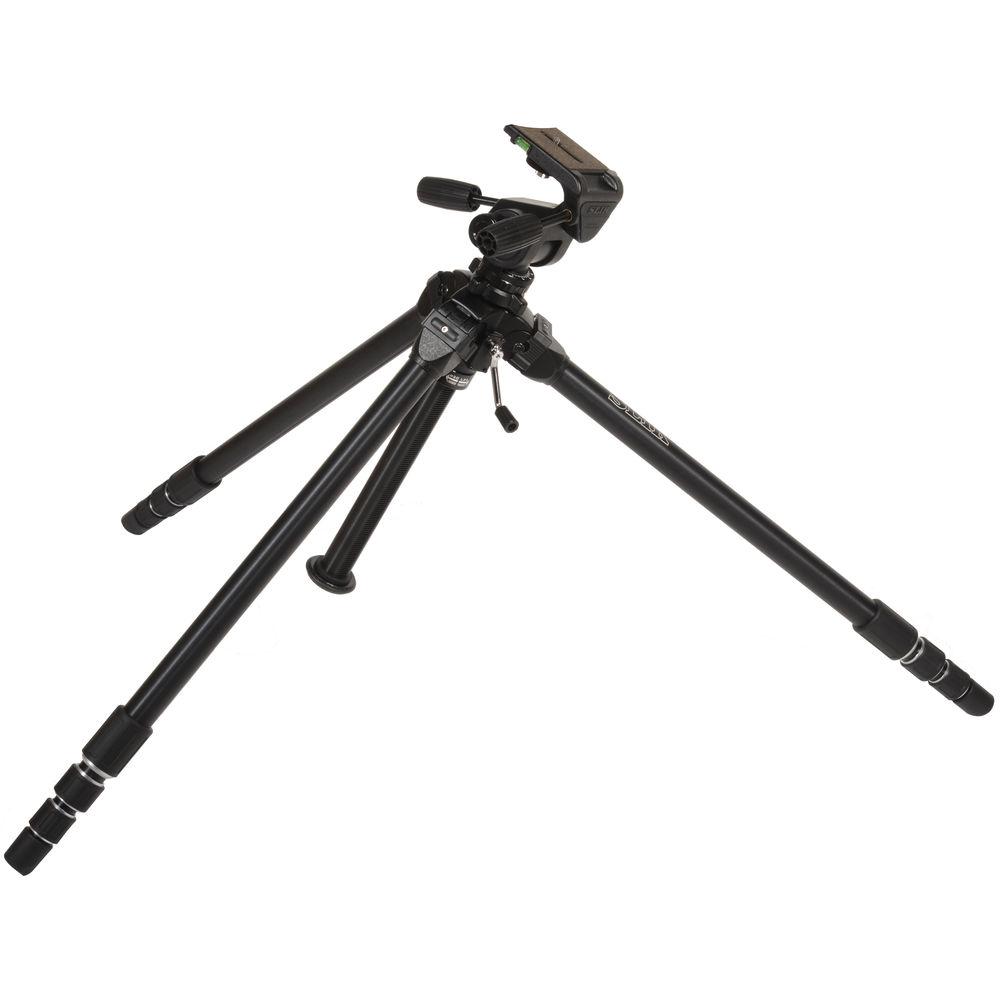

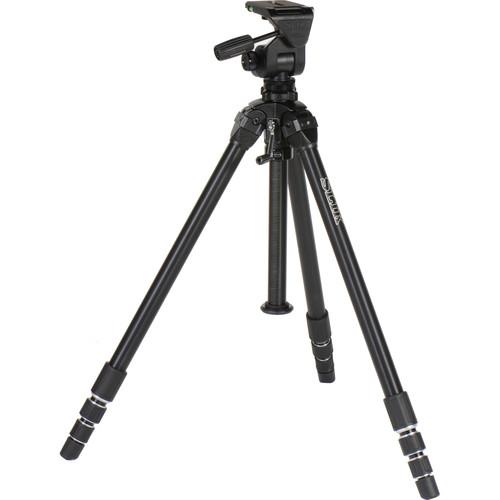

Product description Time-Lapse Tips and Tools Read More The SLIK Professional 4 Tripod supports up to 26.5 lb, measures 42.3" when folded, and includes an SH-909 three-way, pan-and-tilt head. Its 4-section legs each feature an independent spread, a 3-position angle lock, twist locks for rapid deployment, and rubber feet to further enhance stability on a wide variety of surfaces. Together, they can be positioned for a minimum height of 23.2" to a maximum height of 89.0", or 100.0" with the center column fully raised, which utilizes a geared movement for precise height adjustments.

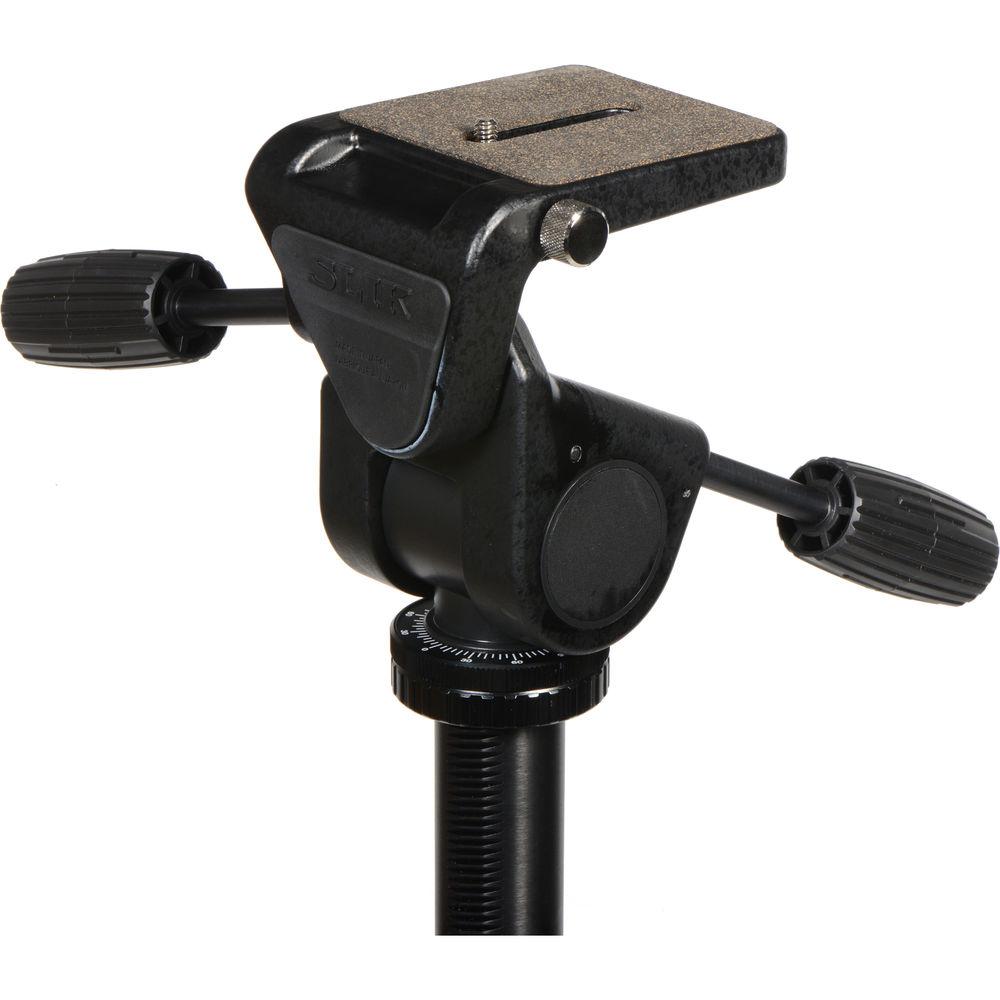

Cameras, lenses, or sport optics that are compatible with a 3/8"-16 mount can be connected directly to the tripod's pan-and-tilt head. The head can be rotated 360°, and tilted 90° backwards or forwards, as well as sideways for portrait orientation. Each of these three movements function independently of each other and can be locked into place. - Use and Handling
-
- Supports up to 26.5 lb
- Geared center column with rotating handle for precise positioning

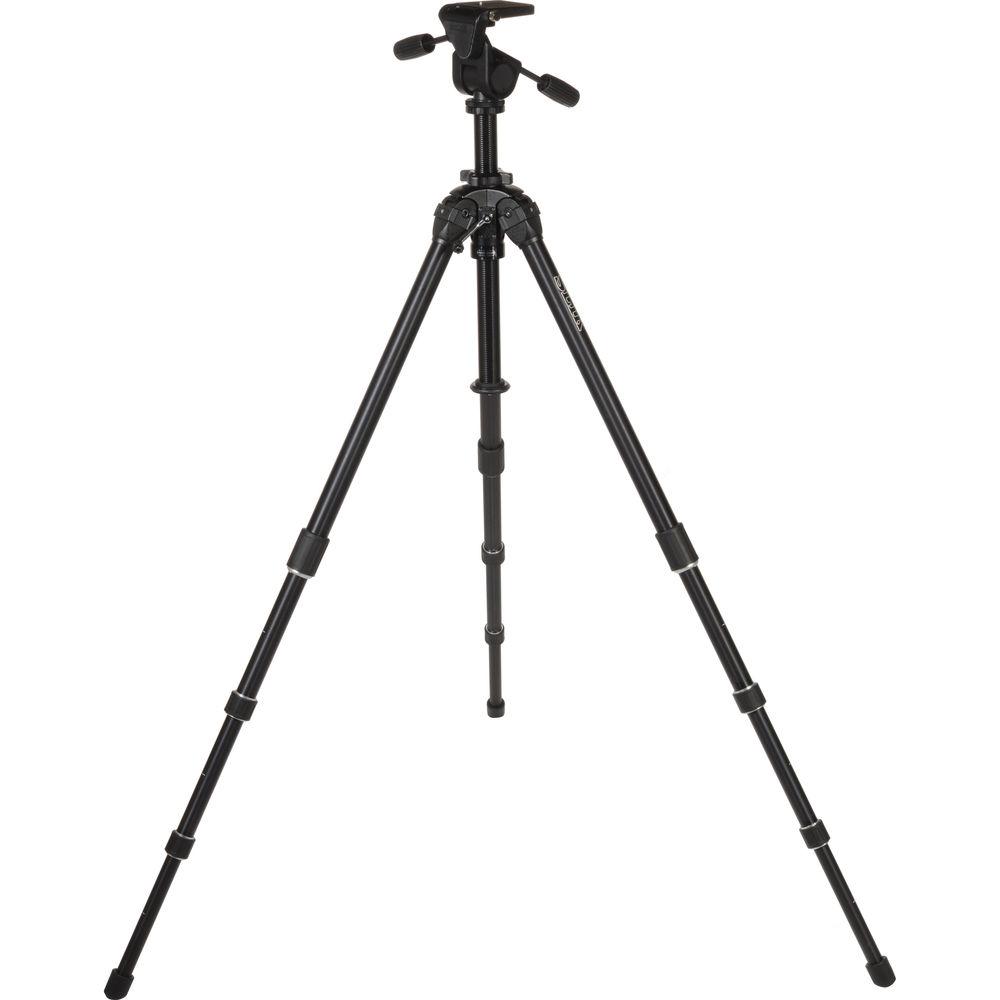

- Can be set for a minimum height of 23.2" to a maximum height of 89.0", or 100.0" with column fully raised

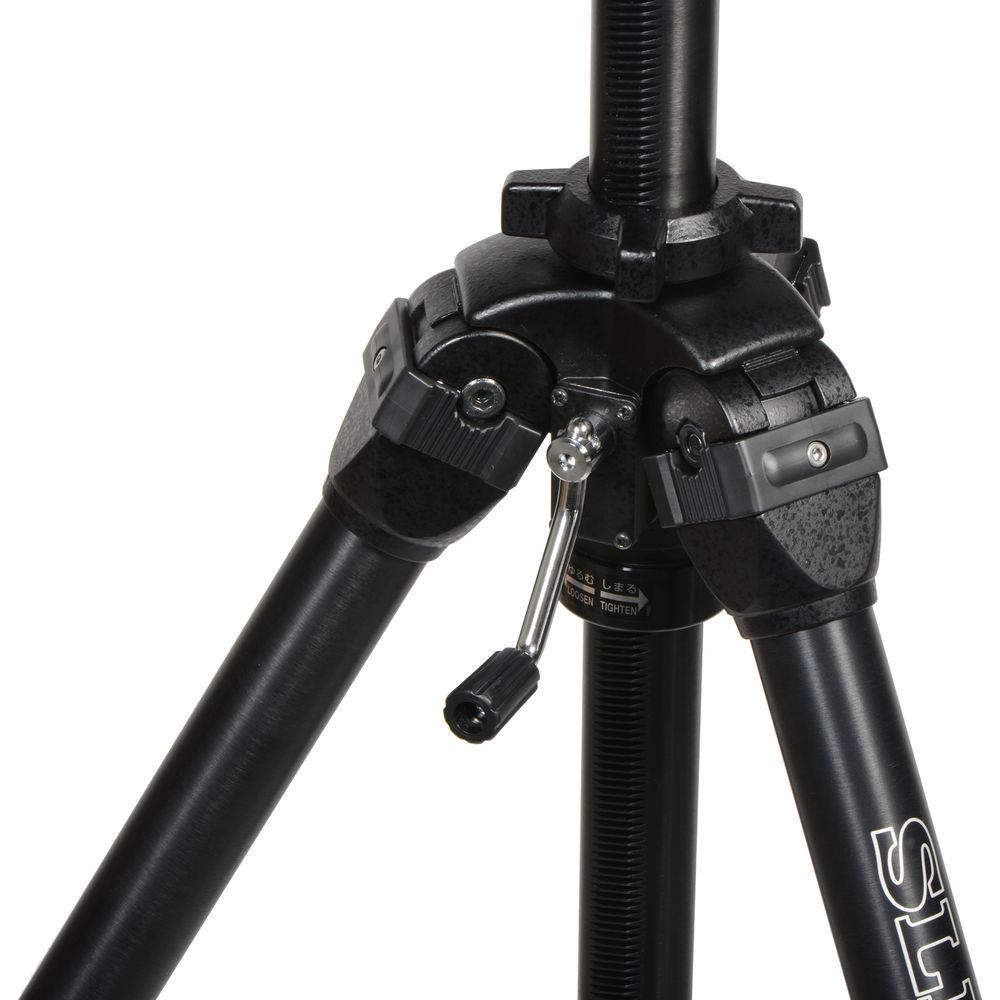

- Legs each feature four sections, an independent spread, a 3-position angle lock, and a twist lock for rapid deployment
- Legs can be locked at 63°, 41°, or 13° angles
- Rubber feet for stability
- 3-way, pan-and-tilt head can be rotated 360°, and tilted 90° backwards or forwards, as well as sideways for portrait orientation
- Rotation, backwards and forwards tilt, as well as portrait orientation tilt each function independently of each other and can be locked into place
- Two built-in bubble levels along the edges of the pan-and-tilt head accommodate landscape or portrait orientations

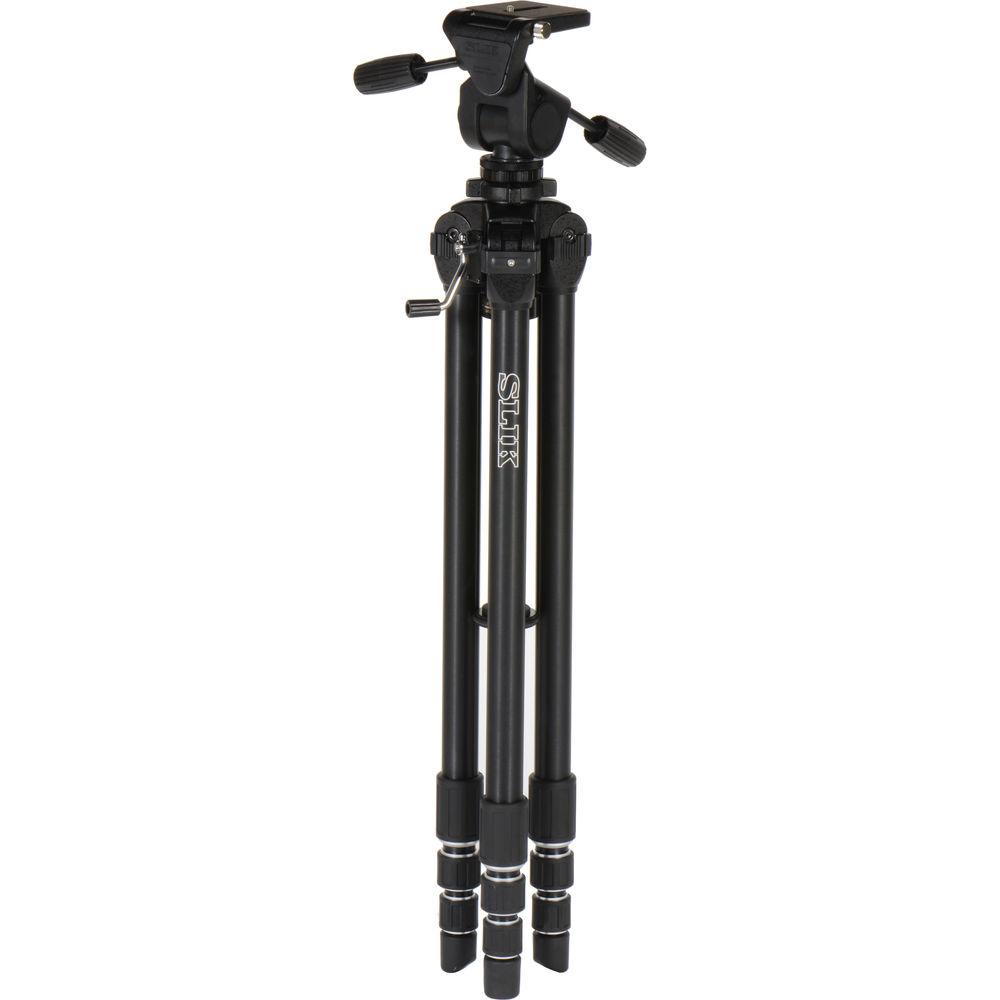

- Weighs 15.2 lb, measures 42.3" when folded
- Construction Details
-
- Aluminum-alloy legs with cast-aluminum 3-way, pan-and-tilt head
- 3/8"-16 mount with anti-slip, cork surface for cameras, lenses, or sport optics
UPC: 049368700276 In the Box Slik Professional 4 Tripod with SH-909 3-Way, Pan-and-Tilt Head Tripod Head Limited 3-Year Warranty User Manual PDF 1.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Slik Professional 4 Tripod with SH-909 3-Way, Pan-and-Tilt Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSlik Professional 4 Specs | | | Head Type | Pan & Tilt Head | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 3/8"-16 Male | | Quick Release Plate Type | No Quick Release | | Number of Bubble Levels | 2 | | | | Load Capacity | 26.5 lb / 12 kg | | Max Height without Center Column | 89" / 226.1 cm | | Minimum Working Height | 23.2" / 58.9 cm | | Folded Length | 42.3" / 107.4 cm | | Materials | Aluminum Alloy | | Weight | 15.2 lb / 6.9 kg | | | | Leg Lock Type | Twist Lock | | Leg Positions | 3 Positions | | Independent Leg Spread | Yes | | Leg Sections | 4 | | Bubble Level | No | | | | Center Column Sections | 1 | | Center Column Extension Type | Geared | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 18.0 lb | | Box Dimensions (LxWxH) | 46.0 x 9.0 x 8.0" |
