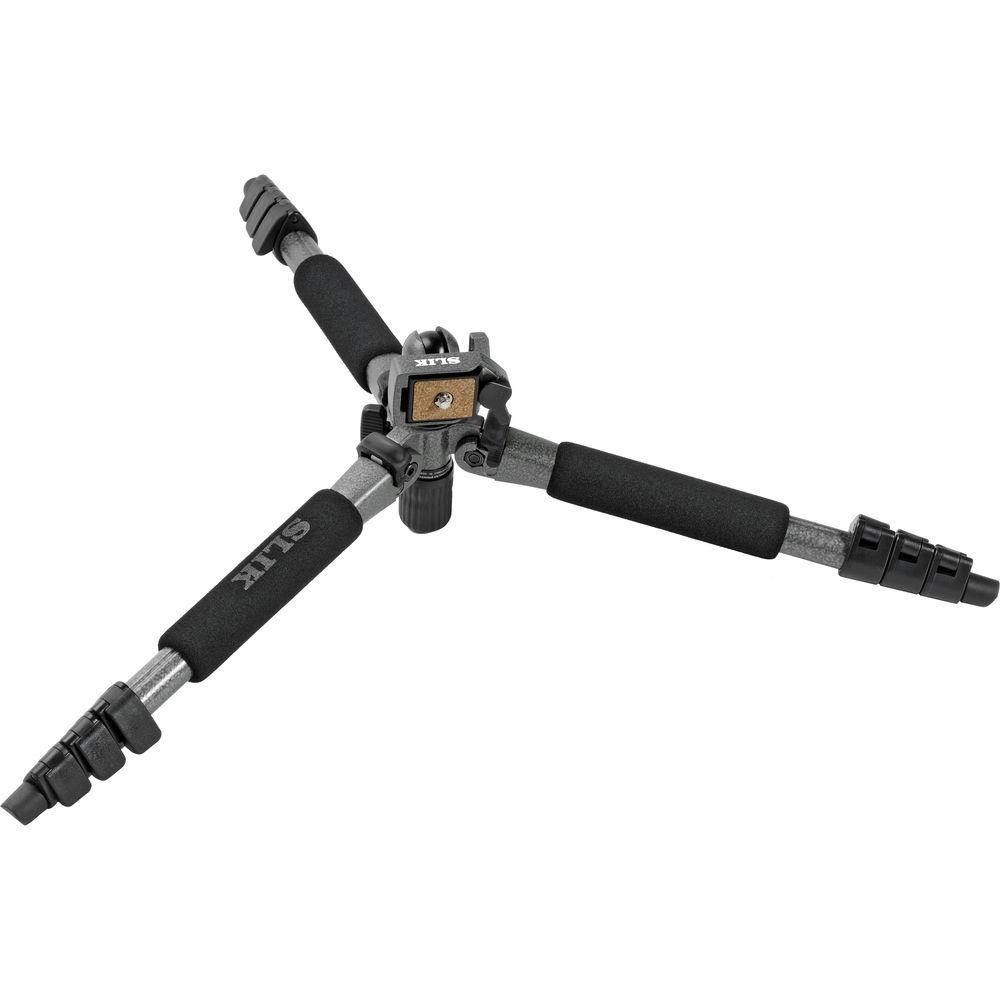

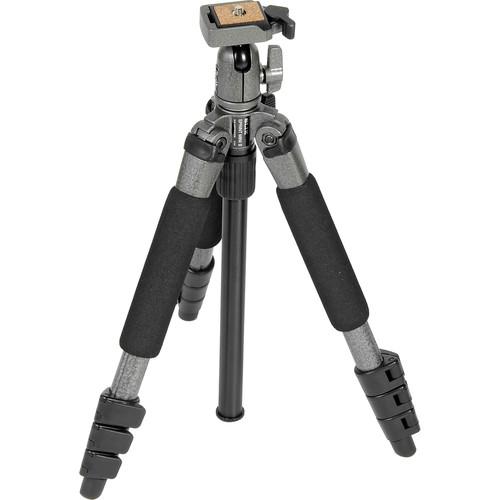

Product description Time-Lapse Tips and Tools Read More fyvbcutv This gun metal-colored, SLIK Sprint Mini II Tripod with SBH-100DQ Ball Head supports up to 4.5 lb, measures 13.8" when folded, and includes a quick release plate. Each of its 4-section legs features an independent spread, a 3-position angle lock, and flip locks for fast deployment. The included push-and-pull, rapid center column is multi-sectional, which allows it to be converted to a shortened center column. This feature permits a minimum height of 13.3", or 6.4" when the center column is shortened. The SLIK Sprint Mini II Tripod provides a maximum height of 32.0", 35.3" with its center column shortened as well as fully raised, and 43.0" with the complete column fully raised.

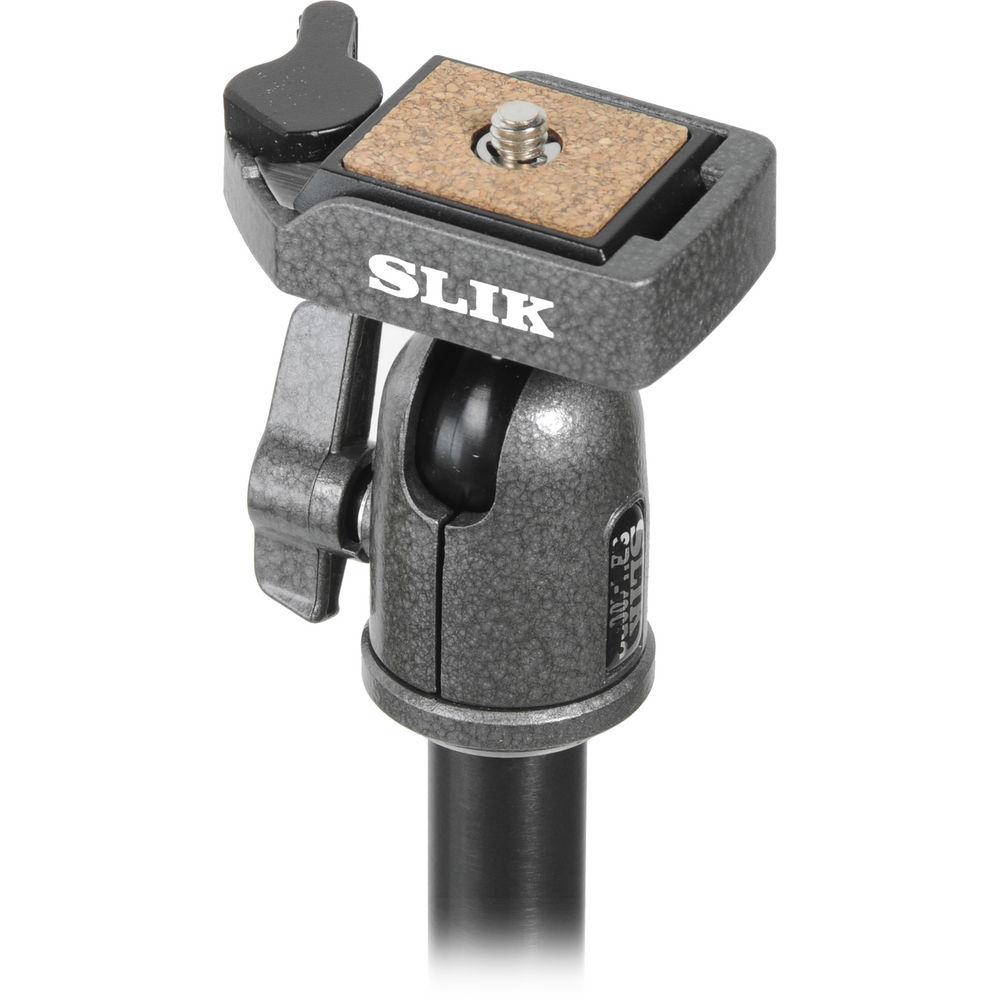

Cameras, sport optics, or camcorders that are compatible with a 1/4"-20 mount can be connected to the quick release plate, which is secured to the tripod's ball head using a quick release cam lock. The head provides up to a 90° tilt for portrait orientation, 360° of independent rotation, and can be locked into place along its range of movement.
For added versatility, the center column is reversible, facilitating low-angle photography where an attached camera is positioned among the tripod's legs instead of above them. Foam covers on each of the legs provide a secure and comfortable grip while moving the tripod, and rubber feet help to enhance stability on a wide variety of surfaces.
A nylon, drawstring bag is included for storage and transport. - Use and Handling
-
- Supports up to 4.5 lb
- Push-and-pull center column for rapid camera, lens, or sport optic positioning
- Center column is multi-sectional, allowing it to be converted to a shortened center column that allows the tripod to be set at a minimum height of 13.3", or 6.4" when the column is shortened
- Tripod can be set to a maximum height of 32.0", 35.3" when the column is shortened as well as fully raised, and 43.0" with the complete column fully raised
- Column is reversible, facilitating low-angle photography where an attached camera is positioned among the tripod's legs instead of above them
- Legs each feature four sections, an independent spread, a 3-position angle lock, and a flip lock for rapid deployment
- Legs can be locked at 70°, 40°, or 10° angles
- Foam covers on each of the legs provide a secure and comfortable grip
- Rubber feet for stability
- Ball head provides up to a 90° tilt for portrait orientation, 360° of independent rotation, and can be locked into place along its range of movement

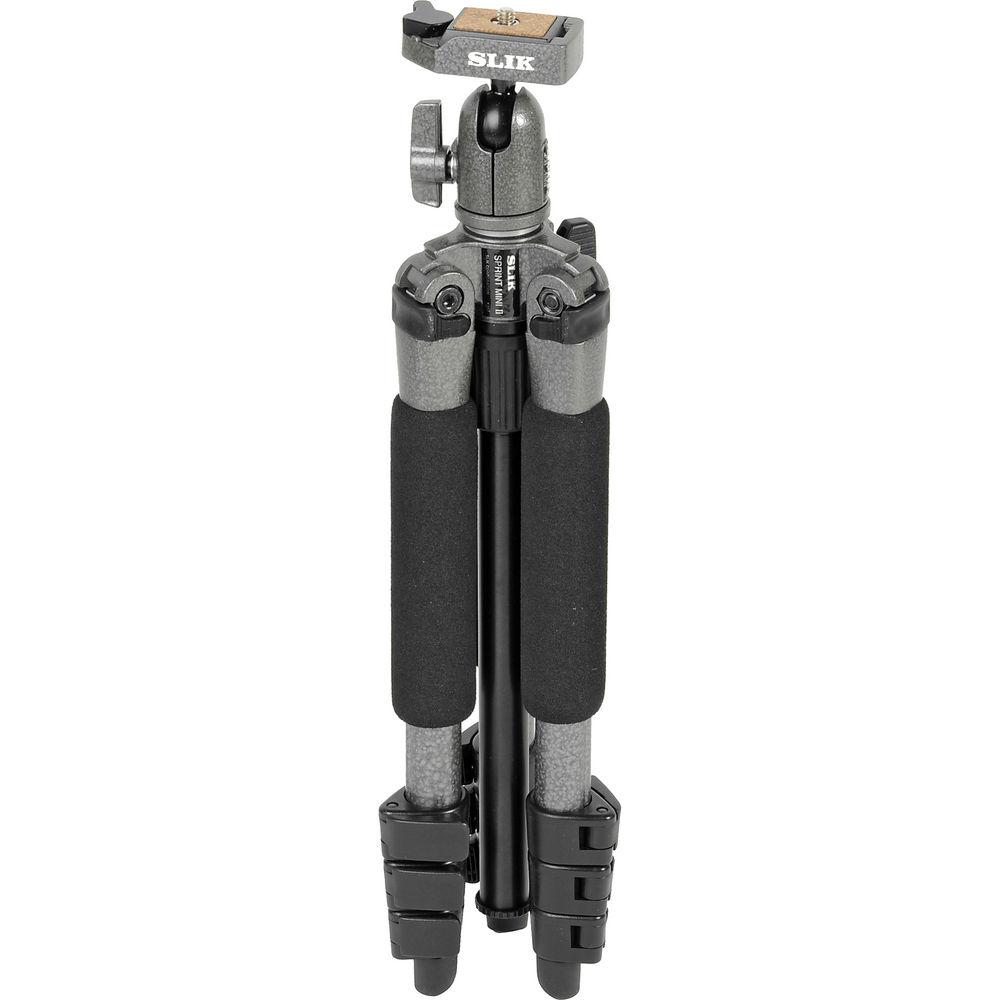

- Weighs 1.7 lb, measures 13.8" when folded
- Construction Details
-
- Aluminum-alloy legs with cast-aluminum ball head
- Quick release plate with 1/4"-20 mount with anti-slip, cork surface
- Nylon, drawstring bag for storage and transport
UPC: 049368703192 In the Box Slik Sprint Mini II Tripod with SBH-100DQ Ball Head (Gun Metal) SBH-100 DQ Compact Ballhead 100 with Quick Release Tripod Bag Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Slik Sprint Mini II Tripod with SBH-100DQ Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSlik Mini II GM Specs | | | Head Type | Ball Head | | Base Mount | 1/4"-20 Thread | | Camera Mounting Screw | 1/4"-20 Male | | | | Load Capacity | 4.5 lb / 2 kg | | Maximum Working Height | 43" / 109.2 cm | | Max Height without Center Column | 32" / 81.3 cm | | Minimum Working Height | 6.4" / 16.3 cm | | Folded Length | 13.8" / 35.1 cm | | Materials | Aluminum Alloy | | Weight | 1.7 lb / 0.8 kg | | | | Leg Lock Type | Flip Lock | | Leg Positions | 3 Positions | | Independent Leg Spread | Yes | | Leg Sections | 4 | | Bubble Level | No | | | | Center Column Sections | 2 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 2.12 lb | | Box Dimensions (LxWxH) | 16.9 x 3.4 x 3.2" |
