User Manual for Slik U8000 Tripod with 3-Way, Pan-and-Tilt Head Click to enlarge the picture
Contents of the user manual for the Slik U8000 Tripod with 3-Way, Pan-and-Tilt
- Product category: Tripods with Heads Slik
- Brand: Slik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Slik Tripods with Heads
 |
User manual for the Slik U8000 Tripod with 3-Way, Pan-and-Tilt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Slik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Slik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Slik product will considerably shorten its lifespan!
|

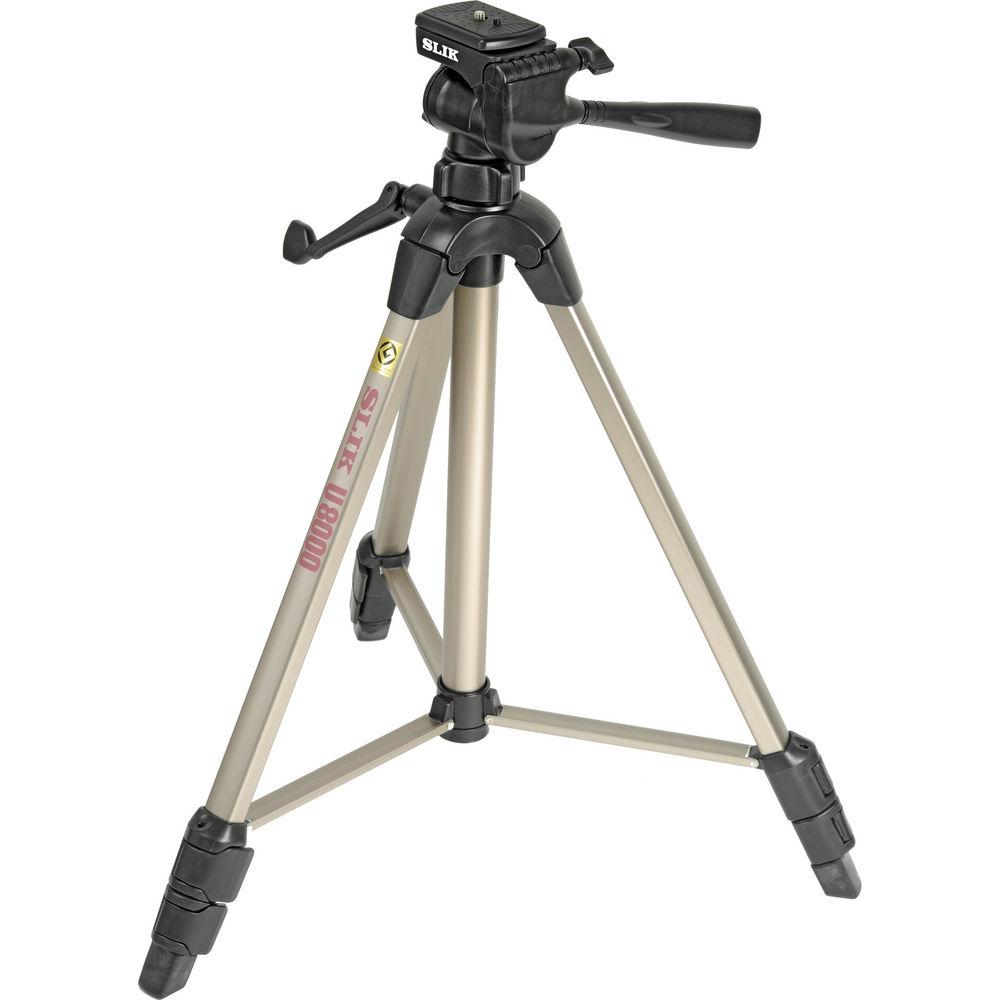

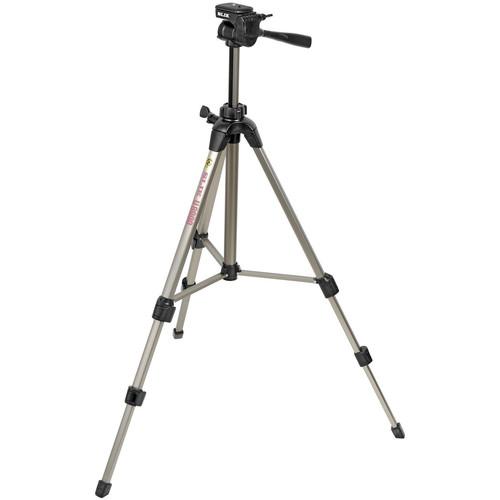

Product description Time-Lapse Tips and Tools Read More This SLIK U8000 Tripod supports up to 4.5 lb, measures 23.2" when folded and includes a three-way, pan-and-tilt head. Its 3-section legs each feature flip locks for fast deployment, and can be positioned for a minimum height of 22.0" to a maximum height of 47.2", or 59.0" with its column fully raised. The column utilizes a geared movement for precise height adjustments and an integrated center brace allows the legs to be spread simultaneously as well as uniformly. The center brace helps to hold the legs in place, which include rubber feet to further enhance stability on a wide variety of surfaces.

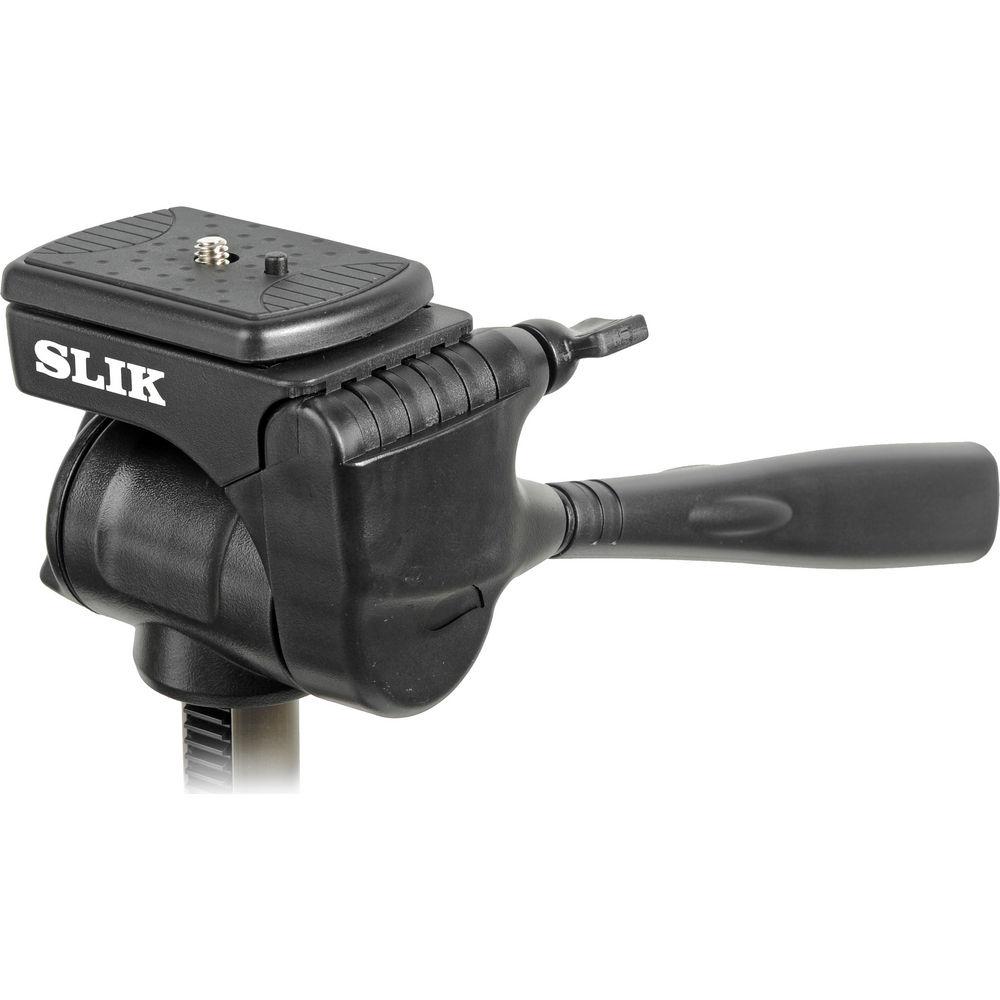

Cameras, sport optics, or camcorders that are compatible with a 1/4"-20 mount can be connected to the quick release plate, which is secured to the tripod's pan-and-tilt head using a cam lock. The head can be rotated 360°, and tilted 90° backwards or forwards, as well as sideways for portrait orientation. Both the 360° rotation as well as the 90° backward or forward tilt movements function simultaneously and can be set in place using the pan bar's integrated twist lock. When changing from a landscape to portrait orientation, the sideways tilt can be independently adjusted and secured. - Use and Handling
-
- Supports up to 4.5 lb
- Geared center column with rotating handle for precise positioning
- Can be set for a minimum height of 22.0" to a maximum height of 47.2", or 59.0" with column fully raised
- Legs each feature 3 sections, flip locks for fast deployment
- Rubber feet for stability
- Three-way, pan-and-tilt head can be rotated 360°, and tilted 90° backwards or forwards, as well as sideways for portrait orientation
- Head rotation, as well as backwards-and-forwards-tilt movements function simultaneously
- When changing from a landscape to portrait orientation, the sideways tilt can be independently adjusted and secured

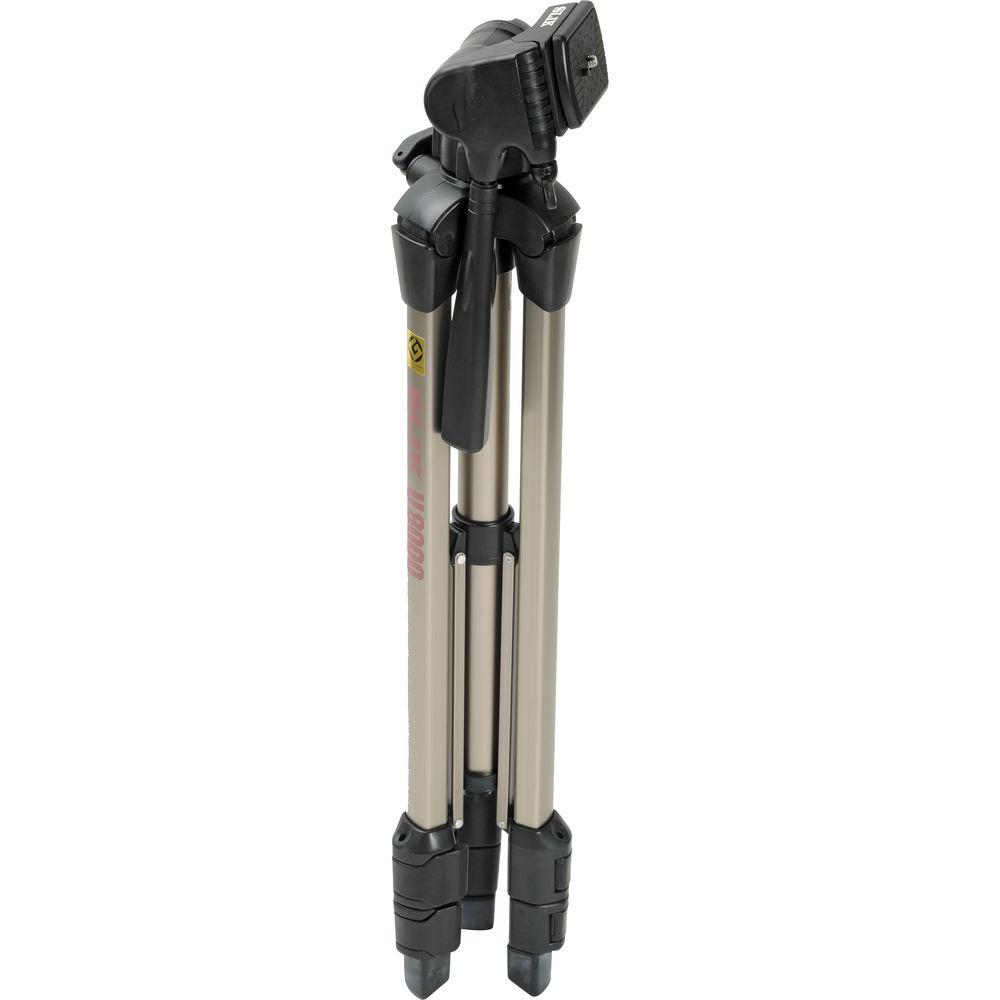

- Weighs 3.3 lb, measures 23.2" when folded
- Construction Details
-
- Aluminum-alloy legs and three-way, pan-and-tilt head
- Quick release plate with 1/4"-20 mount with rubberized, anti-slip surface and anti-twist index pin
UPC: 036791178000 In the Box Slik U8000 Tripod with 3-Way, Pan-and-Tilt Head Quick Release Shoe for U6000/U8000/U9000 Limited 3-Year Warranty
Includes Free - TBM Medium Tripod Bag - for Slik Tripods up to 24" Long (Black)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Slik U8000 Tripod with 3-Way, Pan-and-Tilt Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSlik U8000 Specs | | | Head Type | Pan & Tilt Head | | Camera Mounting Screw | 1/4"-20 Male | | | | Load Capacity | 4.5 lb / 2 kg | | Maximum Working Height | 59" / 149.9 cm | | Max Height without Center Column | 47.2" / 119.9 cm | | Minimum Working Height | 22" / 55.9 cm | | Folded Length | 23.2" / 58.9 cm | | Materials | Aluminum Alloy | | Weight | 3.3 lb / 1.5 kg | | | | Leg Lock Type | Flip Lock | | Independent Leg Spread | No | | Leg Sections | 3 | | Bubble Level | No | | | | Center Column Features | Center Brace | | Center Column Sections | 1 | | Center Column Extension Type | Geared | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 3.9 lb | | Box Dimensions (LxWxH) | 23.7 x 4.3 x 4.2" |
