Product description
SlingStudio Updates Firmware Read More
Live Editing with SlingStudio
SlingStudio
Bose SoundWear Companion - Unboxing + Setup
What is SlingStudio?
Multi-Camera Sports Broadcasting with SlingStudio
SlingStudio - Best Practices for Livestreaming
SlingStudio - Auto Switching
SlingStudio - User Interface Overview

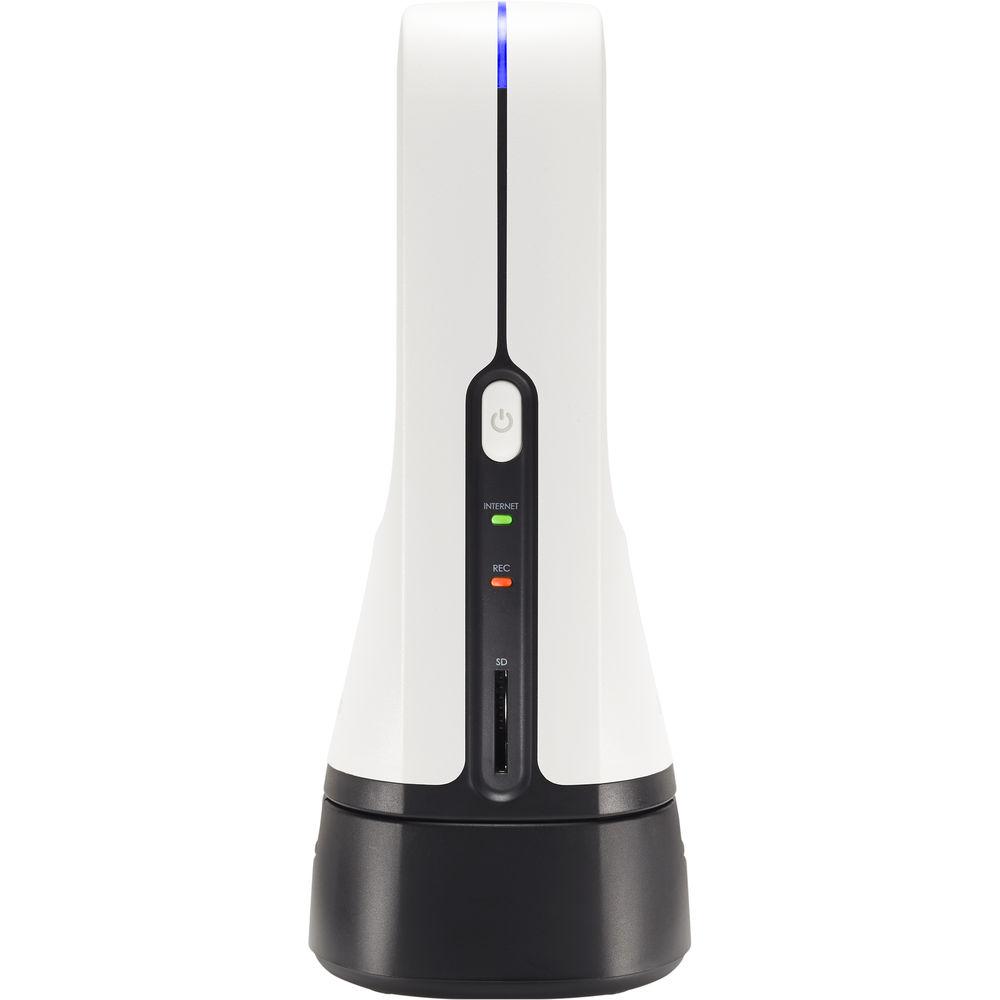

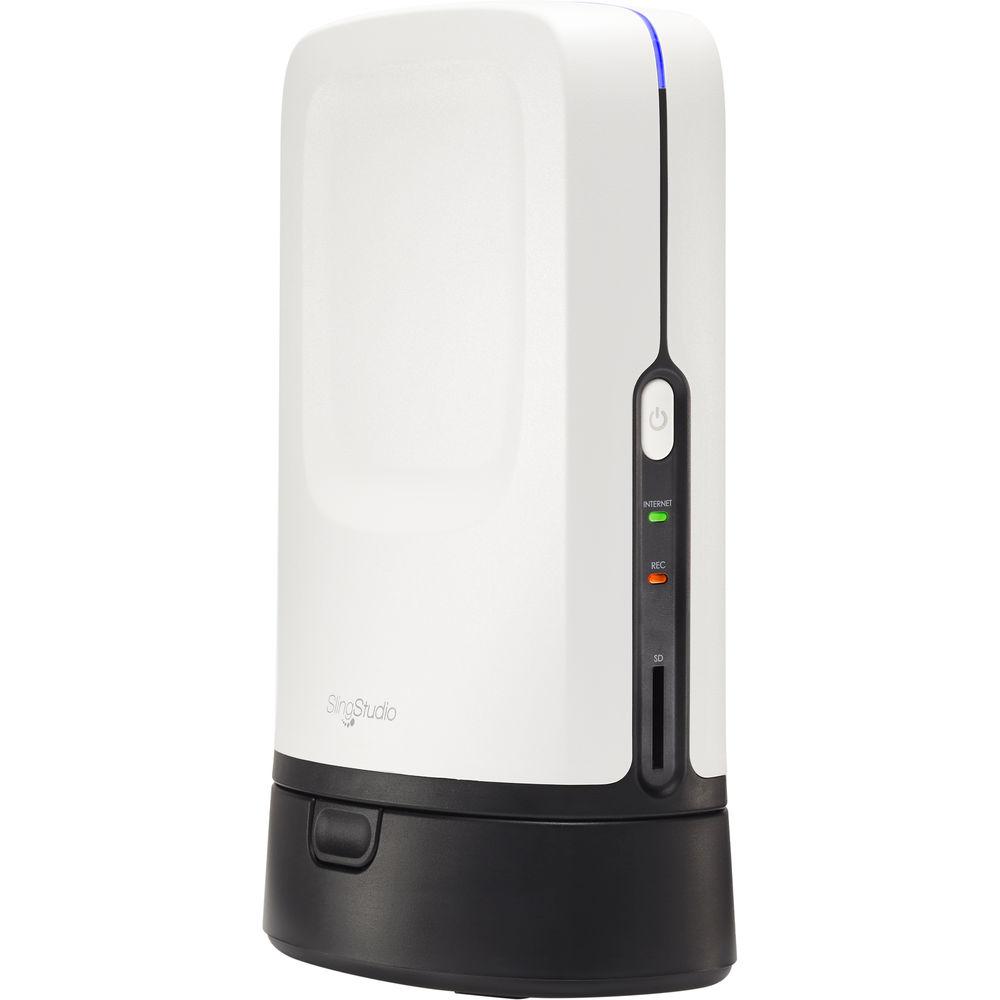

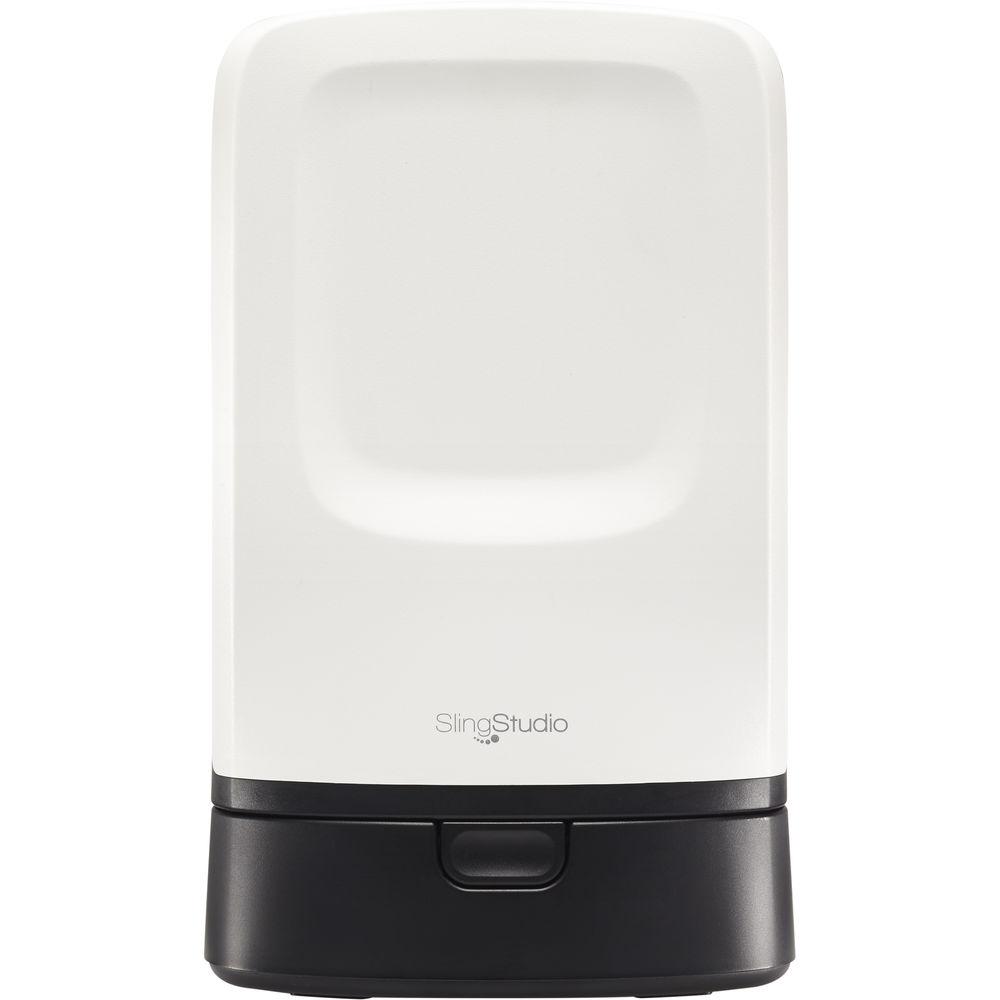

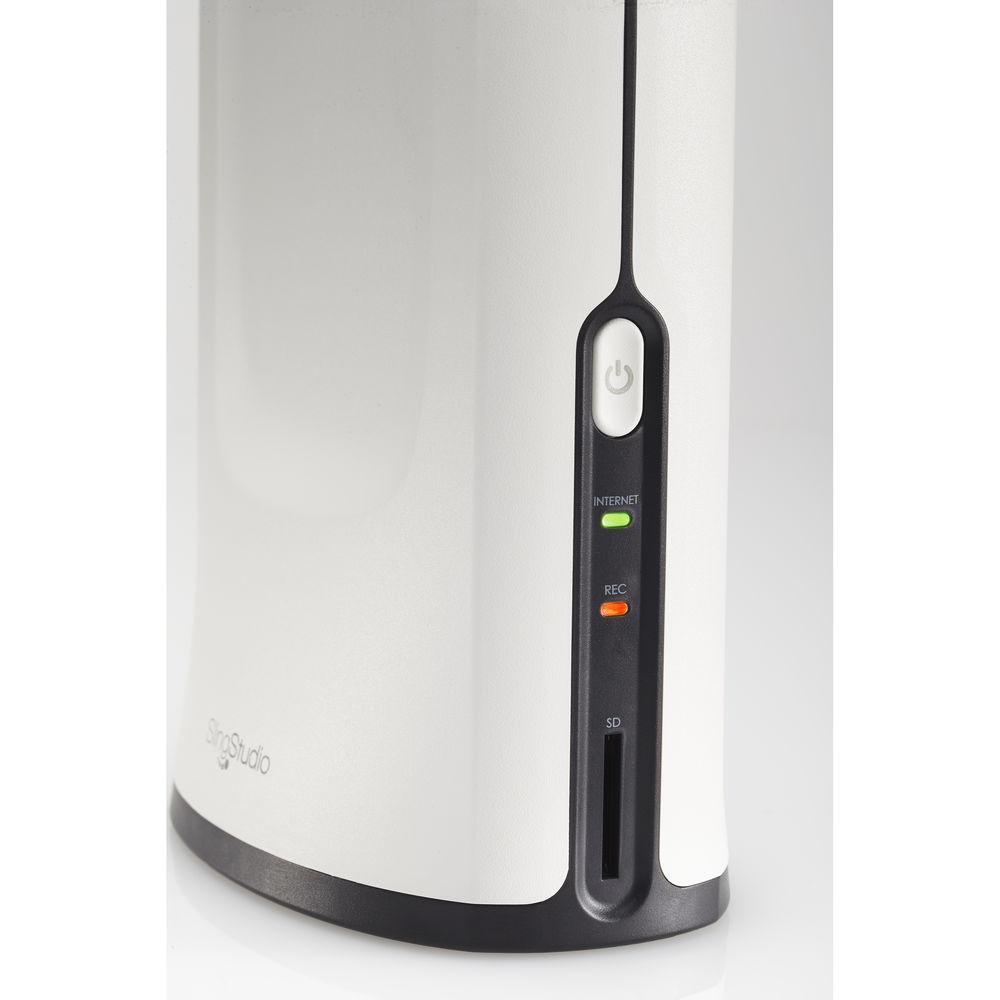

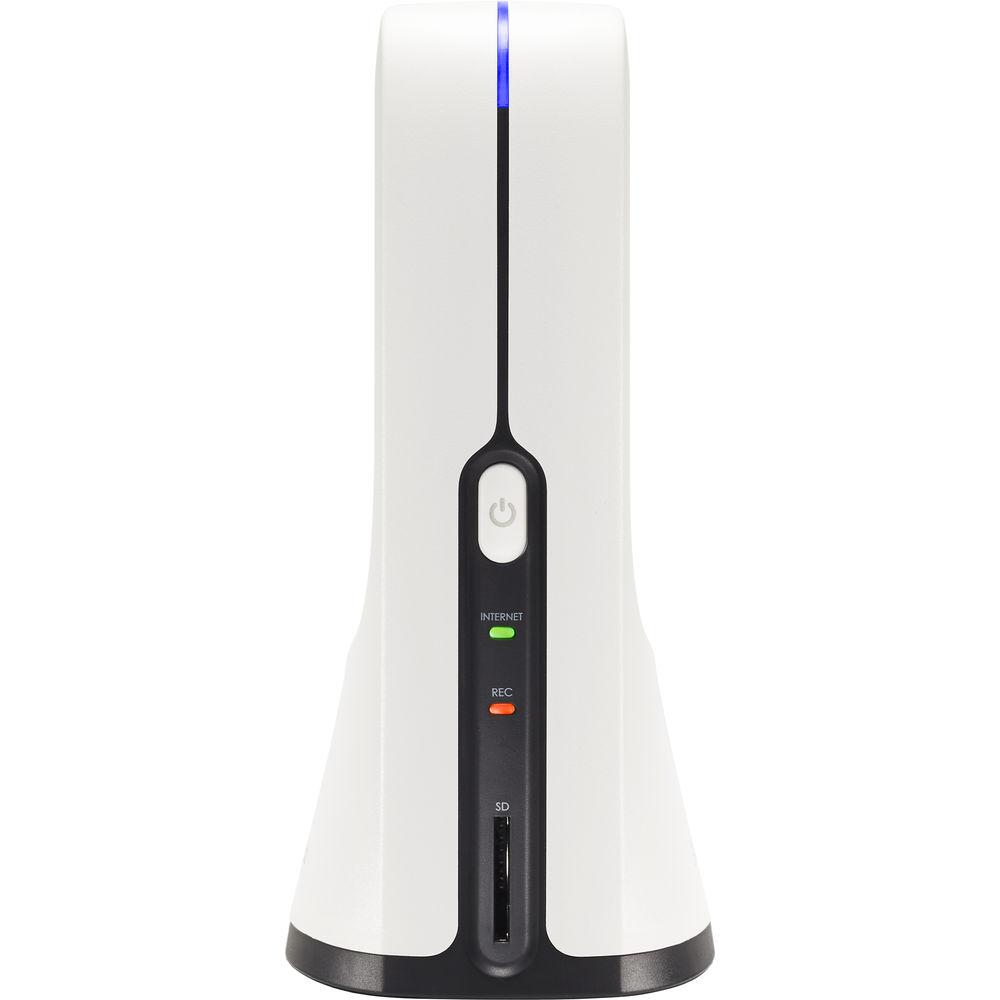

Executing a multiple camera shoot with the SlingStudio Hub gives you the freedom to wirelessly connect multiple video sources for recording, streaming, or live switching. The compact, lightweight enclosure houses all the recording, streaming, and wireless tasks, while the production can be live-switched from an iPad or Mac running the Console app.SlingStudio Hub features include chroma keying to enable the use of live video sources such as backgrounds and motion-graphics importing for the creation of animated lower thirds. Video sources can be reordered and can be switched using voice-activation or custom-timed intervals. The Hub uses a special low-delay mode optimized for teleconferencing and can live stream without the use of a recording device. A PiP function features multiple positioning options, and instant replay intervals can last up to 10 minutes.Cameras can be connected to the SlingStudio Hub wirelessly or with an HDMI cable. Compatible iOS and Android mobile devices can connect directly over the Studio Hub's Wi-Fi connection, while standard video cameras can connect to separately available CameraLink Wi-Fi transmitters or directly via the Hub's HDMI connection. Up to ten sources can be connected simultaneously, any combination of four live 1080p30 or 720p60 input sources can be switched, recorded, and streamed, and up to 10 sources can be connected at any given time. If you only need to switch, record, or stream two sources, resolutions up to 1080p60 can be used.Not only can the SlingStudio Hub facilitate live streaming, it also offers a simple workflow for post-production. All media being input into the Hub can be recorded as industry-standard, high-quality H.264 ISO video files to either an SD card or hard drive connected via USB Type-C or via USB 3.0 through the separately available USB Type-C Expander. In all, isolated (ISO) feeds of each input channel, the final switched output, line-in audio, and multiview of the isolated channels can be recorded simultaneously. An HDMI to Mini HDMI adapter cable is included for connecting the video output to a standard display, projector, or secondary recording or streaming hardware. The HDMI output can be set to no-latency pass-through mode so any live video being displayed will be in sync with the house audio.Several separately available accessories can enhance the abilities of the SlingStudio Hub. A battery allows the Hub to operate without mains power, great for impromptu field setups where access to power is limited. The USB Type-C Expander offers multiple USB connections for storage, and a wired Ethernet connection for wired streaming. Altogether, you can build an extremely versatile video production platform.Note: Check the SlingStudio website for an updated list of compatible mobile devices, computers, iPads, and recording media.
Live Switching Features
Switcher: Switch between 10 different video sources using the Console app running on iPad or Mac
Live stream without a storage device when not recording
Ability to reorder video sources
Video transitions: Cut, dissolve, wipe
Instant replay segments of up to 10 minutes
Video compositions: Picture in Picture (PiP) with multiple positions and multiple split views
Audio mixer: Full audio mixer functionality with monitoring mode support, supports always-on audio (ON) or audio follows video (AFV) for all video input sources
Overlays: Lower-thirds (title and scoreboard), text overlays
Custom graphics: Insert, resize, and change the transparency of your own JPG and PNG graphics—including logos, lower-thirds, profile pics, ads, or background images—and overlay them on your live program feed
Chroma key: Use chroma key (green screen) in your productions, including using live video sources as backgrounds
Motion graphics: Import your own motion graphic overlays using chroma keying to use as animated lower thirds, logos, etc.
Auto-switching: Switch between video sources automatically using custom time intervals or voice-activated switching
Videoconferencing/low-delay mode: Special low-delay mode optimized for teleconferencing with talent in a remote location
Wireless Video Connection
While most common switchers require a physical connection via SDI or HDMI, the SlingStudio Hub can connect to up to ten wireless sources via 802.11ac Wi-Fi (up to four sources can be switched from at any given time). Cameras with an HDMI output can connect using separately available CameraLink transmitters, while select iOS and Android smart devices can use their own Wi-Fi connectivity to transmit video using the free Capture app, available in the App Store and on Google Play, respectively.
Live Wireless Switching via iPad or Mac
With the free Console app, your iPad or Mac can now become a switcher for all the video inputs, as well as an audio mixer. Titles, lower-thirds, transitions, captions, and more can be controlled in real time to give your live switch a professional look.
Post-Production Ready
All video and files recorded by the SlingStudio Hub are stored in a single location. No need to search for multiple cards and spend time syncing them inside your editing software. Just use the free Apple Final Cut Pro X or Adobe Premiere plug-in from Sling to conform the project file inside your NLE and start editing.If you recorded higher-resolution footage internally with the individual cameras used in your production, the plug-in can analyze the recorded footage and replace the lower-resolution SlingStudio Hub recordings with the camera originals. This allows you to remaster your live broadcasts in 4K, or higher resolutions, while keeping all the production choices you made in the moment.
UPC: 753960015026 In the Box SlingStudio Hub
Power Supply
HDMI to Mini HDMI Cable
Limited 1-Year Warranty
In the Field with the SlingStudio David Adler 05/05/2017 eeszqrdv Announcing the SlingStudio Multi-Camera Production Tool Mary Latvis 04/24/2017 Guides & Manuals Table of Contents
Upload User Manual
Have you got an user manual for the SlingStudio Hub in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User Manual
The user manual for the SlingStudio Hub can be downloaded in PDF format at the link stated below.

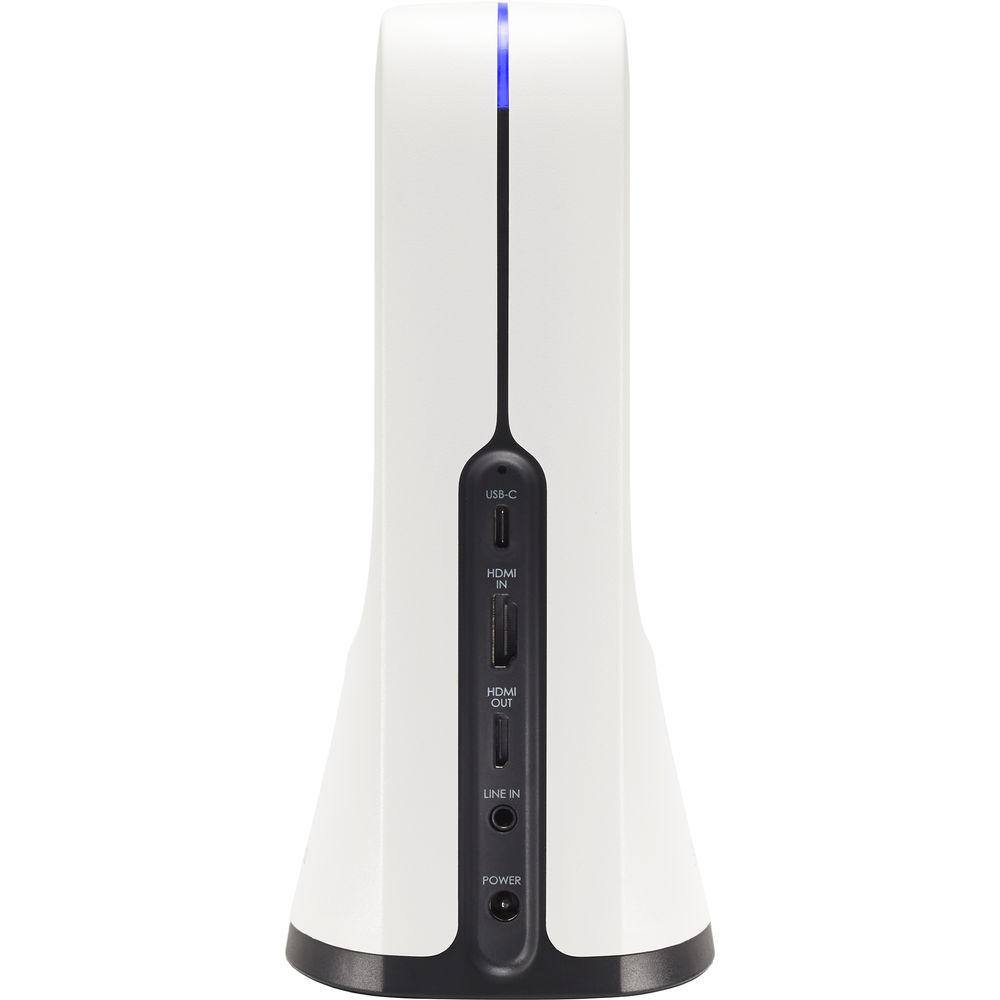

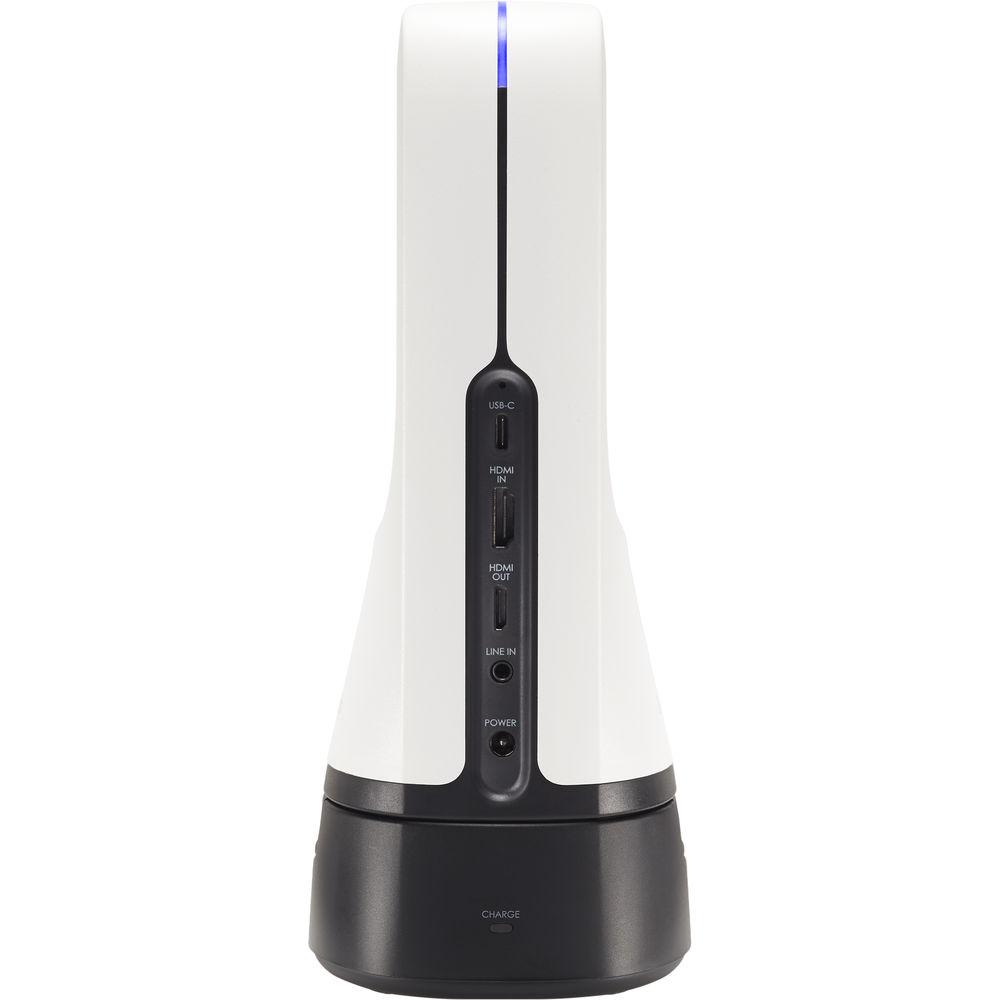

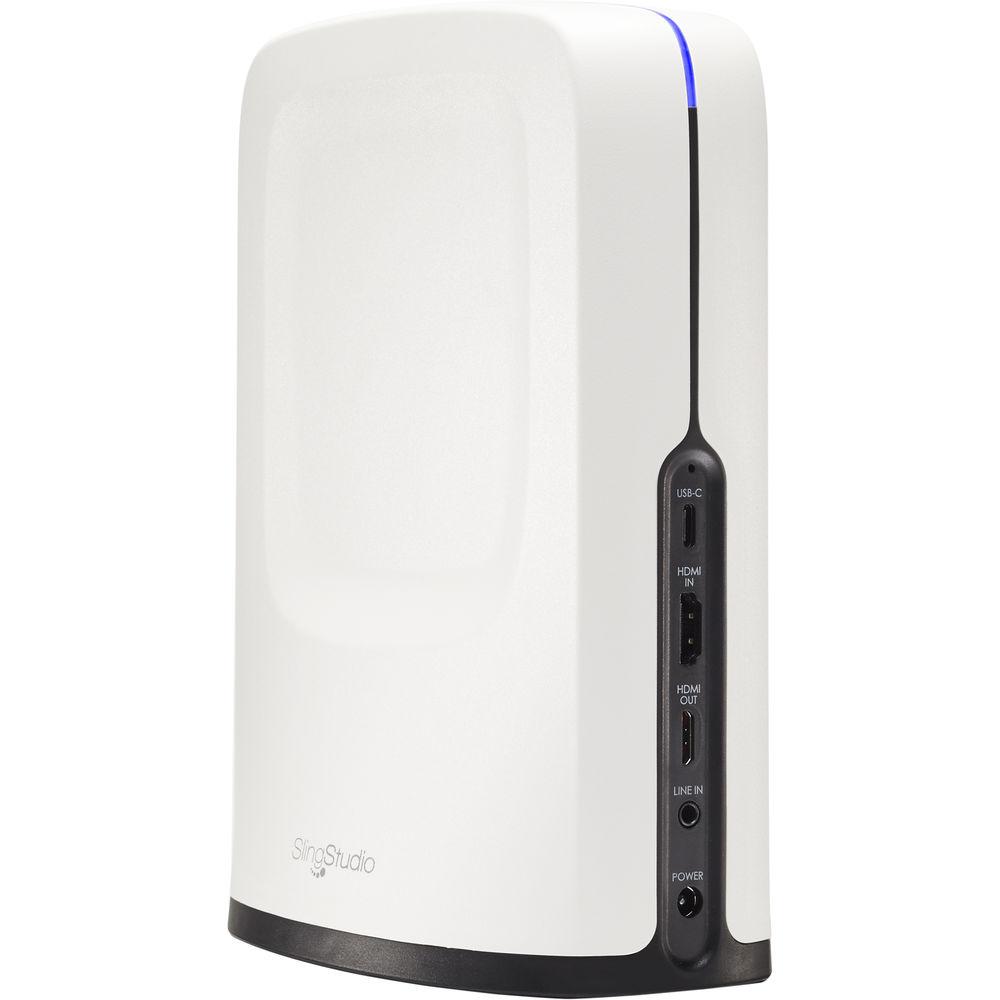

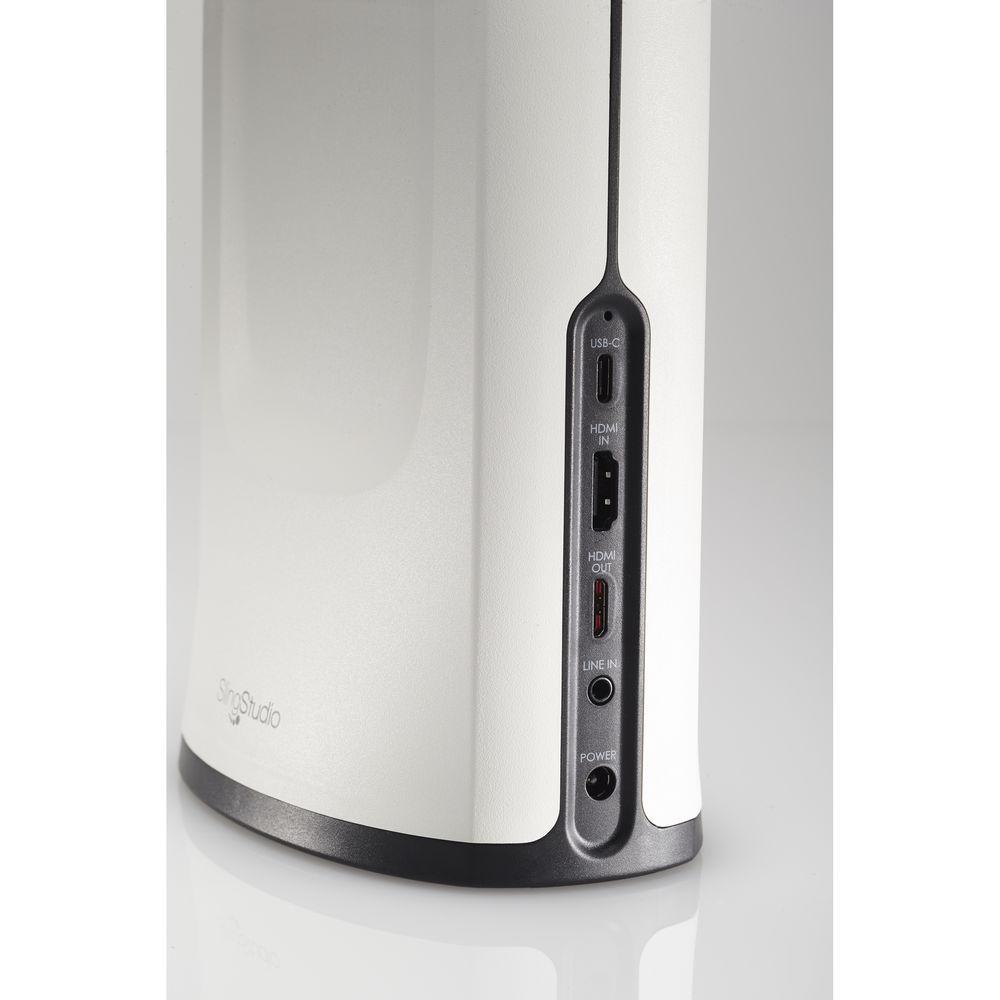

Local: 1 x HDMI type A 1 x 3.5 mm analog stereo audio
Wireless: Up to 10 via Wi-Fi network
A/V Outputs
1 x HDMI Type C
Other I/O
1 x SD card slot 1 x USB Type-C
Wireless
1 x 5 GHz 802.11 ac 1 x Dual-band 2.4/5 GHz 802.11 ac
Video Recording
Format: H.264, High Profile, 4:2:0
Resolution: 1080p60 up to 30 Mb/s 1080p30 up to 16 Mb/s 720p60 up to 16 Mb/s 720p30 up to 4 Mb/s
Audio Recording
Format: 2-channel, 16-bit/48 kHz, up to 320 kb/s
Live Streaming
CDNs: Facebook Live, YouTube Live Maximum Bit Rate: 8 Mb/s
Power Supply
Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 4.2 A
Operating Temperature
32 to 95°F / 0 to 35°C
Humidity
0-95%, non-condensing
Dimensions
7.9 x 5.6 x 3.5" / 20 x 14 x 9 cm
Weight
1.4 lb / 653 g
Package Weight
3.7 lb
Box Dimensions (LxWxH)
11.4 x 7.4 x 5.0"
