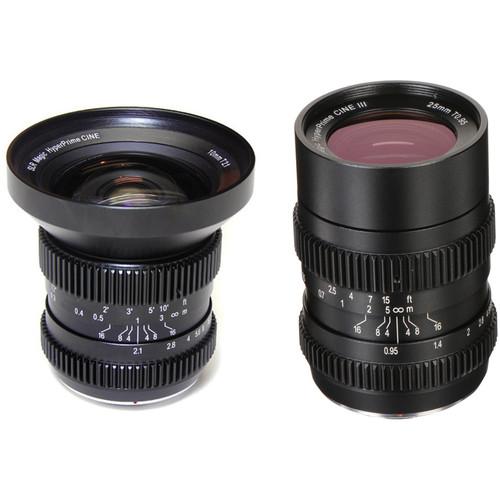

User Manual for SLR Magic 10mm T2.1 HyperPrime Cine and 25mm T0.95 HyperPrime Cine III Lens Kit with MFT Mount Click to enlarge the picture
Contents of the user manual for the SLR Magic 10mm T2.1 HyperPrime Cine
- Product category: Digital Cine Lenses SLR Magic
- Brand: SLR Magic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SLR Magic Digital Cine Lenses
|
User manual for the SLR Magic 10mm T2.1 HyperPrime Cine contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SLR Magic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SLR Magic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SLR Magic product will considerably shorten its lifespan!
|
Product description Cinema Lens Care and Maintenance Read More This Kit of two lenses provides for wide and normal shooting for users of the Micro Four Thirds Format, it includes the SLR Magic 10mm T2.1 HyperPrime Cine Lens and the SLR Magic 25mm T0.95 HyperPrime Cine III Lens. The 10mm lens provides a wide angle of view and features a T2.1 maximum aperture. The built-in cine-style gears enable the lens to interface with a variety of optional follow focus units and the clickless iris allows you to smoothly adjust the lens's aperture during the shot without jarring the audience.
The 25mm lens is notably fast with a T0.95 maximum aperture and like the 10mm lens, the 25mm features built-in cine-style focus and iris gears with a clickless iris. However, unlike the 10mm, the 25mm is designed to support an optional SLR Magic Anamorphot-50 anamorphic adapter or an optional SLR Magic Achromatic Diopter without requiring a lens support. - SLR Magic 10mm T2.1 Hyperprime Cine Lens (MFT Mount) Joining the other MFT mount SLR Magic Hyperprimes is the 10mm T2.1 Hyperprime Cine Lens. Designed specifically for use with MFT mount cameras with Four Thirds sized sensors the lens strikes a useful balance between size, form, and function. The 10mm lens features sharp images exhibiting little corner and edge distortion, even when the iris is at its maximum opening of T2.1.
The lens' Cine designation refers to the geared focus and iris rings, which feature 0.8 pitch teeth for compatibility with film style follow focus units. The clickless iris ring allows you to adjust the aperture during the shot for smooth iris pulls. The front of the lens does not rotate as you change focus, and is threaded to accept threaded 77mm filters or filter rings. - Coverage
- The lens has a 35mm equivalent focal length of 20mm on a standard Four Thirds camera.
- The front element does not rotate as you change focus of the lens, it also does not protrude beyond the front lens threading, allowing you to attach filters to the fornt of your lens.
- The clickless iris allows you to smoothly adjust your exposure during the shot.
- Built-in iris and focus gears follow industry standards, allowing you to work with optional follow focus units and lens gear motors.
- SLR Magic 25mm T0.95 HyperPrime Cine III Lens (MFT Mount) The SLR Magic 25mm T0.95 HyperPrime Cine III Lens is an exceptionally fast normal focal length lens for Micro Four Thirds cameras (50mm full-frame equivalent). The fast T0.95 maximum aperture lets you capture images with a shallow depth of field, while also benefiting low-light filming. Designed to support a cine-style workflow, the lens features a clickless iris for smooth iris pulls and cine-standard geared focus and aperture rings. Compared to the 49mm front filter threads found on the Cine II version, the Cine III lens features 52mm front filter threading for attaching filters or other optional accessories, such as the SLR Magic Anamorphot adapter and Achromatic Diopters. An optional lens support is recommended when using the Anamorphot, especially when using diopters.
- Features
-
- Covers up to Micro Four Thirds format sensors
- Fast T0.95 maximum aperture
- Clickless iris for smooth exposure adjustments while shooting
- Built-in iris and focus gears follow industry standards, allowing you to work with optional follow focus units and lens gear motors
- Focus rotation of the lens follows the cinema standard, allowing you to swap between this and other optional lenses without having to change your workflow
- 12-bladed iris
- 52mm front filter threads
- Metal construction
- Compatible with optional SLR Magic Anamorphot adapter and Achromatic Diopters
In the Box - 10mm T2.1 Hyperprime Cine Lens (MFT Mount)
- Front Lens Cap
- Rear Lens Cap
- Limited 1-Year Warranty
- 25mm T0.95 HyperPrime Cine III Lens (MFT Mount)
Table of Contents
|
Upload User Manual
Have you got an user manual for the SLR Magic 10mm T2.1 HyperPrime Cine and 25mm T0.95 HyperPrime Cine III Lens Kit with MFT Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - SLR Magic 10mm T2.1 Hyperprime Cine Lens (MFT Mount)
| Focal Length | 10mm | | Lens Mount | Micro Four Thirds | | Format | MFT | | Maximum T-Stop | T2.1 | | Minimum T-Stop | T16 | | Minimum Focus Distance from Image Plane | 7.9" / 20 cm | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Filter Thread | 77 mm | | Length | 3.12" / 7.95 cm | | Weight | 14.8 oz / 420.0 g | | | | Box Dimensions (LxWxH) | 5.5 x 5.4 x 5.3" | - SLR Magic 25mm T0.95 HyperPrime Cine III Lens (MFT Mount)
| Focal Length | 25mm | | Lens Mount | Micro Four Thirds | | Format | MFT | | Maximum T-Stop | T0.95 | | Minimum T-Stop | T16 | | Minimum Focus Distance from Image Plane | 10.2" / 26 cm | | Optical Design | 11 Elements in 9 Groups | | Iris Blades | 12 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Filter Thread | 52 mm | | Length | 3" / 7.6 cm | | Weight | 1.0 lb / 0.5 kg | | | | Box Dimensions (LxWxH) | 5.3 x 5.2 x 5.1" |
