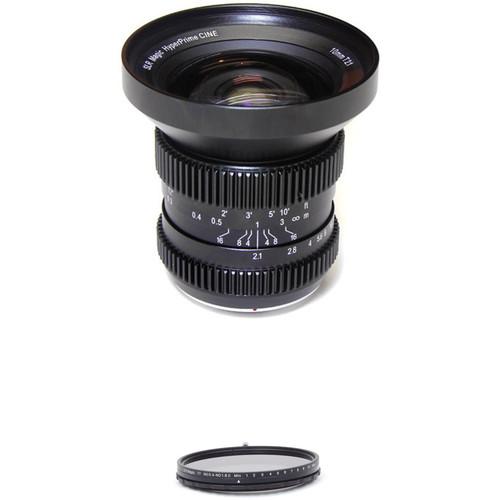

User Manual for SLR Magic 10mm T2.1 HyperPrime Cine Lens with MFT Mount and 77mm Variable ND Kit

• Product category: Digital Cine Lenses SLR Magic
• Brand: SLR Magic
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for SLR Magic Digital Cine Lenses

Product description

• SLR Magic 10mm T2.1 Hyperprime Cine Lens (MFT Mount) Joining the other MFT mount SLR Magic Hyperprimes is the 10mm T2.1 Hyperprime Cine Lens. Designed specifically for use with MFT mount cameras with Four Thirds sized sensors the lens strikes a useful balance between size, form, and function. The 10mm lens features sharp images exhibiting little corner and edge distortion, even when the iris is at its maximum opening of T2.1.

  The lens' Cine designation refers to the geared focus and iris rings, which feature 0.8 pitch teeth for compatibility with film style follow focus units. The clickless iris ring allows you to adjust the aperture during the shot for smooth iris pulls. The front of the lens does not rotate as you change focus, and is threaded to accept threaded 77mm filters or filter rings.
  Coverage
  • The lens has a 35mm equivalent focal length of 20mm on a standard Four Thirds camera.
  • The front element does not rotate as you change focus of the lens, it also does not protrude beyond the front lens threading, allowing you to attach filters to the fornt of your lens.
  • The clickless iris allows you to smoothly adjust your exposure during the shot.
  • Built-in iris and focus gears follow industry standards, allowing you to work with optional follow focus units and lens gear motors.
• SLR Magic 77mm Self-Locking Variable Neutral Density 0.4 to 1.8 Filter (1.3 to 6 Stops) The SLR Magic 77mm Self-Locking Variable Neutral Density 0.4 to 1.8 Filter is a solid variable neutral density filter that is designed to mount onto lenses with 77mm front filter threads and provides an exposure reduction of 1.3 to 6 stops. The 0.4 to 1.8 density creates a darkening of the entire image, allowing you to photograph with a wider aperture or slower shutter speed than normally required. The degree of density is easily controlled by rotating the front filter ring, helping you to predetermine the additional exposure length required. By slowing your exposure time or increasing your aperture, you are able to control depth of field and convey movement more easily. For easier, repeatable control over density settings, the front ring is visually demarcated with numbers representing different density values and includes a rotation lever to further enable fast and precise positioning of the front ring. Once the front ring is rotated into a position that corresponds to the desired amount of density, the filter's rear ring can then be turned to lock the front ring into place, helping to ensure consistent exposures.

  This filter is constructed from optical glass for clarity and color fidelity. It is multi-coated to prevent internal ghosting as well as reflections and also features an 86mm mount which helps to reduce the likelihood of vignetting when used with wide-angle lenses.
  • Variable neutral density filter allows you to dial in differing amounts of density scene to scene.
  • 0.4 to 1.8 neutral density filter darkens the image, allowing you to photograph with a longer shutter speed or wider aperture than normally required.
  • Providing a reduction of 1.3 to 6 stops, this filter allows you to control depth of field and convey movement more easily.
  • Offers increased flexibility to use specific ISO settings or ISO films under bright ambient light.
  • Provides increased exposure flexibility while using cinema or video cameras within a designated film frame rate.
  • Multi-coated, optical glass for clarity and color fidelity as well as the prevention of internal ghosting and reflections.
  • Side lever allows the filter glass to be easily rotated.
  • Integrated exposure locking ring prevents accidental rotation of filter glass and changes to corresponding density values.
  • 86mm front mount helps to reduce the likelihood of vignetting with wide-angle lenses.
  • Plastic filter case for storage and transport.

• 10mm T2.1 Hyperprime Cine Lens (MFT Mount) edwqftzycfsrwurbuuexbbyecquacb
• Front Lens Cap
• Rear Lens Cap
• Limited 1-Year Warranty

• 77mm Self-Locking Variable Neutral Density 0.4 to 1.8 Filter (1.3 to 6 Stops) edwqftzycfsrwurbuuexbbyecquacb

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• SLR Magic 10mm T2.1 Hyperprime Cine Lens (MFT Mount)

  Focal Length	10mm
  Lens Mount	Micro Four Thirds
  Format	MFT
  Maximum T-Stop	T2.1
  Minimum T-Stop	T16
  Minimum Focus Distance from Image Plane	7.9" / 20 cm
  Gear MOD & Pitch	Focus: 0.8 MOD / 32 Pitch Iris: 0.8 MOD / 32 Pitch
  Filter Thread	77 mm
  Length	3.12" / 7.95 cm
  Weight	14.8 oz / 420.0 g

  Box Dimensions (LxWxH)	5.5 x 5.4 x 5.3"

• SLR Magic 77mm Self-Locking Variable Neutral Density 0.4 to 1.8 Filter (1.3 to 6 Stops)

  Filter Type	Variable ND
  Density	0.4 (1.3 Stops) to 1.8 (6 Stops)
  Shape	Circle
  Circular Size	77 mm
  Front Accessory Thread / Bayonet	86 mm
  Filter Material	Glass
  Coatings	Multi-Coating

  Box Dimensions (LxWxH)	5.4 x 5.3 x 1.6"
