User Manual for SLR Magic 35mm 1.33x Anamorphot-CINE Lens and EF-Mount Adapter Kit Click to enlarge the picture
Contents of the user manual for the SLR Magic 35mm 1.33x Anamorphot-CINE Lens
- Product category: Digital Cine Lenses SLR Magic
- Brand: SLR Magic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SLR Magic Digital Cine Lenses
|
User manual for the SLR Magic 35mm 1.33x Anamorphot-CINE Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SLR Magic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SLR Magic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SLR Magic product will considerably shorten its lifespan!
|

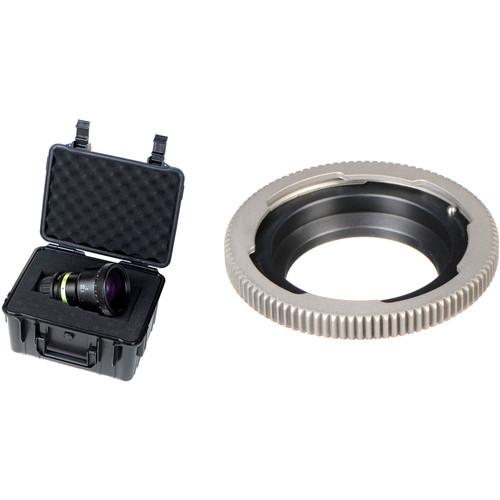

Product description Cinema Lens Care and Maintenance Read More Bring classic anamorphic imagery to your EF-mount camera with this SLR Magic 35mm 1.33x Anamorphot-CINE Lens and EF-Mount Adapter Kit from B&H. The included adapter is calibrated at the factory to have the perfect flange focal distance for adapting the PL-mount lens to EF-mount cameras. This ensures that the lens will focus to the correct distance marked on the focusing ring for accurate focus. Learn more about the items included in this kit in the descriptions below. - SLR Magic 35mm 1.33x Anamorphot-CINE Lens (PL Mount) Building upon their experience with anamorphic adapters, SLR Magic produced this 35mm 1.33x Anamorphot-CINE Lens that delivers a complete, one piece, anamorphic lens with a maximum aperture of T2.4. The lens provides a 2.35:1 aspect ratio to your image when used with your 16:9 sensor. Suitable for use with cameras with a S35 sensor, the anamorphic lens allows you record an image with a wider aspect ratio than your sensor's native aspect ratio without cropping your image, which maximizes the resolution of your image.
The lens incorporates a mask that exaggerates the anamorphic lens flare effect to simulate the look of a 2x anamorphic element. The lens features a 3.5' minimum focus distance and has geared focus and iris rings. It is worth pointing out that the front of the lens rotates as you focus, which may affect your choice of matte box. The 82mm front filter thread allows you to screw in filters, such as diopters to shorten the 3.5' minimum focus distance. - This 35mm lens produces a 2.35:1 aspect ratio on 16:9 sensors. This allows you to get a greater widescreen effect while maximizing your sensors resolution.
- The internal mask produces an anamorphic effect on flares closer to a 2x anamorphic without affecting the 1.33x optical anamorphic effect.
- Geared focus and iris rings allow use follow focus units or lens motors to pull your focus or iris.
- SLR Magic PL to EF-Mount Adapter Use the PL to EF-Mount Adapter from SLR Magic to mount PL lenses on your EF-Mount–DSLR or camcorder. This adapter enables you to expand your lens choices to include cine-style PL-mount lenses, whether vintage or new. Made from aluminum and titanium, the PL to EF-Mount Adapter features a positive-lock ring. Note: The PL/EF mount works with SLR Magic PL lenses only.
In the Box - 35mm 1.33x Anamorphot-CINE Lens (PL Mount) auusqzdedvaffw
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the SLR Magic 35mm 1.33x Anamorphot-CINE Lens and EF-Mount Adapter Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - SLR Magic 35mm 1.33x Anamorphot-CINE Lens (PL Mount)
| Focal Length | 35mm | | Lens Mount | ARRI PL | | Format | Super35/APS-C | | Minimum Focus Distance from Image Plane | 3.5' / 1.1 m | | Filter Thread | 82 mm | | Horizontal Squeeze (Anamorphic) | 1.33x | | Dimensions (W x H) | 3.9 x 3.9" / 99.1 x 99.1 mm | | Length | 5.3" / 13.5 cm | | Weight | 38.1 oz / 1.1 kg | | | | Box Dimensions (LxWxH) | 11.2 x 9.9 x 6.9" | - SLR Magic PL to EF-Mount Adapter
| Material of Construction | Aluminum with titanium ring | | Dimensions (Diam. x Depth) | 3.2 x 0.7" (82 x 17.5 mm) | | Weight | 3.2 oz (90 g) | | | | Box Dimensions (LxWxH) | 4.1 x 3.9 x 2.7" |
