Product description

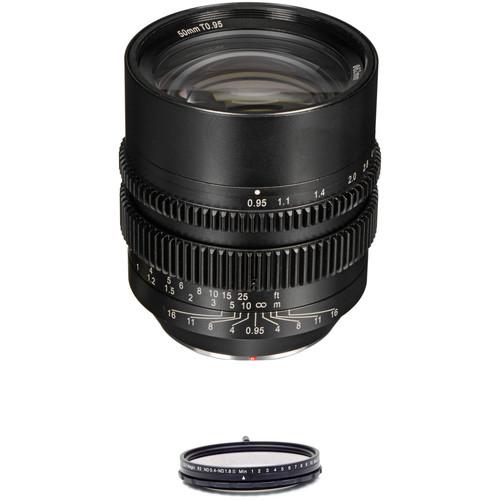

• SLR Magic HyperPrime 50mm T0.95 Lens with MFT Mount The SLR Magic HyperPrime 50mm T0.95 Lens with MFT Mount is exceptionally fast, making it suitable for extremely low light filming. It supports a cine-style workflow when shooting on a camera with an MFT mount. It features a T0.95 to T16 iris range, with a clickless iris that allows smooth iris pulls, and geared focus and aperture rings.

  The lens features a dedicated MFT mount, providing a 35mm equivalent field of view of 100mm on a Four Thirds-sized sensor. With an 88.8mm length, 72.2mm diameter, and a 12-blade iris, the lens is compact and functional.
  Coverage
  • 100mm on a standard Micro Four Thirds Sensor.
  • The clickless iris allows you to smoothly adjust your exposure during the shot.
  • Built-in iris and focus gears follow industry standards, allowing you to work with optional follow focus units and lens gear motors.
  • Focus rotation of the lens follows the cinema standard, allowing you to swap between this and other optional lenses without having to change your workflow.
• SLR Magic 62mm Self-Locking Variable Neutral Density 0.4 to 1.8 Filter (1.3 to 6 Stops) The SLR Magic 62mm Self-Locking Variable Neutral Density 0.4 to 1.8 Filter is a solid variable neutral density filter that is designed to mount onto lenses with 62mm front filter threads and provides an exposure reduction of 1.3 to 6 stops. The 0.4 to 1.8 density creates a darkening of the entire image, allowing you to photograph with a wider aperture or slower shutter speed than normally required. The degree of density is easily controlled by rotating the front filter ring, helping you to predetermine the additional exposure length required. By slowing your exposure time or increasing your aperture, you are able to control depth of field and convey movement more easily. For easier, repeatable control over density settings, the front ring is visually demarcated with numbers representing different density values and includes a rotation lever to further enable fast and precise positioning of the front ring. Once the front ring is rotated into a position that corresponds to the desired amount of density, the filter's rear ring can then be turned to lock the front ring into place, helping to ensure consistent exposures.

  This filter is constructed from optical glass for clarity and color fidelity. It is multi-coated to prevent internal ghosting as well as reflections and also features a 72mm mount which helps to reduce the likelihood of vignetting when used with wide-angle lenses.
  • Variable neutral density filter allows you to dial in differing amounts of density scene to scene.
  • 0.4 to 1.8 neutral density filter darkens the image, allowing you to photograph with a longer shutter speed or wider aperture than normally required.
  • Providing a reduction of 1.3 to 6 stops, this filter allows you to control depth of field and convey movement more easily.
  • Offers increased flexibility to use specific ISO settings or ISO films under bright ambient light.
  • Provides increased exposure flexibility while using cinema or video cameras within a designated film frame rate.
  • Multi-coated, optical glass for clarity and color fidelity as well as the prevention of internal ghosting and reflections.
  • Side lever allows the filter glass to be easily rotated.
  • Integrated exposure locking ring prevents accidental rotation of filter glass and changes to corresponding density values.
  • 72mm front mount helps to reduce the likelihood of vignetting with wide-angle lenses.
  • Plastic filter case for storage and transport.

• HyperPrime 50mm T0.95 Lens with MFT Mount wcvbfsdeaqfwasusrzct
• Front Lens Cap
• Rear Lens Cap
• Limited 1-Year Warranty

• 62mm Self-Locking Variable Neutral Density 0.4 to 1.8 Filter (1.3 to 6 Stops) wcvbfsdeaqfwasusrzct

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• SLR Magic HyperPrime 50mm T0.95 Lens with MFT Mount

  Focal Length	50mm
  Lens Mount	Micro Four Thirds
  Format	MFT
  Maximum T-Stop	T0.95
  Minimum T-Stop	T16
  Gear MOD & Pitch	Focus: 0.8 MOD / 32 Pitch Iris: 0.8 MOD / 32 Pitch
  Filter Thread	62 mm
  Dimensions (W x H)	2.90 x 2.90" / 73.7 x 73.7 mm
  Length	3.5" / 88.8 mm
  Weight	12.3 oz / 350.0 g

  Box Dimensions (LxWxH)	5.4 x 5.2 x 5.2"

• SLR Magic 62mm Self-Locking Variable Neutral Density 0.4 to 1.8 Filter (1.3 to 6 Stops)

  Filter Type	Variable ND
  Density	0.4 (1.3 Stops) to 1.8 (6 Stops)
  Shape	Circle
  Circular Size	62 mm
  Front Accessory Thread / Bayonet	72 mm
  Filter Material	Glass
  Coatings	Multi-Coating

  Box Dimensions (LxWxH)	5.4 x 5.3 x 1.5"
