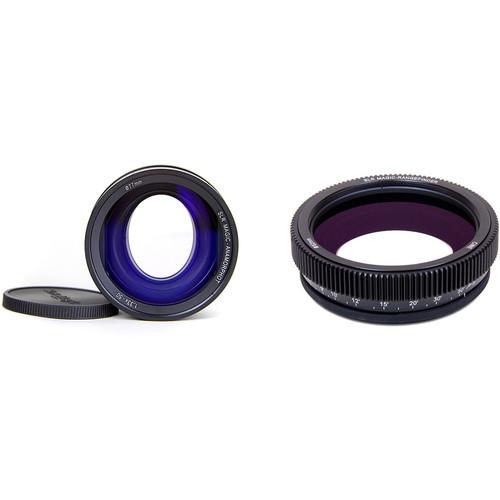

SLR Magic Anamorphot-50 1.33x with Rangefinder

User Manual for SLR Magic Anamorphot-50 1.33x with Rangefinder Cine Adapter Kit

• Product category: Lens Attachments & Converters SLR Magic
• Brand: SLR Magic
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for SLR Magic Lens Attachments & Converters

Product description

• SLR Magic Anamorphot-50 1.33x Anamorphic Adapter The SLR Magic Anamorphot-50 1.33x Anamorphic Adapter allows you to expand your creative horizons, enabling you to capture footage with a 2.35:1 aspect ratio on your camera with a 16:9 sensor. This results in an image that out of the camera will look distorted, as if your subjects were stretched taller and thinner than normal. This is easily corrected in post with virtually any modern NLE, creating an image suitable for viewing on wide-screen.

  The Anamorphot-50 features adjustable focus marked normal and near. The near adjustment allows you to focus on subjects closer than 6.5' away; setting the adapter to normal allows you to focus on subjects from 6.5' to infinity. It mounts to lenses with a non-rotating front and a front thread diameter of 62mm. Three included step-up rings allow you to mount the Anamorphot onto lenses with 58, 52, or 49mm front thread diameter. SLR Magic recommends that the Anamorphot-50 1.33x be used with lenses that have a front element that is physically no larger than 50mm in diameter.
  • A 16:9 sensor records an image with an aspect ratio of approximately 1.78:1, and if you want to convert that to a more cinematic widescreen aspect ratio of 2.35:1 you could crop your image in post. However, this leads to a loss in resolution and image degradation. The Anamorphot 1.33x squeezes the image horizontally, which creates the classic tall / thin image that must be "de-squeezed" in post. The anamorphic process allows you to capture your image using your entire sensor, so there is no loss in resolution when compared with cropping your image.
  • The Anamorphot-50 1.33x screws onto your lens's front, providing the classic anamorphic effect. Once screwed onto your lens, you use the push/pull locking ring to align and lock the Anamorphot-50.
  • The Normal/Near adjustments ring allows you to fine-tune the focus of your lens for shooting subjects closer than 6.5'.
  • It features a 77mm filter thread so you can attach optional filters, diopters, or the SLR Magic Rangefinder Cine for improved focus functionality.
• SLR Magic Rangefinder Cine Adapter (Calibrated in Feet) Made to greatly simplify the process of focusing with anamorphic adapters, this SLR Magic Rangefinder Cine Adapter provides a calibrated focus scale, marked in feet, industry standard focus direction, and a cine-style focus gear for your lens set up. When using most anamorphic adapters that mount to the front of your lens, focusing requires matching the distance on the anamorphic adapter and the lens itself; this can cause problems when trying to pull focus. However, when using the Cine Rangefinder, you set both your anamorphic adapter and lens to infinity and pull focus on the rangefinder.

  You can use the Rangefinder Cine Adapter to provide accurate focus markings, and using the adapter minimizes the appearance of lens breathing. It mounts to lenses with 77mm front filter threads, and you can use optional step-down rings for lenses with smaller front threads. The adapter integrates a cine-style focus gear, allowing it to easily interface with a variety of optional focus accessories. It allows you to focus your lens or lens/anamorphic adapter combination from 3.5' to infinity.
  • Works with SLR Magic Anamorphot adapters (1.33x50 and 2x50) to provide single gear ring focusing.
  • You can use the Cine Rangefinder on lenses without an anamorphic adapter as well. This is useful when working with lenses such as Nikons, which focus in the opposite direction from cine-style lenses, or when using lenses that have neither focus gear nor reliable distance markings.
  • Using the adapter allows you to minimize the effects of breathing that your lens or lens / adapter combination would ordinarily suffer from.
  • Once your taking lens is properly set to infinity, the focus distances on the adapter (marked in feet) are accurate and repeatable.
  • The adapter provides your lens with a focus range of 3.5' to infinity. Even if your lens or lens and anamorphic adapter combination by themselves do not focus as close as 3.5', using the adapter brings the minimum focus distance to 3.5'
  • The front 82mm filter threads of the adapter rotate as you pull focus on it. This may cause unwanted optical effects when using filters such as star or polarizers.

• Anamorphot-50 1.33x Anamorphic Adapter ydrbfqreaszedzudsrdewebxaxbzsastuzedaz
• Front Plastic Cap
• Rear Plastic Cap
• 49 to 62mm Step-Up Ring
• 52 to 62mm Step-Up Ring
• 58 to 62mm Step-Up Ring
• Limited 1-Year Warranty

• Rangefinder Cine Adapter (Calibrated in Feet)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• SLR Magic Anamorphot-50 1.33x Anamorphic Adapter

  Mounting

  Rear Mounting Threads: 62 mm Front Filter Threads: 77 mm

  Box Dimensions (LxWxH)	7.7 x 4.6 x 4.5"

• SLR Magic Rangefinder Cine Adapter (Calibrated in Feet)

  Dioptric Strength	Variable
  Filter Thread	Rear: 77 mm Front: 82 mm
  Dimensions	Max Diameter: 3.8" / 97 mm (approx.) Length: 1" / 2.54 cm (approx.)
  Weight	12 oz / 340 g (approx.)

  Box Dimensions (LxWxH)	5.6 x 5.2 x 2.5"
