User Manual for SLR Magic Anamorphot-50 2.0x Anamorphic Adapter Click to enlarge the picture
Contents of the user manual for the SLR Magic Anamorphot-50 2.0x Anamorphic Adapter
- Product category: Lens Attachments & Converters SLR Magic
- Brand: SLR Magic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SLR Magic Lens Attachments & Converters
 |
User manual for the SLR Magic Anamorphot-50 2.0x Anamorphic Adapter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SLR Magic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SLR Magic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SLR Magic product will considerably shorten its lifespan!
|

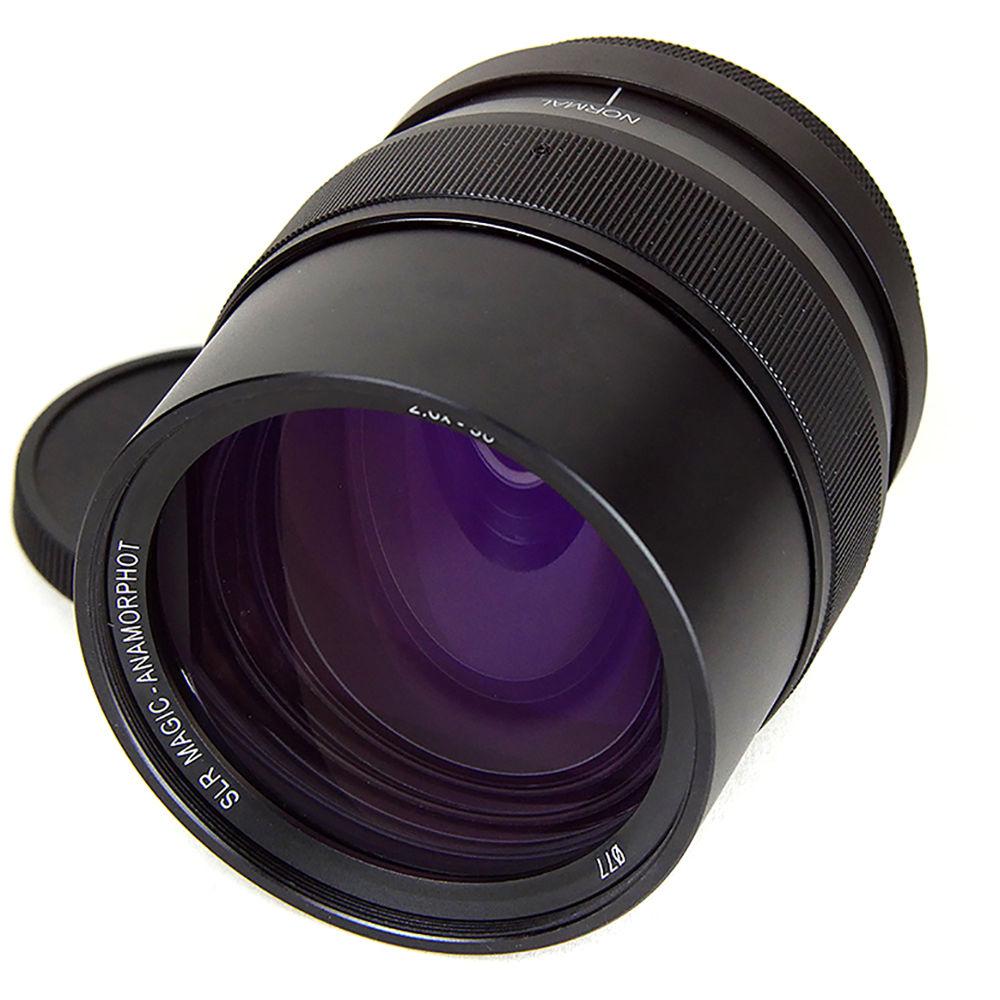

Product description Exploring the World of Infrared Flash Photography Read More The SLR Magic Anamorphot-50 2.0x Anamorphic Adapter allows you to expand your creative horizons, enabling you to capture footage with a 2.66:1 aspect ratio on your camera with a 4:3 sensor. This results in an image that out of the camera will look distorted, as if your subjects were stretched taller and thinner than normal. This is easily corrected in post with virtually any modern NLE, creating an image suitable for viewing on wide-screen.
The Anamorphot-50 features adjustable focus marked normal and near. The near adjustment allows you to focus on subjects closer than approximately 26' away; setting the adapter to normal allows you to focus on subjects from approximately 26' to infinity. It mounts to lenses with a non-rotating front and a front thread diameter of 62mm. SLR Magic recommends that the Anamorphot-50 2.0x be used with lenses that have a front element that is physically no larger than 50mm in diameter. - A 4:3 sensor records an image with an aspect ratio of approximately 1.33:1, and if you want to convert that to a more cinematic widescreen aspect ratio of 2.35:1 you could crop your image in post. However, this leads to a loss in resolution and image degradation. The Anamorphot 2.0x squeezes the image horizontally, which creates the classic tall / thin image that must be "de-squeezed" in post. The anamorphic process allows you to capture your image using your entire sensor, so there is no loss in resolution when compared with cropping your image.
- The Anamorphot-50 2.0x screws onto your lens's front, providing the classic anamorphic effect. Once screwed onto your lens, you use the push/pull locking ring to align and lock the Anamorphot-50.
- Supports focal lengths between 35 and 100mm for APS-C and MFT format sensors, and 70 to 100mm for full-frame format sensors.

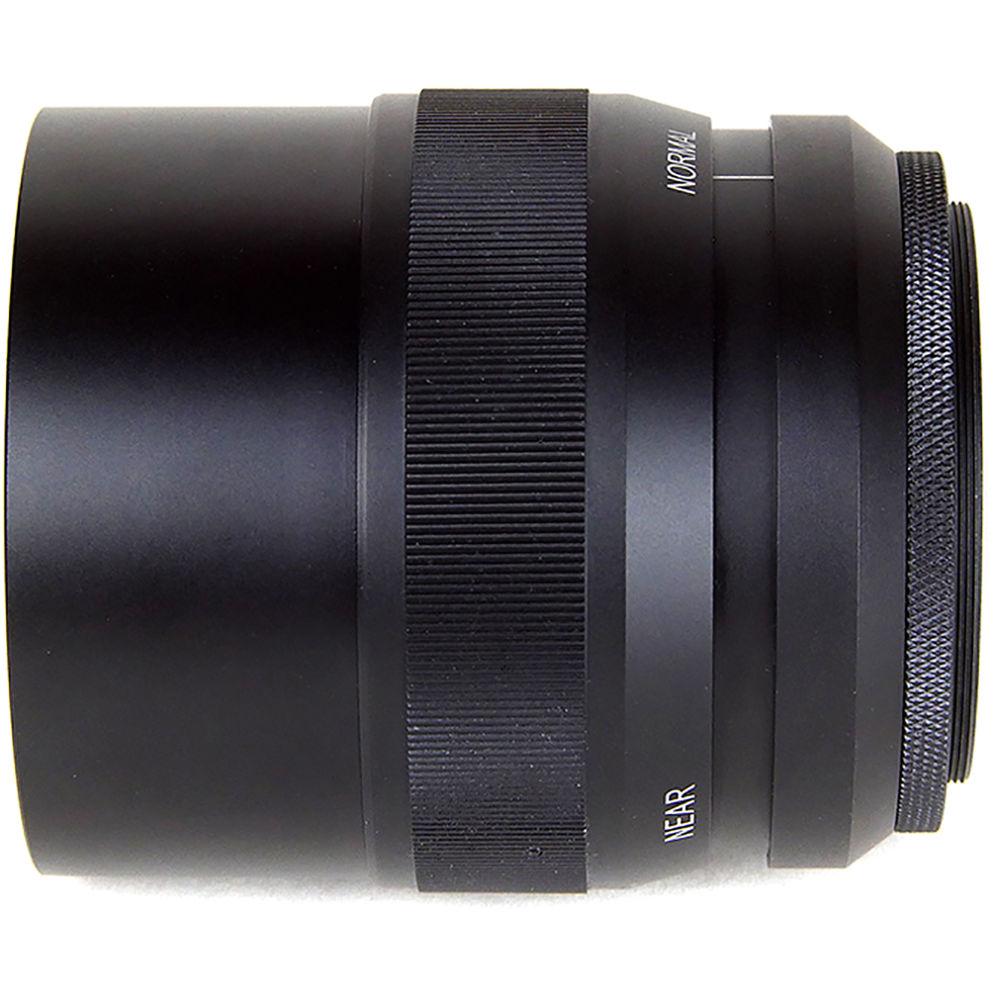

- The Normal/Near adjustments ring allows you to fine-tune the focus of your lens for shooting subjects closer than approximately 26'.

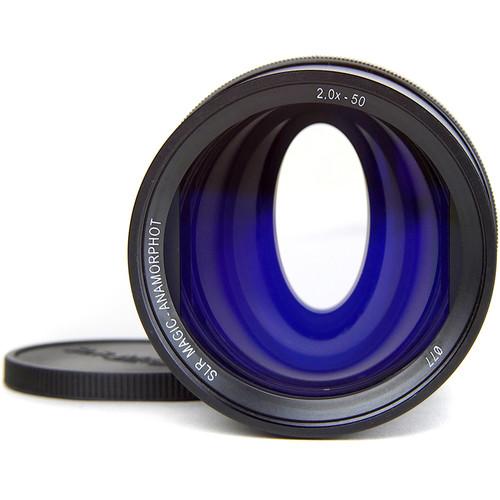

- It features a 77mm filter thread so you can attach optional filters, diopters, or the SLR Magic Rangefinder Cine for improved focus functionality.
In the Box SLR Magic Anamorphot-50 2.0x Anamorphic Adapter Front Plastic Cap Rear Plastic Cap Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SLR Magic Anamorphot-50 2.0x Anamorphic Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSLR Magic SLRA50-2X Specs | Mounting | Rear Mounting Threads: 62 mm
Front Filter Threads: 77 mm | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 5.3 x 5.2 x 5.1" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 02 owners. Add your rating and experience with the product.
