Product description

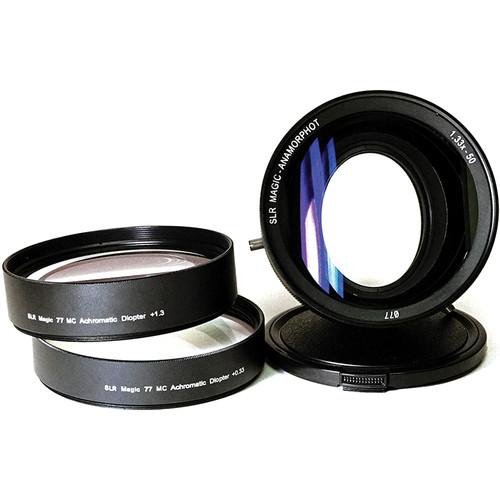

• Anamorphot 1.33X - 50 Anamorphic Lens Attachment Creating a widescreen 2.35:1 image using a camera with a 16:9 (1.78:1) sensor requires you to either crop the image or use an anamorphic lens attachment such as the SLR Magic Anamorphot 1.33X - 50 Anamorphic Lens Attachment. The SLR Magic adapter features a 1.33x anamorphic element that allows you to use the your cameras entire 16:9 sensor to get a 2.35:1 aspect ratio, as opposed to throwing away information by cropping the 16:9 sensor to achieve an image with a 2.35:1 ratio. Cropping an image causes a loss in resolution, but the Anamorphot 1.33x - 50 is actually squeezing more information onto your sensor. This does result in your recorded footage having the classic tall/thin squeezed image. However, this is easily expanded to a 2.35:1 aspect ratio in most NLE systems, and cameras with variable display adjustments allows you to stretch your image in the viewfinder.

  The Anamorphot mounts onto your taking lens and features three locking screws that you tighten to secure the adapter once you have aligned it on your taking lens. Please note you can only use the Anamorphot on lenses with a non-rotating front, otherwise the anamorphic effect will rotate as you change focus. The Anamorphot's native mounting thread size is 62mm and will mount directly to lenses that feature 62mm filter threading. The included three step-down rings allow you to mount the attachment on optional lenses with a 49, 52, or 58mm front thread. You can use the adapter on lenses that feature a front filter thread larger than 62mm by using optional step-up rings, however optimum results are not guaranteed, and SLR magic recommends using the adapter on lenses with a front element that is physically smaller than 50mm in diameter. The Anamorphot features a Normal/Near adjustment setting. SLR Magic recommends setting the adapter to Normal, and only adjusting the setting to Near when shooting objects closer than 6.5 feet.

  Anamorphic Effect

  • The front mounted anamorphic attachment provides the classic anamorphic look and effect to your footage.
  • The Normal/Near adjustments ring allows you to fine-tune the focus of your lens for shooting subjects closer than 6.5 feet.
  • The Anamorphot can be fine tuned to exactly align the anamorphic effect horizontally.
  • The front of the Anamorphot features a 77mm filter thread.
  Suggested Taking Lens Based on Sensor Size
  • • 17-85mm focal length can be used for S16 sensor.
    • 20-85mm focal length can be used for MFT sensor.
    • 35-85mm focal length can be used for S35 and APS-C sensor.
    • 40-85mm focal length can be used for Full Frame sensor.


    Note: These are recommendations only, and you should make your own judgement about what lens to use based on your observation and experience.
  Recommended Maximum Aperture Values
  • • f/2.8 for 20 to 50mm focal lengths
    • f/4.0 for 55 to 85mm focal lengths
    • f/5.6 for 90 to 135mm focal lengths


    Note: These are recommendations only, and you should make your own judgment about what f/stop to use based on your observation and experience.
• Achromatic Diopter Set (+0.33, +1.33) Using an Anamorphic Attachment will often limit your taking-lens' ability to focus close to the camera; however, the SLR Magic Achromatic Diopter Set is a pair of diopters with a 77mm diameter thread. The set features highly-corrected glass elements that allow you to close focus with your SLR Magic Anamorphot attachment, or other lenses with a 77mm thread.

  When using these diopters with your SLR Magic Anamorphot the +0.33 diopter is effective for focusing between 5 and 10', while the +1.33 is effective for focusing closer than 3.5'.
  • Corrected optics minimize chromatic aberration in use.
  • Coated optics for flare reduction.
  • Diopters are stackable, although SLR magic recommends only doing this with taking lenses longer than 35mm to avoid vignetting.
  • The diopters come in a small filter case with a magnetic clasp.

• 49 to 62mm Adapter Ring

• 52 to 62mm Adapter Ring

• 58 to 62mm Adapter Ring

• Front & Rear Caps

• Limited 1-Year Warranty

• Hard Sided Filter Case

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Anamorphot 1.33X - 50 Anamorphic Lens Attachment

  Type	Anamorphic Adapter
  Lens Mount	Native: 62mm Thread Included Adapters: 58, 52, 49mm
  Magnification	1.33x horizontal squeeze
  Minimum Object Distance (M.O.D.)	Depends on taking lens
  Filter Size	77mm
  Weight	13.4 oz / 380 g

  Box Dimensions (LxWxH)	7.7 x 4.7 x 4.6"

• Achromatic Diopter Set (+0.33, +1.33)

  Application	Close-up
  Dioptric Strength	+0.33 +1.33
  Filter Thread	77mm
  Attachment Method	Filter threads
  Dimensions	Diameter: Approx. 3.13" / 79.4 mm Thickness: Approx. 6.23 / 15.9 mm

  Box Dimensions (LxWxH)	4.1 x 3.9 x 2.6"
