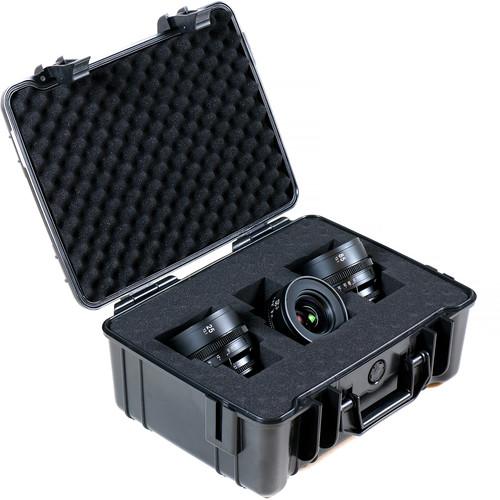

Product description Cinema Lens Care and Maintenance Read More This three-lens set of SLR Magic's APO HyperPrime Cine Lenses includes 25, 50, and 85mm lenses and a hard-sided lens case with custom cut foam. The lenses are designed for cine-style production and feature a T2.1 to T22 aperture range and cover full-frame sensors with a 44mm image circle. The lenses have built-in 0.8 Mod focus and iris gears so each lens is compatible with standard cine-style lens accessories. The lenses feature an internal focus design for a constant lens length, even when adjusting focus, and a non-rotating front. The 95mm front outer diameter is a standard size, facilitating lens accessories. The PL-mount is extremely strong and durable, and the standard within the cine industry. The included hard case holds all three lenses and features custom cut foam, a gasketed lid, and a pressure relieve valve. - APO HyperPrime CINE 25mm T2.1 Lens (PL Mount) A cine-style lens that covers full-frame sensors, the SLR Magic APO HyperPrime CINE 25mm T2.1 Lens projects a 44mm image circle and is suitable for use with cameras with high-resolution full-frame sensors. It features cine-style focus and iris gears and an internal focus design that allows you to pull focus without the length of the lens changing. This makes it well-suited for use with rod-mounted lens accessories and matte boxes. The 300° of focus rotation provides for precise focus pulls especially when working at close focus. The lens focuses in the industry standard direction and has a 95mm front diameter. The front of the lens does not rotate as you change focus, which may allow for the use of clip-on matte boxes and sunshades (depending on weight) as well as polarizing filters. The lens incorporates an ARRI PL mount that provides a simple, strong, and highly reliable mount.
- Coverage
- The lens covers full-frame sensors.
- Internal Focus
- The internal focus design allows you to pull focus without the length of the lens changing. This is especially important when working with rod-mounted lens accessories such as follow focus units so that the gears remain engaged as focus changes. The consistent lens length also makes using a rod-mounted matte box simpler, as there is no concern for pushing into or pulling out of the matte box, and you don't need a bellows-style anti-reflection ring.
- Industry Standard Focus and Iris Gears
- Built-in iris and focus gears follow industry standards, allowing you to work with optional follow focus units and lens gear motors.
- 300° of Lens Rotation
- 300° of focus rotation enables precise focus adjustment, especially as you focus close to the lens.

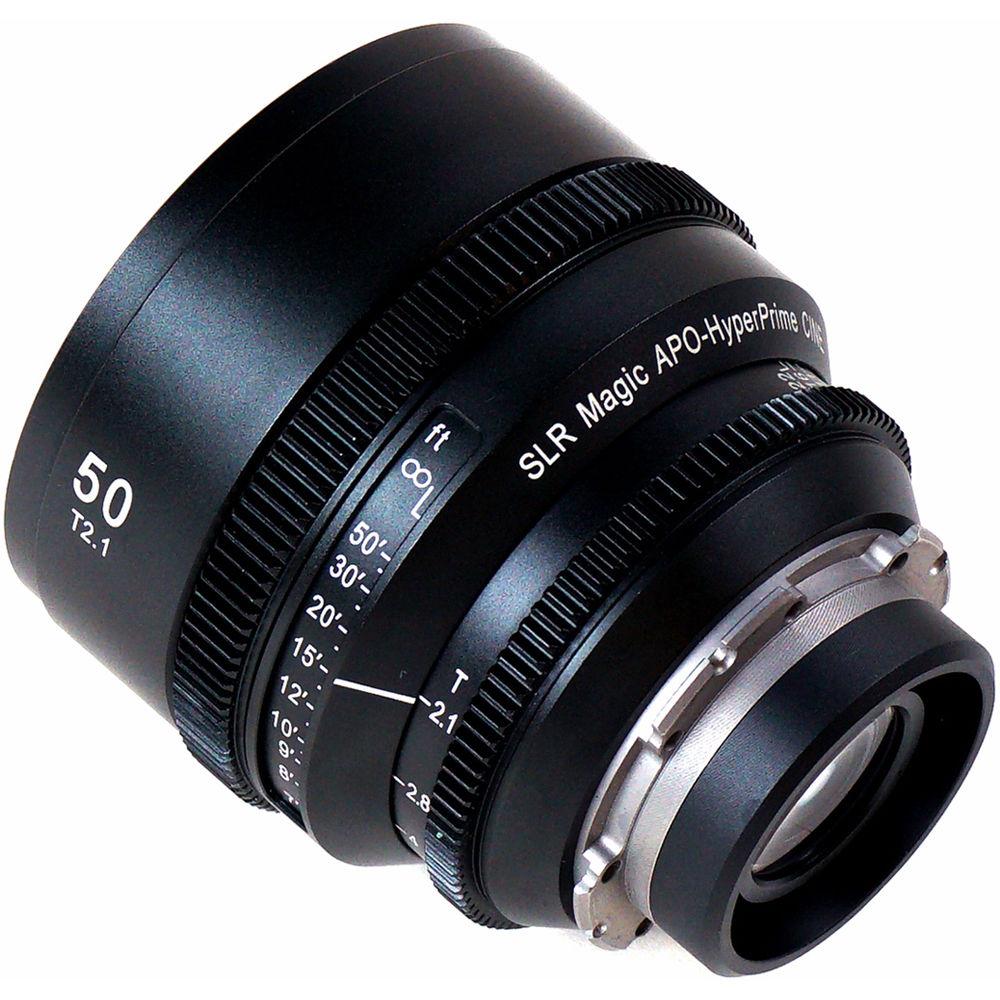

- APO HyperPrime CINE 50mm T2.1 Lens (PL Mount) A cine-style lens that covers full-frame sensors, the SLR Magic APO HyperPrime CINE 50mm T2.1 Lens projects a 44mm image circle and is suitable for use with select cameras that have a 6K sensor. It features cine-style focus and iris gears and an internal focus design that allows you to pull focus without the length of the lens changing. This makes it well-suited for use with rod-mounted lens accessories and matte boxes. The 300° of focus rotation provides for precise focus pulls especially when working at close focus. The lens focuses in the industry standard direction and has a 95mm front diameter. The front of the lens does not rotate as you change focus, which may allow for the use of clip-on matte boxes and sunshades (depending on weight) as well as polarizing filters. The lens incorporates an ARRI PL mount that provides a simple, strong, and highly reliable mount.
- Coverage
- The lens covers full-frame sensors.
- Internal Focus
- The internal focus design allows you to pull focus without the length of the lens changing. This is especially important when working with rod-mounted lens accessories such as follow focus units so that the gears remain engaged as focus changes. The consistent lens length also makes using a rod-mounted matte box simpler, as there is no concern for pushing into or pulling out of the matte box, and you don't need a bellows-style anti-reflection ring.
- Industry Standard Focus and Iris Gears
- Built-in iris and focus gears follow industry standards, allowing you to work with optional follow focus units and lens gear motors.
- 300° of Lens Rotation
- 300° of focus rotation enables precise focus adjustment, especially as you focus close to the lens.

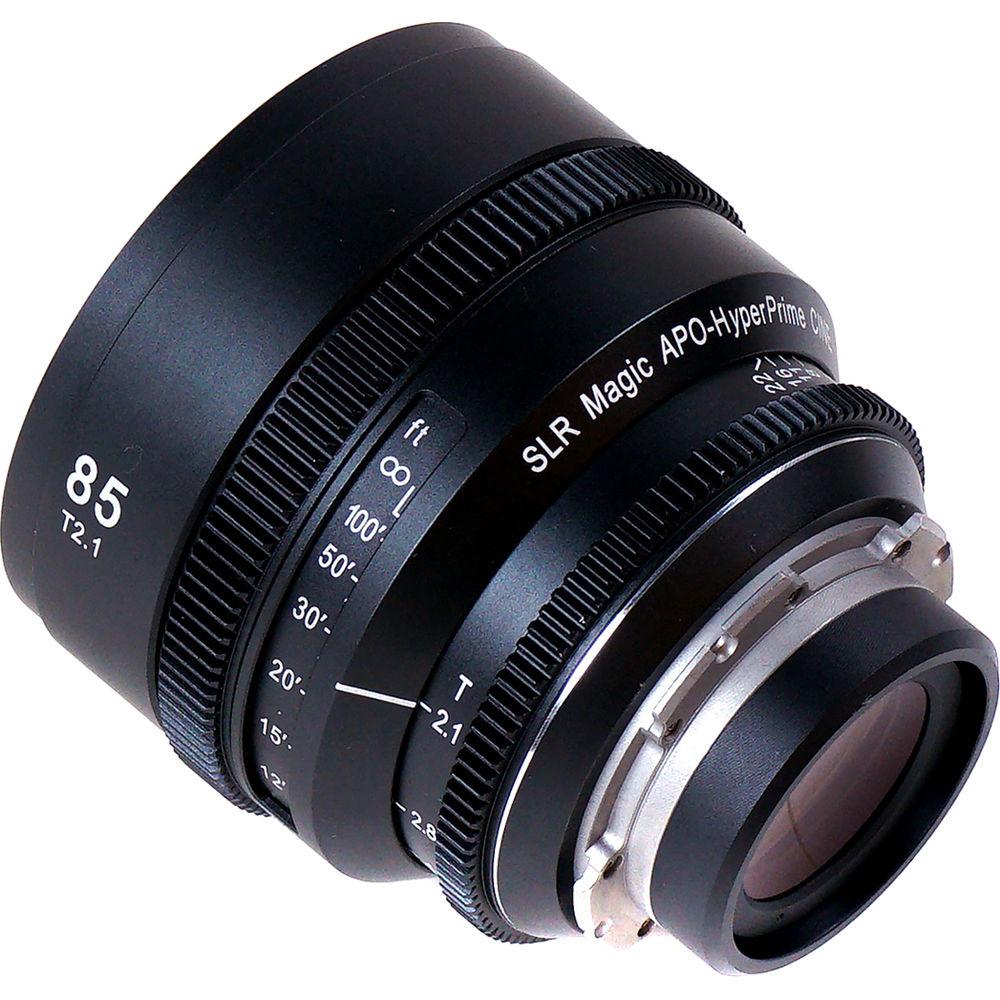

- APO HyperPrime CINE 85mm T2.1 Lens (PL Mount) A cine-style lens that covers full-frame sensors, the SLR Magic APO HyperPrime CINE 85mm T2.1 Lens projects a 44mm image circle and is suitable for use with select cameras that have a 6K sensor. It features cine-style focus and iris gears and an internal focus design that allows you to pull focus without the length of the lens changing. This makes it well-suited for use with rod-mounted lens accessories and matte boxes. The 300° of focus rotation provides for precise focus pulls especially when working at close focus. The lens focuses in the industry standard direction and has a 95mm front diameter. The front of the lens does not rotate as you change focus, which may allow for the use of clip-on matte boxes and sunshades (depending on weight), as well as polarizing filters. The lens incorporates an ARRI PL mount that provides a simple, strong, and highly reliable mount.
- Coverage
- The lens covers full-frame sensors.
- Internal Focus
- The internal focus design allows you to pull focus without the length of the lens changing. This is especially important when working with rod-mounted lens accessories such as follow focus units so that the gears remain engaged as focus changes. The consistent lens length also makes using a rod-mounted matte box simpler, as there is no concern for pushing into or pulling out of the matte box, and you don't need a bellows-style anti-reflection ring.
- Industry Standard Focus and Iris Gears
- Built-in iris and focus gears follow industry standards, allowing you to work with optional follow focus units and lens gear motors.
- 300° of Lens Rotation
- 300° of focus rotation enables precise focus adjustment, especially as you focus close to the lens.
In the Box Bundle Items APO HyperPrime CINE 25mm T2.1 Lens (PL Mount) wbuurfwzabxfcqvwwdvxwdcydcwvavd APO HyperPrime CINE 50mm T2.1 Lens (PL Mount) APO HyperPrime CINE 85mm T2.1 Lens (PL Mount)
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the SLR Magic APO HyperPrime CINE 25, 50, 85mm T2.1 Lens Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

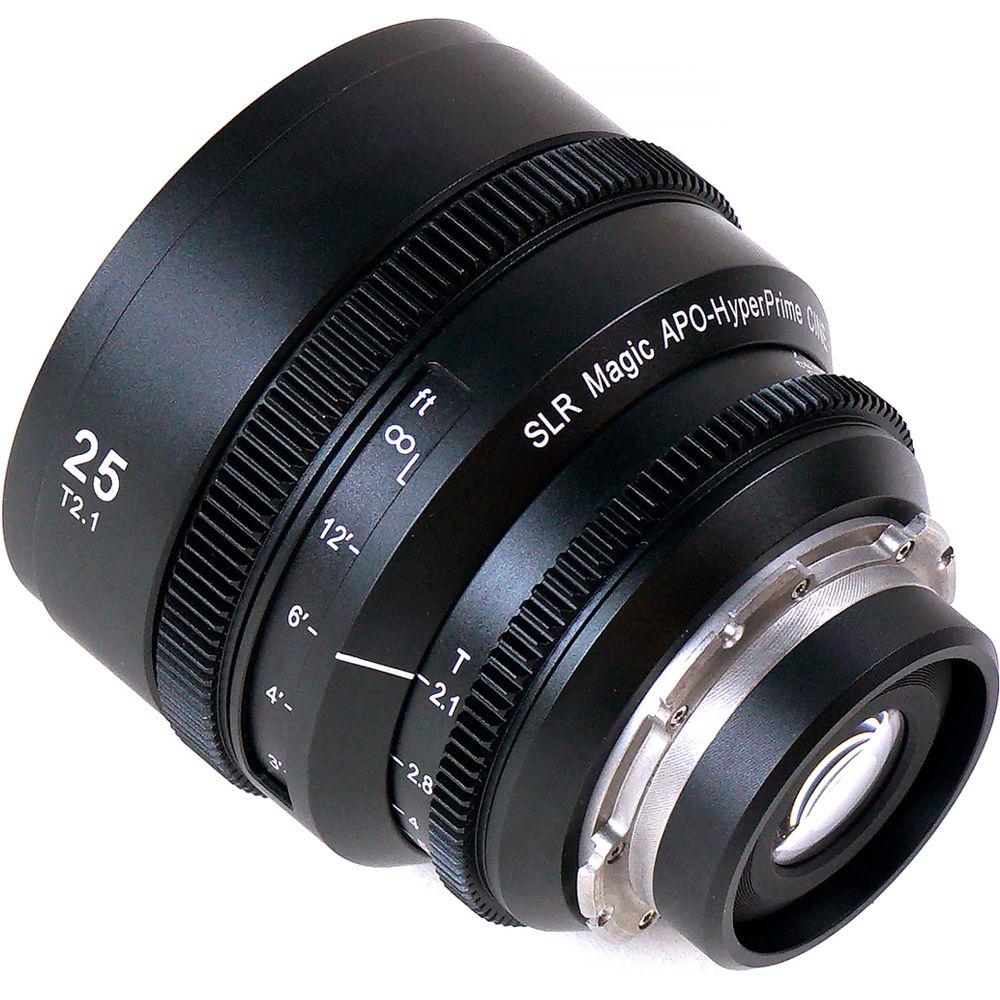

Technical parameters - APO HyperPrime CINE 25mm T2.1 Lens (PL Mount)
| Focal Length | 25mm | | Lens Mount | ARRI PL | | Format | Full Frame | | Image Circle | 44.0 mm | | Maximum T-Stop | T2.1 | | Minimum T-Stop | T22 | | Minimum Focus Distance from Image Plane | 12" / 31 cm | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 95 mm | | Filter Thread | 82 mm | | Focus Scales | Imperial | | Focus Rotation | 300° | | Electronic Communication | No | | Length | 3.7" / 9.4 cm | | Weight | 2.4 lb / 1.1 kg | | | | Box Dimensions (LxWxH) | 7.4 x 5.7 x 5.6" | - APO HyperPrime CINE 50mm T2.1 Lens (PL Mount)
| Focal Length | 50mm | | Lens Mount | ARRI PL | | Format | Full Frame | | Image Circle | 44.0 mm | | Maximum T-Stop | T2.1 | | Minimum T-Stop | T22 | | Minimum Focus Distance from Image Plane | 24" / 31 cm | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 95 mm | | Filter Thread | 58 mm | | Focus Scales | Imperial | | Focus Rotation | 300° | | Electronic Communication | No | | Length | 3.7" / 9.4 cm | | Weight | 2.4 lb / 1.1 kg | | | | Box Dimensions (LxWxH) | 7.4 x 5.7 x 5.5" | - APO HyperPrime CINE 85mm T2.1 Lens (PL Mount)
| Focal Length | 85mm | | Lens Mount | ARRI PL | | Format | Full Frame | | Image Circle | 44.0 mm | | Maximum T-Stop | T2.1 | | Minimum T-Stop | T22 | | Minimum Focus Distance from Image Plane | 36" / 91.4 cm | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 95 mm | | Focus Rotation | 300° | | Electronic Communication | No | | Length | 3.7" / 9.4 cm | | Weight | 2.4 lb / 1.1 kg | | | | Box Dimensions (LxWxH) | 7.4 x 5.7 x 5.6" |
