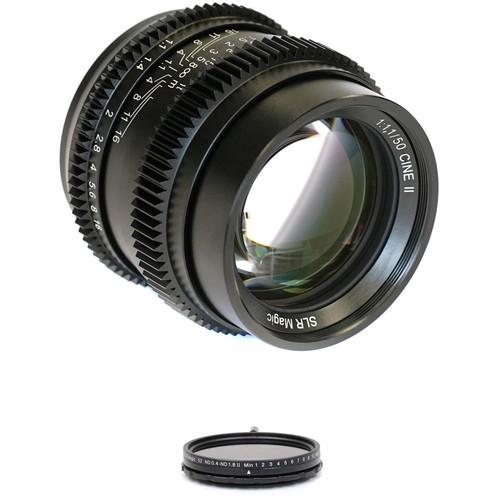

User Manual for SLR Magic Cine II 50mm f 1.1 Lens & Variable ND Filter Kit

• Product category: Digital Cine Lenses SLR Magic
• Brand: SLR Magic
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for SLR Magic Digital Cine Lenses

Product description

• SLR Magic Cine II 50mm f/1.1 Lens (Sony E-Mount) The SLR Magic Cine II 50mm f/1.1 Lens is a Sony E-mount cine-style lens providing full-frame sensor coverage. This second-generation Cine prime offers improved image capture and features seven lens elements in five groups. Weighing just under a pound, the Cine II 50mm features a fast f/1.1 maximum aperture for producing a shallow depth of field. Cine-style features include geared focus and aperture rings, a clickless iris that enables smooth aperture pulls, and a 13-blade Iris for a rounded aperture and pleasing bokeh. The front of the lens does not rotate as you focus, enabling the use of optional polarizing filters or accessories such as clip-on matte boxes.
  Coverage
  • Full-frame 50mm prime lens
  Features
  • • Cine II version with seven elements in six groups for improved image quality
    • Industry-standard focus and iris gear rings for compatibility with optional follow focus units and lens gear motors
    • A cine-style clickless iris enables you to smoothly adjust your exposure during the shot
• SLR Magic 52mm Self-Locking Variable Neutral Density 0.4 to 1.8 Filter (1.3 to 6 Stops) The SLR Magic 52mm Self-Locking Variable Neutral Density 0.4 to 1.8 Filter is a solid variable neutral density filter that is designed to mount onto lenses with 52mm front filter threads and provides an exposure reduction of 1.3 to 6 stops. The 0.4 to 1.8 density creates a darkening of the entire image, allowing you to photograph with a wider aperture or slower shutter speed than normally required. The degree of density is easily controlled by rotating the front filter ring, helping you to predetermine the additional exposure length required. By slowing your exposure time or increasing your aperture, you are able to control depth of field and convey movement more easily. For easier, repeatable control over density settings, the front ring is visually demarcated with numbers representing different density values and includes a rotation lever to further enable fast and precise positioning of the front ring. Once the front ring is rotated into a position that corresponds to the desired amount of density, the filter's rear ring can then be turned to lock the front ring into place, helping to ensure consistent exposures.

  This filter is constructed from optical glass for clarity and color fidelity. It is multi-coated to prevent internal ghosting as well as reflections and also features a 62mm mount which helps to reduce the likelihood of vignetting when used with wide-angle lenses.
  • Variable neutral density filter allows you to dial in differing amounts of density scene to scene.
  • 0.4 to 1.8 neutral density filter darkens the image, allowing you to photograph with a longer shutter speed or wider aperture than normally required.
  • Providing a reduction of 1.3 to 6 stops, this filter allows you to control depth of field and convey movement more easily.
  • Offers increased flexibility to use specific ISO settings or ISO films under bright ambient light.
  • Provides increased exposure flexibility while using cinema or video cameras within a designated film frame rate.
  • Multi-coated, optical glass for clarity and color fidelity as well as the prevention of internal ghosting and reflections.
  • Side lever allows the filter glass to be easily rotated.
  • Integrated exposure locking ring prevents accidental rotation of filter glass and changes to corresponding density values.
  • 62mm front mount helps to reduce the likelihood of vignetting with wide-angle lenses.
  • Plastic filter case for storage and transport.

• Cine II 50mm f/1.1 Lens (Sony E-Mount) tvwrabucwyrydyaetztryssrcbfswrfettzwr
• Front Lens Cap
• Rear Lens Cap
• Limited 1-Year Warranty

• 52mm Self-Locking Variable Neutral Density 0.4 to 1.8 Filter (1.3 to 6 Stops) tvwrabucwyrydyaetztryssrcbfswrfettzwr

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• SLR Magic Cine II 50mm f/1.1 Lens (Sony E-Mount)

  Focal Length	50mm
  Lens Mount	Sony E
  Format	Full Frame
  Maximum F-Stop	f/1.1
  Minimum F-Stop	f/16
  Minimum Focus Distance from Image Plane	1.6' / 0.5 m
  Optical Design	7 Elements in 6 Groups
  Iris Blades	13
  Gear MOD & Pitch	Focus: 0.8 MOD / 32 Pitch Iris: 0.8 MOD / 32 Pitch
  Filter Thread	52 mm
  Focus Scales	Metric, Imperial
  Electronic Communication	No
  Weight	15.9 oz / 450.0 g

  Box Dimensions (LxWxH)	5.0 x 4.5 x 4.5"

• SLR Magic 52mm Self-Locking Variable Neutral Density 0.4 to 1.8 Filter (1.3 to 6 Stops)

  Filter Type	Variable ND
  Density	0.4 (1.3 Stops) to 1.8 (6 Stops)
  Shape	Circle
  Circular Size	52 mm
  Front Accessory Thread / Bayonet	62 mm
  Filter Material	Glass
  Coatings	Multi-Coating

  Box Dimensions (LxWxH)	5.3 x 5.1 x 1.5"
