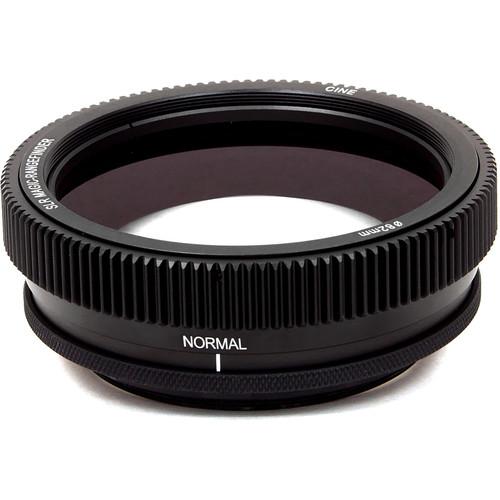

User Manual for SLR Magic Rangefinder Cine Adapter with Near Normal Calibration Click to enlarge the picture
Contents of the user manual for the SLR Magic Rangefinder Cine Adapter with
- Product category: Lens Attachments & Converters SLR Magic
- Brand: SLR Magic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SLR Magic Lens Attachments & Converters
|
User manual for the SLR Magic Rangefinder Cine Adapter with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SLR Magic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SLR Magic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SLR Magic product will considerably shorten its lifespan!
|
Product description Greatly simplifying the process of focusing with anamorphic adapters, the SLR Magic Rangefinder Cine Adapter with Near/Normal Calibration provides industry standard focus direction and a cine-style focus gear for your lens set up. When using most anamorphic adapters that mount to the front of your lens, focusing requires matching the distance on the anamorphic adapter and the lens itself; this can cause problems when trying to pull focus. However, when using the Cine Rangefinder, you set both your anamorphic adapter and lens to infinity and pull focus on the Rangefinder.
The Rangefinder can be used on anamorphic clamps that have a 72 mm threaded front or on autofocus lenses to provide manual focus capability. The adapter integrates a cine-style focus gear, allowing it to easily interface with a variety of optional focus accessories. It is marked near/far for focus control and allows you to focus your lens or lens/anamorphic adapter combination from 4' to infinity. - You can use the Cine Rangefinder on lenses without an anamorphic adapter as well. This is useful when working with lenses such as Nikons, which focus in the opposite direction from cine-style lenses, or when using lenses that have neither focus gear nor reliable distance markings.
- Using the adapter allows you to minimize the effects of breathing that your lens or lens / adapter combination would ordinarily suffer from.
- Once your taking lens is properly set to infinity, you can shift focus fron near to far using the rangefinder.
- The adapter provides your lens with a focus range of 4' to infinity. Even if your lens or lens and anamorphic adapter combination by themselves do not focus as close as 4', using the adapter brings the minimum focus distance to 4'.
- The front 82mm filter threads of the adapter rotate as you pull focus on it. This may cause unwanted optical effects when using filters such as star or polarizers.
In the Box SLR Magic Rangefinder Cine Adapter with Near/Normal Calibration (72mm) Plastic Front Cap Plastic Rear Cap Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SLR Magic Rangefinder Cine Adapter with Near Normal Calibration in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSLR Magic SLR-72RFNN Specs | Dioptric Strength | Variable | | Filter Thread | Rear: 72 mm
Front: 82 mm | | Dimensions | Max Diameter: 3.8" / 97 mm (approx.)
Length: 1" / 2.54 cm (approx.) | | Weight | 12 oz / 350 g (approx.) | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 5.6 x 5.2 x 2.7" |
