SmallHD 1703 P3X 17" Studio Monitor

User Manual for SmallHD 1703 P3X 17" Studio Monitor Kit

• Product category: Production Monitors SmallHD
• Brand: SmallHD
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for SmallHD Production Monitors

Product description

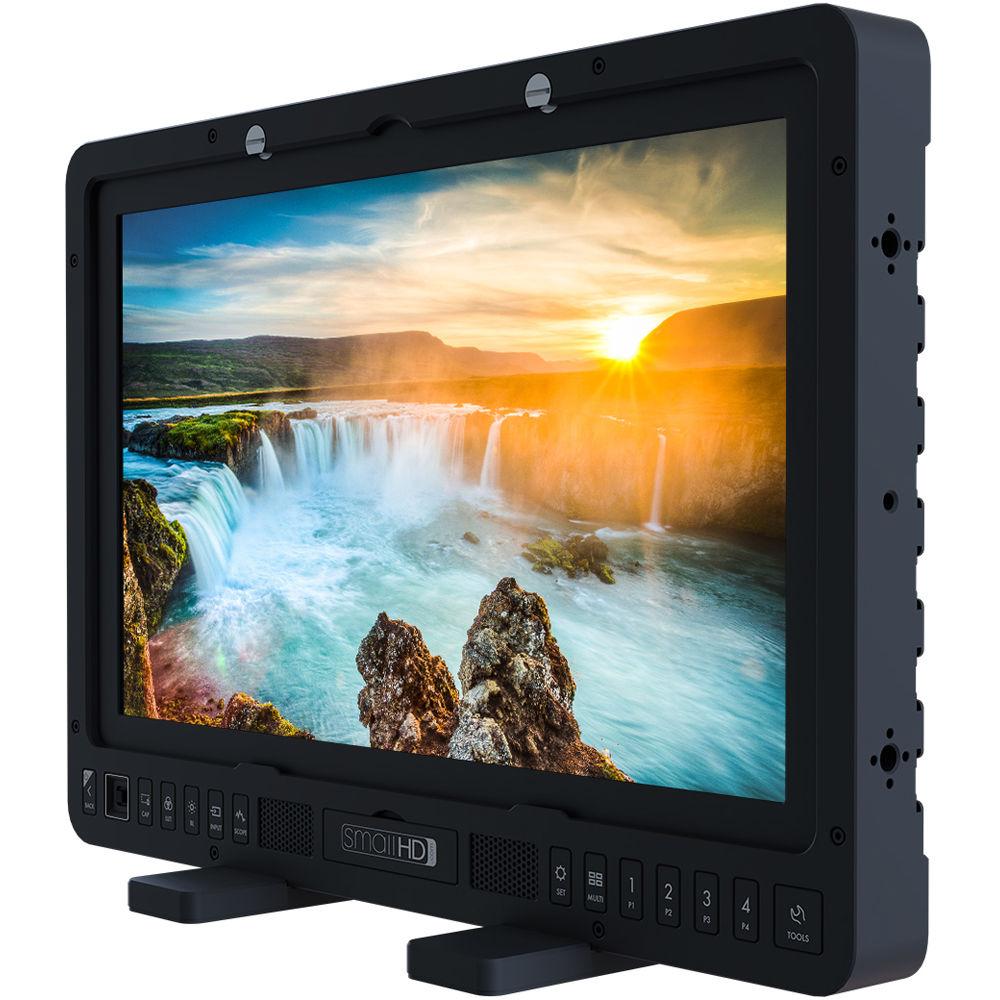

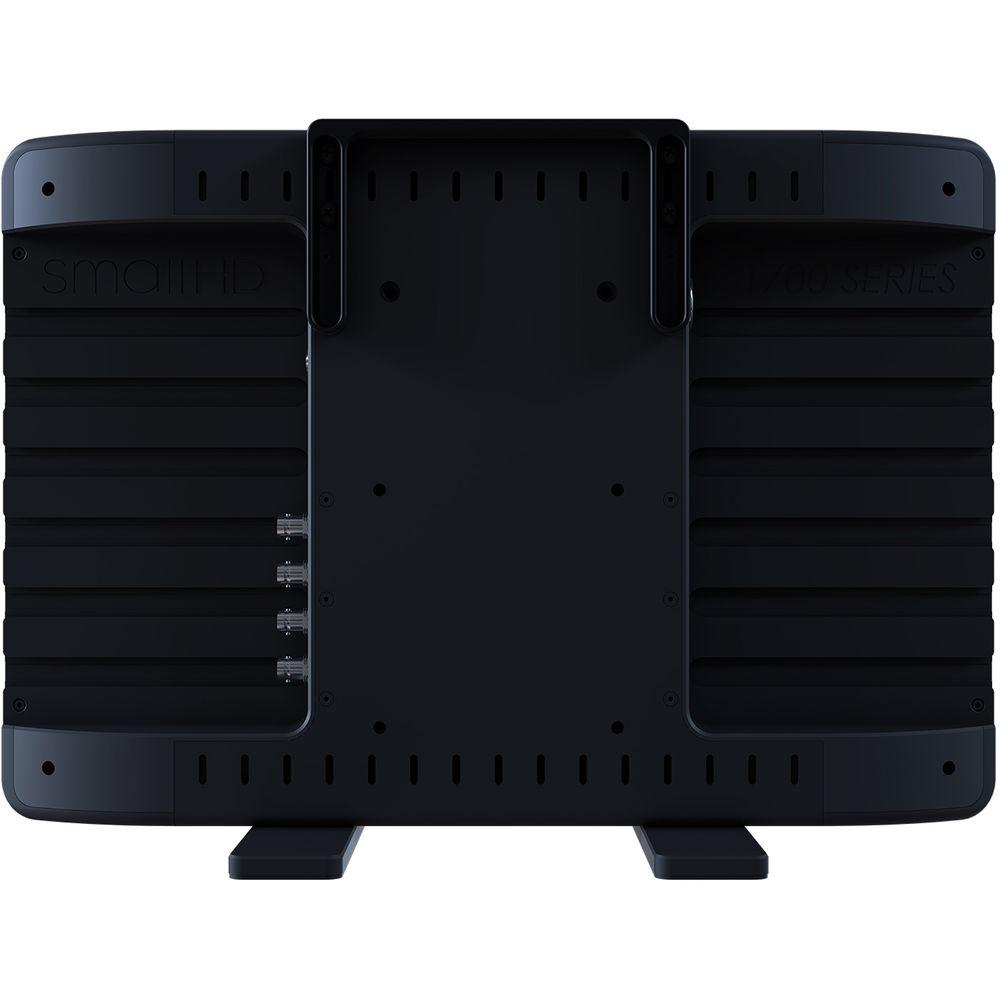

• 1703 P3X 17" Studio Monitor Whether producing content for broadcast or cinema distribution, you can depend on SmallHD's 1703 P3X 17" Studio Monitor to brightly display accurate colors in professional field, studio, and post-production settings. Each 1703 P3X is color calibrated by SmallHD to ensure consistently accurate color representation, with 100% coverage of both REC 709 and DCI-P3 color spaces. Should you find that the display requires recalibration, the Color Intelligence engine accepts LUTs from industry standard solutions.True 10-bit color depth can differentiate between 1024 levels of brightness, per channel, for smooth gradients essential for critical image analysis. While the LED backlight provides 900 cd/m² of brightness for viewing in daylight or brightly lit conditions, a special 100 cd/m² "studio mode" provides accurate brightness levels for light-controlled post-production environments.Despite its many post-production friendly features, the 1703 P3X can tough it out in the production world with its milled aluminum body, RapidRail accessory mounting system, versatile power options, and wide selection of monitoring tools. Having a color-accurate monitor on set means that directors, clients, or DITs can have a dependable reference display for nearly any kind of production.
  PageBuilder OS
  • Originally featured in the 500 and 700-series models, and extrapolated for the Production Monitor series, the PageBuilder OS is an intuitive graphical user interface (GUI) that puts all the advanced functionality of the 1703 at your fingertips. Rather than have confusing menus, this GUI allows you to selectively apply monitoring tools—such as waveforms, vectorscopes, multiview, and focusing aids—to different "pages". These pages can be easily flipped through using the joystick, or selected with the four quick-access buttons on the front panel. Additional buttons on the front panel can toggle monitoring tools on and off for each page.
  ColorFlow 3D LUT Processing
  • To keep your images consistent from production through to post-production, ColorFlow allows you to import 3D LUTs and display the treated image side by side with the untreated image, to correctly gauge exposure while visualizing what is being recorded by the camera. A side-by-side preview can also be used with the HDR preview function. Separate LUT-treated images can be sent downstream over SDI and HDMI, so you can have the 1703 display a log image or LUT-treated image, while the director or client monitors connected to the outputs can receive images treated with a different LUT. An image capture function saves a still frame from the incoming video stream onto an SD card, and records the applied 3D LUT for post-production reference.
  On Set Problem Solving
  • The PageBuilder OS has a dedicated "Output Preview" page which allows you to apply LUTs and other image adjustments specific to the output signal from the monitor. Whether you have your camera connected to the HDMI or SDI input on the 702 OLED, you are not limited by that protocol. The 702 OLED cross converts to ensure compatibility with downstream hardware.
  HD Scopes
  • Fill the screen with up to three simultaneous scopes—including waveform, vectorscope, and histogram—while still being able to observe the camera feed. The Color Picker function can analyze the raw color values of any individual pixel in the frame.
  Exposure Tools
  • Exposure Assist supports both ARRI and Spectrum-based false color, with built-in IRE guides for reference. Utilize 2x Zebra to warn you when reaching a brightness level of your choosing. This is great for matching exposure across shots and cameras.
  Dual-View
  • View two video feeds side by side. The feeds can be from two different inputs to view angle options, or from the same source. Different adjustments can be applied to each feed, so you can have one feed with a flat uncorrected log image, and have the second feed display a corrected log image with a LUT. Monitoring tools can also be applied individually, so you can view a raw video feed side by side with a feed that has exposure tools or focus assists overlaid.
  Focus Assist and Peaking Tools
  • Focus assist creates a bright highlight on in-focus subject matter—highly recommended when focusing on the fly. Focus Peaking increases the image sharpness, allowing for more detailed focusing. The color and intensity of the peaking can be adjusted to your preference.
  RapidRail Shoe Mount System
  • Quickly secure and detach accessories such as wireless units to the rear of the monitor using standard shoe mount rails. This saves time over traditional screw-mounted methods and keeps your setup clean and neat. If required, these accessories can be powered straight off the monitor using the integrated 12V LEMO power output or the three USB ports.
  Power Options
  • Separately available V-Mount or Gold Mount battery plates can be attached to the rear of the display. A mounted battery can power the monitor, as well as attached accessories, through the 12V LEMO connection. The USB ports on the rear of the monitor can also power accessories with a maximum draw of 0.5 amps per port.
  UPC: 850324007960

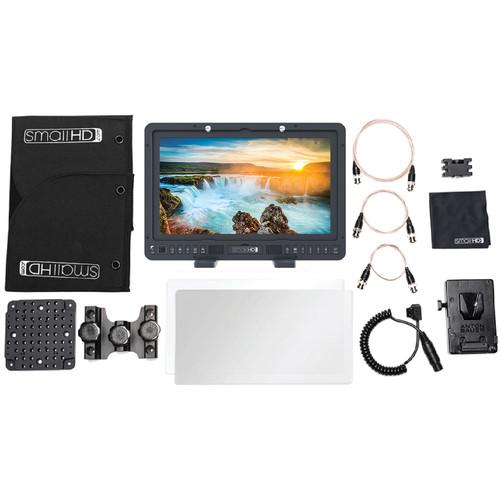

• V-Mount Power Kit + Cheese Plate Provide power to your 1300, 1700, or 2400 series monitor with this SmallHD V-Mount Power Kit + Cheese Plate. This kit is comprised of a battery mount with a D-Tap to 4-pin XLR cable, and the required cheese plate for securing the battery mount to the monitor itself. See below for more information on the individual items included in this kit. UPC: 850246006942
• Sun Hood for 1700 Series Production Monitors This SmallHD Sun Hood is designed to work with the 1700 Series production monitors. Lightweight in form but not in function, this sun hood provides the shade crucial for better monitor viewing while it adds privacy. This fabric sun hood is water-resistant and maintains its shape thanks to an integrated plastic stiffener. Attach the hood to your monitor with the included thumbscrews; no tape or hook-and-loop fastener is required.
  • Three-sided glare shield improves screen visibility
  • Securely attaches to the monitor with the included 1/4"-20 thumbscrews
  • Fits all SmallHD 1700 series monitors
  • The shade is made of water-resistant fabric and features an internal plastic stiffener
  UPC: 850246006553
• RapidRail Mount for 1/4"-20 Accessories Use the SmallHD RapidRail Mount for 1/4"-20 Accessories to quickly secure 1/4"-20 accessories to 1300, 1700, 2400, or 3200 series monitors that feature the RapidRail mounting system. Built-in cable strain relief protects your equipment from cable snags, and dual 1/4"-20 threads allow for the securing of many common monitoring accessories. UPC: 850246006645
• HDMI Cable (3') The 3' HDMI Cable from SmallHD allows you to transmit high-quality digital audio and video on a single cable. This cable features a male HDMI connector on each end, and is compatible with a wide variety of devices such as SmallHD monitors. UPC: 857497005298
• Thin BNC Cable (12") At only 2.75mm in diameter this Thin BNC Cable from SmallHD will snake around nearly any component you have in your rig, perfect for use in compact camera setups with an EVF or on-camera monitor which uses SDI. UPC: 850246006447
• Thin BNC Cable (24") At only 2.75mm in diameter this Thin BNC Cable from SmallHD will snake around nearly any component you have in your rig, perfect for use in compact camera setups with an EVF or on-camera monitor which uses SDI. UPC: 857497005960
• Thin BNC Cable (48") At only 2.75mm in diameter this Thin BNC Cable from SmallHD will snake around nearly any component you have in your rig, perfect for use in compact camera setups with an EVF or on-camera monitor which uses SDI. UPC: 857497005977

• 17" Acrylic Screen Protector Anti-Reflective Deluxe Edition
• C-Stand Mount with VESA Compatibility for Select Production Monitors

• HDMI Cable (3')

• Power Cord

• Limited 1-Year Warranty

• V-Mount Power Kit

• Pro Battery Cheese Plate

• 4 x 1/4"-20 Thumbscrews

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Also Includes

• Set of 2 Monitor Feet
• AC Adapter
• Limited 1-Year Hardware Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 1703 P3X 17" Studio Monitor

  Panel Type	IPS-Type LCD
  Display Size	17.0" / 43.0 cm
  Screen Resolution	1920 x 1080
  Aspect Ratio	16:9
  Viewing Angle	Horizontal: 178° (89/89) Vertical: 178° (89/89)
  Maximum Brightness	900 cd/m2
  Contrast Ratio	1400:1
  Bit Depth / Color Support	10-Bit (1.07 Billion Colors)
  Pixels Per Inch (ppi)	133 ppi
  Color Gamut	100% DCI-P3
  Image Controls	False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, Screen Markers, Underscan, Waveform

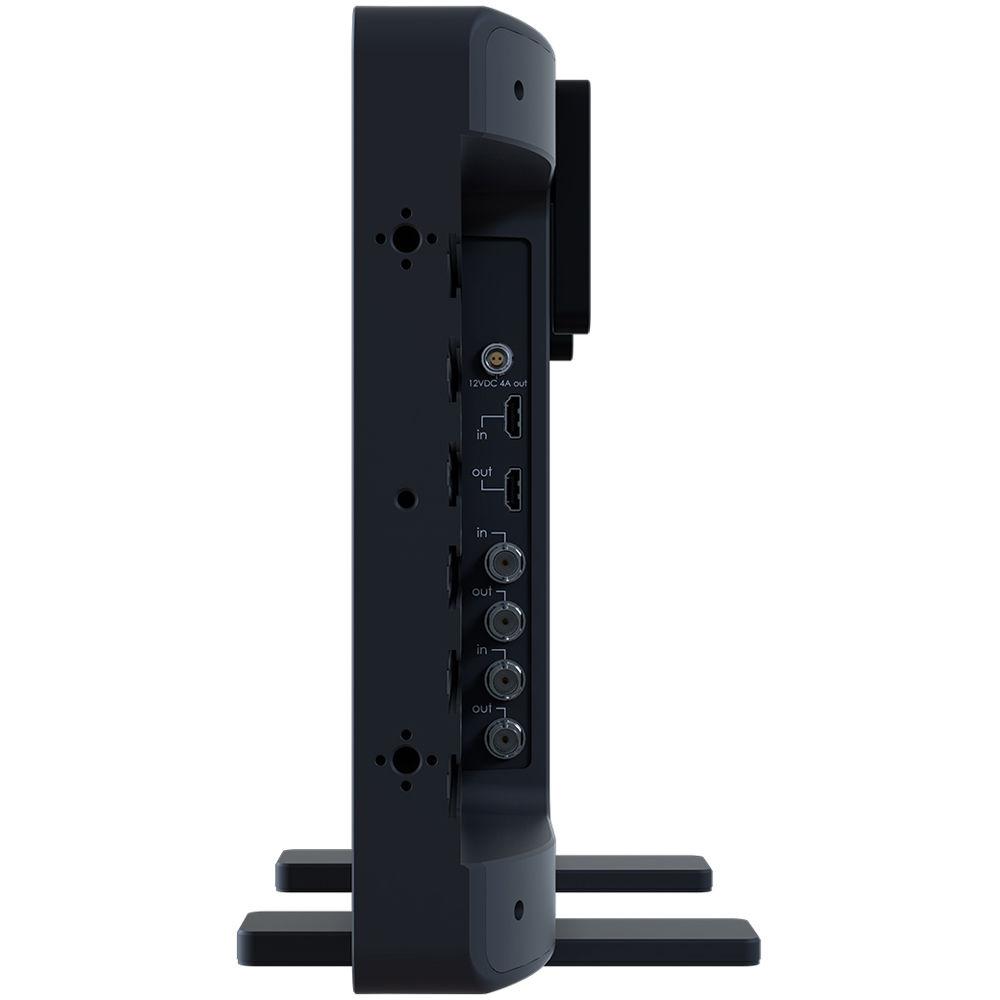

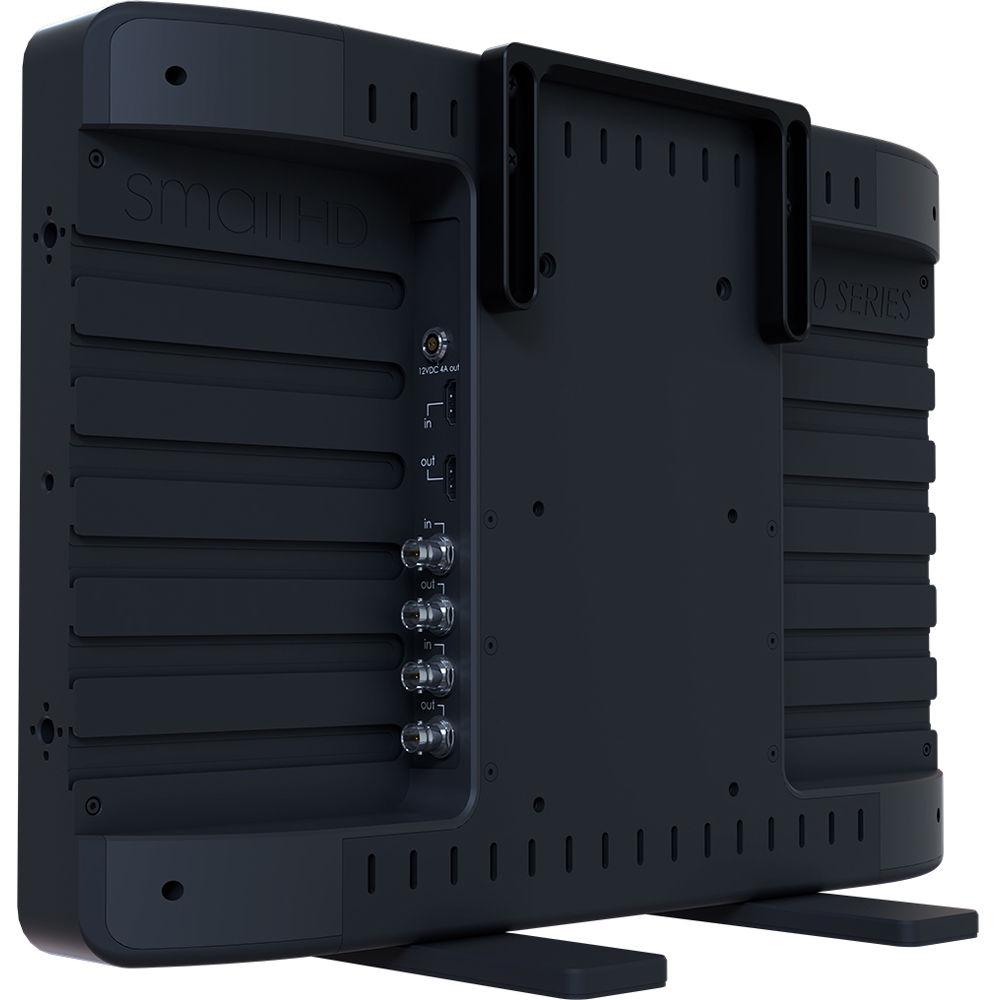

  Video	2 x BNC (3G-SDI) Input 1 x HDMI Type A Input 2 x BNC (3G-SDI) Output 1 x HDMI Type A Output
  Embedded Audio	HDMI SDI
  Audio	1 x 3.5 mm Headphone Output
  Built-In Speaker	None

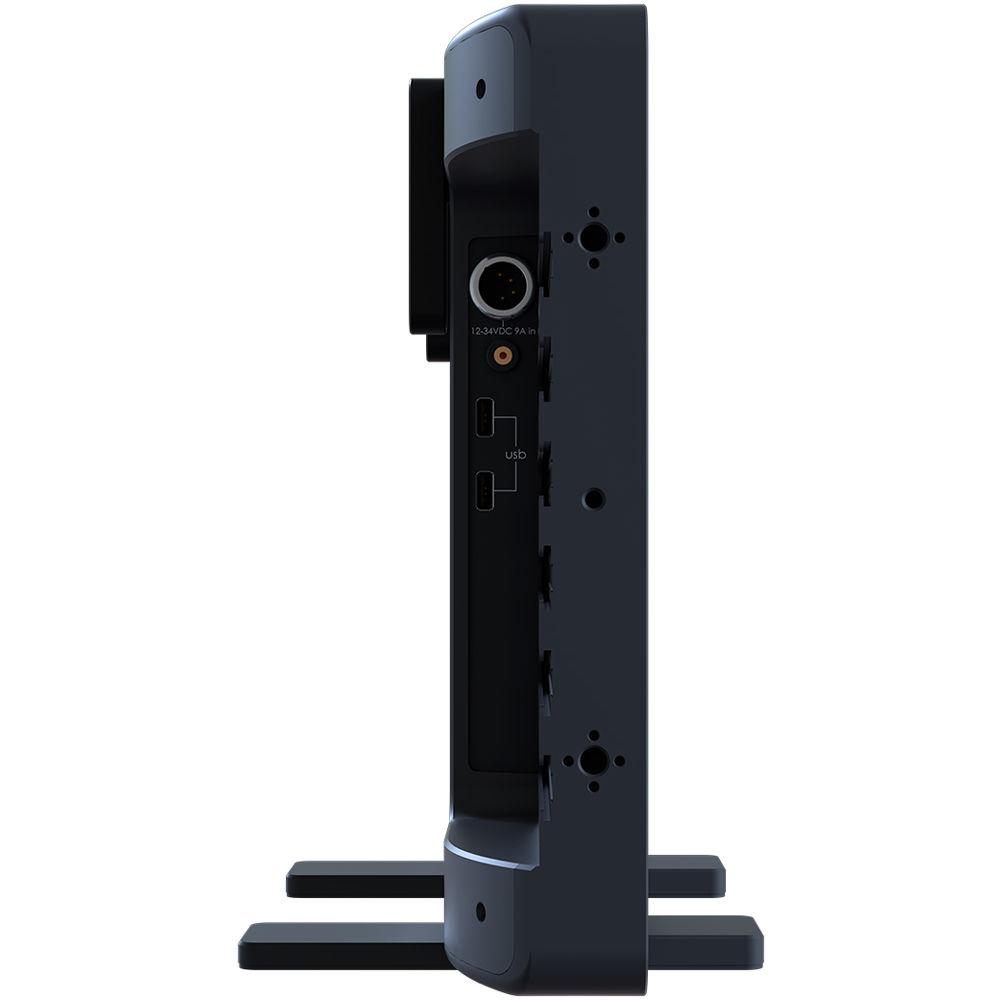

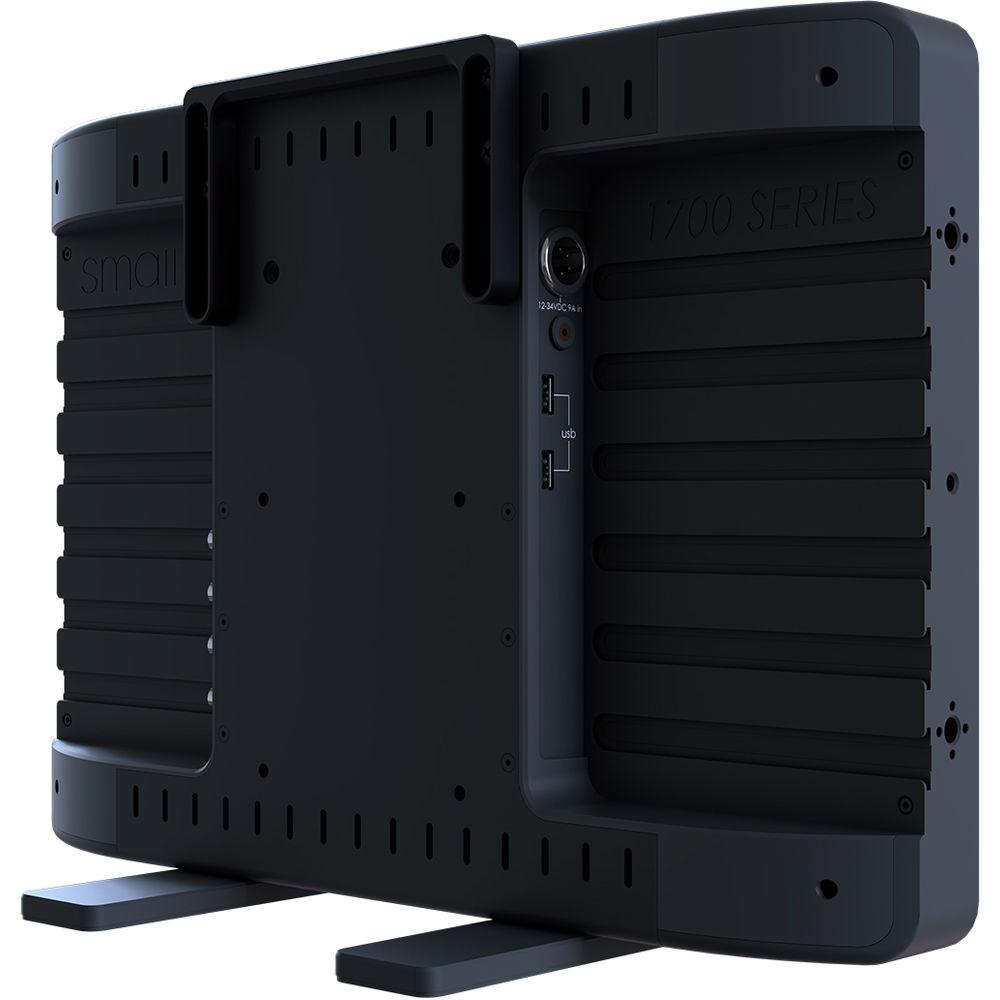

  Power	1 x 2-Pin LEMO Output 3 x USB Type-A Output 1 x IEC Input 1 x 4-Pin XLR Input
  Card Slot	1 x SD

  Video Format

  SDI (10-Bit 4:2:2 YCC) 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080PsF: 23.98/24/25/29.97/30 1080i: 50/59.94/60 720p: 23.98/24/25/29.97/30/50/59.94/60 NTSC PAL HDMI (8/10/12-Bit 4:4:4 RGB and YCC) 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080PsF: 23.98/24/25/29.97/30 1080i: 50/59.94/60 720p: 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120 576p: 50/100 480p: 59.94/60/119.88/120 NTSC: 59.94/60/119.88/120 PAL: 50/100/200

  Battery Type	None

  Certifications	CE, FCC, IC, RoHS, as per Manufacturer
  Operating Temperature	32 to 100°F / 0 to 37.8°C
  Storage Temperature	0 to 104°F / -17.8 to 40°C

  Dimensions (W x H x D)	11.5 x 17.5 x 2.5" / 292 x 445 x 64 mm
  Weight	12.1 lb / 5.5 kg

  Box Dimensions (LxWxH)	23.75 x 21.5 x 9.5"

• V-Mount Power Kit + Cheese Plate

  Box Dimensions (LxWxH)	8.6 x 5.55 x 1.5"

• 17" Acrylic Screen Protector Anti-Reflective Deluxe Edition

  Box Dimensions (LxWxH)	15.7 x 9.55 x 0.3"

• Sun Hood for 1700 Series Production Monitors

  Material of Construction	Water-resistant fabric, ABS plastic
  Dimensions (HxWxD)	10.5 x 15.8 x 10.8" (26.7 x 40.0 x 27.3 cm)
  Weight	1.2 lb (0.5 kg)

  Box Dimensions (LxWxH)	15.8 x 11.1 x 1.35"

• C-Stand Mount with VESA Compatibility for Select Production Monitors

  Width	5 in
  Depth	1.5 in
  Height	5 in
  Weight	14.4 oz

  Type	Mounting component
  Mounting Components	VESA mount bracket
  Recommended Use	LCD display

  Box Dimensions (LxWxH)	7.4 x 6.15 x 2.3"

• RapidRail Mount for 1/4"-20 Accessories

  Mounting Threads	2 x 1/4"-20
  Dimensions	1.25 x 2.0 x 1.0" / 3.2 x 5.1 x 2.5 cm
  Weight	3 oz / 85 g

  Box Dimensions (LxWxH)	4.95 x 4.25 x 1.0"

• HDMI Cable (3')

  Connector 1	HDMI Type-A Male
  Connector 2	HDMI Type-A Male
  Cable Length	3' / 0.9 m

  Box Dimensions (LxWxH)	7.05 x 5.75 x 1.65"

• Thin BNC Cable (12")

  Cable Length	12' / 3.7 m
  Weight	0.1 lb / 0.0 kg

  Box Dimensions (LxWxH)	7.05 x 4.95 x 0.55"

• Thin BNC Cable (24")

  Cable Length	2' / 0.6 m
  Weight	0.1 lb / 0.0 kg

  Box Dimensions (LxWxH)	7.4 x 5.3 x 0.5"

• Thin BNC Cable (48")

  Cable Length	4' / 1.2 m
  Weight	0.1 lb / 0.1 kg

  Box Dimensions (LxWxH)	2.5 x 1.5 x 0.85"
