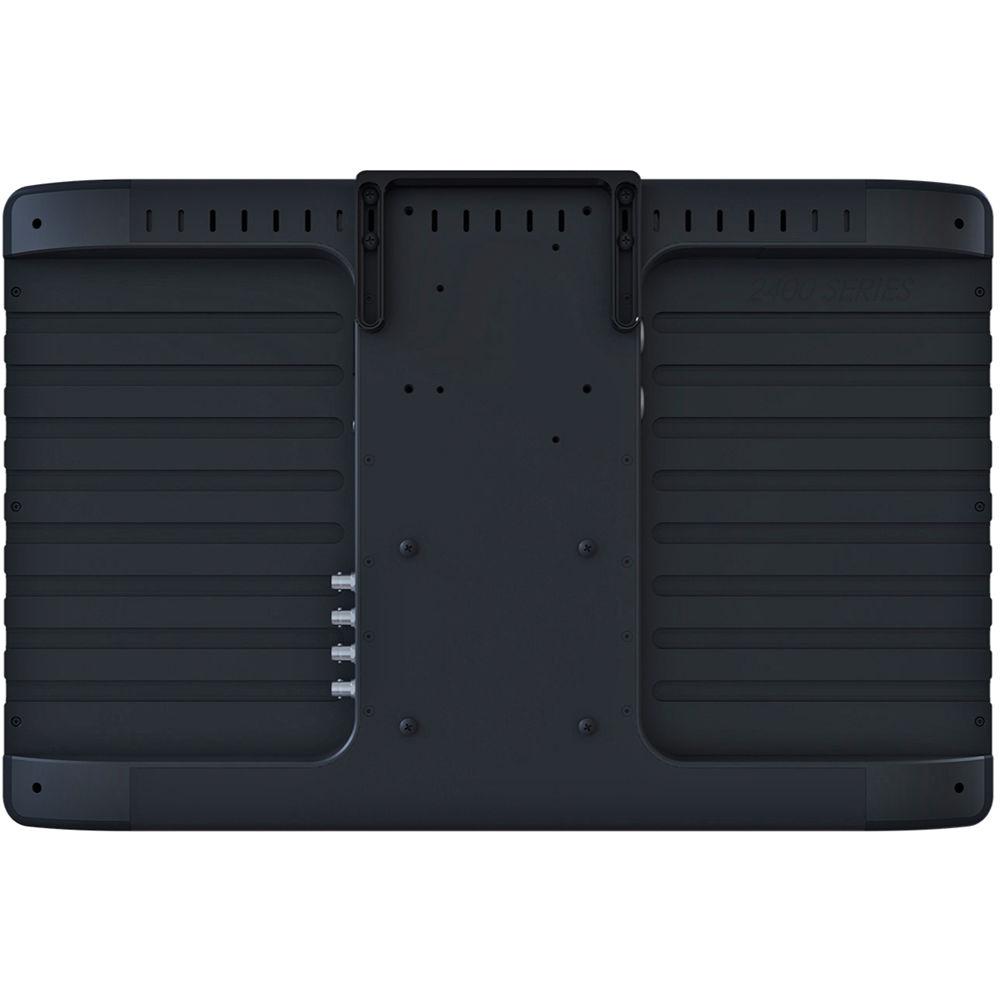

Product description In addition to its 1080p display and comprehensive set of software functions, the 2403 Full HD 24" Studio Production LCD Monitor from SmallHD is milled from billet aluminum for ultra durability, and offers an accessory rail system on the rear for rapid deployment. This advanced 24" production monitor is built to last and to provide efficient ease of use.
The 2403 features dual 3G/HD-SDI and HDMI input and output, 10-bit color depth, sharp 3000:1 contrast ratio, and 178° viewing angle. The full list of software tools includes custom LUTs, LUT downstream, and LUT import for a full LUT workflow, as well as anamorphic de-squeeze, waveform, vectorscope, and much more.

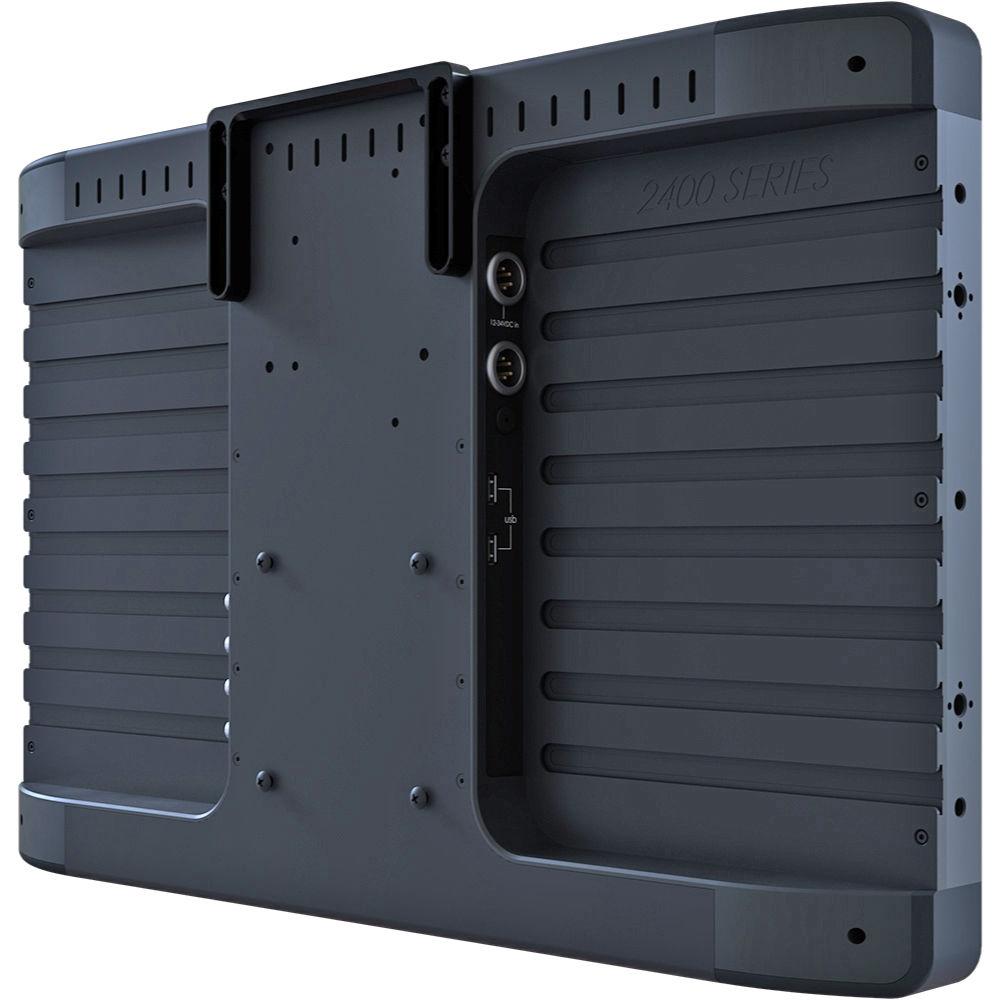

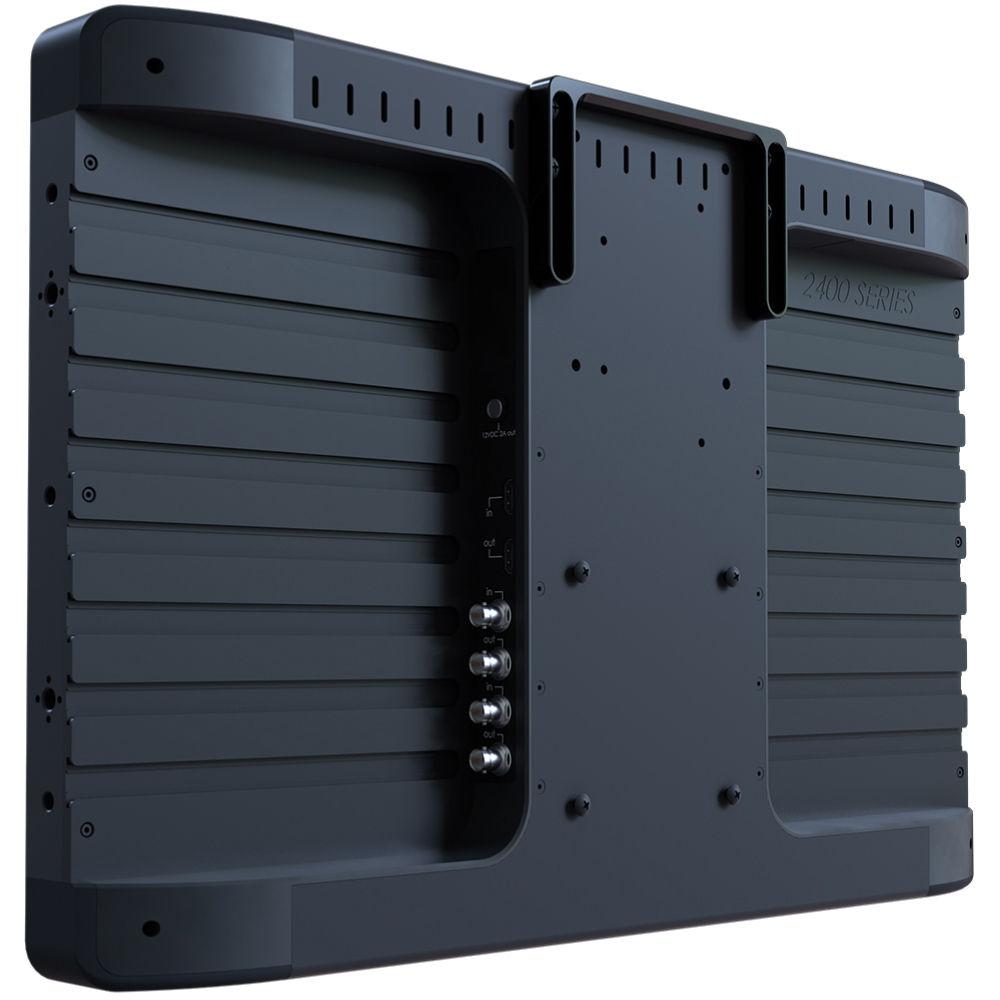

The rail system on the rear is comprised of several rows of cold shoe rails that could prove essential in saving you substantial amounts of setup and teardown time. It allows you to slide various gear and accessories, such as wireless transmitters and receivers, right onto the rails.

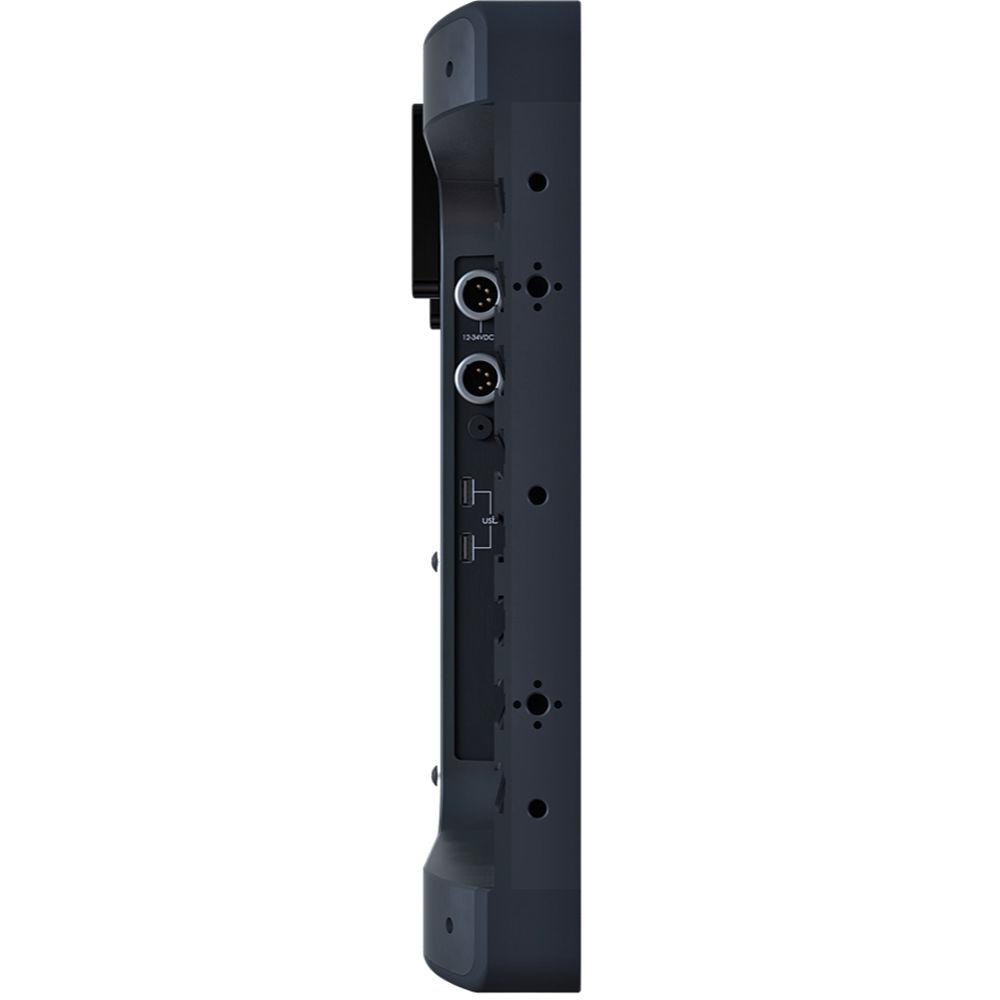

Providing for further ease of use, the 2403 Studio Production LCD Monitor also allows for hassle-free power via dual 4-pin XLR inputs and a 2-pin LEMO power output. You can conveniently secure a Gold Mount or V-Mount battery plate on the rear and connect a battery using the XLR inputs. A variety of optional accessories are available from SmallHD for this monitor, including a screen protector, C-Stand with table stand kit, and cheese plate power kits. Note: A firmware update will activate the headphone jack on the front for audio output. The firmware is available for installation on the SmallHD website. Software Features - Pixel Zoom
- 2x, 4x, and 8x Zoom with smooth joystick pan
- Frame Guides
- Preset and customizable aspect ratios
- DSLR Scaling
- Canon 5D Mark II and 7D
- Custom Scale
- Underscan only
- Anamorphic De-Squeeze
- 1.33x, 1.5x, 1.66x, 2.0x
- Image Rotate (Manual/Automatic)
- Automatic
- Image Flip (Manual/Automatic)
- Automatic
- Cross Conversion
- HDMI-to-SDI, SDI-to-HDMI
- Focus Assist (Colors)
- User-adjustable color and intensity
- Peaking
- User-adjustable intensity
- False Color
- Rainbow and ARRI-style
- Zebra
- Dual user-configurable
- Waveform
- Luma and RGB-style, fully user-customizable with Region of Interest highlighting
- Vectorscope
- Essential for color grading and correction
- RGB Parade
- Fully user-customizable
- Histogram
- Luma and RGB-style
- Image Capture
- Available with dedicated button
- Custom LUTs
- Loadable by Page or as system-wide color calibration
- LUT Downstream
- Available on SDI 1 or HDMI out
- Image Overlay
- Yes with Intensity Slider and Blink setting
- Firmware
- Compatible with 2400 Series firmware V3.0 and later
- Audio Meters
- HDMI and SDI up to 8-channel
- Primary Control Interface
- Joystick navigation, dedicated back button, and additional dedicated buttons for LUT selection, backlight level, input switch, settings menu, multi-view, page 14 instant selection, and tools menu
In the Box SmallHD 2403 Full HD 24" Studio Production LCD Monitor Power Cord Mount Handle HDMI Cable (6') Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SmallHD 2403 Full HD 24" Studio Production LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmallHD 2403 Specs | | | Panel Type | IPS-Type LCD | | Display Size | 24.0" / 61.0 cm | | Active Area | 20.7 x 11.7" / 52.6 x 29.7 cm | | Screen Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 178° (89/89)
Vertical: 178° (89/89) | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 3000:1 | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | Pixels Per Inch (ppi) | 93 ppi | | Color Gamut | 100% Rec. 709 | | Real-Time LUT Monitoring | SDR | | Image Controls | False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, Underscan, Waveform | | | | Video | 1 x HDMI Type A Output
2 x BNC (3G-SDI) Output
1 x HDMI Type A Input
2 x BNC (3G-SDI) Input | | Embedded Audio | HDMI
SDI | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | None | | Power | 2 x 4-Pin XLR Input
1 x 2-Pin LEMO Output | | Other I/O | 3 x USB 2.0 (USB Type-A) | | Card Slot | 1 x SD | | | | Video Format | HDMI (8/10/12-Bit 4:4:4 RGB and YCC)
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080i: 50/59.94/60/100/119.88/120
720p: 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
480p: 59.94/60/100/119.88/120
576p: 50/100
SDI (10-Bit 4:2:2)
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080i: 50/59.94/60/100/119.88/120
1080PsF: 23.98/24/25/29.97/30
720p: 23.98/24/25/29.97/30/50/59.94/60 | | | | AC Input Power | 90 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 to 34 VDC | | Battery Type | None | | Power Consumption | 17 W (Typical)
38 W (Maximum) | | | | Mounting | 1/4"-20 Female
3/8"-16 Female
Accessory Rail | | | | Certifications | CE, FCC, IC, RoHS, as per Manufacturer | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | 4 to 110°F / -16 to 43°C | | | | Material of Construction | Aluminum | | Dimensions (W x H x D) | 14.5 x 22.5 x 2.5" / 36.8 x 57.2 x 6.4 cm | | Weight | 18 lb / 8.6 kg | | | | Package Weight | 23.5 lb | | Box Dimensions (LxWxH) | 26.0 x 24.0 x 9.5" |
