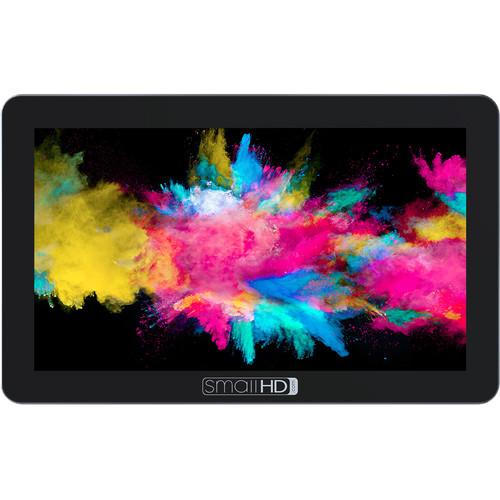

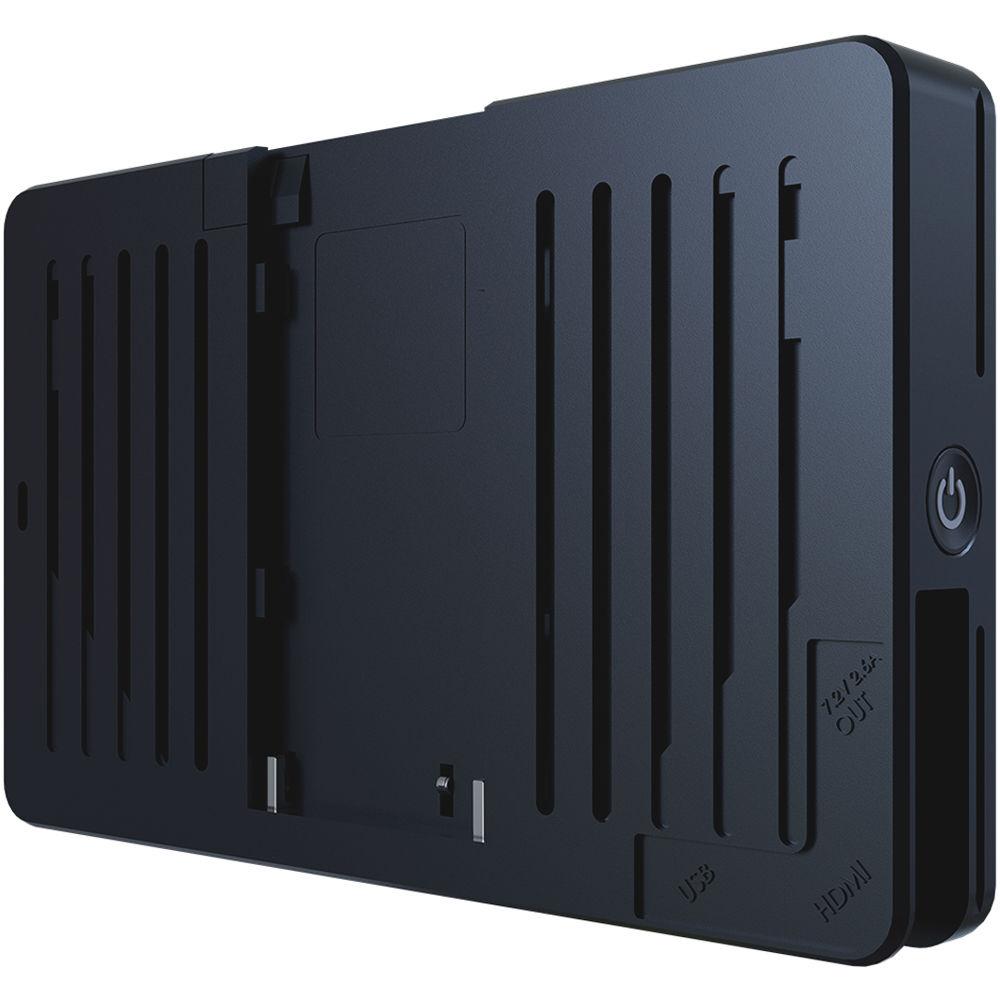

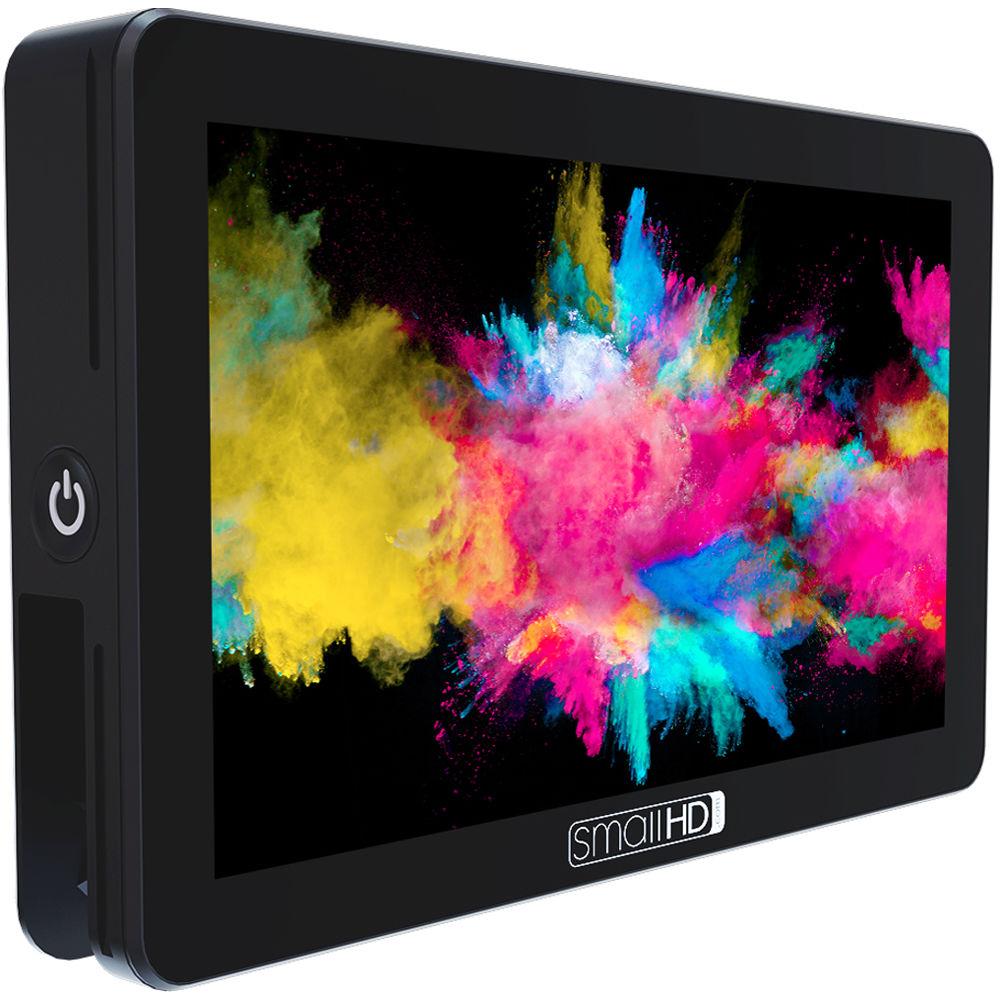

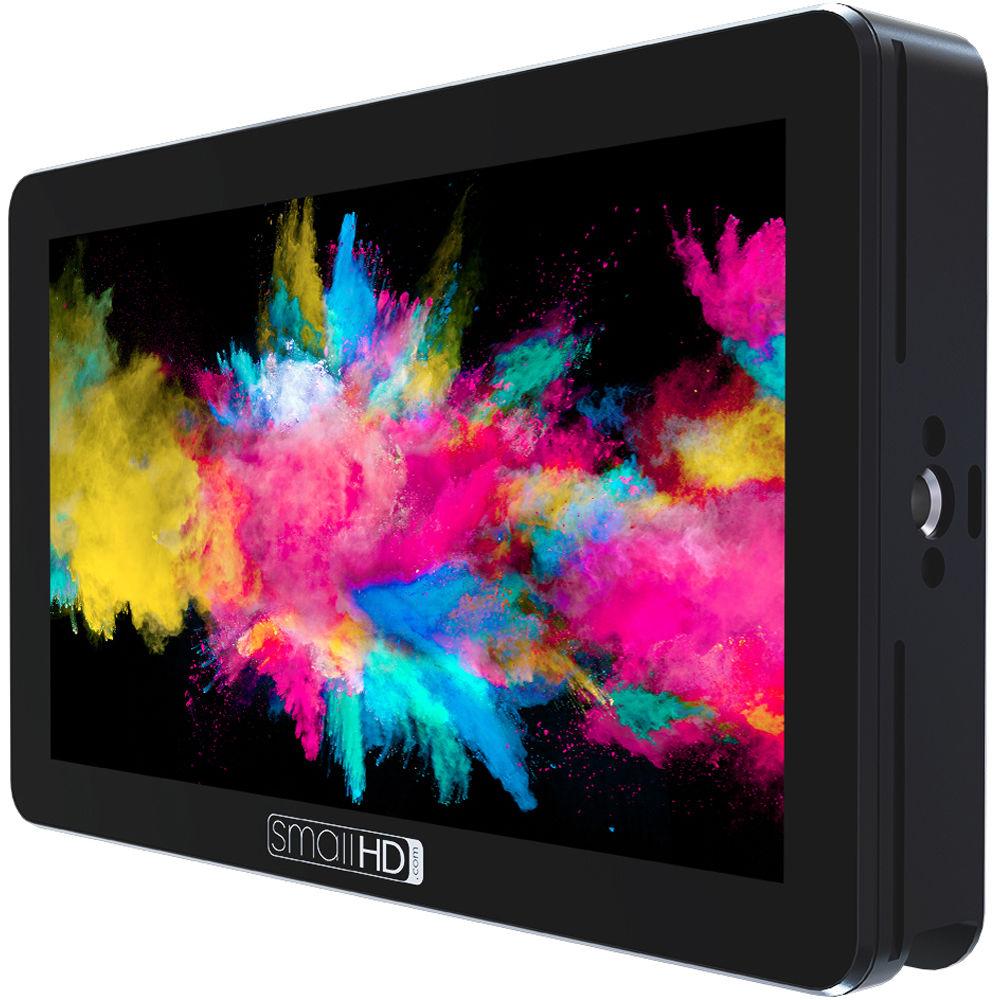

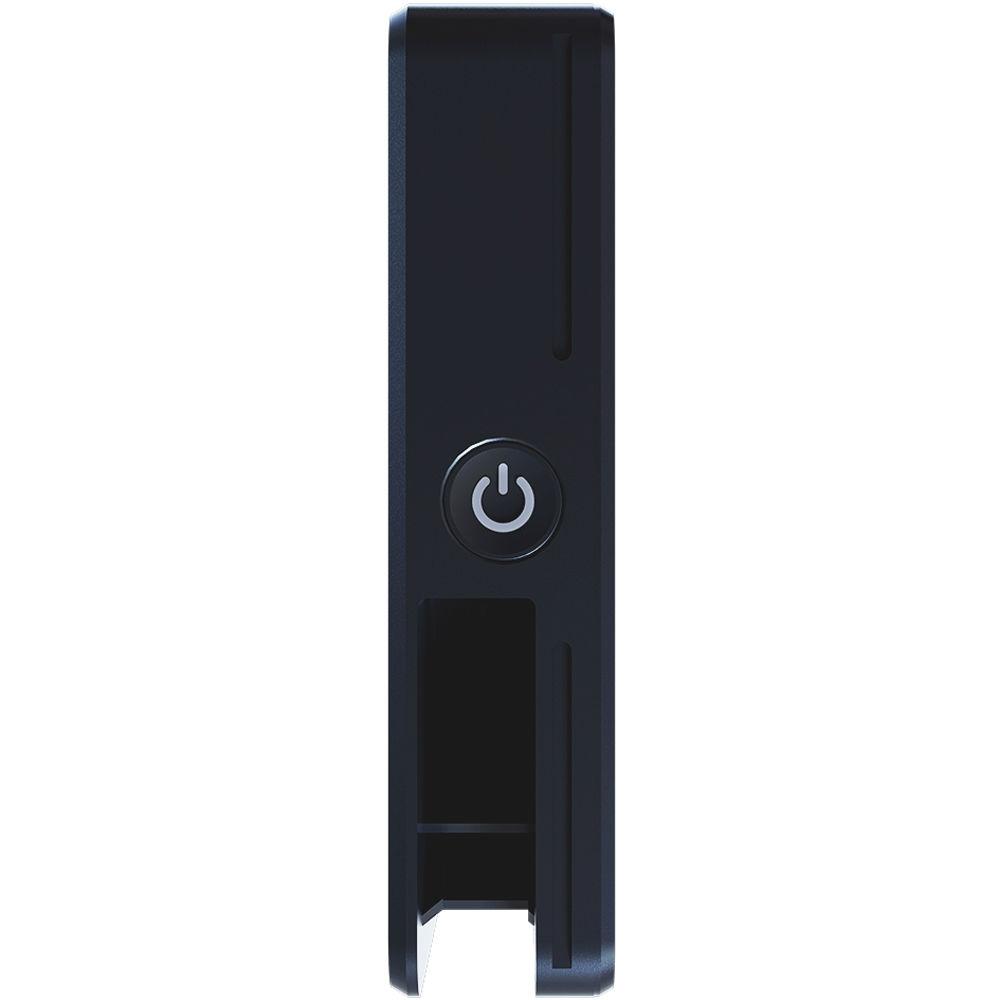

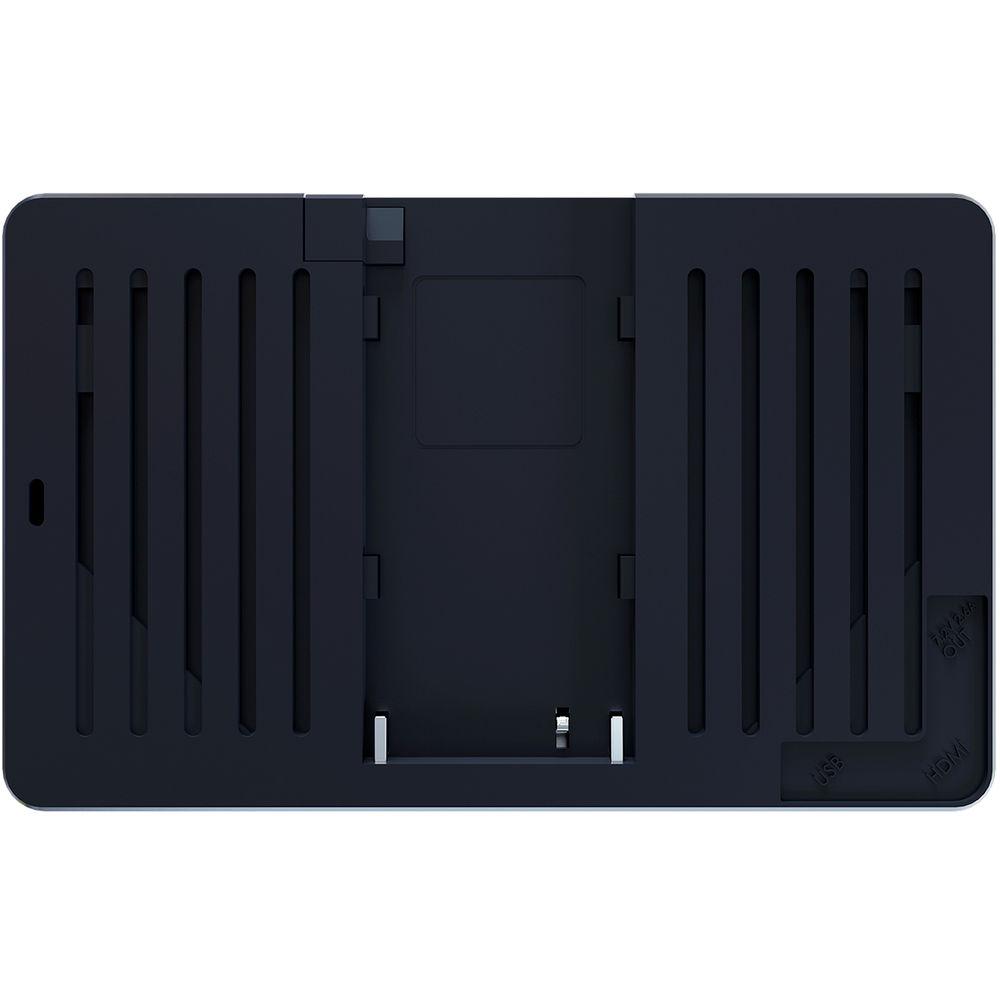

Product description Choose Your Own Accessories with SmallHD's FOCUS Base Monitors Read More The SmallHD 5.5" FOCUS Base OLED HDMI Monitor combines the accuracy of an OLED display with the ability to power select DSLR and mirrorless cameras. Viewable even in full daylight, this onboard monitor's 350 cd/m² bright 1920 x 1080 OLED panel is great for pulling focus and features a single micro-HDMI input. SmallHD's Swipe OS leverages the monitor's touchscreen for menu access and control.Powered by a single Sony L-series type battery (not included), this versatile monitor can also supply power to select cameras when used with a separately available adapter cable. Coupling the touchscreen display with SmallHD's intuitive OS3 you can turn on various monitoring tools like waveform, false color, and vectorscope, as well as focusing aids like peaking, with a tap on the screen. OS3 also allows you to load and save profiles and load custom LUTs. The FOCUS OLED's rubberized plastic form includes three 1/4"-20 threaded mounting points. Additional features include SD card storage, a 3.5mm stereo headphone jack, and a low 5.76W power draw. - Display Features
-
- Supports up to UHD 4K video
- SD card slot for loading custom LUTs
- Wide color gamut display
- 2x and 4x pixel zoom
- 1.33x, 1.5x, 1.66x, and 2.0x anamorphic de-squeeze
- Automatic/manual image flip and rotation
- Waveform, zebra, and vectorscope
- Preset and custom frame guides
- OS3
- Built on SmallHD's intuitive PageBuilder OS, OS3 offers the same intuitiveness of a graphical user interface (GUI), though with touchscreen navigation. Rather than have confusing menus, this GUI allows you to selectively apply monitoring tools such as waveform, vectorscope, and focusing aids to up to 12 different pages. Using the touchscreen, swipe through different preset pages and toggle monitoring tools on or off with ease.
- Software Features
-
- Pixel zoom: 2x and 4x with smooth pan via pinch zoom gesture
- Frame guides: Preset aspect ratios and customizable
- DSLR scale: Canon 5D Mark II and 7D
- Custom scale: Underscan only
- Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
- Image rotate: Automatic or manual control
- Image flip: Automatic or manual control
- Focus assist: User-adjustable color style and intensity
- Peaking: User-adjustable intensity
- False color spectrum: ARRI-style and user customizable
- Zebra: Dual, user configurable
- Waveform: Luma and RGB style, fully user customizable with region of interest highlighting
- Vectorscope: Yes
- RGB parade: User customizable
- Histogram: Luma and RGB style
- Image capture: Dedicated button and image gallery
- Custom LUTS: Loadable as looks on pages or as system-wide color calibration via the settings menu
- LUT downstream: Applied on output preview page
- LUT import: Via SD card or USB storage device
- Image overlay: Opacity slider and blink setting
- Audio meters: Up to 8-channel
- Micro-HDMI
- A micro-HDMI connector is used to display up to a UHD 4K signal.
- Camera Power
- Instead of powering your on-camera monitor from your DSLR or mirrorless camera and quickly draining the camera's internal battery, the FOCUS monitor allows you to power your camera from the monitor instead (requires optional dummy battery for your specific camera). This output is active even if the monitor is turned off.

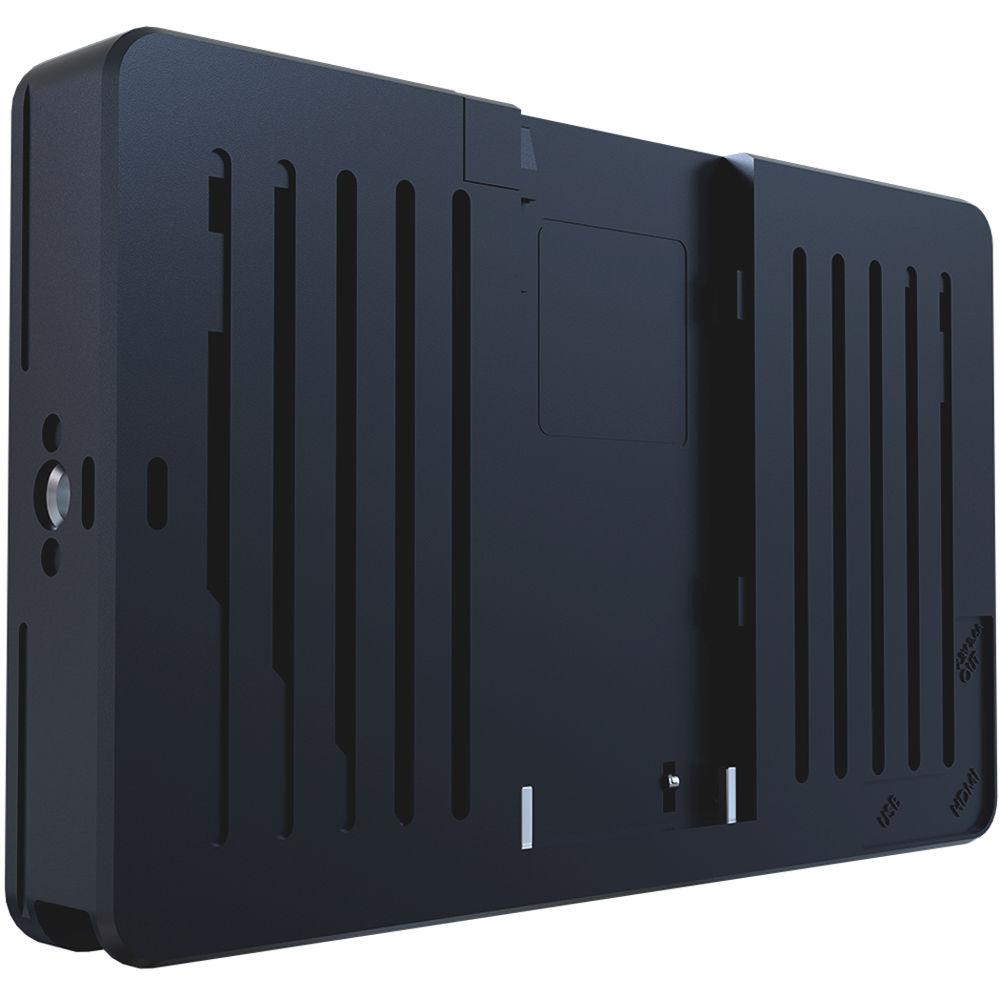

- Convenient Mounting
- The FOCUS monitor secures to your camera using the optional FOCUS Tilt Arm via shoe mount or 1/4"-20 thread.
UPC: 811786030897 In the Box SmallHD 5.5" FOCUS Base OLED HDMI Monitor Micro-HDMI Male to HDMI Type-A Female Adapter Cable (8") Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SmallHD 5.5" FOCUS Base OLED HDMI Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmallHD Focus OLED Specs | | | Panel Type | OLED | | Display Size | 5.5" / 14.0 cm | | Screen Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Viewing Angle | 160° | | Touchscreen | Yes | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 60,000:1 | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Color Gamut | 105% NTSC | | Real-Time LUT Monitoring | SDR | | Image Controls | Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Image Flip, RGB Parade, Screen Markers, Underscan, Waveform, Zebra, Vectorscope | | | | Video | 1 x HDMI Type D (HDMI 1.4a) Input | | Embedded Audio | HDMI | | Audio | 1 x 3.5 mm Line Input
1 x 3.5 mm Headphone Output | | Built-In Speaker | None | | Power | 1 x Barrel Output | | Other I/O | 1 x USB 2.0 (Micro-USB) For future use | | Card Slot | 1 x SD | | | | Video Format | HDMI (8-Bit 4:4:4 RGB, YCC)
UHD 4K: 30
HDMI (12-Bit 4:2:2 YCC)
UHD 4K: 30
HDMI (8/10-Bit 4:4:4 RGB, YCC)
UHD 4K: 24
HDMI (12-Bit 4:2:2 YCC)
UHD 4K: 24
HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC)
1080p: 60/59.94/50/30/25/24
1080i: 120/119.88/100/60/59.94/50
720p: 120/119.88/100/60/59.94/50/30/25/24
480p: 240/239.76/120/119.88/100/60/59.94
576p: 200/100/50
NTSC: 240/239.76/120/119.88/60/59.94
PAL: 200/100/50 | | | | DC Input Power | 6 to 8.4 VDC | | Battery Type | 1 x L-Series | | Power Consumption | 5.76 W | | | | Mounting | 3 x 1/4"-20 Female | | | | Operating Temperature | 32 to 140°F / 0 to 60°C | | | | Dimensions (W x H x D) | 0.77 x 3.45 x 5.5" / 1.96 x 8.76 x 13.97 cm | | Weight | 9 oz / 255 g |
