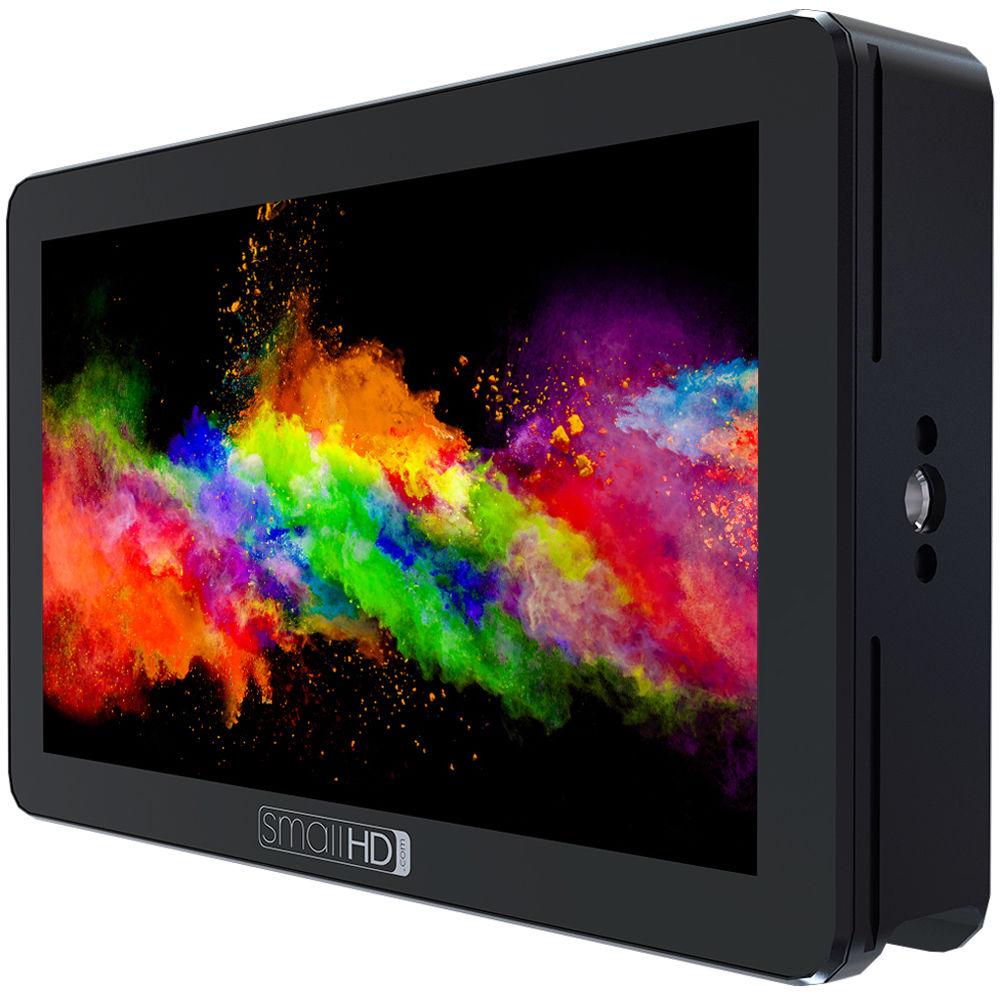

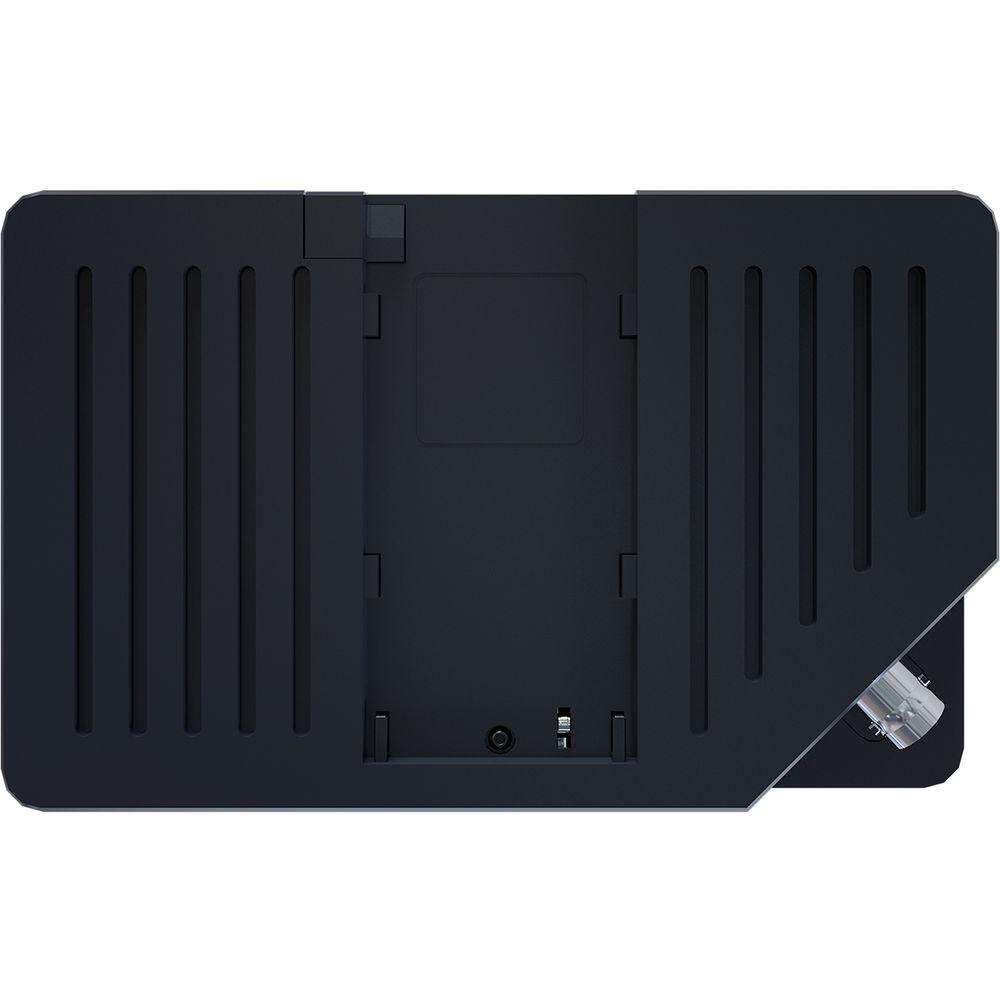

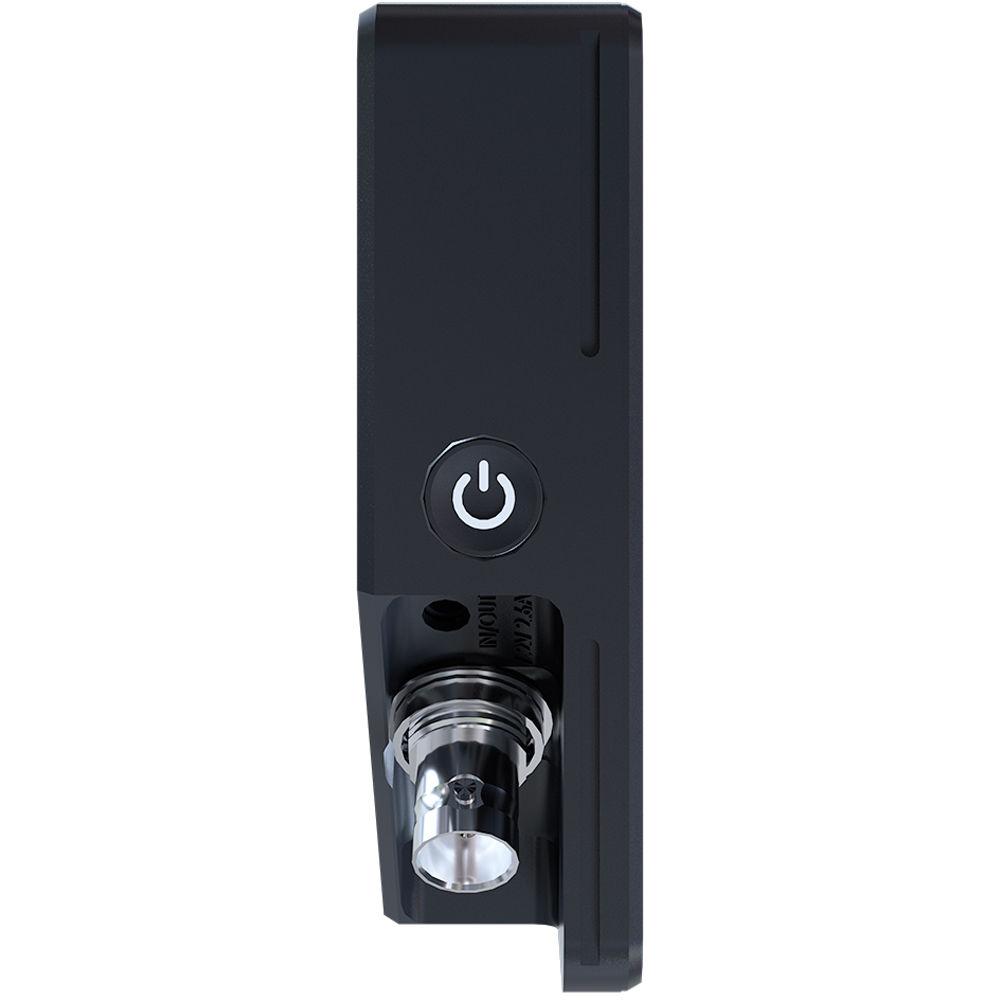

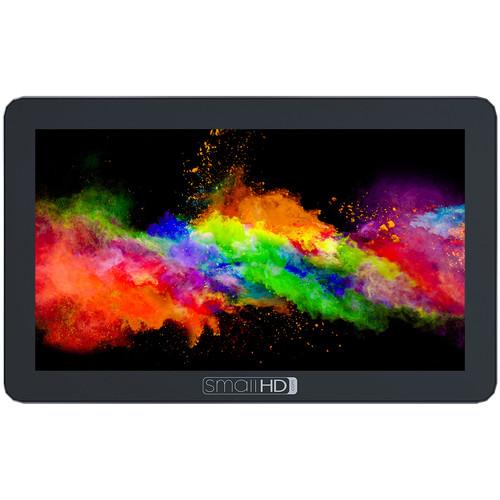

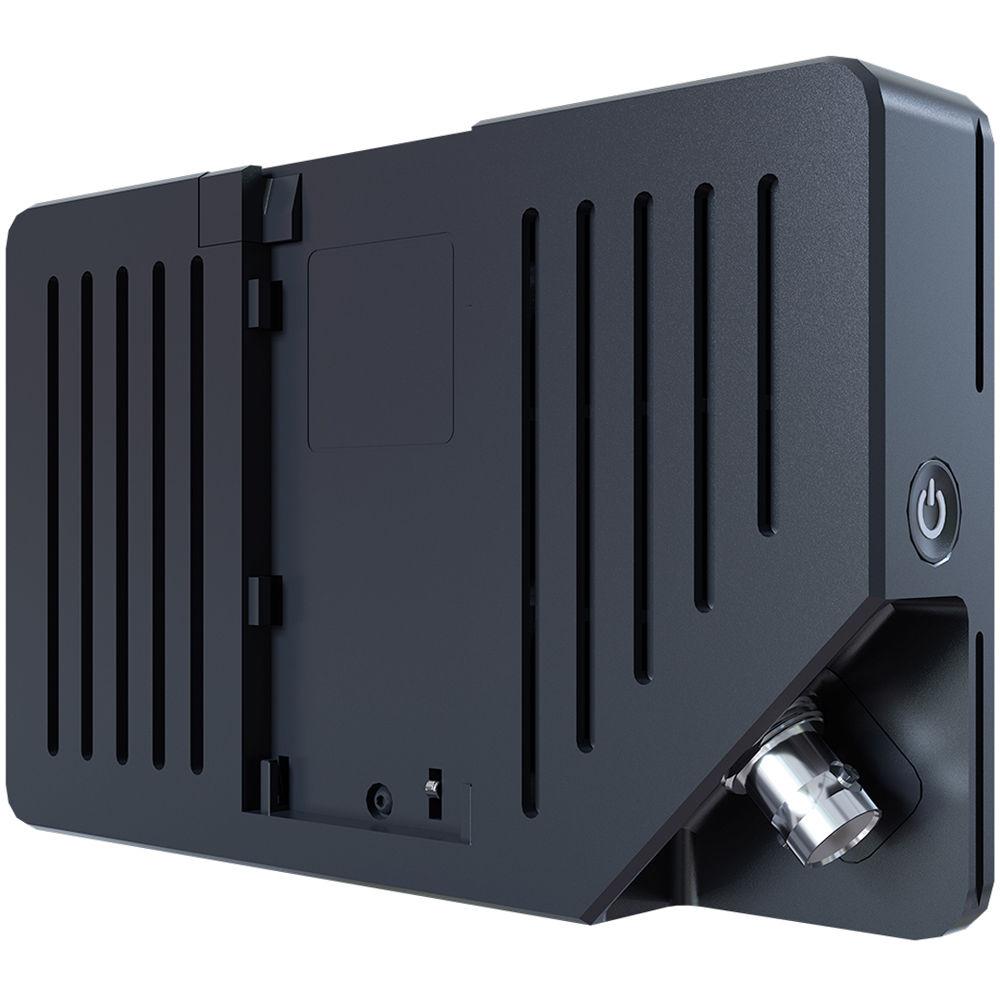

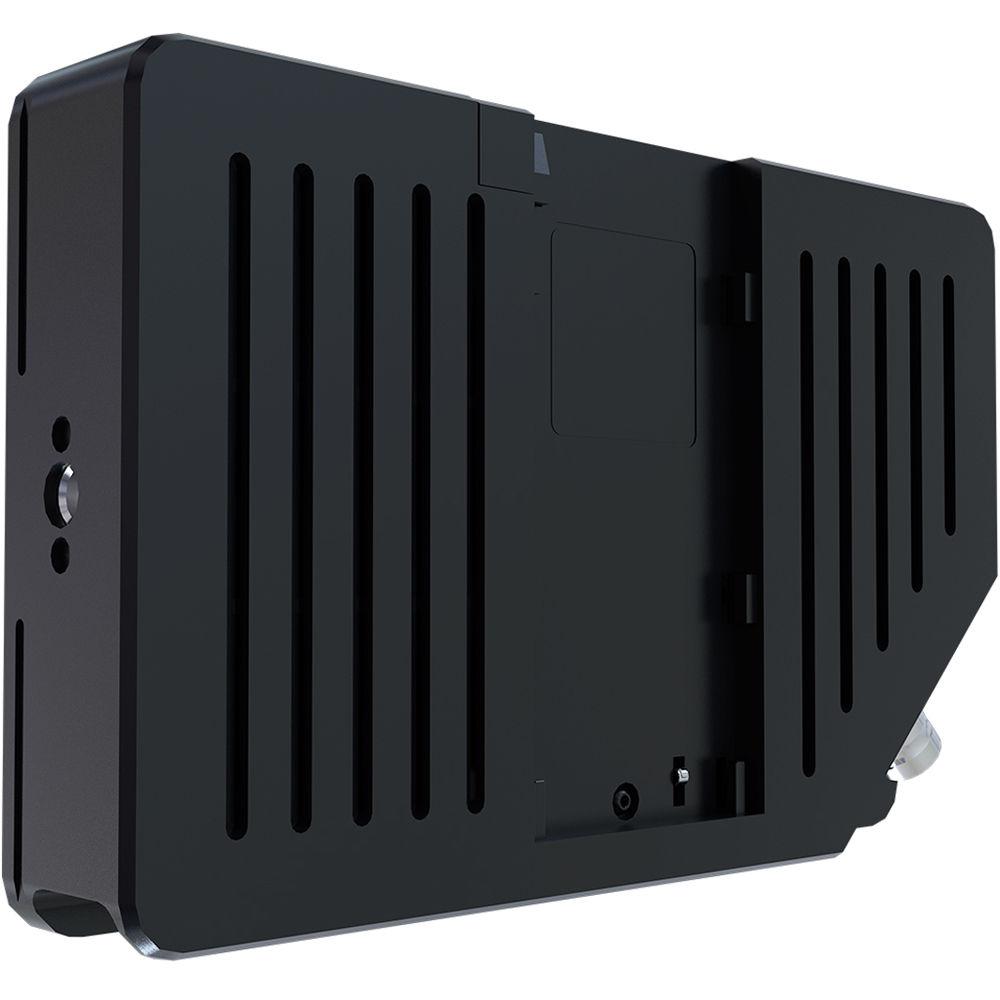

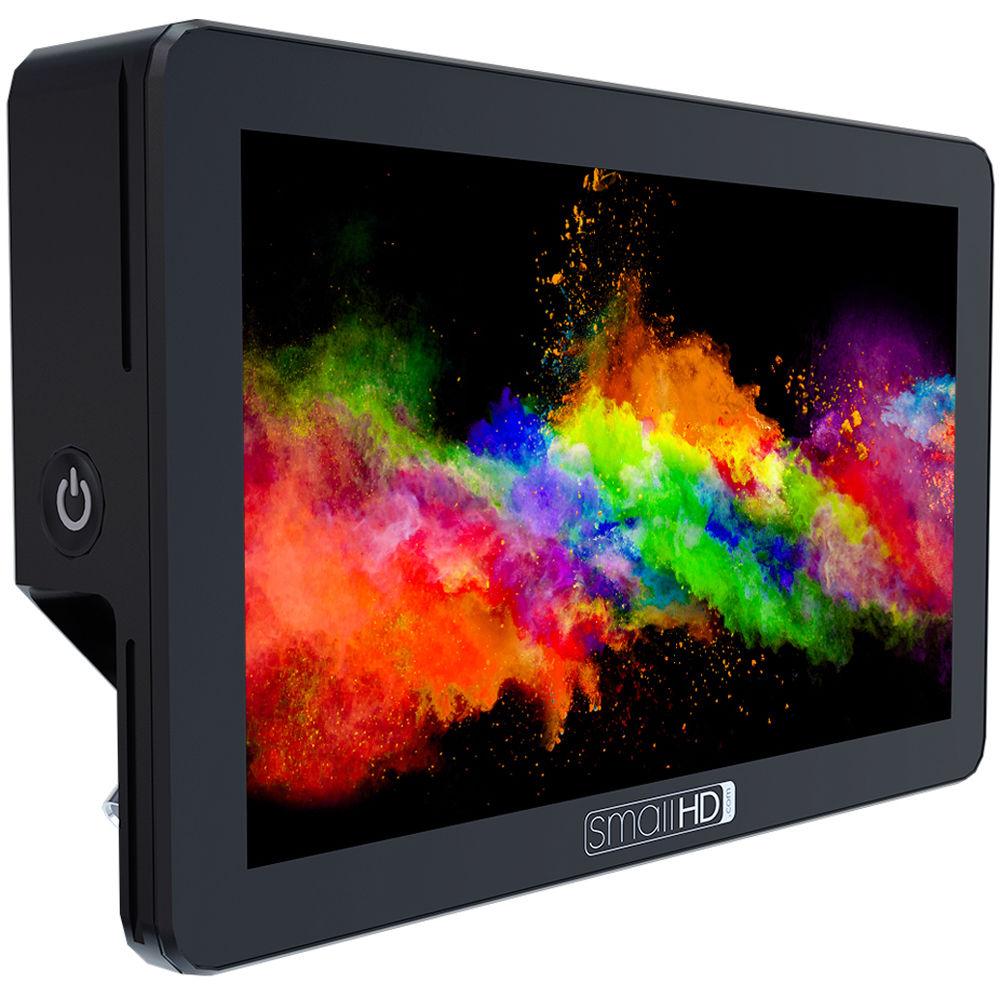

Product description Choose Your Own Accessories with SmallHD's FOCUS Base Monitors Read More The SmallHD 5.5" FOCUS Base OLED SDI Monitor combines the accuracy of an OLED display with the ability to power select DSLR and mirrorless cameras. Viewable even in full daylight, this onboard monitor's 350 cd/m² bright 1920 x 1080 OLED panel is great for pulling focus and features a single SDI input. Coupling the touchscreen display with SmallHD's intuitive OS3, you can turn on various monitoring tools like waveform, false color, and vectorscope, as well as focusing aids like peaking, with a tap on the screen. Swipe OS also allows you to load and save profiles and load custom LUTs.Powered by a single Sony L-series type battery (not included), this versatile monitor can also supply power to select cameras when used with a separately available adapter cable. Display features include 2x and 4x pixel zoom, multiple anamorphic de-squeeze functions, false color options, image overlay, and up to 8-channel audio metering. The FOCUS OLED's rubberized plastic form includes three 1/4"-20 threaded mounting points. Additional features include SD card storage, a 3.5mm stereo headphone jack, and a low 5.76W power draw. - Display Features
-
- Supports up to UHD 4K video
- SD card slot for loading custom LUTs
- Wide color gamut display
- 2x and 4x pixel zoom
- 1.33x, 1.5x, 1.66x, and 2.0x anamorphic de-squeeze
- Automatic/manual image flip and rotation
- Waveform, zebra, and vectorscope
- Preset and custom frame guides
- Software Features
-
- Pixel zoom: 2x and 4x with smooth pan via pinch zoom gesture
- Frame guides: Preset aspect ratios and customizable
- DSLR scale: Canon 5D Mark II and 7D
- Custom scale: Underscan only
- Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
- Image rotate: Automatic or manual control
- Image flip: Automatic or manual control
- Focus assist: User-adjustable color style and intensity
- Peaking: User-adjustable intensity
- False color spectrum: ARRI-style and user customizable
- Zebra: Dual, user configurable
- Waveform: Luma and RGB style, fully user customizable with region of interest highlighting
- Vectorscope: Yes
- RGB parade: User customizable
- Histogram: Luma and RGB style
- Image capture: Dedicated button and image gallery
- Custom LUTS: Loadable as looks on pages or as system-wide color calibration via the settings menu
- LUT downstream: Applied on output preview page
- LUT import: Via SD card or USB storage device
- Image overlay: Opacity slider and blink setting
- Audio meters: Up to 8-channel
- Camera Power
- An output port enables you to power your camera directly from an NP-F L-series battery mounted on the monitor, increasing runtimes over the standard batteries of many DSLR or mirrorless cameras.
- Convenient Mounting
- Attach the FOCUS OLED monitor to your camera's shoe or 1/4"-20 thread using the optional FOCUS Tilt Arm.
UPC: 811786030903 In the Box SmallHD 5.5" FOCUS Base OLED SDI Monitor Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SmallHD 5.5" FOCUS Base OLED SDI Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmallHD Focus OLED Specs | | | Panel Type | OLED | | Display Size | 5.5" / 14.0 cm | | Screen Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Viewing Angle | 160° | | Touchscreen | Yes | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 60,000:1 | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Color Gamut | 105% NTSC | | Real-Time LUT Monitoring | SDR | | Image Controls | Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Image Flip, RGB Parade, Screen Markers, Underscan, Waveform, Zebra, Vectorscope | | | | Video | 1 x BNC (3G-SDI) Input | | Embedded Audio | SDI | | Audio | 1 x 3.5 mm Line Input
1 x 3.5 mm Headphone Output | | Built-In Speaker | None | | Power | 1 x Barrel Output | | Other I/O | 1 x USB 2.0 (Micro-USB) For future use | | Card Slot | 1 x SD | | | | Video Format | SDI (10-Bit 4:2:2)
1080p: 60/59.94/50
1080i: 60/59.94/50
SDI (8-Bit 4:4:4/4:2:2 YCC)
1080p: 60/59.94/50
1080i: 60/59.94/50
1080PsF: 29.97/25/24/23.98
720p: 60/59.94/50
SDI (10-Bit 4:2:2 YCC)
PAL: 25
NTSC: 59.94 | | | | DC Input Power | 6 to 8.4 VDC | | Battery Type | 1 x L-Series | | Power Consumption | 5.76 W | | | | Mounting | 3 x 1/4"-20 Female | | | | Operating Temperature | 32 to 140°F / 0 to 60°C | | | | Dimensions (W x H x D) | 0.77 x 3.45 x 5.5" / 1.96 x 8.76 x 13.97 cm | | Weight | 9 oz / 255 g |
