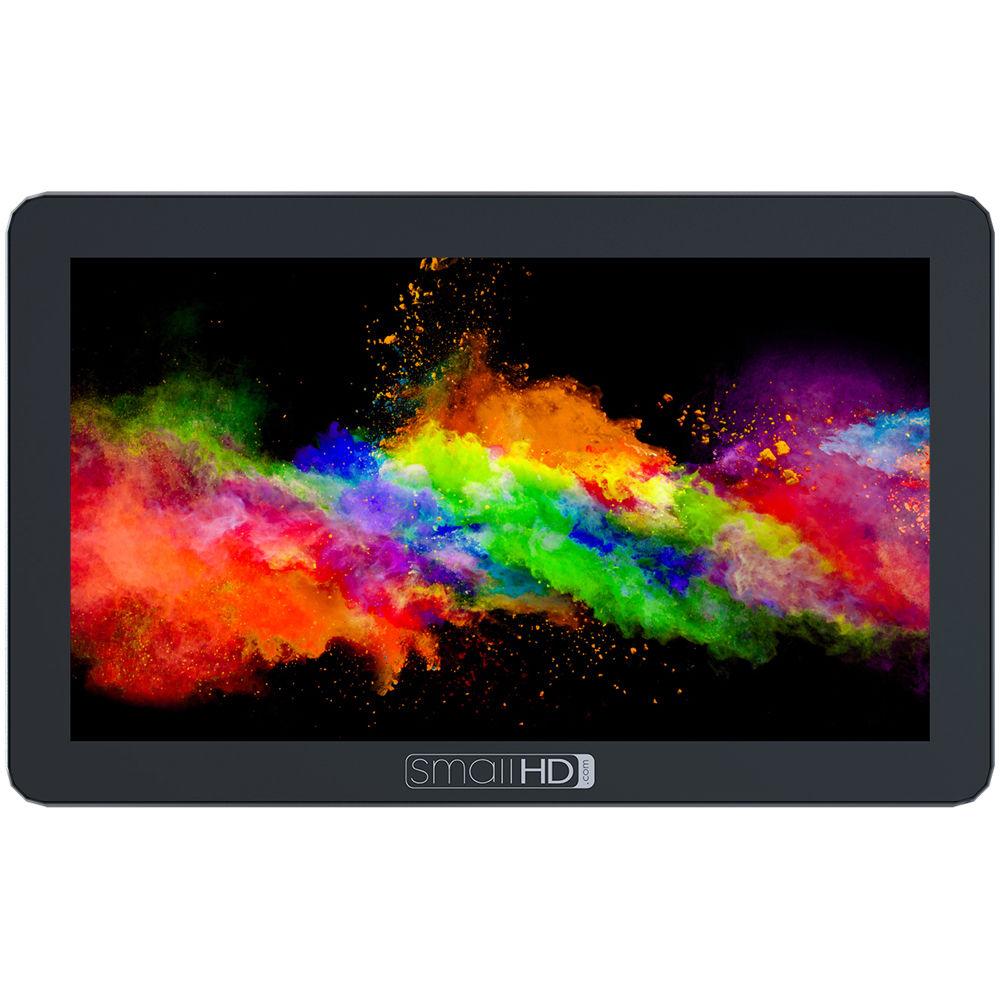

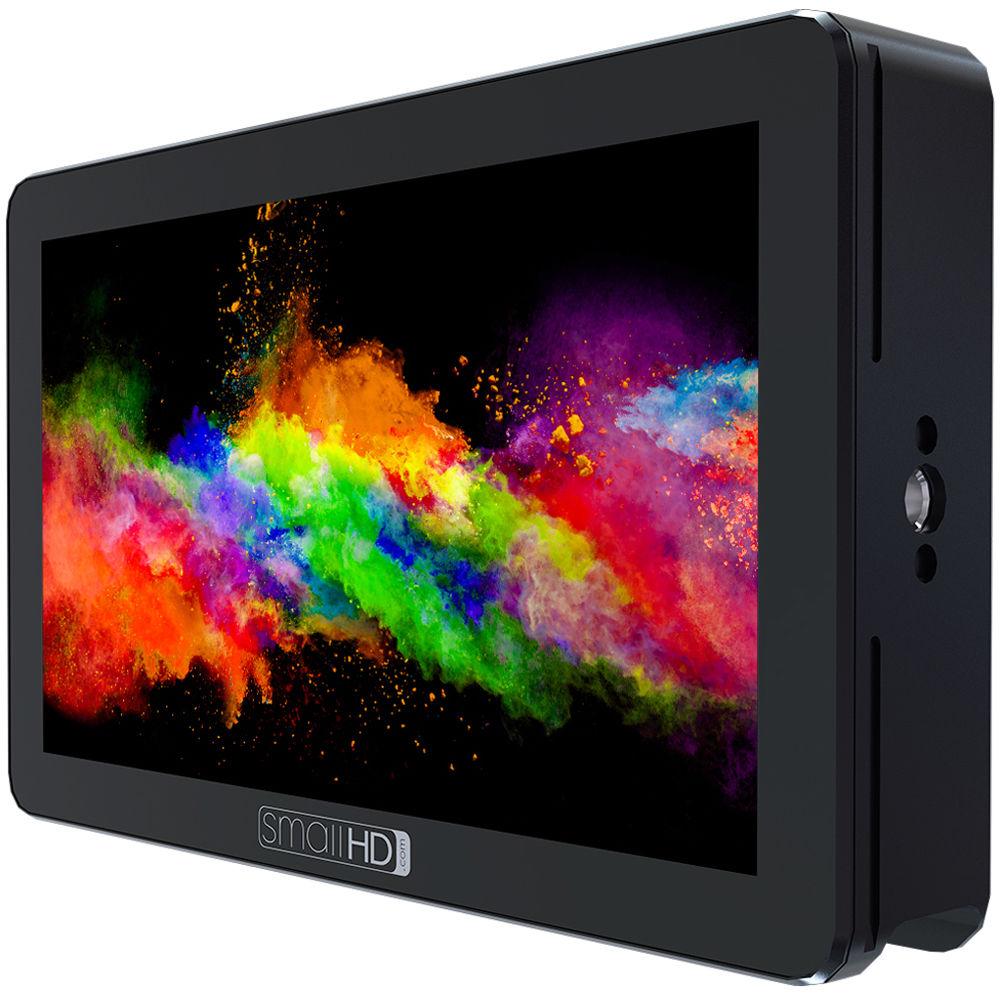

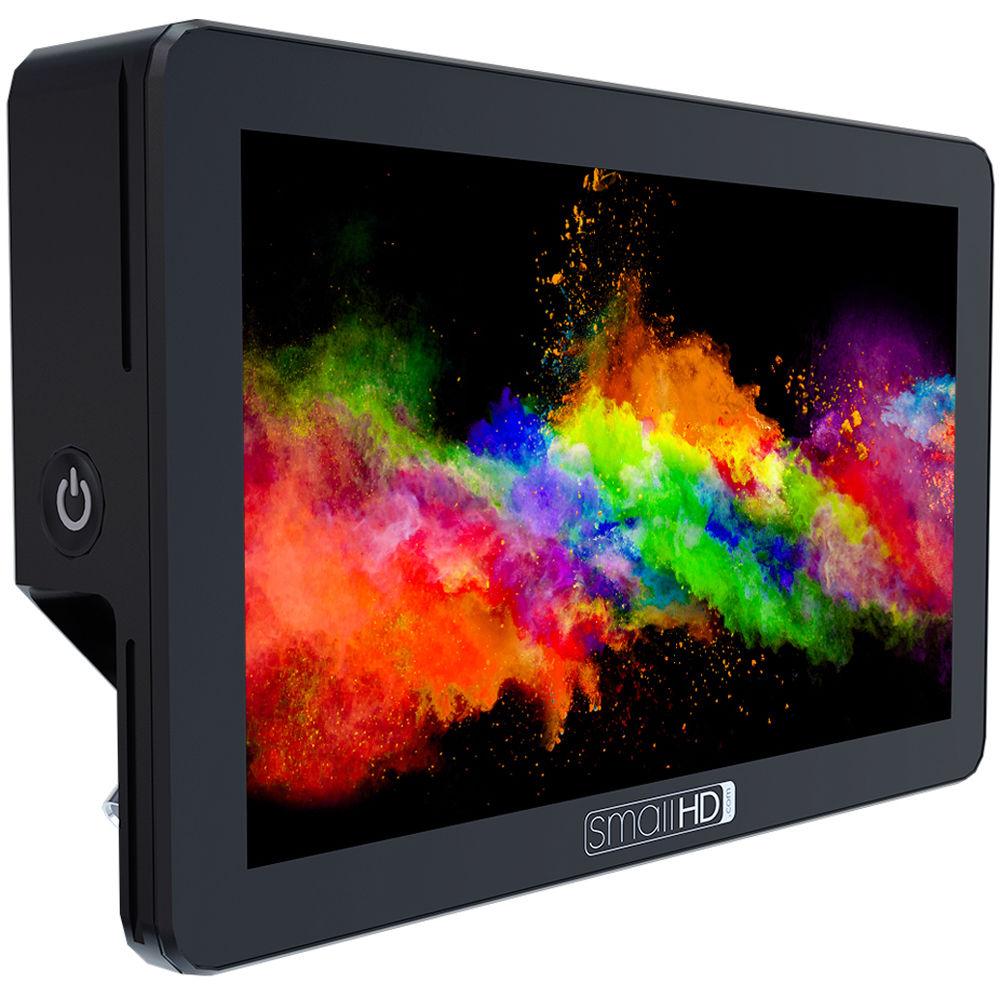

User Manual for SmallHD 5.5" FOCUS OLED Monitor Click to enlarge the picture
Contents of the user manual for the SmallHD 5.5" FOCUS OLED Monitor
- Product category: On Camera Monitors SmallHD
- Brand: SmallHD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SmallHD On Camera Monitors
 |
User manual for the SmallHD 5.5" FOCUS OLED Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SmallHD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SmallHD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SmallHD product will considerably shorten its lifespan!
|

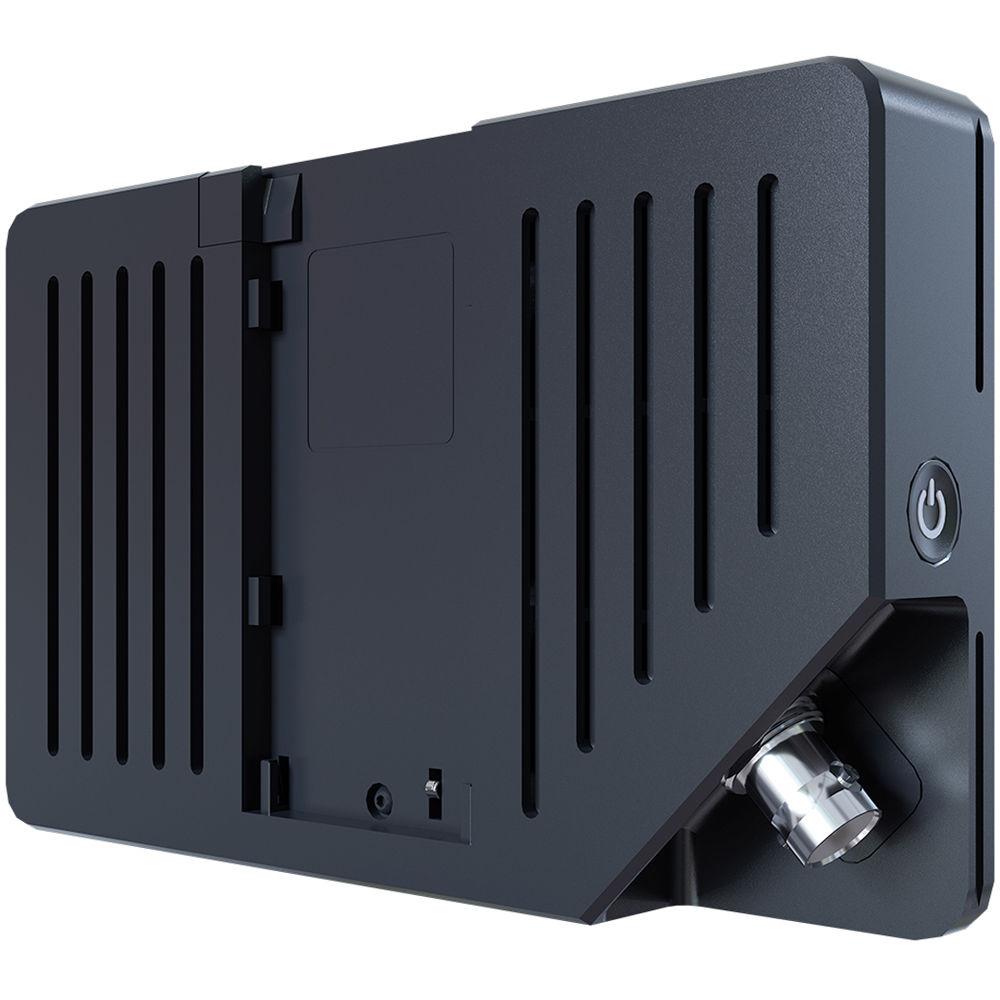

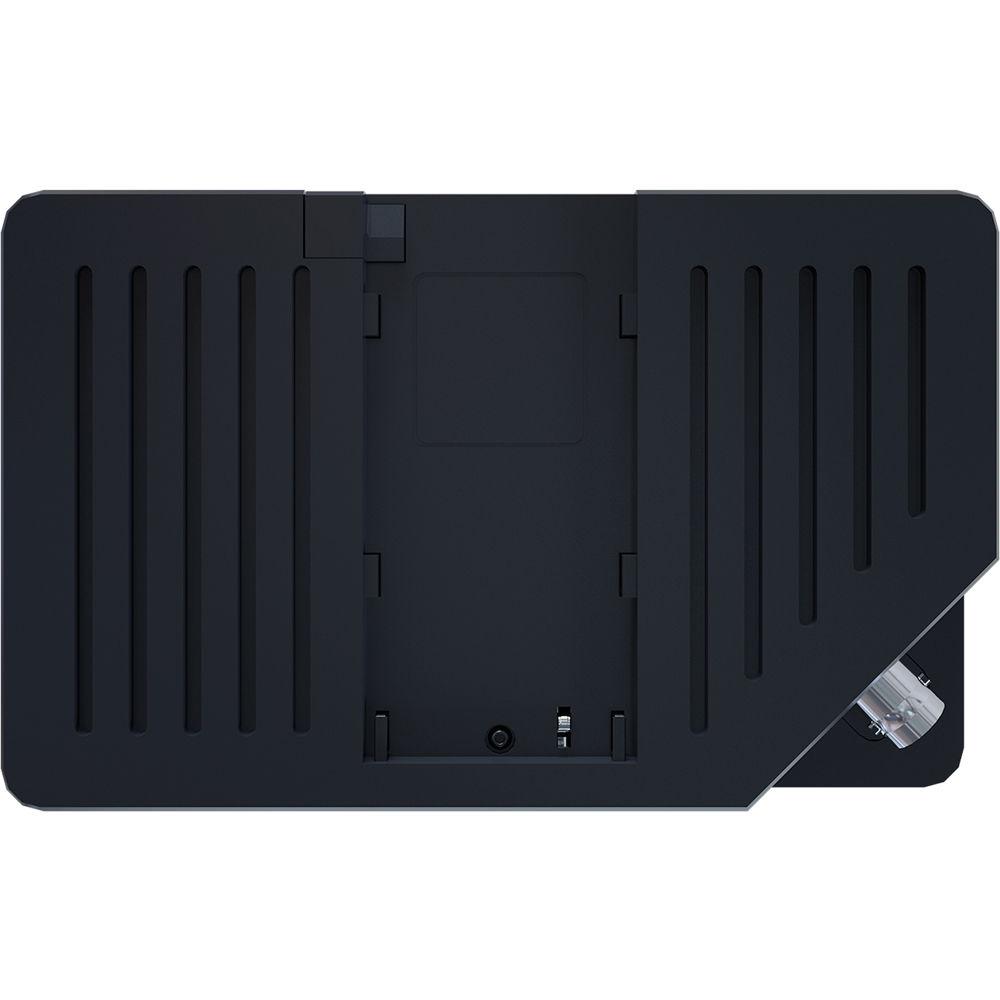

Product description The SmallHD 5.5" FOCUS OLED SDI Monitor combines the accuracy of an OLED display with the ability to power select DSLR and mirrorless cameras. Viewable even in full daylight, this onboard monitor's 350 cd/m² bright 1920 x 1080 OLED panel is crisp enough for pulling focus, and features a single SDI input. Load custom LUTs and access focus and monitoring tools like waveform, false color, and vectorscope using the touchscreen interface.Powered by a single Sony L-series type battery (not included), this versatile monitor can also supply power to select cameras when used with a separately available adapter cable. Display features include 2x and 4x pixel zoom, multiple anamorphic de-squeeze functions, false color options, image overlay, and up to 8-channel audio metering.A Tilt Arm is included with the monitor for mounting to your camera's accessory shoe or 1/4"-20 threaded hole. The FOCUS OLED's rubberized plastic form includes three 1/4"-20 threaded mounting points. Additional features include SD card storage, a 3.5mm stereo headphone jack, and a low 5.76W power draw. - Display Features
-
- Supports up to UHD 4K video
- SD card slot for loading custom LUTs
- Wide color gamut display
- 2x and 4x pixel zoom
- 1.33x, 1.5x, 1.66x, and 2.0x anamorphic de-squeeze
- Automatic/manual image flip and rotation
- Waveform, zebra, and vectorscope
- Preset and custom frame guides
- Camera Power
- An output port enables you to power your camera directly from an NP-F L-series battery mounted on the monitor, increasing runtimes over the standard batteries of many DSLR or mirrorless cameras.
- Convenient Mounting
- Attach the FOCUS OLED monitor to your camera's shoe or 1/4"-20 thread using the included FOCUS Tilt Arm. The Tilt Arm enables 180° of tilt for convenient monitoring, and incorporates a cold shoe.

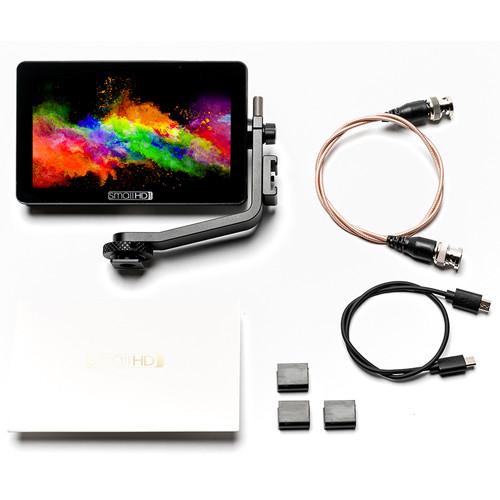

UPC: 855534007892 In the Box SmallHD 5.5" FOCUS OLED Monitor (SDI) FOCUS 180 Degree Tilt Arm Mount for Select On-Camera Monitors UltraClear Screen Protector for FOCUS OLED Thin BNC Cable (24") Micro-USB Type-B Male Cable (12") ydbsberavvsdbyfz 4 x Focus Cable Clip Cleaning Cloth Limited 1-Year Warranty Quick start Guide PDF 1.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the SmallHD 5.5" FOCUS OLED Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

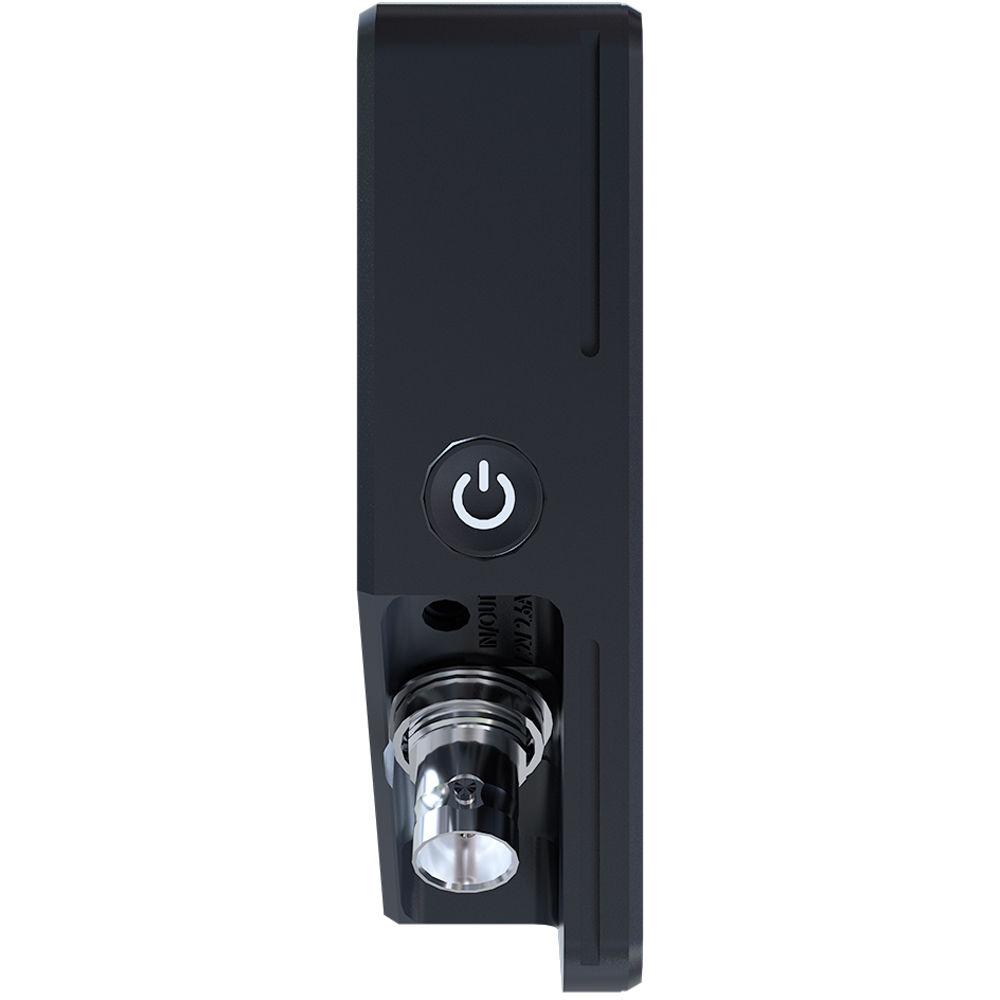

Technical parametersSmallHD Focus OLED Specs | | | Panel Type | OLED | | Display Size | 5.5" / 14.0 cm | | Screen Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Viewing Angle | 160° | | Touchscreen | Yes | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 60,000:1 | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Color Gamut | 105% NTSC | | Real-Time LUT Monitoring | SDR | | Image Controls | Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Image Flip, RGB Parade, Screen Markers, Underscan, Vectorscope, Waveform, Zebra | | | | Video | 1 x BNC (3G-SDI) Input | | Embedded Audio | SDI | | Audio | 1 x 3.5 mm Line Input
1 x 3.5 mm Headphone Output | | Built-In Speaker | None | | Power | 1 x Barrel Output | | Other I/O | 1 x USB 2.0 (Micro-USB) For future use | | Card Slot | 1 x SD | | | | Video Format | SDI (10-Bit 4:2:2 YCC)
1080p: 50/60
1080i: 60
NTSC: 29.97
PAL: 50
SDI (8-Bit 4:4:4/4:2:2 RGB, YCC)
1080p: 24/25/30/60
1080i: 50/60
1080PsF: 24/25
720p: 50/60 | | | | DC Input Power | 6 to 8.4 VDC | | Battery Type | 1 x L-Series | | | | Mounting | 3 x 1/4"-20 Female | | | | Operating Temperature | 32 to 140°F / 0 to 60°C | | | | Dimensions (W x H x D) | 3.4 x 0.8 x 5.5" / 8.64 x 2.03 x 13.97 cm | | Weight | 9 oz / 255 g | | | | Package Weight | 1.64 lb | | Box Dimensions (LxWxH) | 9.5 x 7.0 x 2.0" |
