Product description If you want a high quality on-camera-monitoring solution that comes with everything you need, check out the SmallHD 501 HDMI On-Camera Starter Kit. The kit includes two batteries with a charger, a sunhood for shooting outdoors, three replaceable screen protectors, a convenient panning and tilting shoe-mount, HDMI cables, a protective neoprene sleeve, and a cleaning cloth. Everything in the kit fits nicely into the included hardshell case for storage and transport. See below for more information on the individual items included in this kit. - 501 HDMI On-Camera Monitor with 3D LUT Support SmallHD's 501 HDMI On-Camera Monitor with 3D LUT Support brings full HD resolution to a durable lightweight on-camera monitor the size of a smartphone. The screen packs 441 pixels per inch, providing a sharp clear image on such a small screen. It features HDMI input and HDMI output. With a rubberized aluminum frame, the unit is 3/4" thick and weighs about 9 ounces, so it is light enough to mount to your camera without weighing you down, yet extremely rugged.
Small HD has developed a menu system designed to be easy to navigate with the built-in joystick. Within the system is the Pages system, which allows you to create and store up to 8 preset configurations. You can easily see the effect of your configurations on the image, swiping between the configurations using the joystick. The 501 supports 3D LUTs, and you can save those as a configuration page as well. It is worth pointing out that you can apply a configuration page setting to either the monitor's screen, the output, or both at the same time. You can also assign a different configuration set up to the monitor's screen and the output. You can mount the SmallHD Sidefinder to the 501 to use it as an EVF, SmallHD Sidefinder not included. - Firmware 2.2 Features
-
- HD Waveform, Vectorscope, and Histogram
- Headphone Jack
- Still Image Capture
- Audio Meters
- Custom Zebra
- Peaking
- Custom Scale
- Pixel Zoom
- DSLR Scale
- Anamorphic De-Squeeze
- The SmallHD 501 on-camera monitor features a Full HD, 1920x1080, LCD display, with a pixel density of 441 PPI. The 501's LCD display is able to produce 85% NTSC Color Gamut (greater than the REC. 709 color standard), rivaling the color capabilities of OLED technology.
- The monitor sports HDMI input and HDMI output.
- You can apply a 3D LUT to the monitor and still view your video in real-time.
- The configuration system, Pages, allows you to create and store up to 8 presets. Presets can include focus aids, exposure aids, camera metadata, 3D LUTs. Once created, you can navigate between the presets merely by swiping the built-in joystick. You can see up to three presets displayed on the screen at the same time as you swipe between the presets, which is different than having to engage a menu system and trying to remember what the name of the preset means. You can see the effect of your configuration on the video.
Small Hard Case for 500-Series Monitors Protect your 500-series monitor with this Small Hard Case from SmallHD. The inside of the case is comprised of pick-and-pluck foam which can be easily customized to the shape of your monitor and essential accessories you may want to carry alongside your monitor. A rubber gasket seal keeps the case air and water-tight, while an automatic pressure purge system ensures the case is easy to open in pressure-differential situations. Molded-in padlock holes near the latches let you guard your monitor from theft. Once everything is packed up and the case is secured with the locking latches, the molded carry handle provides a comfortable way to transport your equipment. - Construction
- High-impact molded case with neoprene O-ring seal
- Fully customizable, pick-apart foam insert
- Automatic pressure purge system
UPC: 857497005786 LP-E6 Battery and Charger Kit Power your monitor with the SmallHD LP-E6 Battery and Charger Kit, an all-inclusive battery solution for SmallHD monitors. This kit comes with two LP-E6 type batteries and a single-bay charger. The charger has a convenient flip-out USA plug which can be adapted for European use via the included Euro plug. If you're on-the-go, the 12 VDC power connector can also be used to connect the charger. UPC: 850246006317 Sun Hood for 500 Series Monitors Improve your outdoor viewing experience on your 500-series monitor with this Sun Hood from SmallHD. Made from flexible neoprene and rigid plastic, the hood fits over the outside chassis of the monitor and stretches to cover the screen and block out stray reflections. With the reduced glare, the image can be viewed more accurately in harsh lighting situations. Once you're done using the hood, it can be folded flat for easy storage. UPC: 857497005793 Acrylic Screen Protector for 501 or 502 Monitors Made from hard acrylic, this SmallHD Screen Protector installs without tools on 501 or 502 monitors, protecting the front of the screen. Since it installs using a plastic clip, replacements can easily be done in the field with a minimum of downtime. Note: This protector is not compatible with Bright or UltraBright monitors - Compatible Models
- 501
502 UPC: 857497005892 Pan/Tilt Mount for 500 Series Monitor The Pan/Tilt Mount from SmallHD is a shoe-mount that enables pan and tilt adjustment of your camera-mounted 500 series monitor. Compact in design, the mount is designed to live on the back of the monitor, attaching via two screws to the area between two battery slots and underneath the video connectors. When not in use, the mount simply folds away into the back of the monitor for storage. Included with the mount is a tool to adjust pan/tilt fiction to the desired level. - Features
-
- Attaches directly to the back of a 500 series monitor
- Pan and tilt adjustments
- Adjustable pan/tilt friction levels
- Compact design
- Folds into back of monitor when not in use
- Made from milled aluminum and Delrin
- Ideal for camera-top use
Thin-Gauge Mini-HDMI Male Cable (12") Connect your portable devices to HDMI displays with the 12" Thin-Gauge Mini-HDMI Male Cable from smallHD. This RoHS-compliant cable allows you to transfer movies, photos, and videos from devices like smartphones, digital cameras, and video cameras with mini-HDMI connectors to view on your standard HDMI (type-A) television, projector, or computer monitor. UPC: 857497005915 Thin-Gauge Micro-HDMI Male Cable (12") Connect your portable devices to HDMI displays with the 12" Thin-Gauge Micro-HDMI Male Cable from smallHD. This RoHS-compliant cable allows you to transfer movies, photos, and videos from devices like smartphones, digital cameras, and video cameras with micro-HDMI connectors to view on your standard HDMI (type-A) television, projector, or computer monitor. UPC: 857497005922 Neoprene Sleeve for DP4 Monitor This black Neoprene Sleeve for DP4 Monitor from SmallHD is a custom-fit, padded neoprene sleeve that protects your field monitor from scratches and incidental impact during travel. It is a quick convenient cover for transport of your monitor in a gear bag. - Compatibility
- DP4 Field Monitor
- Though not designed to protect your monitor from hard impacts, the ACC-SLEEVE-5 can help protect it from dings, scratches, and minor impacts while in transport from shoot to shoot

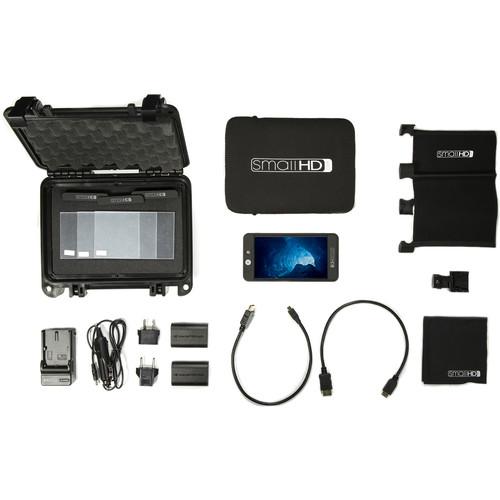

UPC: 850246006089 Microfiber Cleaning Cloth Made from a non-abrasive material, this Microfiber Cleaning Cloth from SmallHD is a safe option for cleaning glass surfaces and coatings on a monitor or camera. It measures approximately 7 x 7" and is easily stored in a bag or pocket when not in use. UPC: 850246006126 In the Box Bundle Items 501 HDMI On-Camera Monitor with 3D LUT Support ubrtqtydyv Small Hard Case for 500-Series Monitors LP-E6 Battery and Charger Kit - 2 x LP-E6 1300mAh Li-ion Battery with Smart Chip Technology
- 12V Vehicle Power Adapter
Sun Hood for 500 Series Monitors Acrylic Screen Protector for 501 or 502 Monitors Pan/Tilt Mount for 500 Series Monitor Thin-Gauge Mini-HDMI Male Cable (12") Thin-Gauge Micro-HDMI Male Cable (12") Neoprene Sleeve for DP4 Monitor Microfiber Cleaning Cloth Table of Contents
|
Upload User Manual
Have you got an user manual for the SmallHD 501 HDMI On-Camera Starter Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 501 HDMI On-Camera Monitor with 3D LUT Support
Material of Construction | Rubberized machined aluminum | LCD Size | 5" Diagonal | Resolution | 1920 x 1080 | Pixel Density | 441 PPI | Brightness | 400 cd/m2 | Backlight | LED | Contrast Ratio | 1500:1 | Color Gamut | 85% NTSC (100% Rec 709) | Color Depth | 8-bit | Viewing Angle | 179° | Input and Output Connectors | Input HDMI
Output HDMI | Mounting | 3x 1/4"-20 | Weight | 9.0 oz / 255 g | | Box Dimensions (LxWxH) | 6.7 x 4.7 x 2.0" | - Small Hard Case for 500-Series Monitors
Compatibility | SmallHD 500-series monitors | Interior Dimensions | 7.5 x 5.0 x 3.2" (19.1 x 12.7 x 8.1 cm) | Dimensions | 8.7 x 7.5 x 3.9" (22.4 x 19.1 x 9.9 cm) | Weight | 24 oz (0.7 kg) | | Box Dimensions (LxWxH) | 8.75 x 7.45 x 3.85" | - LP-E6 Battery and Charger Kit
Voltage | Charger Input: 120 - 240 VAC | Battery Type | 2 x LP-E6 type | Battery Chemistry | Lithium-Ion | Output Voltage | 7.2 VDC | Battery Capacity | 1300 mAh | | Box Dimensions (LxWxH) | 4.8 x 4.2 x 2.25" | - Sun Hood for 500 Series Monitors
Dimensions (D x H x W) | Installed: 5 x 3 x 5" / 127 x 76 x 127 mm Folded: 5 x 1 x 1" / 127 x 25 x 25 mm | | Box Dimensions (LxWxH) | 6.5 x 6.2 x 0.7" | - Acrylic Screen Protector for 501 or 502 Monitors
| Box Dimensions (LxWxH) | 6.95 x 5.0 x 0.5" | - Pan/Tilt Mount for 500 Series Monitor
Construction | Milled aluminum and Delrin | Dimensions (H x W) | 1.4 x 1.2" (3.6 x 3.1 cm) | Weight | 1 oz (28.4 g) | | Box Dimensions (LxWxH) | 10.0 x 7.3 x 0.2" | - Thin-Gauge Mini-HDMI Male Cable (12")
Connector 1 | HDMI Type-C Male | Connector 2 | HDMI Type-A Male | Cable Length | 12" / 30.5 cm | Certifications | RoHS, as per Manufacturer | Outer Diameter | 0.2" / 4.5 mm | Weight | 0.6 oz / 17 g | | Box Dimensions (LxWxH) | 6.45 x 6.3 x 0.6" | - Thin-Gauge Micro-HDMI Male Cable (12")
Connector 1 | HDMI Type-D Male | Connector 2 | HDMI Type-A Male | Cable Length | 12" / 30.5 cm | Certifications | RoHS, as per Manufacturer | Outer Diameter | 0.2" / 4.5 mm | Weight | 0.8 oz / 22.7 g | | Box Dimensions (LxWxH) | 6.5 x 5.6 x 0.45" | - Neoprene Sleeve for DP4 Monitor
Material | Padded neoprene | Type of Closure | Slip flap closure | Thickness | 0.1" / 3mm | Weight | 1.6 oz / 45.4 g | | Box Dimensions (LxWxH) | 6.5 x 5.0 x 0.25" | - Microfiber Cleaning Cloth
| Box Dimensions (LxWxH) | 4.0 x 3.1 x 0.2" |
