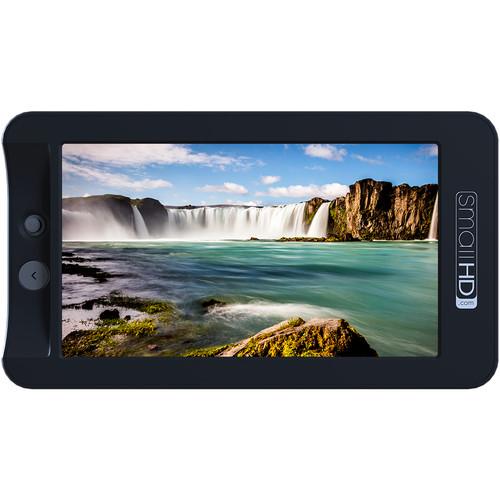

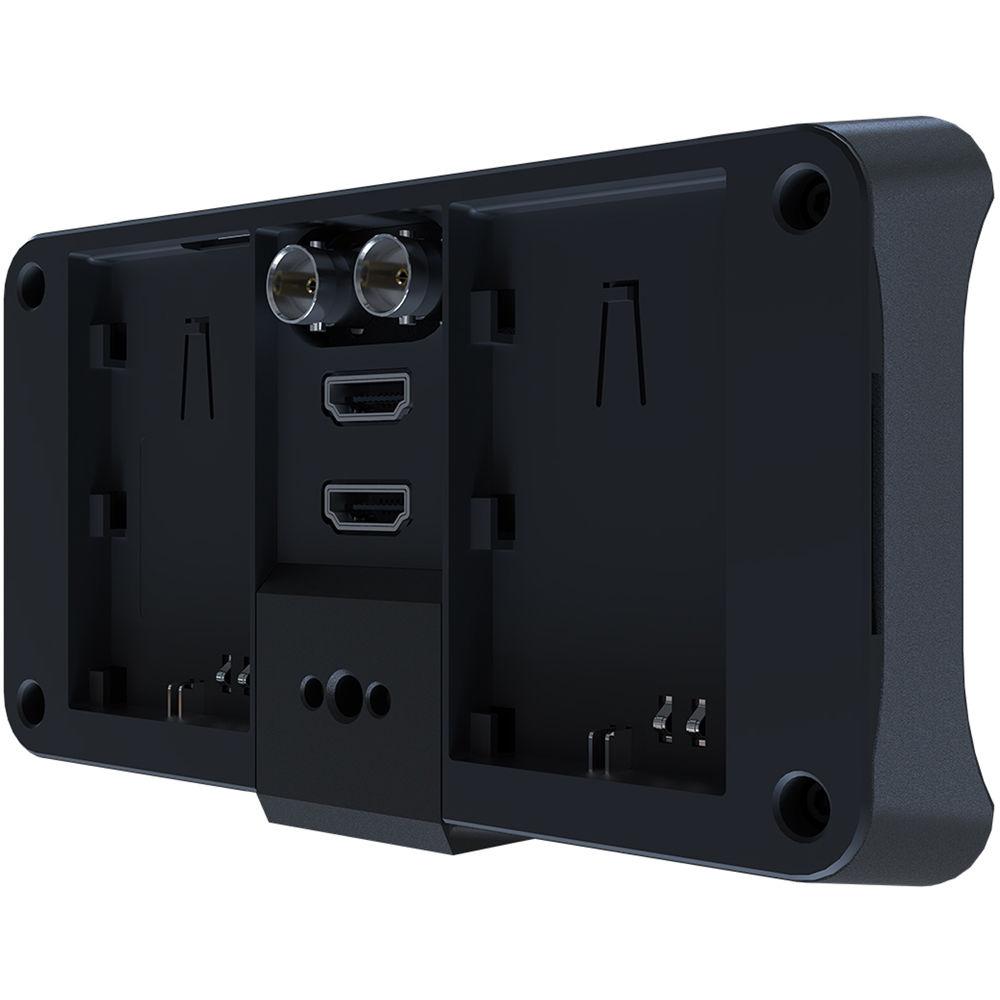

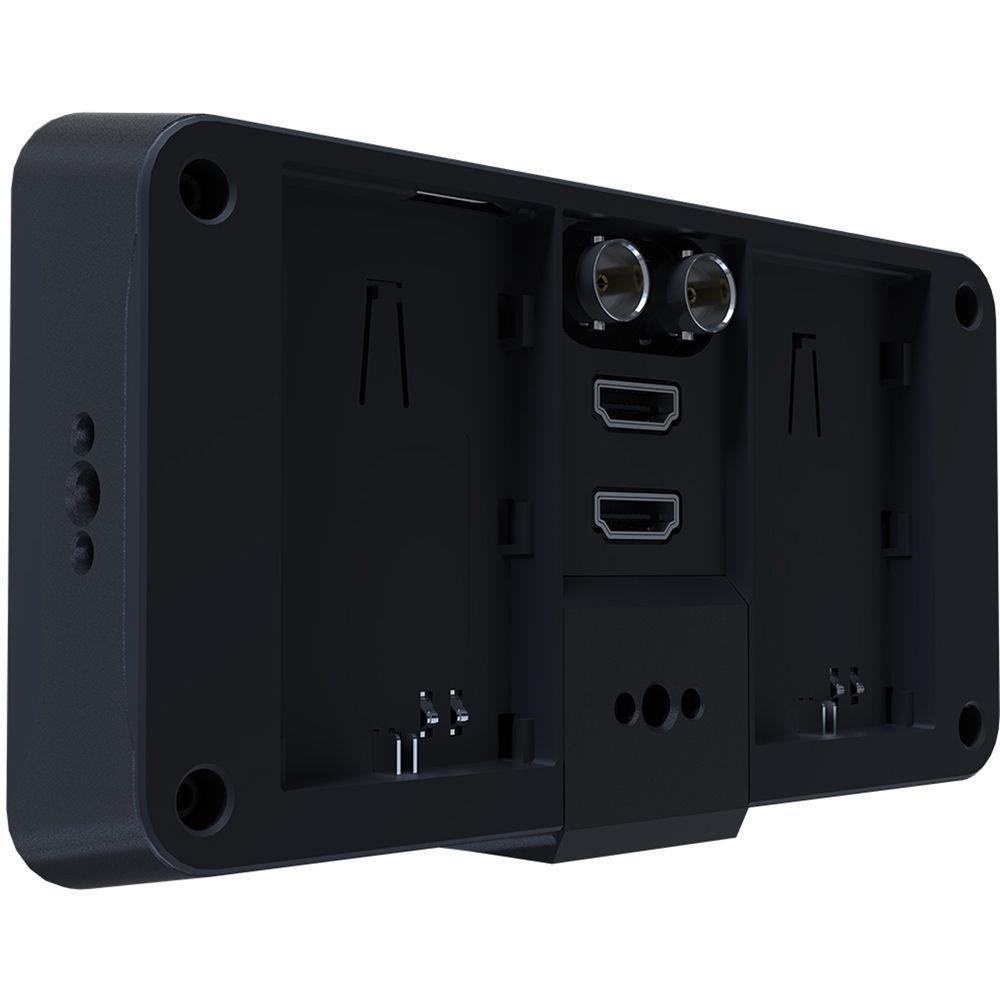

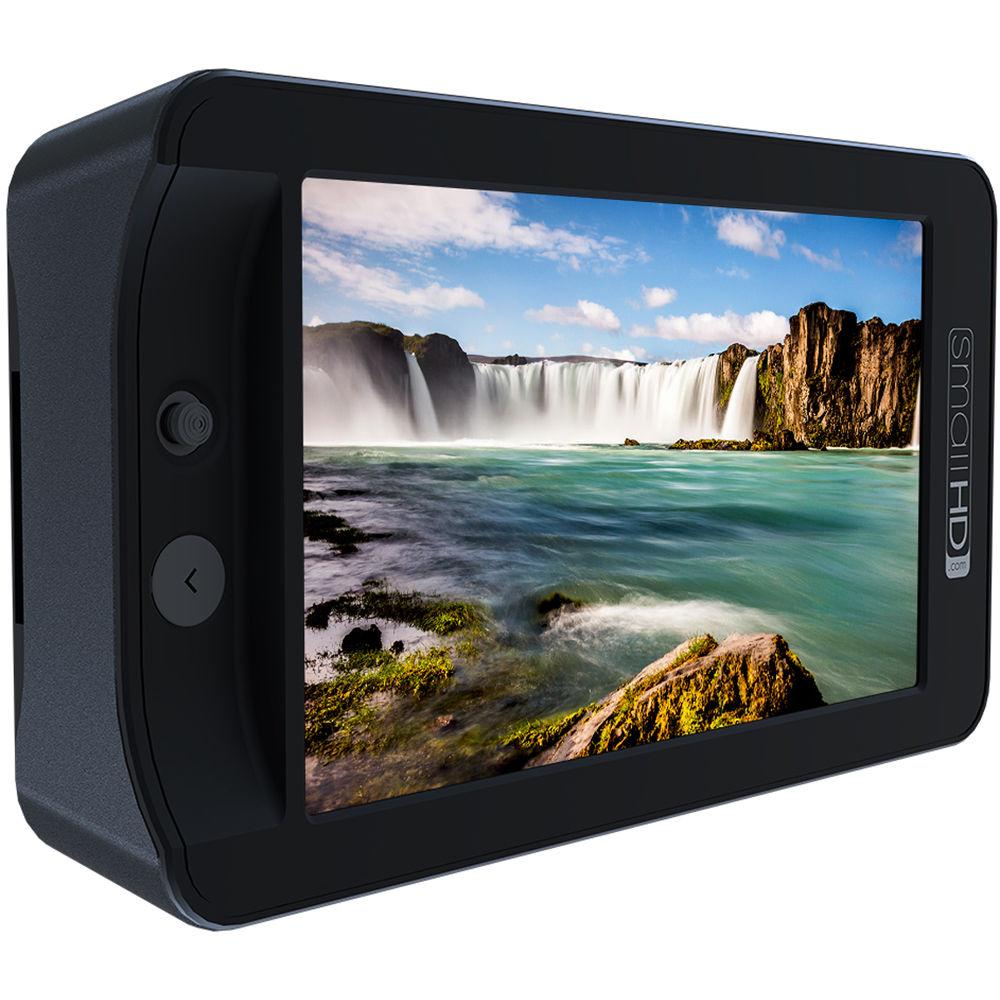

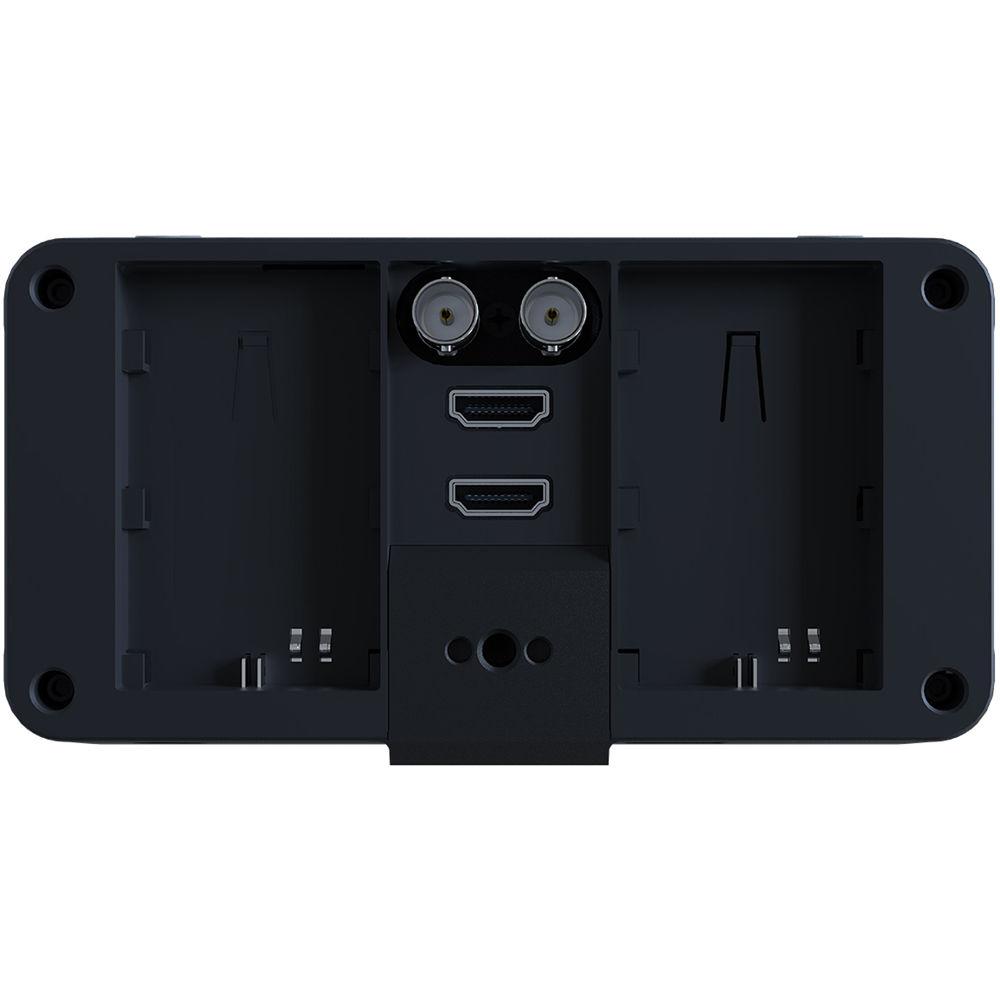

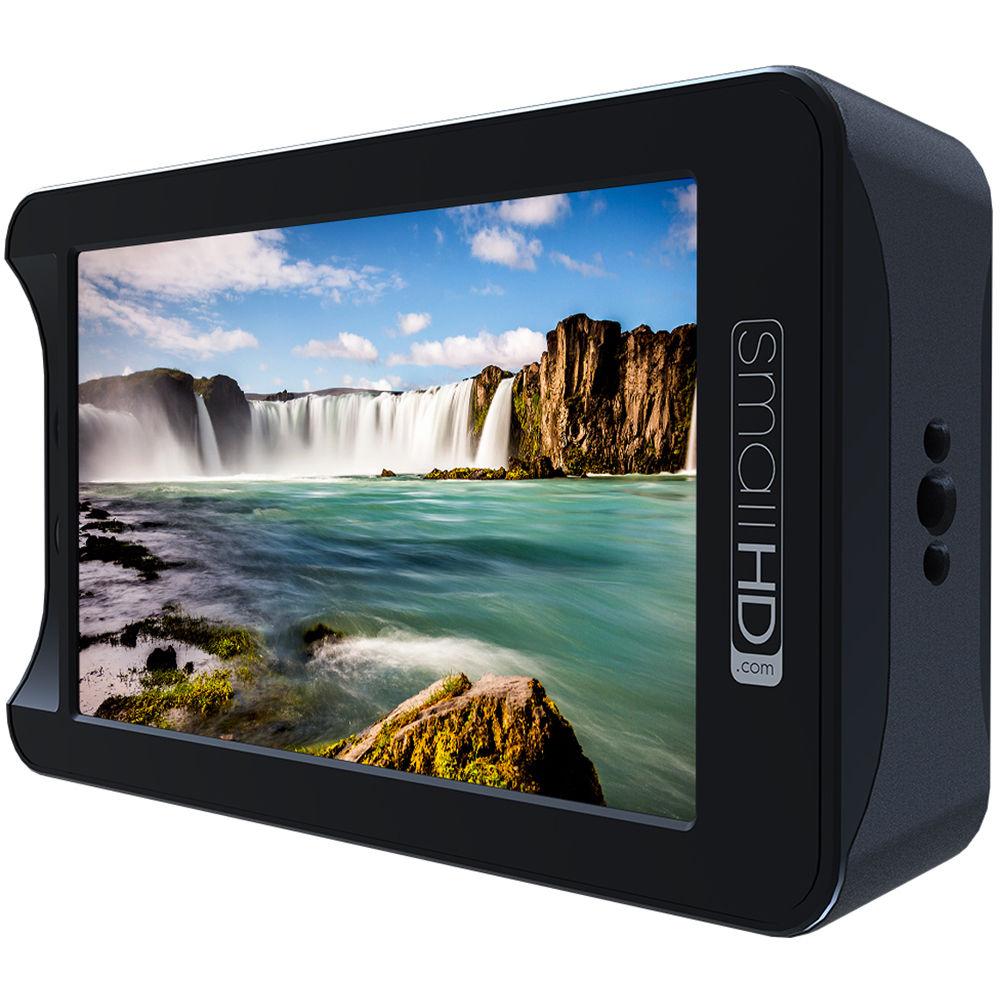

Product description Based off the original 502 monitor, the SmallHD 502 Bright On-Camera Monitor brings a bright 1000 cd/m² panel to the compact platform. While the 5" display is bright it doesn't sacrifice resolution, yet it won't overwhelm a DSLR or mirrorless camera if secured to the accessory shoe. The 1920 x 1080 panel is sharp and can be used to check critical focus and exposure. The wealth of monitoring tools included with this monitor are easily accessible using the innovative PageBuilder OS which utilizes customizable pages to cycle through monitor inputs and outputs, as well as your favorite tools.The unibody aluminum exterior keeps the monitor durable yet lightweight, while also acting as a heatsink for the internal electronics. A bumper is included for further protection. At the rear of the display you'll find the SDI and HDMI I/O. Having two of each port allows for cycling two different signals, cross conversion, or sending a signal downstream to another monitor, switcher, or wireless accessory. - PageBuilder OS
- PageBuilder OS is an intuitive graphical user interface (GUI) that puts all the advanced functionality of the monitor at your fingertips. Rather than have confusing menus, this GUI allows you to selectively apply monitoring tools such as waveform, vectorscope, multiview, LUTs, and focusing aids on different "pages". These pages can be easily flipped through using the joystick. The buttons on the front panel can also toggle monitoring tools on and off for each page.
Software Features - Pixel Zoom: 2x and 4x with region-of-interest selection via joystick
- Automatic and manual image rotation and image flip
- HDMI/SDI cross conversion
- Peaking and color-edge focus assist
- Histograms with RGB parade
- Import LUTs via SD card (LUTs can be sent downstream)
UPC: 850246006195 In the Box SmallHD 502 Bright On-Camera Monitor Bumper Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SmallHD 502 Bright On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmallHD 502 Bright Specs | | | Panel Type | TFT LCD | | Display Size | 5.0" / 12.7 cm | | Screen Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 179° | | Maximum Brightness | 1000 cd/m2 | | Contrast Ratio | 1500:1 | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | Pixels Per Inch (ppi) | 441 ppi | | Color Gamut | 100% Rec. 709 | | Image Controls | Anamorphic De-Squeeze, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform | | | | Video | 1 x BNC (3G-SDI) Output
1 x HDMI Type A Output
1 x BNC (3G-SDI) Input
1 x HDMI Type A Input | | Embedded Audio | HDMI
SDI | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | None | | Other I/O | 1 x USB 2.0 (Micro-USB) | | Card Slot | 1 x SD | | | | Video Format | SDI (10-Bit 4:2:2)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
NTSC
PAL
HDMI (8/10/12-Bit)
1080p: 60/59.94/50/30/25/24/23.98
1080PsF: 30/25/24/23.98
1080i: 60/59.94/50
720p: 120/119.88/100/60/59.94/50/30/25/24/23.98
576p: 100/50
480p: 120/119.88/60/59.94
NTSC: 240/239.76/120/119.88/60/59.94
PAL: 200/100/50 | | | | Mounting | 3 x 1/4"-20 Female | | | | Operating Temperature | 30 to 85°F / -1.1 to 29.4°C | | Storage Temperature | 0 to 120°F / -17.8 to 48.9°C | | | | Dimensions (W x H x D) | 3.4 x 6 x 1.1" / 8.6 x 15.2 x 2.8 cm | | Weight | 9.4 oz / 267 g | | | | Package Weight | 1.385 lb | | Box Dimensions (LxWxH) | 9.5 x 7.05 x 1.95" |
