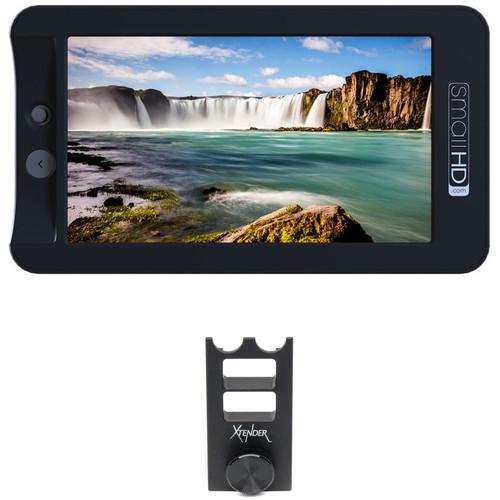

Product description Use the compact SmallHD 502 Bright On-Camera Monitor and Cable Lock Kit to monitor your productions with a sharp, bright display while protecting and locking your cables in place.
The monitor's 5" display features 1920 x 1080 resolution, 1000 cd/m2 brightness, and a 1000:1 contrast ratio. It features numerous settings and tools for monitoring your video, has SDI and HDMI inputs and outputs, and is powered via micro-USB. The included cable lock is designed to fit SmallHD 500 series monitors. It protects your SDI ports from damage, holds your HDMI cables in place to prevent pulling, and comes with one 48" BNC and two 36" HDMI cables. - SmallHD 502 Bright On-Camera Monitor Based off the original 502 monitor, the SmallHD 502 Bright On-Camera Monitor brings a bright 1000 cd/m² panel to the compact platform. While the 5" display is bright it doesn't sacrifice resolution, yet it won't overwhelm a DSLR or mirrorless camera if secured to the accessory shoe. The 1920 x 1080 panel is sharp and can be used to check critical focus and exposure. The wealth of monitoring tools included with this monitor are easily accessible using the innovative PageBuilder OS which utilizes customizable pages to cycle through monitor inputs and outputs, as well as your favorite tools.The unibody aluminum exterior keeps the monitor durable yet lightweight, while also acting as a heatsink for the internal electronics. A bumper is included for further protection. At the rear of the display you'll find the SDI and HDMI I/O. Having two of each port allows for cycling two different signals, cross conversion, or sending a signal downstream to another monitor, switcher, or wireless accessory.
- PageBuilder OS
- PageBuilder OS is an intuitive graphical user interface (GUI) that puts all the advanced functionality of the monitor at your fingertips. Rather than have confusing menus, this GUI allows you to selectively apply monitoring tools such as waveform, vectorscope, multiview, LUTs, and focusing aids on different "pages". These pages can be easily flipped through using the joystick. The buttons on the front panel can also toggle monitoring tools on and off for each page.
Software Features - Pixel Zoom: 2x and 4x with region-of-interest selection via joystick
- Automatic and manual image rotation and image flip
- HDMI/SDI cross conversion
- Peaking and color-edge focus assist
- Histograms with RGB parade
- Import LUTs via SD card (LUTs can be sent downstream)
UPC: 850246006195 - SmallHD 500 Series Monitor Cable Lock Use the 500 Series Monitor Cable Lock from SmallHD to protect your monitor's SDI ports from damage and to hold its HDMI cables in place. Try as we might, there's always a risk of someone or something yanking on monitor cables and damaging the monitor's connectors. This cable lock reduces the chance of both losing your monitor view while shooting, and of incurring a pricey monitor repair. Features include a large thumbscrew to secure the lock to the monitor, two HDMI port surrounds, and two BNC (SDI) cable supports. The 500 Series Monitor Cable Lock comes with one 48" thin BNC to BNC cable, and two 36" HDMI to HDMI cables.
- Compatible SmallHD Monitors
- 501
502 Features - Protects your monitor's cable ports from damage, supports cables in place
- One 48" thin BNC/BNC cable, and two 36" HDMI/HDMI cables are included
- Easily attaches via thumbscrew to the back of the monitor
UPC: 850324007816 In the Box - 502 Bright On-Camera Monitor
- Bumper
- Limited 1-Year Warranty
- 500 Series Monitor Cable Lock
Table of Contents
|
Upload User Manual
Have you got an user manual for the SmallHD 502 Bright On-Camera Monitor and Cable Lock Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - SmallHD 502 Bright On-Camera Monitor
| | | Panel Type | TFT LCD | | Display Size | 5.0" / 12.7 cm | | Screen Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 179° | | Maximum Brightness | 1000 cd/m2 | | Contrast Ratio | 1500:1 | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | Pixels Per Inch (ppi) | 441 ppi | | Color Gamut | 100% Rec. 709 | | Image Controls | Anamorphic De-Squeeze, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform | | | | Video | 1 x BNC (3G-SDI) Output
1 x HDMI Type A Output
1 x BNC (3G-SDI) Input
1 x HDMI Type A Input | | Embedded Audio | HDMI
SDI | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | None | | Other I/O | 1 x USB 2.0 (Micro-USB) | | Card Slot | 1 x SD | | | | Video Format | SDI (10-Bit 4:2:2)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
NTSC
PAL
HDMI (8/10/12-Bit)
1080p: 60/59.94/50/30/25/24/23.98
1080PsF: 30/25/24/23.98
1080i: 60/59.94/50
720p: 120/119.88/100/60/59.94/50/30/25/24/23.98
576p: 100/50
480p: 120/119.88/60/59.94
NTSC: 240/239.76/120/119.88/60/59.94
PAL: 200/100/50 | | | | Mounting | 3 x 1/4"-20 Female | | | | Operating Temperature | 30 to 85°F / -1.1 to 29.4°C | | Storage Temperature | 0 to 120°F / -17.8 to 48.9°C | | | | Dimensions (W x H x D) | 3.4 x 6 x 1.1" / 8.6 x 15.2 x 2.8 cm | | Weight | 9.4 oz / 267 g | | | | Box Dimensions (LxWxH) | 9.5 x 7.05 x 1.95" | - SmallHD 500 Series Monitor Cable Lock
| Dimensions (HxWxD) | 2.5 x 0.5 x 1.25" (6.35 x 1.27 x 3.18 cm) | | Weight | 3 oz (85 g) | | | | Box Dimensions (LxWxH) | 9.65 x 6.45 x 1.75" |
